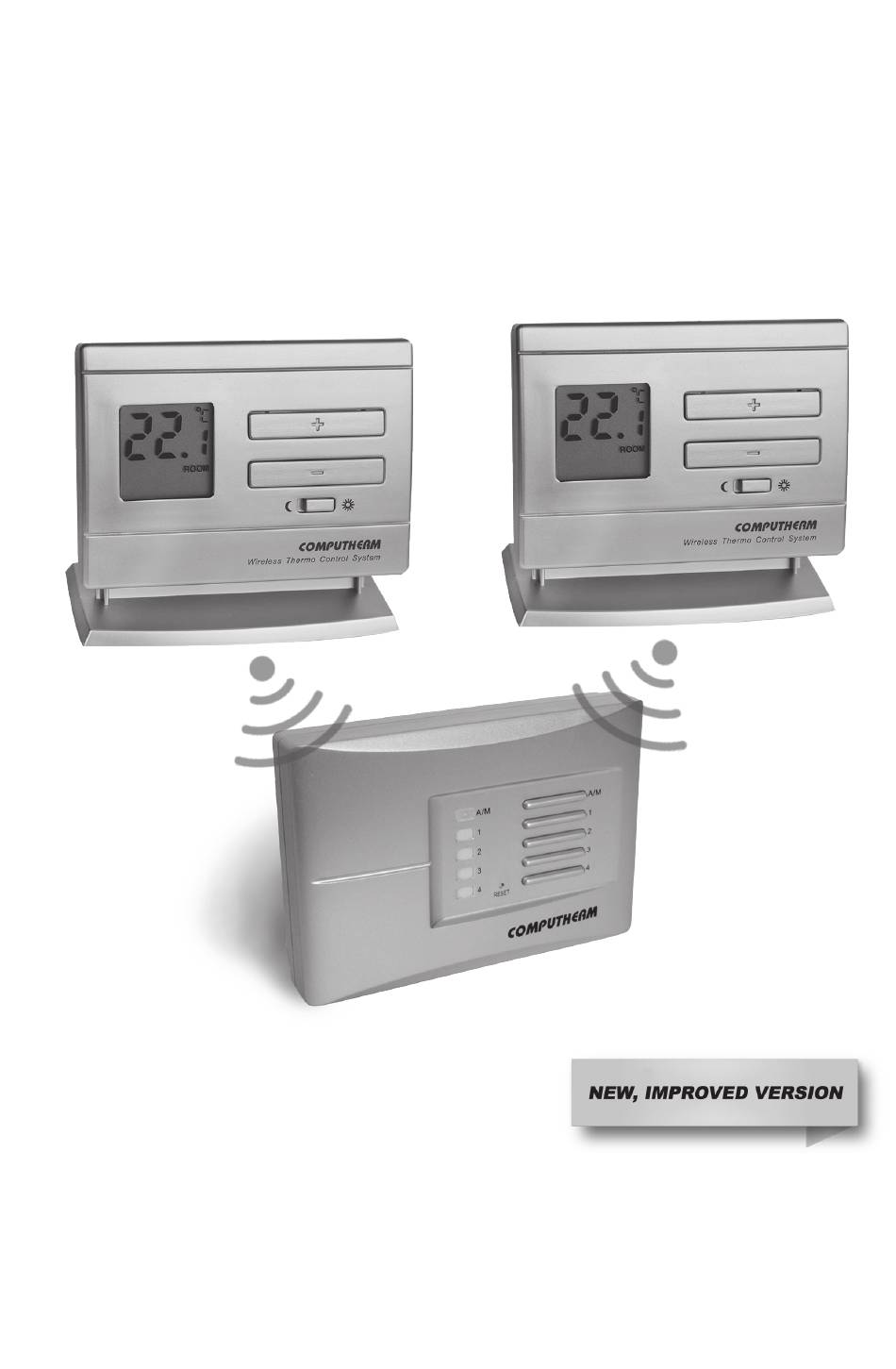

- Page 1 COMPUTHERM Q5RF Multi-zone wireless (radio-frequency) digital room thermostat Operating instructions You can watch the most important aspects of the usage of this thermostat on our video presentation at www.computherm.info...
- Page 2 To control more than 4 zones at a time we recommend using 2 or more COMPUTHERM Q5RF thermostats (1 Q5RF thermostat is needed per 4 zones). In this case, the potential-free connection points controlling the boiler (NO - COM) should be connected to the heater / cooler device in parallel and the zone outputs work separately.
- Page 3 An example of dividing the heating system into zones is shown in the figure below: boiler living room bedroom receiver distributor floor heat. distr. collector floor heat. coll. Temperature can be measured and set more precisely as compared to simple, conventional thermostats.

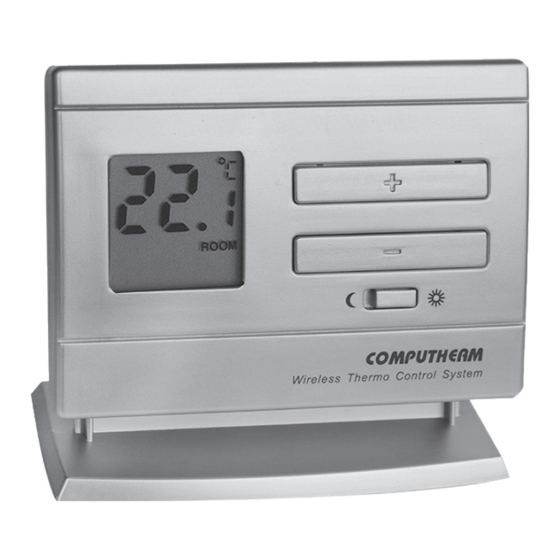

- Page 4 Q1RX socket on our website: www.computherm.info/en) 1. LOCATION OF THE DEVICE The thermostat of the COMPUTHERM Q5RF type device can be freely moved in your residence. It is reasonable to locate it in a room used regularly or for many hours per day so that it is in the direction of natural ventilation in the room but protected from drought or extreme heat (e.g.
-
Page 5: Basic Settings
Warning! Good quality alkaline batteries may only be used for this appli- ance. Carbon-zinc batteries known as durable or long life batteries and charge- able accumulators are not suitable for the operation of this appliance. Icon appearing on the display to indicate low battery voltage warns reliably that the batteries should be replaced only when good quality alkaline batteries are used. - Page 6 If higher comfort is needed, the switching sensitivity should be set so that it provides a steadier room temperature. On the other hand, please also take into account that the boiler should not switch on and off multiple times in an hour’s time except at low outside temperatures (e.g.
-
Page 7: Setting The Desired Temperature
el of the thermostat onto the front panel before synchronisation. The process of synchronisation is described in Section 7.2. 4. SETTING THE DESIRED TEMPERATURE After putting the thermostat into operation and adjusting the basic settings the thermostat is ready for operation and the adjustment of the temperature can be started. -
Page 8: Battery Replacement
WARNING! We recommend that you design the heating system you want to con- trol with the COMPUTHERM Q5RF thermostat so that the heating medium can cir- culate in the closed position of all zone valves when a circulating pump is switched on. - Page 9 2 A (0.5 A inductive). This information should be con- sidered during installation. The receiver unit of COMPUTHERM Q5RF thermostat should be mounted on the wall in a place protected from dripping water, dusty and chemically aggressive environment, extreme heat and mechanical damage.
- Page 10 The size of the connection points of the zone COMPUTHERM Q5RF controller allow at most 2 or 3 devices to be connected in parallel to any heating zone. If more than this is needed for any of the heating zones (e.g.
- Page 11 When the two units of the thermostat can only be located on or outside the boundary of the range due to the layout of the building or the shielding effect of the building structures between the units then, in order to guarantee reliable RF connection, please install a COMPUTHERM type RF transmitter between Q2RF the two units.
- Page 12 order to open the valves of the given heating circuit before starting the pump(s), the NO-COM output of the receiver switches on only after a delay of 4 minutes from the first switch-on signal of the thermostats, while 230 V appears immedi- ately at the output for that zone (e.g.
- Page 13 RF connection, please install a COMPUTHERM Q2RF type RF transmit- ter between the two units.
-
Page 14: Frequently Asked Questions
• Using programmable thermostats you can ensure that every room (zone) is just heated according to a timetable preset in accordance with the demands. (You can obtain information on the services provided by COMPUTHERM Q7; Q7RF and Q8RF programmable room thermostats on our website). -
Page 15: Technical Data
TECHNICAL DATA Technical data of the thermostats (transmitters): ‒ temperature measurement range: 3 to 45 °C (in 0.1 °C increments) ‒ adjustable temperature range: 5 to 40 °C (in 0.5 °C increments) ‒ temperature measurement accuracy: ±0.5 °C ‒ selectable switching sensitivity: ±0.1 °C;... - Page 16 The COMPUTHERM Q5RF type thermostat complies with the requirements of directives RED 2014/53/EU and RoHS 2011/65/EU. QUANTRAX Ltd. Manufacturer: Fülemüle u. 34., Szeged, H-6726, Hungary Phone: +36 62 424 133 • Fax: +36 62 424 672 E-mail: iroda@quantrax.hu Web: www.quantrax.hu • www.computherm.info...
