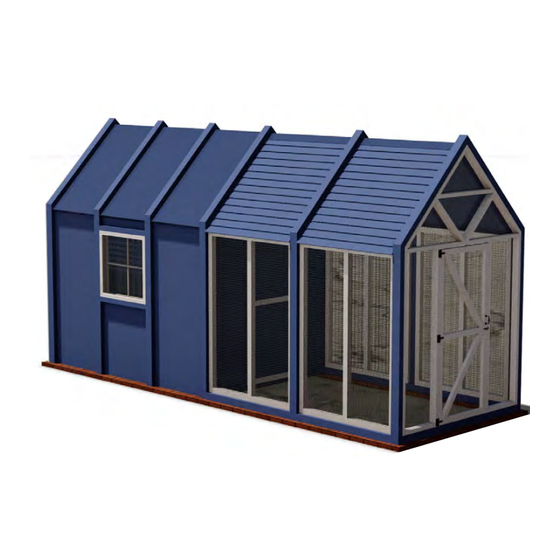

- Page 1 24'x8' Chicken Coop Plan Up to 50 chickens...
- Page 2 Compare our Free vs. Premium plan With this perfectly plan you will quickly and efficiently assemЫe (PREMIUM EDITION) your own shed for any backyard or garden. Advantages of the premium edition: Features Free plan Premium edition Pages count о о lllustrations for Each Step о...
-
Page 3: Material List
24'x8' chicken coop material list Walls Exterior Siding Site Preparation Concrete • Pressure-Treated Lumber • Bricks • Wood siding boards • Top Frame Bottom Frame • Pressure-Treated Lumber • Pressure-Treated Lumber Fasteners & Hardware • Plywood Walls Frames • Corner braces •... - Page 4 STEP 1 Assemble The Bottom Frame 1.1 Assemble the frame using 1 1/2” x 5 1/2” pressure-treated material. You will need two boards cut to 12’ that will be the rim joist and two boards cut to 7’9” that will be the joist.
- Page 5 STEP 2 Framing The Floor 2.1 Provide eight joists from the pressure-treated lumber with cross-section 1 1/2 x 5 1/2 inch and install them into the frame according to the drawing. 2.2 Secure the joists to the bottom frame with 3x4" screws.
- Page 6 STEP 3 Assemble The Aviary's Bottom Frame 3.1 Assemble the rim joists (11'-7" and joists (7'-9" from the 1 1/2 x 5 1/2 inch pressure-treated lumber to the frame according to the drawing with сorner braces and 8x1" wood screws (Node B). 3.2 Using a speed square or carpenter's square, check the corners to make sure the corners are 90 degrees or square.
- Page 7 STEP 4 Assembling the Rafters and Wall Frames At this step, you will need 3 1/2” x 5 1/2” material to create the rafters and the wall studs. 4.1 Using Node C as a guide, cut 12 boards for the rafters. 4.2 Using Node D as a guide, cut 12 boards for the wall studs.
- Page 8 STEP 5 Installing the Roof Sheathing 5.1 Cut 9/16” plywood using the measurements in the drawing below to serve as the roof sheathing. Secure with 2” wood screws.
- Page 9 STEP 6 Install the Metal Roofing 6.1 Using Node’s H and I, prepare the sheet metal (23 Gauge) by making the indicated cuts and bends. 6.2 Use 1 1/2” sheet metal screws and neoprene washers to secure the roofing. Self-tapping screws cost a little more but make this step easier.
- Page 10 STEP 7 Installing the Aviary Roofing 7.1 For the aviary, use 1/2” x 6” wood siding and cut to the dimensions shown in the illustration below. 7.2 Cut a 1/4” x 3/4” starter course using pressure treated material as shown in Node J. The starter course helps to maintain the correct angle for water run-off.
- Page 11 STEP 8 Assemble Front Wall Frame 8.1 Assemble the frame from the pressure-treated lumber with cross-section 1 1/2 x 3 1/2 inch. 8.2 Connect the beams with 2x4" wood screws.
- Page 12 STEP 9 Front Door Assemble And Installation 9.1 Assemble the frame from the pressure-treated lumber with cross section 2 1/2 x 1 1/2 " with 5" wood screws according to the drawing. Prepare and install 9/16" plywood sheet. 9.2 Install door trims from the pressure-treated lumber with cross section 2 1/2 x 3/4" according to the drawing.
- Page 13 STEP 10 Assemble Inner Wall Frame 10.1 Assemble the frame from the pressure-treated lumber with cross-section 1 1/2 x 3 1/2 inch. 10.2 Connect the beams with 2x4" wood screws.
- Page 14 STEP 11 Aviary's Mesh Walls Assemble And Installation For this step, you will need to build four frames. 11.1 Start by cutting 2 1/2” x 2 1/2” pressure treated material using the measurements in the following illustrations. 11.2 Prepare 1/4" wire mesh in the required quantity and install it on the inner side of the frames by industrial stapler.
- Page 15 STEP 12 Aviary's Door Assemble And Installation 12.1 Assemble the frame from the pressure-treated lumber with cross section 2 1/2 x 1 1/2" with 2x5" wood screws according to the drawing. 12.2 Prepare 1/4" wire mesh in the required quantity and install it on the inner side of the frame with the help of industrial stapler.
- Page 16 STEP 13 Final touches Now that your coop is all done, you are ready to decorate it any way you want using your favorite paint, stain, or preservative.
- Page 17 Compare our Free vs. Premium plan With this perfectly plan you will quickly and efficiently assemЫe (PREMIUM EDITION) your own shed for any backyard or garden. Advantages of the premium edition: Features Free plan Premium edition Pages count о о lllustrations for Each Step о...
- Page 18 For more great HOW-TO plans please visit: https://easycoops.com/ Copyright The text and illustrations that appear here are the exclusive property of shedplans.org and are protected by federal copyright laws. The duplication, sale or distribution of any portion of these plans without prior written consent from the original designer will be subject to the appropriate penalties for copyright infringement.
