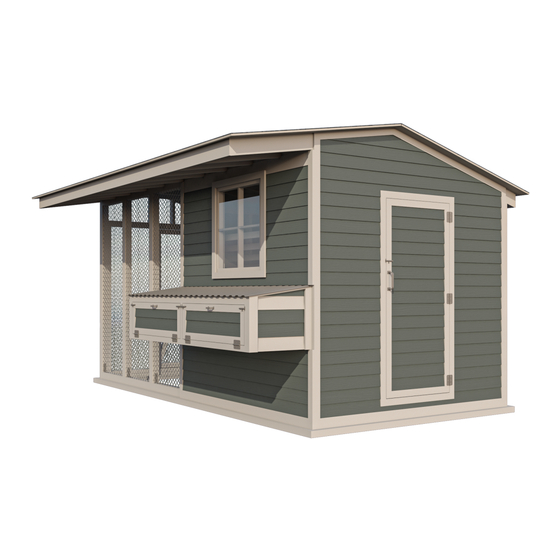

EASY COOPS Chicken Coop Plan 8x16 Assembly Instructions Manual

Up to 20 chickens
Hide thumbs

Advertisement

Quick Links

Download this manual
8'x16' Chicken Coop Plan
Up to 20 chickens

Advertisement

loading

Related Manuals for EASY COOPS Chicken Coop Plan 8x16

Summary of Contents for EASY COOPS Chicken Coop Plan 8x16

  • Page 1 8'x16' Chicken Coop Plan Up to 20 chickens...
  • Page 2 Compare Free vs. Premium plan Free plan Premium edition Pages Illustrations for Each Step Print Ready Step By Step Instructions Full Materials and Cuttings List Additional Illustrations Additional Blueprints Tools List Fastening Elements List Technical Support TRY PREMIUM...

  • Page 3: Material List

    8'x16' chicken coop material list Walls Exterior Siding Site Preparation Concrete • Pressure-Treated Lumber • Bricks • Wood siding boards • Top Frame Bottom Frame • Pressure-Treated Lumber • Pressure-Treated Lumber Fasteners & Hardware • Plywood Walls Frames • Corner braces •...
  • Page 4 STEP 4 STEP 1 Framing the Coop's Floor Framing the Coop's Floor 4.1 Assemble the frame using 1 1/2” x 7 1/4” pressure-treated lumber. You will need seven 1.1 Assemble the frame using 1 1/2" x 7 1/4" pressure-treated lumber. boards cut to 7'-9”...
  • Page 5 STEP 2 STEP 5 Assemble thе Aviary's Bottom Frame Assemble the Aviary's Bottom Frame 5.1 Using 3 1/2“ x 3 1/2“ pressure-treated lumber, construct bottom frame using the drawing 2.1 Using 3 1/2" x 3 1/2" pressure-treated lumber, construct bottom frame using the drawing below as a below as a reference.
  • Page 6 STEP 7 STEP 3 Assemble Front Wall Frame Assemble Front Wall Frame 7.1 Using 1 1/2“ x 3 1/2“ and 3 1/2“ x 3 1/2“pressure-treated lumber, construct wall frame 3.1 Using 1 1/2" x 3 1/2" and 3 1/2" x 3 1/2" pressure-treated lumber, construct wall frame using the using the drawing below as a reference.
  • Page 7 STEP 8 STEP 4 Assemble Back Wall Frame Assemble Back Wall Frame 8.1 Using 1 1/2“ x 3 1/2“ and 3 1/2“ x 3 1/2“pressure-treated lumber, construct wall frame 4.1 Using 1 1/2" x 3 1/2" and 3 1/2" x 3 1/2" pressure-treated lumber, construct wall frame using the using the drawing below as a reference.
  • Page 8 STEP 9 STEP 5 Assemble Left Wall Frame Assemble Left Wall Frame 9.1 Using 1 1/2“ x 3 1/2“ and 3 1/2“ x 3 1/2“pressure-treated lumber, construct wall frame 5.1 Using 1 1/2" x 3 1/2" and 3 1/2" x 3 1/2" pressure-treated lumber, construct wall frame using the using the drawing below as a reference.
  • Page 9 STEP 6 STEP 10 Assemble Right Wall Frame Assemble Right Wall Frame 10.1 Using 1 1/2“ x 3 1/2“ and 3 1/2“ x 3 1/2“pressure-treated lumber, construct wall frame 6.1 Using 1 1/2" x 3 1/2" and 3 1/2" x 3 1/2" pressure-treated lumber, construct wall frame using the using the drawing below as a reference.
  • Page 10 STEP 7 STEP 11 Assemble Inner Wall Frame Assemble Inner Wall Frame 7.1 Using 1 1/2" x 3 1/2" pressure-treated lumber, construct wall frame using the drawing below as a reference. You will need seven boards cut to 6' that will be the studs and two boards cut to 7'-5" that will 11.1 Using 1 1/2“...
  • Page 11 STEP 8 STEP 13 Assemble the Roof Frame Assemble the Roof Frame 13.1 Using 1 1/2 “ x 5 1/2 “ pressure-treated lumber, cut eleven rafters 5'-8 1/2" long for 8.1 Using 1 1/2" x 5 1/2" pressure-treated lumber, cut eleven rafters 5'-8 1/2" long for the front side and the front side and eleven rafters 5'-10 1/2"...
  • Page 12 STEP 9 STEP 23 Window Installation for the Front Wall Window Installation for the Front Wall 9.1 Using 1 1/2" x 2 1/2" pressure-treated lumber, assemble the outer frame for the window as shown in 23.1 Using 1 1/2 “ x 2 1/2 “ pressure-treated lumber, assemble the outer frame for the window as shown in the drawing below.
  • Page 13 STEP 10 STEP 24 Assemble and Install Aviary's Door Assemble and Install Aviary's Door 24.1 Build the door frame for the aviary using 1 1/2 “ x 2 1/2 “ pressure-treated lumber and secure with 10.1 Build the door frame for the aviary using 1 1/2" x 2 1/2" pressure-treated lumber and secure with 5" 5”...
  • Page 14 STEP 11 STEP 25 Aviary's Mesh Wall Installation Aviary's Mesh Wall Installation 25.1 Prepare 1/4" wire mesh in in the amount of 150 ft2 and install it on the inner 11.1 Prepare 1/4" wire mesh in the amount of 150 ft2 and install it on the inner side of the frames with side of the frames with the help of industrial stapler.
  • Page 15 STEP 12 STEP 26 Roof Sheathing Installation Roof Sheathing Installation 26.1 You will need 210 Sq Ft of asphalt shingle roofing. 12.1 You will need 210 Sq Ft of asphalt shingle roofing. 26.2 Add the metal drip edge to the fascias. 12.2 Add the metal drip edge to the fascias.
  • Page 16 STEP 13 STEP 28 Install Chicken Door In The Inner Wall Install Chicken Door In The Inner Wall 28.1 Prepare the 5/8" plywood sheet with dimensions 1'-1 1/4" x 1'-8" for the chicken 13.1 Prepare the 5/8" plywood sheet with dimensions 1'-1 1/4" x 1'-8" for the chicken door according to door according to the drawing.
  • Page 17 STEP 14 STEP 30 Nesting Box Assembly Nesting Box Assembly 30.1 Prepare the 5/8 plywood for horizontal and vertical walls and assembly them with 2" wood 14.1 Prepare the 5/8" plywood for horizontal and vertical walls and assembly them with 2" wood screws. screws.
  • Page 18 STEP 15 STEP 31 Coop's Roost Assembly Coop's Roost Assembly 31.1 Using 1 1/2“ x 3 1/2 “ pressure-treated material, make the roost frame using the 15.1 Using 1 1/2" x 3 1/2" pressure-treated material, make the roost frame using the illustration below as illustration below as a guide and secure with 3”...

  • Page 19: Final Touches

    STEP 16 Final Touches Now that your chicken coop is all done, you are ready to decorate it any way you want using your favorite paint, stain, or preservative.
  • Page 20 Compare Free vs. Premium plan Free plan Premium edition Pages Illustrations for Each Step Print Ready Step By Step Instructions Full Materials and Cuttings List Additional Illustrations Additional Blueprints Tools List Fastening Elements List Technical Support TRY PREMIUM...
  • Page 21 For more great HOW-TO plans please visit: https://easycoops.com/ Copyright The text and illustrations that appear here are the exclusive property of shedplans.org and are protected by federal copyright laws. The duplication, sale or distribution of any portion of these plans without prior written consent from the original designer will be subject to the appropriate penalties for copyright infringement.
