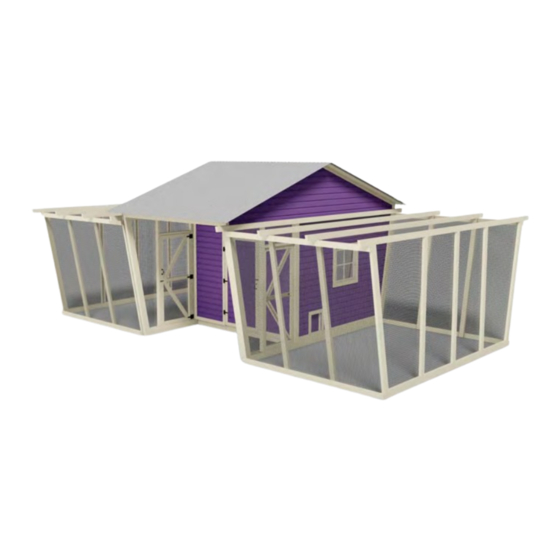

- Page 1 30'x15' Chicken Coop Plan Up to 50 chickens...
- Page 2 Compare Free vs. Premium plan Free plan Premium edition Pages Illustrations for Each Step Print Ready Step By Step Instructions Full Materials and Cuttings List Additional Illustrations Additional Blueprints Tools List Fastening Elements List Technical Support TRY PREMIUM...
-
Page 3: Material List
30'x15' chicken coop material list Walls Exterior Siding Site Preparation Concrete • Pressure-Treated Lumber • Bricks • Wood siding boards • Top Frame Bottom Frame • Pressure-Treated Lumber • Pressure-Treated Lumber Fasteners & Hardware • Plywood Walls Frames • Corner braces •... - Page 4 STEP 1 Assemble The Side Walls Frames It is necessary to prepare 2 bottom plates, 2 top plates and 4 studs for 2 frames. 1.1 Use 3 1/2 “ x 7 1/4 “ material to create the bottom plates and use Node A as for your reference. 1.2 Use 3 1/2 “...
- Page 5 STEP Assemble The Rafter Supports 2.1 Prepare two rafter supports with cross-section 3 1/2 x 5 1/2 inch. 2.2 For this step, you will need four corner braces that measure 1/2 “ x 4 1/2 “ x 1 1/2 “ and two corner braces that measure 3”...
- Page 6 STEP 3 Framing The Floor 3.1 Provide 9 joists from the pressure-treated lumber with cross-section 1 1/2 x 7 1/4 inch and install them into the frame according to the drawing. 3.2 Secure the joists to the bottom frame with 3x5" screws.
- Page 7 STEP 4 11'- 3/4" 1 1/2" 1 1/2" 1 1/2" 1 1/2" 1 1/2" 1 1/2" 1 1/2" 1 1/2" 1 1/2" 1 1/2" 1'-1 1/2" 1'-10 1/4" 1'-2" 1'-2" 1'-2" 1'-2" 1'-2" 1 1/2" 1 1/2" 2'-6" 1 1/2" 9'-7 3/4"...
- Page 8 STEP 5 Assemble Back Wall Frame 5.1 Using 1 1/2 “ x 3 1/2 “ pressure-treated material, construct the wall frame for the back of the coop using the drawing below as a reference. 5.2 Connect the beams with 2x4" wood screws.
- Page 9 STEP 6 Assemble Front Wall Frame 6.1 Using 1 1/2 “ x 3 1/2 “ pressure-treated material, construct the front wall frame using the drawing below as a reference. 6.2 Connect the beams with 2x4" wood screws. 6.3 Use 3/4 “ x 1 1/2 “ pressure-treated material to construct the framing for the door and use the drawing as a guide.
- Page 10 STEP 7 9'-5" 1 1/2" 1 1/2" 1'-5 3/4" 1'-5 3/4" 1 1/2" 10" 1 1/2" 1" 3'-4" 3'- 1/2" 3'- 1/2" 1 1/2" 1 1/2" 1'-4" 1'-4" 1'-4" 1'-4" 1 1/2" 1 1/2" 1 1/2" 1 1/2" 1 1/2" 1"...
- Page 11 STEP 8 Assemble The Roof Frame 8.1 Prepare 14 rafters with cross-section 1 1/2 x 5 1/2 inch (node G). 8.2 Prepare 5 collar ties with cross-section 1 1/2 x 5 1/2 inch (node H). 8.3 Prepare the ridge board with cross-section 1 1/2 x 5 1/2 inch. 8.4 Connect the beams with 2x4"...
- Page 12 STEP 9 Window Installation for Right Wall It is necessary to prepare 2 windows. 9.1 PUsing 1 1/2 “ x 3/4 “ pressure-treated material, cut the outer frame for the window as shown in the drawing below. Additionally, add vertical and horizontal supports using 3/4 “ x 3/4 “ material and cut the recesses for the window hinges.
- Page 13 STEP 10 Assemble and Install Coop Door 10.1 Assemble the frame from the pressure-treated lumber with cross section 2 1/2 x 1 1/2 " with 2x5" wood screws according to the drawing. Prepare and install 9/16" plywood sheet. 10.2 Install door trims from the pressure-treated lumber with cross section 2 1/2 x 3/4" with 2"...
- Page 14 STEP 11 Installing Corrugated Roofing 11.1 To cover the roof will need 250 ft of corrugated roof panel. 11.2 Fasten the panels with 1 1/2" sheet metal screw with neoprene washer. 11.3 Prepare and install two metal roof ridge caps according to the drawing.
- Page 15 STEP 12 Aviary Front and Back Wall Stud Assembly 12.1 Prepare 4 studs with cross-section 1 1/2 x 3 1/2 inch. 12.2 Connect the studs to rafter supports with 4x3" wood screws (node U).
- Page 16 STEP 13 Aviary Door Assembly and Installation 13.1 Assemble the frame from the pressure-treated lumber with cross section 2 1/2 x 2 1/2" with 2x5" wood screws according to the drawing. 13.2 Prepare 1/4" wire mesh in the required quantity and install it on the inner side of the frame with the help of industrial stapler.
- Page 17 STEP 14 Building the Aviary’s Side Wall Frames / Left Side 14.1 Repeat steps 27-34 to assemble left side aviary.
-
Page 18: Final Touches
STEP 15 Final touches Now that your coop is all done, you are ready to decorate it any way you want using your favorite paint, stain, or preservative. - Page 19 Compare Free vs. Premium plan Free plan Premium edition Pages Illustrations for Each Step Print Ready Step By Step Instructions Full Materials and Cuttings List Additional Illustrations Additional Blueprints Tools List Fastening Elements List Technical Support TRY PREMIUM...
