Mounting Instructions; Network Connection - Software House iSTAR Pro 4U Quick Start Installation Manual

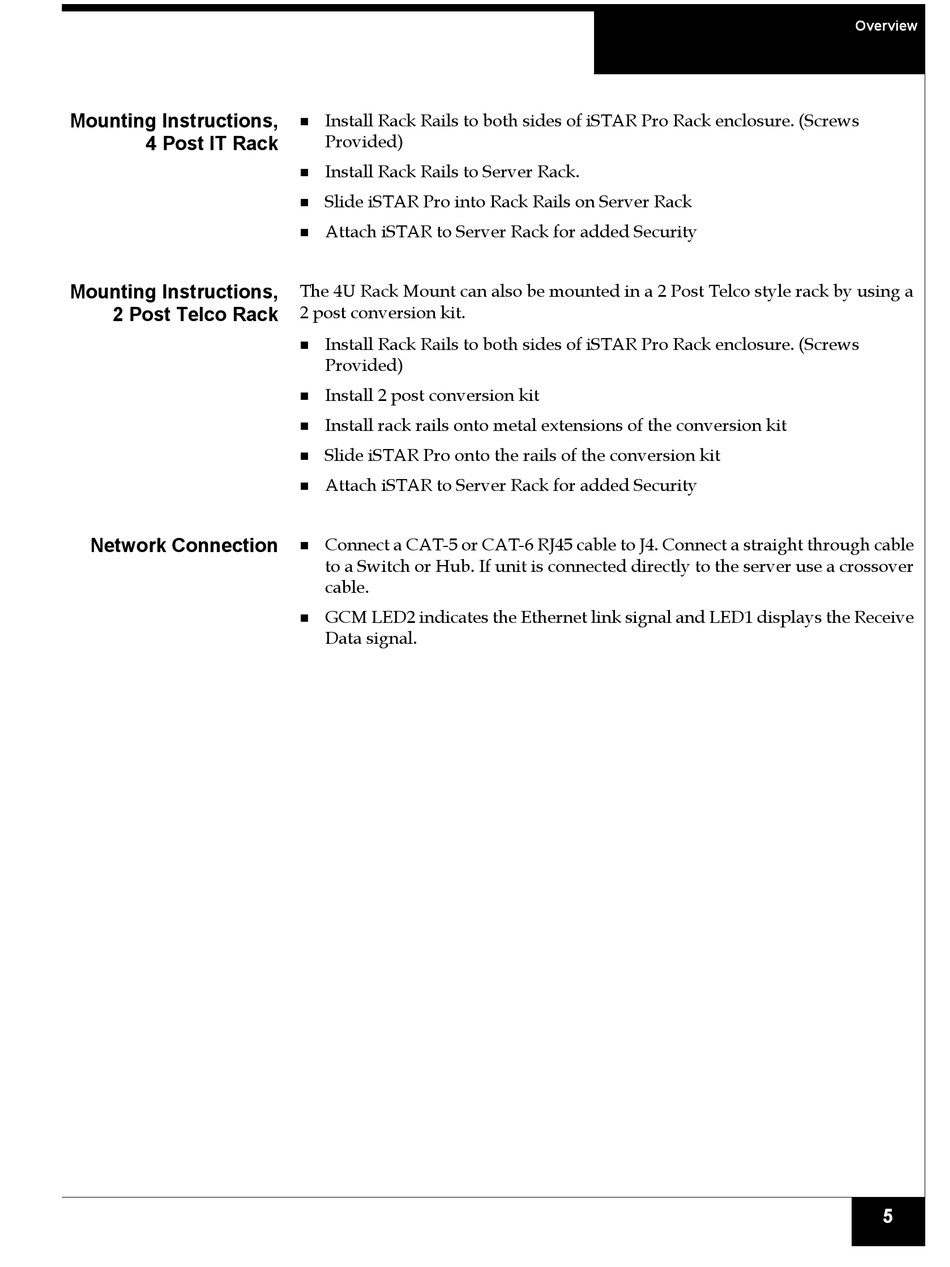

Mounting Instructions,

4 Post IT Rack
Mounting Instructions,
2 Post Telco Rack

Network Connection

Install Rack Rails to both sides of iSTAR Pro Rack enclosure. (Screws

Provided)
Install Rack Rails to Server Rack.

Slide iSTAR Pro into Rack Rails on Server Rack

Attach iSTAR to Server Rack for added Security

The 4U Rack Mount can also be mounted in a 2 Post Telco style rack by using a
2 post conversion kit.
Install Rack Rails to both sides of iSTAR Pro Rack enclosure. (Screws

Provided)
Install 2 post conversion kit

Install rack rails onto metal extensions of the conversion kit

Slide iSTAR Pro onto the rails of the conversion kit

Attach iSTAR to Server Rack for added Security

Connect a CAT-5 or CAT-6 RJ45 cable to J4. Connect a straight through cable

to a Switch or Hub. If unit is connected directly to the server use a crossover
cable.
GCM LED2 indicates the Ethernet link signal and LED1 displays the Receive

Data signal.
