Specifications
10

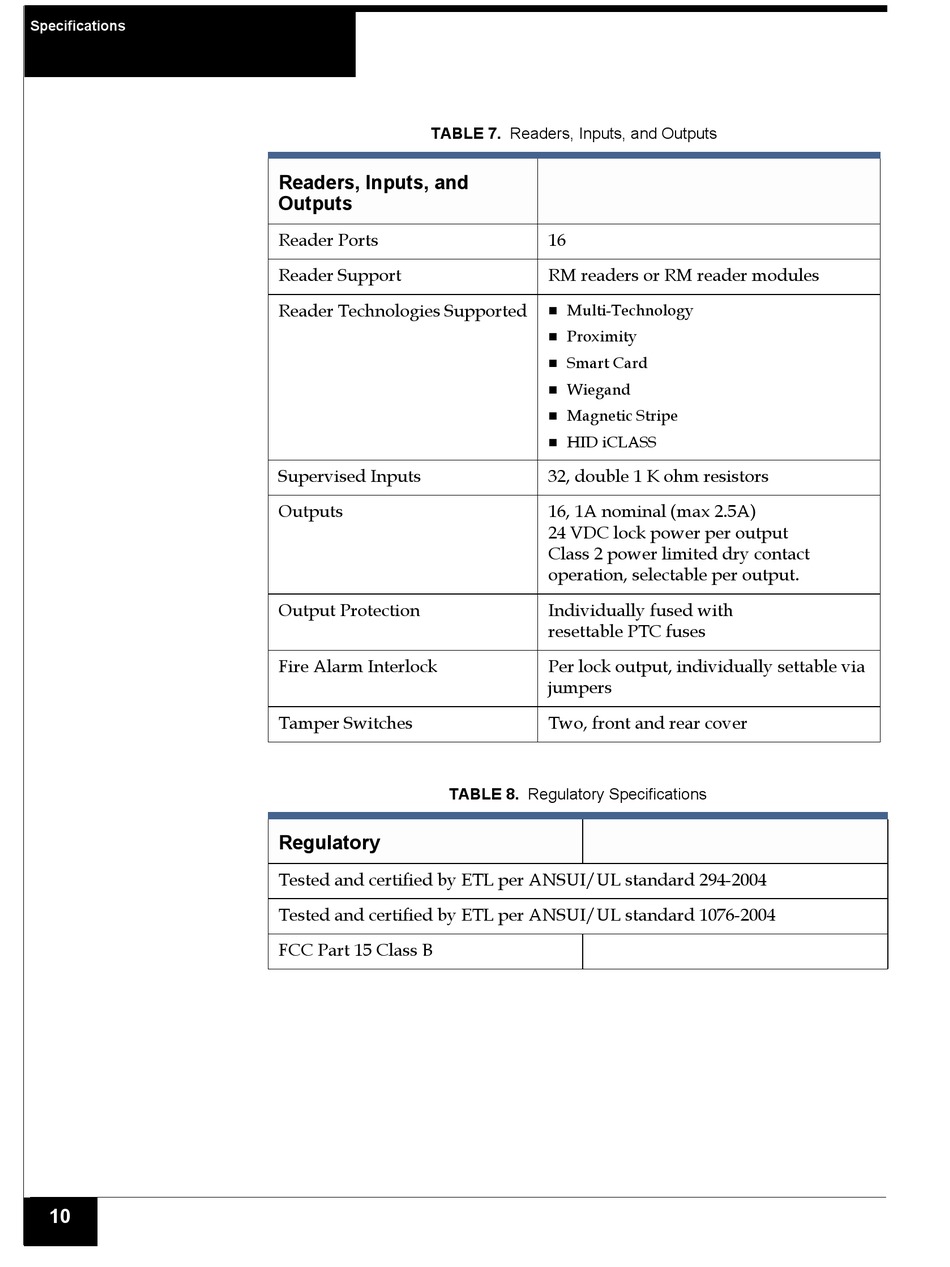

TABLE 7. Readers, Inputs, and Outputs
Readers, Inputs, and
Outputs
Reader Ports
Reader Support
Reader Technologies Supported
Supervised Inputs
Outputs
Output Protection
Fire Alarm Interlock
Tamper Switches
TABLE 8. Regulatory Specifications
Regulatory
Tested and certified by ETL per ANSUI/UL standard 294-2004
Tested and certified by ETL per ANSUI/UL standard 1076-2004
FCC Part 15 Class B
16
RM readers or RM reader modules
Multi-Technology

Proximity

Smart Card

Wiegand

Magnetic Stripe

HID iCLASS

32, double 1 K ohm resistors
16, 1A nominal (max 2.5A)
24 VDC lock power per output
Class 2 power limited dry contact
operation, selectable per output.
Individually fused with
resettable PTC fuses
Per lock output, individually settable via
jumpers
Two, front and rear cover
