Summary of Contents for Software House PSX-RGS
- Page 1 PSX-RGS RACKMOUNT INSTALLATION AND OPERATION www.swhouse.com P03-032 revAO6...
-
Page 2: Table Of Contents
1.2 PSX-RGS Rackmount Power Supply Overview ........ - Page 3 Notes and Warnings Symbol Definitions Regulatory Information The following symbols are used throughout this manual The equipment discussed within this manual has been tested to the following standards: This symbol is intended to alert the installer of shock hazards within the enclosure. Service should only be •...

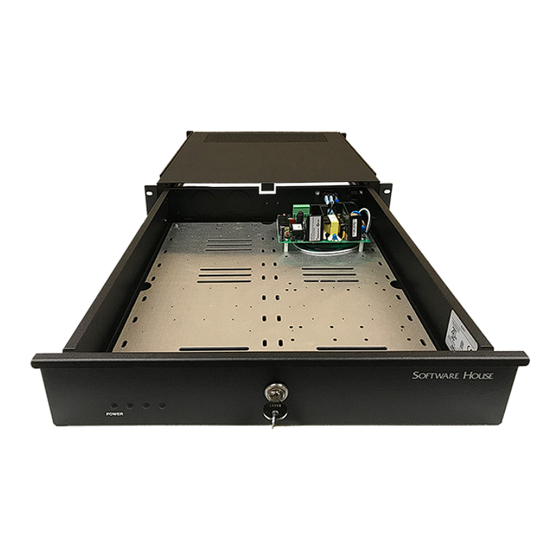

- Page 4 PSX-RGS Rack Drawer Power System - Installation and Operation Manual Introduction Product Description rackmount enclosures are designed to Internal wiring channels with indents for wire ties have been PSX-RGS provide a mechanical housing for PSX power supplies, PSX provided for wire management and tie down. All wiring is to...
-
Page 5: Section 1 - Installation
Installation and Operation Section 1 – Installation The following pages cover the installation of the PSX-RGS series rack-mountable power supplies. 1 .1 Mounting the Rack Mount Supply into a Standard 19" Rack Use the following procedure when mounting a PSX-RGS series supply into a standard EIA 19"... -
Page 6: Psx-Rgs Rackmount Power Supply Overview
PSX-RGS Rack Drawer Power System - Installation and Operation Manual 1 .2 PSX-RGS Rackmount Power Supply Overview CNTRLR AC Power NETLINK wire clamps not provided - for illustration only Power ... - Page 7 The PSX-RGS Series is factory set for 120VAC input - see section 1.3.2 for 230VAC configuration This is the lock to secure the PSX-RGS drawer into the case. Unlocking this lock allows the drawer to be pulled out from the Wire Management Z-bracket Mounting Point rack for installation and servicing.
-
Page 8: Internal Pre-Configuration
Figure 2 - Unlocking Drawer 1.3.2 Configuring for a 230VAC Input Voltage The PSX-RGS series is factory set for a 120VAC input. If the PSX-RGS is to be used with a 230VAC input, jumper JP1 must be cut on the PSX75 or PSX150 power supply internal to the PSX-RGS. - Page 9 Voltage Select 230VAC Jumper OPTIONAL LOCK POWER DISTRIBUTION DISTRIBUTION/ REMOTE MONITORING Figure 3 - Configuring the Internal PSX Power Supply in an PSX-RGS Series Rackmount cut jumper AC Input for 230VAC AC Input PSX75 PSX150 cut jumper for 230VAC...
-
Page 10: Making The Wiring Connections
AC power outlet. PSX-RGS models containing a PSX Netlink communication If connecting the PSX-RGS to a 230VAC source, cut JP1 on ethernet module allows access to the PSX-RGS via the internet the internal PSX power supply - See section 1.3.2 or local intranet. - Page 11 FAI Input Usage 1 .4 Making the Wiring Connections 1.4.3 Fire Alarm Input Wiring This section provides more detailed information on the connection and usage of the FAI input. Activation with a Normally Open Relay Contact Latching the FAI Input FAI Activates when the Latching of the FAI Input FAI INPUT...
-
Page 12: Section 2 - Adding Software House Boards
PSX-RGS Rack Drawer Power System - Installation and Operation Manual Section 2 – Adding ISTAR Boards This section describes the installation procedure for mounting ISTAR subassemblies into the PSX-RGS chassis. 2 .2 Wiring Information 2 .1 ISTAR Mounting Detail Refer to the appropriate Software House ISTAR or PSX Mounting of the Software House subassemblies are by means of the supplied hardware consisting of ½... - Page 13 Configuration and Usage Backplate Power Configurations 150W Ultra ACM / SE ACM pattern Ultra ACM / SE ACM pattern ULTRA ULTRA ULTRA ACM SE ACM SE Accessory Accessory Accessory Boards Boards Boards Additional ISTAR Patterns (same backplate) Dual ACM Dual SE SE / I-O...
-
Page 14: Section 3 - Specifications
PSX-RGS Rack Drawer Power System - Installation and Operation Manual Section 3 – Specifications 3 .1 Electrical Specifications Specifications PSX-RGS75 Series PSX-RGS150 Series AC Input Voltage 120/230VAC 120/230VAC ±15% at 50-60Hz ±15% at 50-60Hz Power 100 Watts 200 Watts Standby... -
Page 15: Temperature Specifications
Specifications 3 .2 Temperature Specifications All Models Ambient Temperature 0°C to 49°C (32°F to 120°F) Ambient Humidity 93% at 32°C (90°F) maximum Storage Temperature –30°C to 70°C (–22°F to 158°F) 3 .3 Mechanical Specifications 2U Enclosure Size 17.00" W x 3.50" H x 20.50" D (445mm W x 89mm H x 521mm D) Approximate Weight 20 lbs but can vary based on configuration... - Page 16 PSX-RGS Rack Drawer Power System - Installation and Operation Manual www.swhouse.com The trademarks, logos, and service marks displayed on this document are registered in the United States [or other countries]. Any misuse of the trademarks is strictly prohibited and Tyco International Ltd. will aggressively enforce its intellectual property rights to the fullest extent of the law, including pursuit of criminal prosecution wherever necessary.
