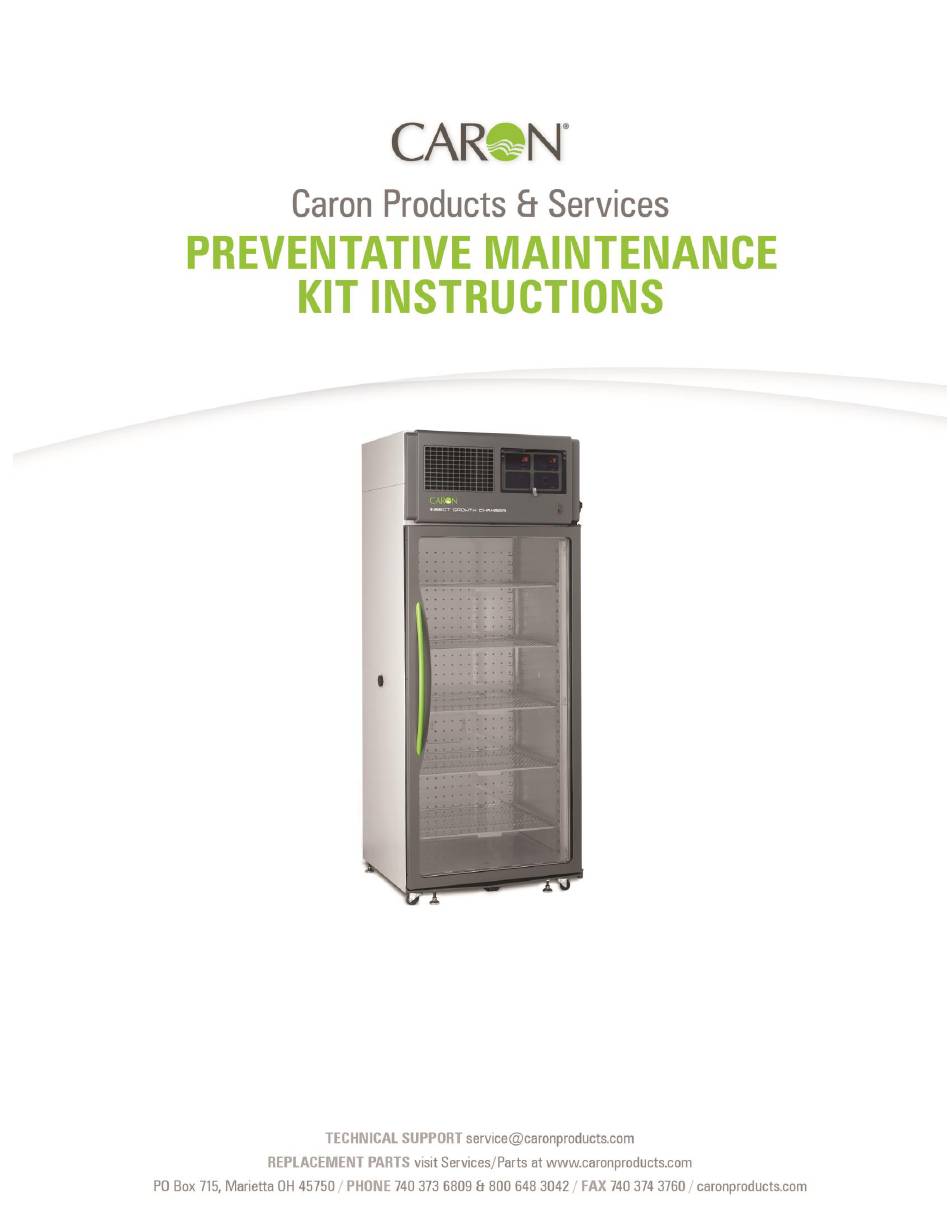

- Page 1 MODEL 6045 INST-PM-6045...
- Page 2 Revision Log Revisions Description Letter Date 09-05-2017 Initial release. New cover. 04-04-2018...
- Page 3 Parts Required: (1) Air Filter, (2) Atomizers Tools Required: Ladder, Flatblade Screwdriver, Phillips Screwdriver, (2) 8″ Crescent Wrenches, Flatblade Screwdriver (may be necessary) Parts included in Preventative Maintenance Kit for Model 6045 are shown below. Air Filter Atomizers REPLACING AIR FILTER Note: Photos may have a different appearance depending on chamber options.
- Page 4 4. Install air filter cover with angled edge at top while aligning air filter with guide tracks on both sides and snap into place as shown below. Note: Right side is shown in photos. Guide Track INST-PM-6045 Rev B 04/04/2018...
- Page 5 5. Remove (4) screws securing intake diffuser using Phillips screwdriver bit as shown below. Note: Retain screws. Intake Diffuser Intake Diffuser Mounting Screws (as viewed from inside chamber under intake diffuser) 6. Remove intake diffuser by pulling towards front of chamber. INST-PM-6045 Rev B 04/04/2018...
- Page 6 12. Secure drip pan with retained (2) screws using Phillips screwdriver bit. 13. Align tabs on intake diffuser with drip pan. 14. Secure intake diffuser with retained (4) screws using Phillips screwdriver bit. 15. Reinstall false floor. INST-PM-6045 Rev B 04/04/2018...
- Page 7 16. Reinstall shelf channels. 17. Reinstall shelves. 18. Continue to instructions for replacing additional accessory preventative maintenance items if applicable or plug in power cord and turn on chamber. INST-PM-6045 Rev B 04/04/2018...
