MODEL 6046
INST-PM-6046

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 6046 and is the answer not in the manual?

Questions and answers

Summary of Contents for caron 6046

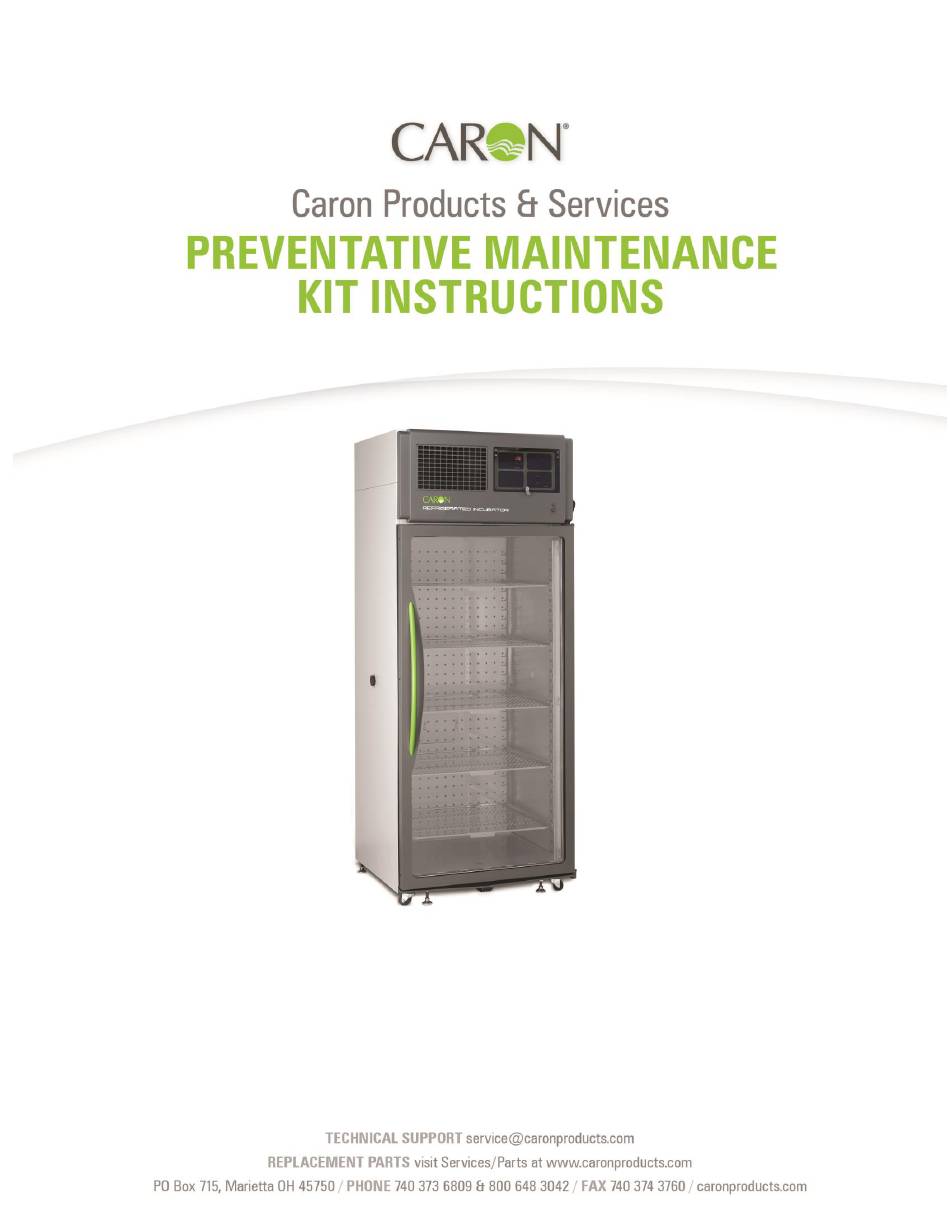

  • Page 1 MODEL 6046 INST-PM-6046...
  • Page 2 Revision Log Revisions Description Letter Date 12-07-2017 Initial release. New cover. 04-04-2018...
  • Page 3 Parts Required: (1) Air Filter, (1) Atomizer, (1) CO2 In-Line Filter, (1) HEPA Filter, (1) Silicone Lubricant Tools Required: Drill, Phillips Screwdriver Bit, Ratchet, 5/8″ Socket, Ladder, Flathead Screwdriver (may be necessary) Parts included in Preventative Maintenance Kit for Model 6046 are shown below. Atomizer HEPA Filter Air Filter...
  • Page 4 4. Install air filter cover with angled edge at top while aligning air filter with guide tracks on both sides and snap into place as shown below. Note: Right side is shown in photos. Guide Track INST-PM-6046 Rev B 04/04/2018...
  • Page 5 3. Remove top access panel by sliding towards front of chamber until (3) tabs on each side are released as shown below. Access Panel Tabs 4. Loosen (2) clamps as shown below. Note: Clamps may be colored different than shown. Clamps INST-PM-6046 Rev B 04/04/2018...
  • Page 6 1. Reinstall top access panel by sliding towards rear of chamber until (3) tabs on each side are engaged. 2. Secure top access panel along front of chamber with retained (3) screws using Phillips screwdriver bit. INST-PM-6046 Rev B 04/04/2018...
  • Page 7 Intake Diffuser Mounting Screws (as viewed from inside chamber under intake diffuser) 5. Remove intake diffuser by pulling towards front of chamber. 6. Remove (2) screws securing drip pan using Phillips screwdriver bit as shown below. Note: Retain screws. Drip Pan Mounting Screws Drip Pan INST-PM-6046 Rev B 04/04/2018...
  • Page 8 13. Secure intake diffuser with retained (4) screws using Phillips screwdriver bit. 14. Reinstall false floor. 15. Reinstall shelf channels. 16. Reinstall shelves. 17. Continue to instructions for replacing additional accessory preventative maintenance items if applicable or plug in power cord and turn on chamber. INST-PM-6046 Rev B 04/04/2018...
