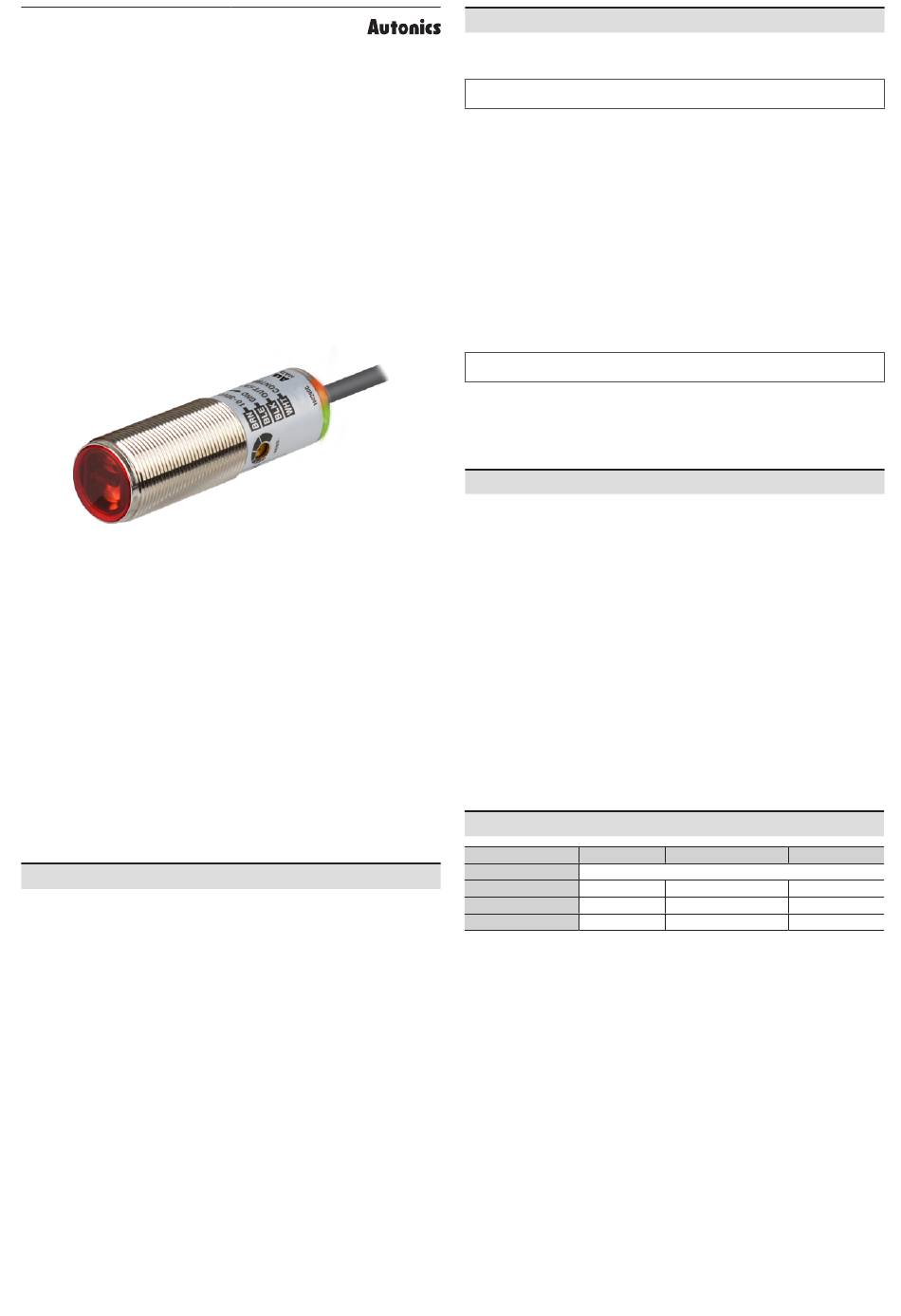

Autonics BRQ Series Product Manual

TCD210058AA
Cylindrical
Photoelectric Sensors

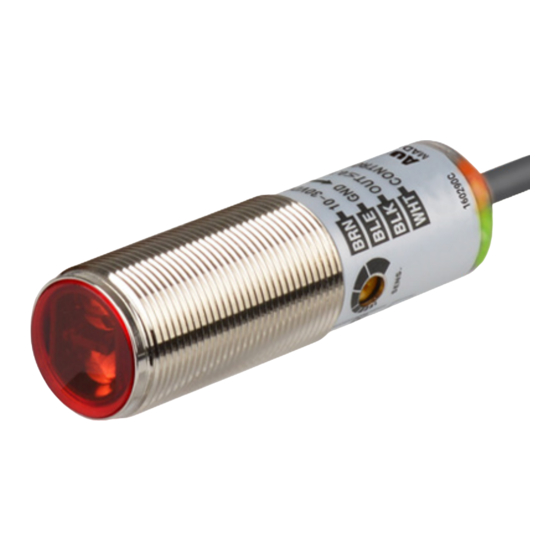

BRQ Series (front sensing type)
PRODUCT MANUAL
For your safety, read and follow the considerations written in the instruction
manual, other manuals and Autonics website.
The specifications, dimensions, etc. are subject to change without notice for product
improvement. Some models may be discontinued without notice.

Features

• Excellent noise immunity and minimal influence from ambient light
• Reverse power protection circuit, reverse output protection circuit,
output short overcurrent protection circuit
• Mutual interference prevention function (except through-beam type)
• Sensitivity adjuster
• Light ON/Dark ON mode selectable by control wire
• Various materials : Plastic, Metal (Ni-plated Brass), SUS316L
• Long sensing distance : 30 m (through-beam type)
• Body size
- BRQT, BRQM : Standard
- BRQP : Standard, Short body
• Protection rating
- BRQT : IP67 (IEC standard), IP69K (DIN standard)
- BRQM, BRQP : IP67 (IEC standard)
ᜢ ᜧ ᜫ

Safety Considerations

• Observe all 'Safety Considerations' for safe and proper operation to avoid hazards.
• ᜸ symbol indicates caution due to special circumstances in which hazards may occur.
᜸ Warning
Failure to follow instructions may result in serious injury or death.
01. Fail-safe device must be installed when using the unit with machinery that
may cause serious injury or substantial economic loss. (e.g., nuclear power
control, medical equipment, ships, vehicles, railways, aircraft, combustion
apparatus, safety equipment, crime/disaster prevention devices, etc.)
Failure to follow this instruction may result in personal injury, economic loss or fire.
02. Do not use the unit in the place where flammable/explosive/corrosive gas,
high humidity, direct sunlight, radiant heat, vibration, impact or salinity
may be present.
Failure to follow this instruction may result in explosion or fire.
03. Do not disassemble or modify the unit.
Failure to follow this instruction may result in fire.
04. Do not connect, repair, or inspect the unit while connected to a power
source.
Failure to follow this instruction may result in fire.
05. Check 'Connections' before wiring.
Failure to follow this instruction may result in fire.
᜸ Caution
Failure to follow instructions may result in injury or product damage.
01. Use the unit within the rated specifications.
Failure to follow this instruction may result in fire or product damage.
02. Use a dry cloth to clean the unit, and do not use water or organic solvent.
Failure to follow this instruction may result in fire.

Cautions during Use

• Follow instructions in 'Cautions during Use' . Otherwise, It may cause unexpected
accidents.
• When connecting an inductive load such as DC relay or solenoid valve to the output,
remove surge by using diodes or varistors.
• Use the product after 0.5 sec of the power input.
When using a separate power supply for the sensor and load, supply power to the
sensor first.
• 10-30 VDCᜡ power supply should be insulated and limited voltage/current or Class 2,
SELV power supply device.
• Wire as short as possible and keep it away from high voltage lines or power lines to
prevent surge and inductive noise.
• When using switching mode power supply (SMPS), ground F.G. terminal and connect
a condenser between 0V and F.G. terminal to remove noise.
• When using a sensor with a noise-generating equipment (e.g., switching regulator,
inverter, and servo motor), ground F.G. terminal of the equipment.
• This unit may be used in the following environments.
- Indoors (in the environment condition rated in 'Specifications')
- Altitude max. 2,000 m
- Pollution degree 3
- Installation category II
Product Components
Sensing type Through-beam
Product components Product, instruction manual
Reflector -
Adjustment screwdriver × 1
M18 fixing nut × 4
Polarized retroreflective Diffuse reflective
MS-2A -
× 1 × 1
× 2 × 2
