Autonics BX Series Manual

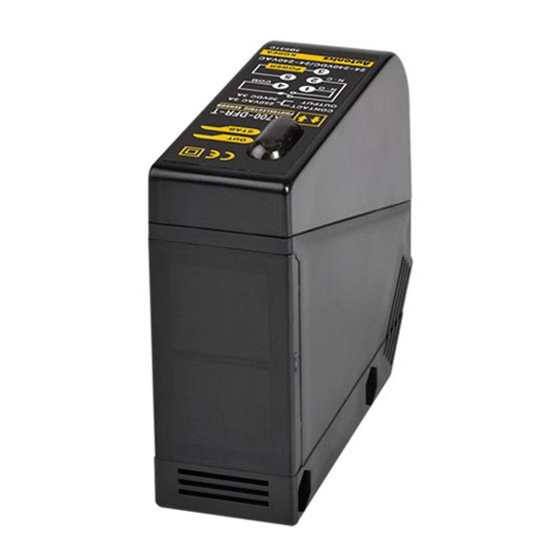

BX Series
Terminal type and Long sensing distance type

Features

● Built-in sensitivity adjustment VR
● Timer function: ON Delay, OFF Delay, One-shot Delay
● NPN/PNP open collector output(DC power type)
● Self-diagnosis function(Green LED turns ON in stable level)
● Wide power supply range: Universal 24-240VDC/24-240VAC
● Protection structure IP66(IEC standard)
Please read "Caution for your safety" in operation
manual before using.

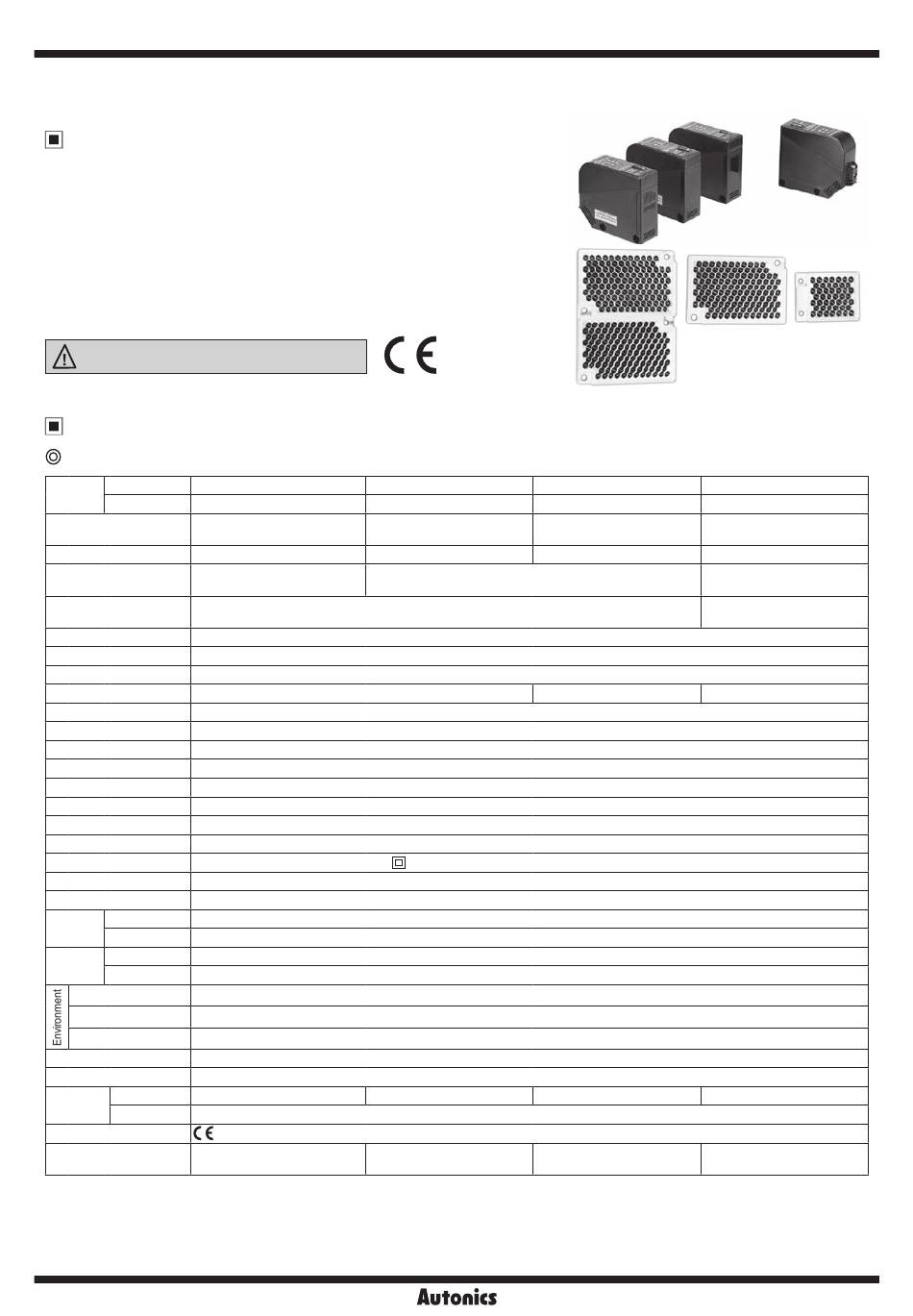

Specifications
Free power type, Relay contact output type
Standard type BX15M-TFR
Model
With Timer BX15M-TFR-T
Sensing type Through-beam
Sensing distance 15m
Opaque materials of
Sensing target
Min. ø15mm
Hysteresis -
Response time Max. 20ms
Power supply 24-240VAC ±10% 50/60Hz, 24-240VDC ±10%(Ripple P-P:Max. 10%)
Power consumption Max. 3VA
Light source Infrared LED(850nm)
Sensitivity adjustment Built-in the adjustment VR
Operation mode Selectable Light ON or Dark ON by switch
Control output Relay contact output(Contact capacity : 30VDC 3A, 250VAC 3A at resistive load, Contact composition: 1c)
Relay life cycle Mechanically : Min. 50,000,000, Electrically : Min. 100,000
Self-diagnosis output Green LED turns on at stable operation
Timer function Selectable ON Delay, OFF Delay, One Shot Delay by slide switch [Delay Time : 0.1 to 5sec.(Adjustable VR)]
Indicator Operation indicator : yellow LED, Self-diagnosis indicator : green LED
Insulation resistance Min. 20MΩ(at 500VDC megger)
Insulation type Double or strong insulation(Mark:
Noise resistance ±1,000V the square wave noise(pulse width : 1㎲) by the noise simulator
Dielectric strength 1500VAC 50/60Hz for 1minute
Mechanical 1.5mm amplitude or 300m/s
Vibration
Malfunction 1.5mm amplitude or 300m/s
Mechanical 500m/s²(approx. 50G) in each of X, Y, Z directions for 3 times
Shock
Malfunction 100m/s²(approx. 10G) in each of X, Y, Z directions for 3 times
Ambient illumination Sunlight : Max. 11,000㏓, Incandescent lamp : Max. 3,000㏓ (Receiver illumination)
Ambient temperature -20 to 55℃, storage : -25 to 70℃
Ambient humidity 35 to 85%RH, storage : 35 to 85%RH
Protection IP66(IEC standard)
Material Case, Lens cover: PC, Sensing part: Acrylic
Individual -
Accessory
Common VR adjustment driver, Mounting bracket, Bolts, Nuts
Approval
TFR: Approx. 225g
Unit weight
TFR-T: Approx. 226g
※ 1: It is same when using the MS-4 reflector (sold separately). The sensor can detect under 0.1m.
※ 2: When using the MS-2 reflector, the sensing distance is 0.1 to 2m. The sensor can detect under 0.1m.
※ 3: It is for Non-glossy white paper(200×200mm)
※4: Relay contact output 1a type is option.
※ Relay contact output 1a type is option.
※ The temperature or humidity mentioned in Environment indicates a non freezing or condensation environment.
A-50
BX5M-MFR
BX5M-MFR-T
Retroreflective
(Standard type)
※ 1
0.1 to 5m(MS-2)
Opaque materials of Min. ø60mm
, Dielectric voltage between the measured input and the power: 1.5kV)
at frequency of 10 to 55Hz(for 1 min.) in each of X, Y, Z directions for 2 hours
2
at frequency of 10 to 55Hz(for 1 min.) in each of X, Y, Z directions for 10 minutes
2
Mirror(MS-2)
MFR: Approx. 130g
MFR-T: Approx. 131g
※ MS-4 is sold separately.
(MS-3)
BX3M-PFR BX700-DFR
BX3M-PFR-T BX700-DFR-T
Retroreflective
Diffuse reflective
(Built-in polarizing filter)
※ 2
0.1 to 3m(MS-3) 700mm
Translucent,
opaque material
Max. 20% at rated setting
distance
Red LED(660nm) Infrared LED(940nm)
Mirror(MS-3) -
PFR: Approx. 148g DFR: Approx. 115g
PFR-T: Approx. 149g DFR-T: Approx. 116g
(MS-2) (MS-4)
※ 3
※ 4
