PSAN Series

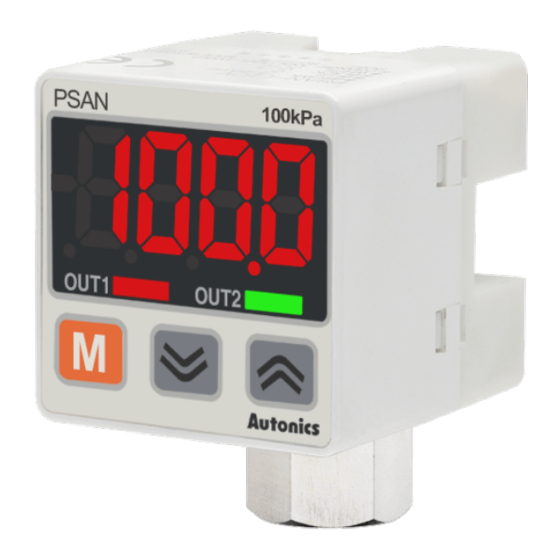

Small size, 1/2,000 resolution connector type digital pressure sensor
Features
● Ideal for a wide range of applications of gas, liquid, and oil.
(Inappropriate to corrosion environment for SUS316L)
● 1/2,000 high resolution for indication
● Hold/Auto shift input function
: Enables to output stably regardless of changing normal primary
pressure and One unit performs two units functions
(Only for models with Hold/Auto shift input type)
● 2 independent outputs and N.O./N.C. output selectable
● Forced-output mode embodied for easy operation test and monitoring
● One-touch connector type for easy maintenance
● Analog output
(Resolution: automatically changes as 1/1,000 or 1/2,000 by display unit
voltage : 1-5VDC, current : DC4-20mA)
● Zero-point adjustment function, peak monitoring function, and
chattering prevention function
Please read "Caution for your safety" in operation
manual before using.
Ordering information
PS AN V 01 C
Applicable fluid
Appearance
Item
※ 1: In case of using M5 port, use PSO-Z01 (M5 Gender) together.
Pressure and Max. pressure display range
Type MPa
Negative
-
pressure
0 to 0.100
(-0.005 to 0.110)
Standard
pressure
0 to 1.000
(-0.050 to 1.100)
Compound
-
pressure
※ ( ) is Max. pressure display range.
※ For using a unit mmH
₂
O, multiply display value by 100.
E-4
P V
Option output(Function)
Output type
Cable
Pressure range
Pressure type
kPa kgf/cm²
0.0 to -101.3 0.000 to -1.034
(5.0 to -101.3) (0.051 to -1.034)
0.0 to 100.0 0.000 to 1.020
(-5.0 to 110.0) (-0.051 to 1.122)
0 to 1000 0.00 to 10.20
(-50 to 1100) (-0.51 to 11.22)
-101.3 to 100.0 -1.034 to 1.020
(-101.3 to 110.0) (-1.034 to 1.122)
Rc1/8
R1/8
Pressure
※ 1
port Rc1/8
NPT1/8
7/16-20UNF
V
A
H
No mark
P
C
01
1
No mark
V
C
No mark
L
AN
PS
bar psi
0.000 to -1.013 0.00 to -14.70
(0.050 to -1.013) (0.74 to -14.70)
0.000 to 1.000 0.00 to 14.50
(-0.050 to 1.100) (-0.72 to 15.96)
0.00 to 10.00 0.0 to 145.0
(-0.50 to 11.00) (-7.2 to 159.6)
-1.013 to 1.000 -14.70 to 14.50
(-1.013 to 1.100) (-14.70 to 15.96)
Pneumatic type
Fluid type
Standard(Fluid type), Option(Pneumatic type)
Standard(Pneumatic type)
Option
Option(Fluid type)
Voltage(1-5VDC) output
Current(DC4-20mA) output
Hold/Auto shift input
NPN open collector output
PNP open collector output
Connector type
100kPa
1,000kPa
Standard pressure
Negative pressure
Compound pressure
Pneumatic type(Gas)
Fluid type(Gas, Liquid, Oil)
Regular square New type(30mm×30mm)
Pressure Sensor
mmHg inHg
0 to -760 0.0 to -29.9
(38.0 to -760.0) (1.50 to -29.90)
- -
- -
-760 to 750 -29.9 to 29.5
(-760.0 to 824.0) (-29.88 to 32.58)
Line-up
₂
mmH O
0.0 to -103.4
(5.1 to -103.4)
-
-
-103.4 to 102.0
(-103.4 to 112.2)
