Summary of Contents for Marcy UB3000

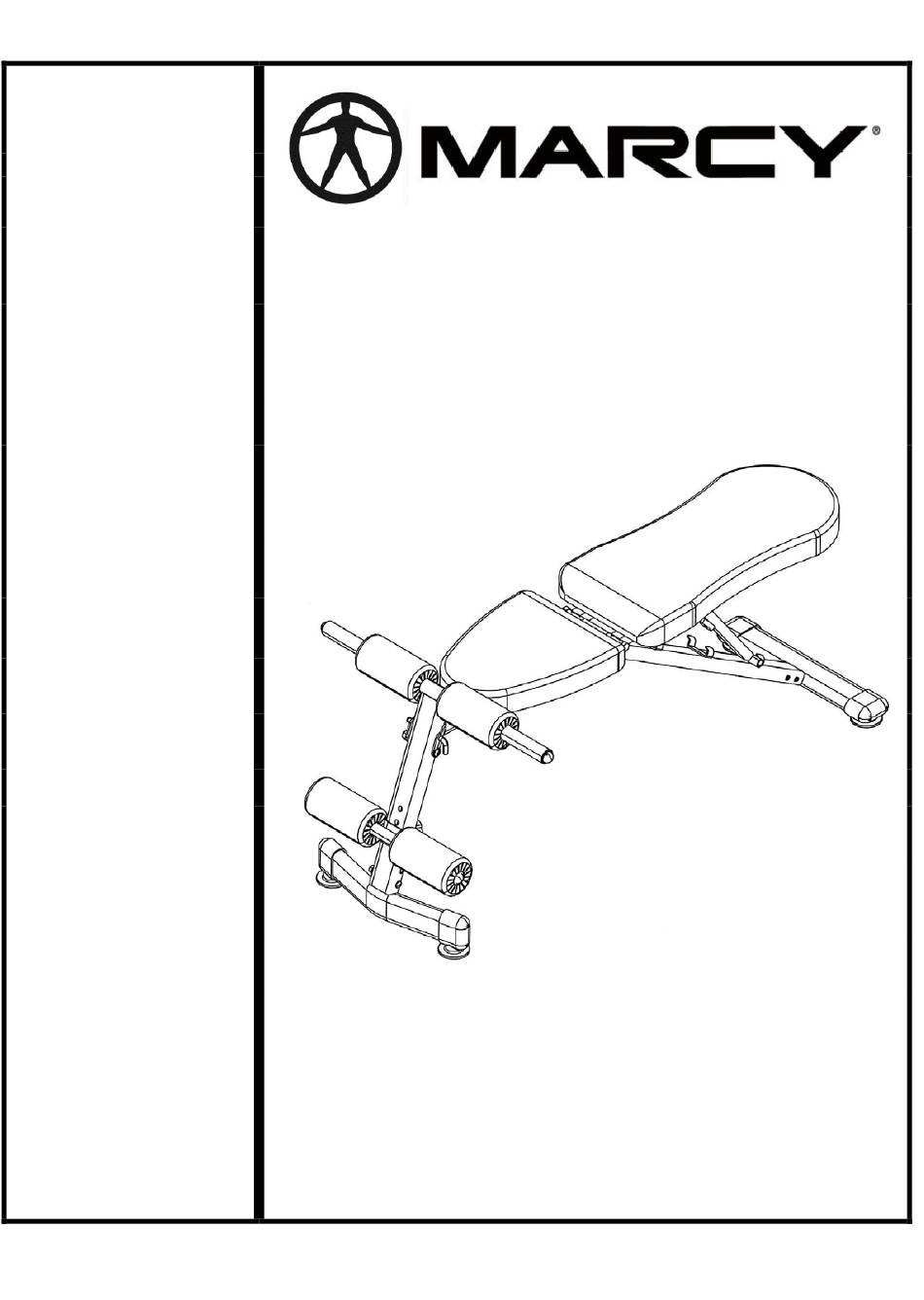

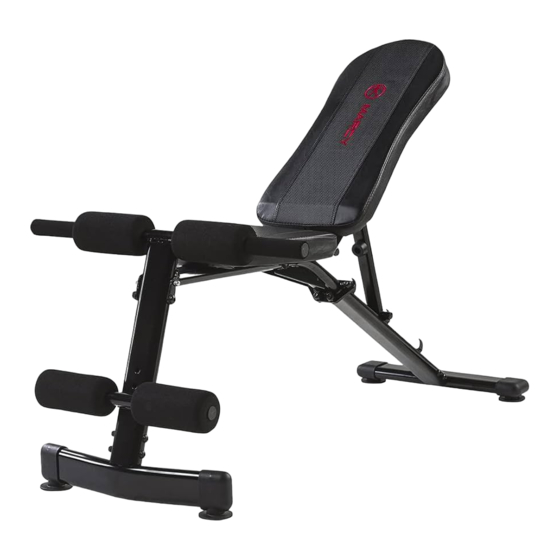

- Page 1 NOTE: Please read all instructions carefully before using this product MARCY UB3000 Table of Content DELUXE UTILITY BENCH Safety Notice Hardware Identifier Assembly Instruction Parts List Warranty Ordering Parts Model UB3000 Retain This Manual for Reference OWNER'S MANUAL...
-
Page 2: Table Of Contents
ORDERING PARTS..................… BEFORE YOU BEGIN Thank you for selecting the MARCY UB3000 Deluxe Utility Bench. For your safety and benefit, read this manual carefully before using the equipment. If you have any questions, or find there are missing or damaged parts, please contact our Customer Solutions Department. -
Page 3: Important Safety Notices
IMPORTANT SAFETY NOTICE PRECAUTIONS This exercise machine is built for optimum safety. However, certain precautions apply whenever you operate a piece of exercise equipment. Be sure to read the entire manual before you assemble or operate your machine. In particular, note the following safety precautions: 1. - Page 4 WARNING LABEL PLACEMENT The warning labels shown here have been placed on the Rear Stabilizer. If the labels are missing or illegible, sat@fitnessdigital.com please contact Customer Solutions by email: for replacements. Apply the labels in the location shown.
-
Page 5: Hardware Identifier
HARDWARE PACK NOTE: The following parts are not drawn to scale. Please use your own ruler to measure the size. -
Page 6: Assembly Instructions
IMPORTANT ASSEMBLY INFORMATION Tools required for assembling the equipment: Two Adjustable Wrenches and Allen Wrenches. NOTE: It is strongly recommended that this equipment is assembled by two or more people to avoid possible injury. Ensure Carriage Bolts are inserted through the SQUARE holes on components that need to be ... - Page 7 STEP 1 (See Diagram 1) A.) Push the two Front Stabilizer End Caps (#13) and two Rear Stabilizer End Caps (#12) onto the Front Stabilizer (#1) and the Rear Stabilizer (#2) from both ends. B.) Attach a U-shaped Sleeve (#17) onto the bracket on the Front Stabilizer (#1). Make sure the opening on the Sleeve is facing toward front.
- Page 8 STEP 2 (See Diagram 2) A.) Attach the Incline Support (#6) in between the two Backrest Supports (#5). B.) Attach the Pivot of the Backrest Supports (#5) to the Pivot on the Main Frame (#3). Secure them with one M12 x 6 7/8” Hex Bolt (#27) and M12 Aircraft Nut (#30). DIAGRAM 2...
- Page 9 STEP 3 (See Diagram 3) A.) Place the Seat (#10) onto the Main Frame (#3). Secure it to the two L-shaped Brackets (#9) with two M8 x 5/8” Allen Bolts (#23) and Ø 5/8” Washers (#28). Secure the Seat to the Main Frame with one M8 x 1 ¾”...
-
Page 11: Parts List
Parts list KEY NO. DESCRIPTION Q’ty Front Stabilizer Rear Stabilizer Main Frame Front Vertical Frame Backrest Support Incline Support Cross Tube Foam Tube L-shaped Bracket Seat Backrest Board Rear Stabilizer End Cap Front Stabilizer End Cap Vinyl Foam Roll Foam Grip Lock Knob U-shaped Sleeve Ø... -
Page 12: Warranty
LIMITED WARRANTY Fitness Bit warrants this product to be free from defects in workmanship and material, u nder normal us e and s ervice c onditions. P lease r efer www.fitnessdigital.com for warranty c onditions. T his warranty extends only to the original purchaser and is valid for home use only.
