Marcy EL1016 User Manual

Elliptical cross trainer
Hide thumbs
Table of Contents

Advertisement

Quick Links

EL1016 ELLIPTICAL
CROSS TRAINER
USER MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EL1016 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Marcy EL1016

Summary of Contents for Marcy EL1016

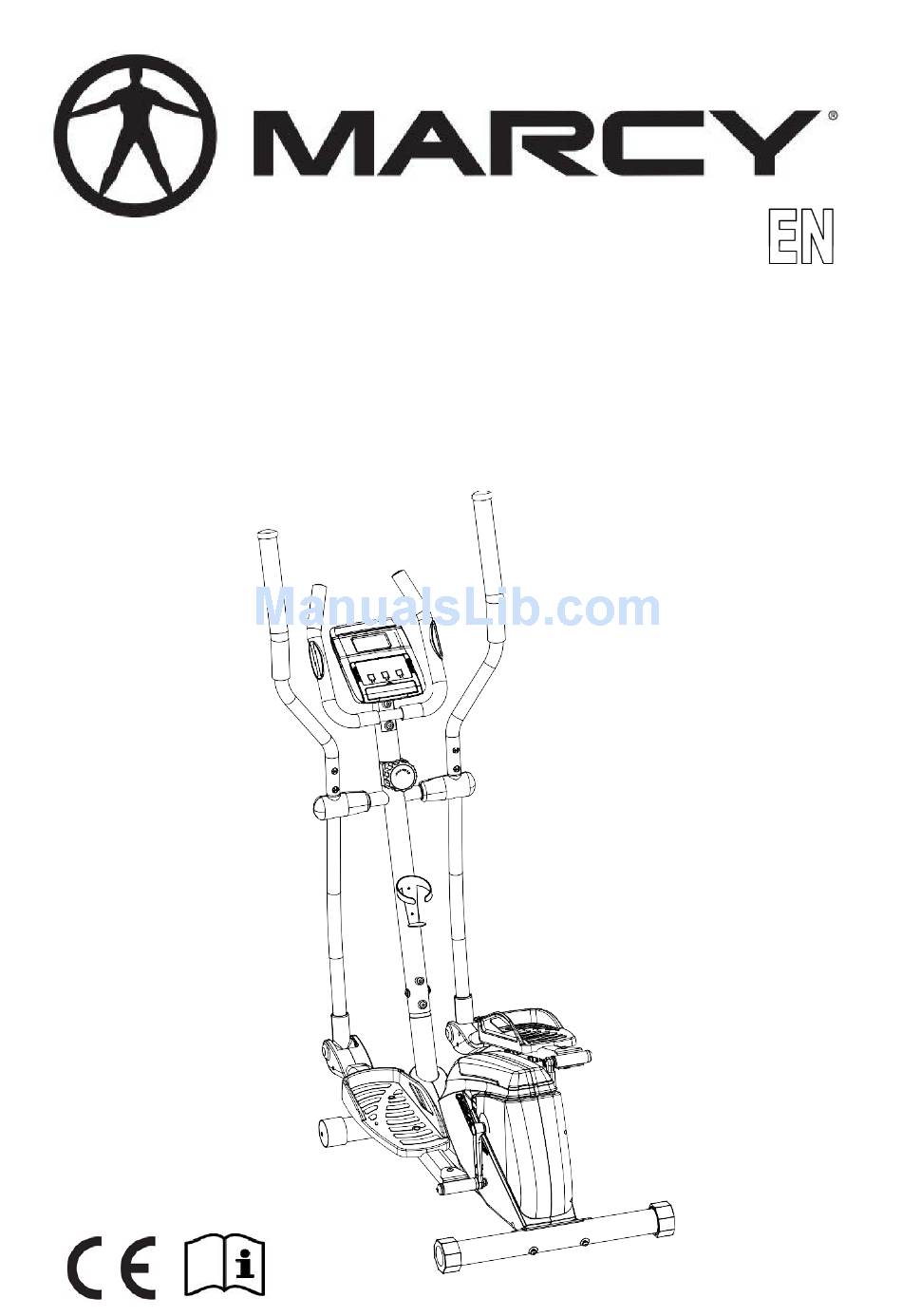

  • Page 1 EL1016 ELLIPTICAL CROSS TRAINER USER MANUAL...
  • Page 2 CONTENTS Important Safety Information Weight Limit Capacities Hardware Parts List Pre Assembly Check List 7-13 Assembly Instructions 14-15 Computer Instructions 16-17 Exercise Instructions 18-19 Exploded Diagram 20-21 Parts List ADDITIONAL INFORMATION Warranty Information Supplied by: Pure-Tec Limited Tel: +44 (0) 1482 212098 Email: service@puretecfitness.com www.puretecfitness.com...

  • Page 3: Important Safety Information

    IMPORTANT SAFETY INFORMATION READ ALL INSTRUCTIONS BEFORE USING THIS OWNER’S MANUAL CONTAINS ASSEMBLY, OPERATION, MAINTENANCE AND SAFETY INFORMATION. IN THE INTEREST OF SAFETY, PLEASE MAKE CERTAIN THAT YOU READ AND UNDERSTAND ALL THE INFORMATION BELOW. 1. This Trainer is intended for class H (H=Domestic) use only. It is not designed for commercial use.

  • Page 4: Hardware Packing List

    HARDWARE PACKING LIST DESCRIPTION Q’TY DRAWING Carriage bolt M10*75 Curved washerФ10*Ф22 Domed nut M10 Hollow carriage nutФ8*20 Allen bolt M6*12 Flat washerФ10*Ф32 Spring washerФ10 Hex head bolt M10*20 D type washer Hex head bolt M8*45 Hex head bolt M10*78 Sleeve Nylon nut M10...
  • Page 5 Club knob Washer Ф10*Ф22 Washer Φ27*Φ12.8 Allen bolt M8*16 Curved washer Ф8*Ф20 Hinge bolt L/R Wave washer Nut L/R Allen Key Allen key L8 Allen Key L6 Allen Key L4...
  • Page 6 PRE-ASSEMBLY CHECK LIST NO:12/13 NO:52/53 NO:1 NO:9/51 NO:41L/R NO:48L/R NO:10 NO:11 NO:37L/R NO:39 NO:6/3 NO:35 NO:43 PART NO. DESCRIPTION Q’TY Main Frame 9/51 Front post/ Tension control knob w/cable 52/53 Bottom handlebar L/R 12/13 Top handlebar L/R Pedal tube L/R Fixed handlebar Front stabilizer/ Rear stabilizer Computer...

  • Page 7: Assembly Instruction

    ASSEMBLY INSTRUCTION STEP 1 Attach rear stabilizer (3) to main frame (1), tighten with two curved washers (4), domed nuts (5) and carriage bolts (2). Then attach the front stabilizer (6) to the main frame (1), tighten with two carriage bolts (2) ,curved washers (4) and domed nuts (5). STEP 2 Connect the extension lower sensor wire (49) with the middle sensor wire (55).
  • Page 8 HOW TO CONNECT TENSION CONNECTOR Slide the Cable wire from the extension sensor wire Connector in between the opening on the wire holder on sensor wire Connector. Pull the extension sensor wire Connector backward and slide the wire through the slot on the bracket.
  • Page 9 Step3 Attach the bottom handlebar L (52) into the front post (9), tighten with one D type washer (29), washer (26), spring washer (27) and hex head bolt (28). Repeat for bottom handlebar R (53). 29 27...
  • Page 10 STEP 4 Attach pedal tube L (41L) to the crank, secure using one nut (60L), wave washer (36), and hinge bolt L (59L). Slide bottom handlebar L (52) into pedal tube L (41L) then insert sleeve (33). Insert hex head bolt (32) through sleeve (33) then fasten and secure with one washer (44) and nylon nut (34).
  • Page 11 Step5 Insert the top handlebar L (12) into the bottom handlebar L (52), tighten with two hollow carriage nuts (21) and allen bolts (22). Repeat for top handlebar R (13). Insert the hand pulse wire (58) through front post (09) and pull the hand pulse wire (58) out of front post (09) Attach fixed handlebar (11) to the front post (09), tighten with two allen bolts (47) and two curved washers (45).
  • Page 12 Step6 Connect upper sensor wire from the back of computer (10) with middle sensor wire (55). onnect lower pulse wire (58) with upper pulse wire from the back of the computer (10). Attach computer (10) to bracket on front post (09), tighten with four screws (20).
  • Page 13 Step7 Attach computer (10) to bracket on front post (09), tighten with two screws (20). Attach top handlebar cover (35) to the top handlebar L/R (12/13), tighten with four self tapping screws (23). Attach bottom handlebar cover (39) to the bottom handlebar L/R (52/53), tighten with two self tapping screws (30).

  • Page 14: Computer Instructions

    COMPUTER INSTRUCTIONS FUNCTIONAL BUTTONS: MODE - Push down for selecting functions. - To Set the consumer movement of time、distance、calories and hand pulse. RESET -For resetting consumer movement of time、distance、calories and hand pulse. FUNCTION AND OPERATIONS: 1. SCAN: Press “MODE” button until “SCAN” appears, monitor will rotate through all the 6 functions: Time、speed、distance、calorie ODO and pulse.
  • Page 15 NOTE： 1. If the display is faint or shows no figures ,please replace the batteries. 2. The monitor will automatically shut off if there is no signal received after 4 minutes . SPECIFICATIONS: AUTO SCAN Every 6 seconds TIME 00:00’~99:59’ CURRENT The maximum signal can be pickup is SPEED...

  • Page 16: Exercise Instructions

    EXERCISE INSTRUCTIONS Using your ELLIPTICAL TRAINER will provide you with several benefits, it will improve your physical fitness, tone muscle and in conjunction with a calorie controlled diet help you lose weight. 1. The Warm Up Phase This stage helps get the blood flowing around the body and the muscles working properly. It will also reduce the risk of cramp and muscle injury.
  • Page 17 3. The Cool Down Phase This stage is to let your Cardio-vascular System and muscles wind down. This is a repeat of the warm up exercise e.g. reduce your tempo, continue for approximately 5 minutes. The stretching exercises should now be repeated, again remembering not to force or jerk your muscles into the stretch.

  • Page 18: Exploded Diagram

    EXPLODED DIAGRAM 29 27 35 61 33 44 59L 36...

  • Page 20: Parts List

    PARTS LIST PART NO. DESCRIPTION Main frame Carriage bolt M10*75 Rear stabilizer Curved washerФ10*Ф20 Domed nut M10 Front stabilizer End cap for front stabilizer End cap for rear stabilizer Front post Computer Fixed handlebar Top handlebar L Top handlebar R End cap Foam grip for fixed handlebar Foam grip...
  • Page 21 Bottle holder Washer Ф22*Ф10 Self tapping screw ST5*15 Washer Ф27*12.8 Allen bolt M8*16 Pedal L/R Lower sensor wire Extension tension cable Tension control knob w/cable Bottom handlebar L Bottom handlebar R Curved washer Ф8*Ф20 Middle sensor wire Self tapping screw ST5*15 Self tapping screw ST5*15 Hand pulse wire Hinge bolt L/R...

  • Page 22: Additional Information

    ADDITIONAL INFORMATION Packaging Disposal Government guidelines ask that we reduce the amount of waste material disposed of in land fill sites. We therefore ask that you dispose of all packaging waste responsibly at public recycling centres. End of Life Disposal We at Pure-Tec Limited hope you enjoy many years of enjoyable use from your Cross Trainer.

  • Page 23: Limited Warranty

    LIMITED WARRANTY Pure-Tec. warrants this product to be free from defects in workmanship and material, under normal use and service conditions. Please refer to www.puretecfitness.com warranty conditions. This warranty extends only to the original purchaser and is valid for home use only. Pure-Tec’s obligation under this Warranty is limited to replacing damaged or faulty parts at Pure-Tec’s option.
