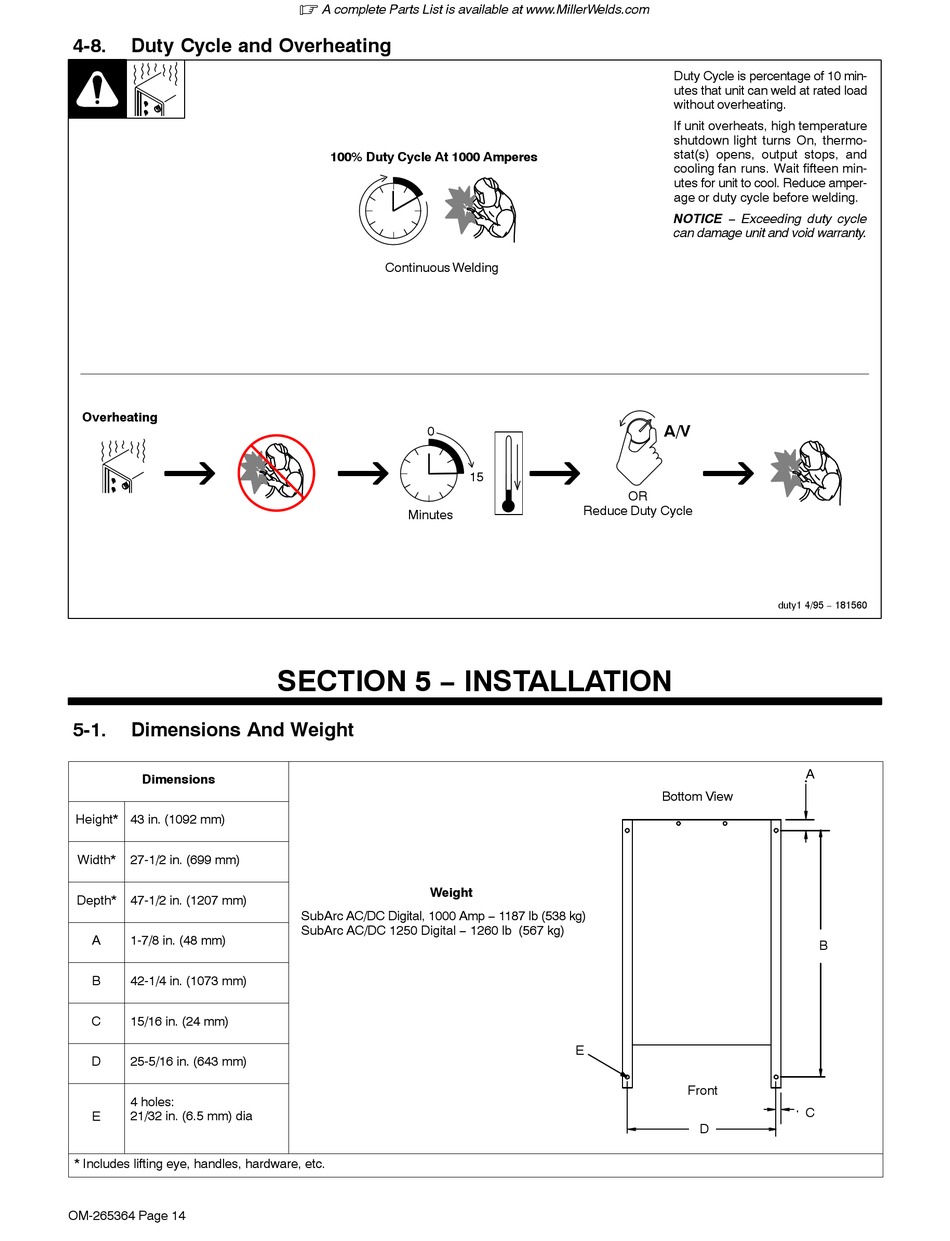

4-8.

Duty Cycle and Overheating

Overheating
5-1.

Dimensions And Weight

Dimensions
Height* 43 in. (1092 mm)
Width* 27-1/2 in. (699 mm)
Depth* 47-1/2 in. (1207 mm)
A 1-7/8 in. (48 mm)
B 42-1/4 in. (1073 mm)
C 15/16 in. (24 mm)
D 25-5/16 in. (643 mm)
4 holes:
21/32 in. (6.5 mm) dia
E
* Includes lifting eye, handles, hardware, etc.
OM-265364 Page 14
.
A complete Parts List is available at www.MillerWelds.com
100% Duty Cycle At 1000 Amperes
Continuous Welding
0
Minutes
SECTION 5 − INSTALLATION
Weight
SubArc AC/DC Digital, 1000 Amp − 1187 lb (538 kg)
SubArc AC/DC 1250 Digital − 1260 lb (567 kg)
15
OR
Reduce Duty Cycle
E
Duty Cycle is percentage of 10 min-
utes that unit can weld at rated load
without overheating.
If unit overheats, high temperature
shutdown light turns On, thermo-
stat(s) opens, output stops, and
cooling fan runs. Wait fifteen min-
utes for unit to cool. Reduce amper-
age or duty cycle before welding.
NOTICE − Exceeding duty cycle
can damage unit and void warranty.
A/V
duty1 4/95 − 181560
A
Bottom View
B
Front
C
D
