Diesel engine-driven welder/generator
Hide thumbs Also See for Big Blue 500 X CC:

Advertisement

Big Blue
Heavy Industrial
Applications
Heavy construction
Quick
Structural steel
Maintenance and repair rigs
Specs
Mining maintenance
Process piping
Sheet metal
Designed for fleet owners that
demand the ultimate in reliability
and performance.
Three-phase rotating field generator
efficiently produces smooth DC weld
output using 20 to 30 percent less
fuel than a rotating armature-type
DC generator.
Enclosed robust case design
protects internal components from
impact and allows air flow to cool
and prolong the life of the engine.
Also reduces sound levels.
Quick and easy maintenance
with single-side access to oil level
check, oil fill, oil filter, fuel filter and
air cleaner.
Remote toolless oil drain allows oil
to be drained without getting under
the engine and reduces the chance
of oil spillage.
Hot Start
provides positive stick
electrode starts making it easy to
start all types of electrodes and it
also works great for bead tie-ins.
HD powder coat with zinc-rich
primer protects sheet metal from rust
and corrosion.
500X
®
and
Processes
Stick (SMAW)
DC TIG (GTAW)
Air carbon arc (CAC-A)
500 X
Rated: 8 mm (5/16 in.) carbons
Capable: 9.5 mm (3/8 in.) carbons
600 X
Rated: 9.5 mm (3/8 in.) carbons
Welder/generator is warranted by Miller for three years, parts and labor.
Engine is warranted separately by engine manufacturer.
Miller Electric Mfg. LLC
An ITW Welding Company
1635 West Spencer Street
P.O. Box 1079
Appleton, WI 54912-1079 USA
600X
Output Range
500 X CC DC stick: 55–500 A, DC/TIG: 55–500 A
600 X CC DC stick: 55–600 A, DC/TIG: 55–600 A
Generator Output Rated at 104°F (40°C)
5,500 watts peak, 4,000 watts continuous

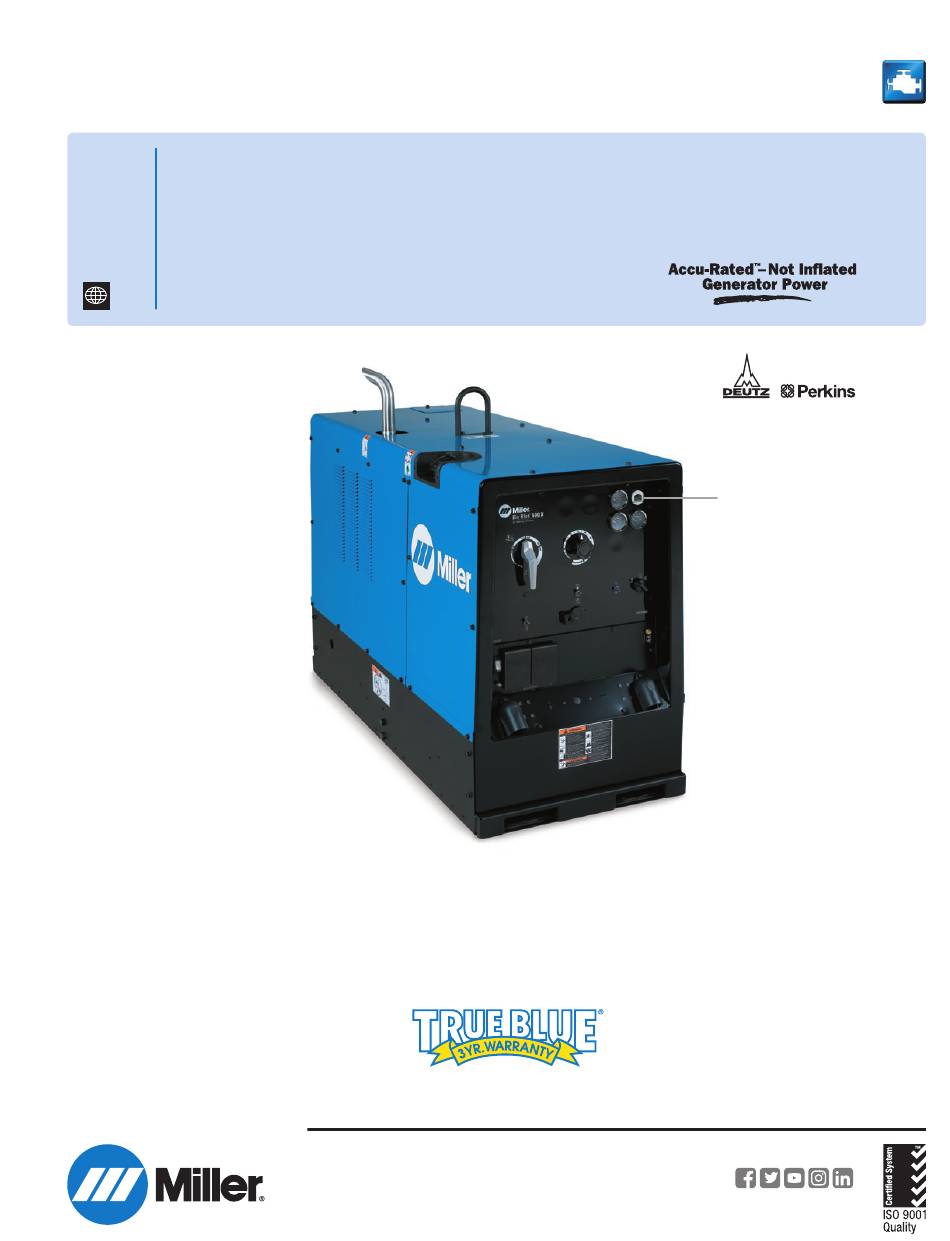

Big Blue 600 X CC shown.
Equipment Sales US and Canada
Phone: 866-931-9730
FAX: 800-637-2315
International Phone: 920-735-4554
International FAX: 920-735-4125
Issued April 2018 • Index No. EDX/10.11
Diesel Engine-Driven
Welder/Generator
Heavy-duty low-speed industrial
diesel engines are designed, built
and proven to operate over 10,000
hours before the first basic overhaul.
Meter maintenance displays
• Fuel gauge
• Hour meter function
• Oil change interval
• High coolant temperature and
low oil pressure shutdowns
• Low fuel shutdown — engine
shuts down before system runs
out of fuel, making restarts easy.
Arc-Drive
makes welding easy.
Automatically enhances stick
welding, especially on pipe, by
focusing the arc and preventing the
electrode from going out.
Weatherproof Lexan
®
nameplate
resists cracking and fading, and is
color coded for ease of operation.
GFCI receptacle as required on
most jobsites to protect oper ators
from electrical hazards.
CSA, IEC and NEMA compliant for
welders. Degree of protection
provided by enclosure IP23.
MillerWelds.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Big Blue 500 X CC and is the answer not in the manual?

Questions and answers

Summary of Contents for Miller Big Blue 500 X CC

  • Page 1 Degree of protection and corrosion. provided by enclosure IP23. Welder/generator is warranted by Miller for three years, parts and labor. Engine is warranted separately by engine manufacturer. Miller Electric Mfg. LLC Equipment Sales US and Canada MillerWelds.com...
  • Page 2: Specifications

    Proven, rugged rheostat control technology A stick/TIG switch optimizes open-circuit Provisions are provided to plug a RHC3GD34A that has been in Miller engine drives for over voltage for stick welding and allows the remote control that will allow precise adjust - 60 years.
  • Page 3: Performance Data

    Performance Data 500 X CC 600 X CC Volt/Amp Curves – Stick Mode Volt/Amp Curves – Stick Mode 200 300 400 900 1000 900 1000 DC Amperes DC Amperes Fuel Consumption Curve Duty Cycle Curve 1000 7.57 6.62 600 X 5.69 4.73 500 X...
  • Page 4: Engine Specifications

    Right-side service access with intervals of 1,000 hours for air/oil-cooled Coolant: temperature, oil and filters. diesel Integrated oil low fuel level Genuine Miller Options ® Weld Ammeter and Voltmeter Kit 195131 Field Battery Voltmeter Panel-mounted analog meters 195454 Field monitor welding output.
  • Page 5 Genuine Miller Accessories ® Plasma Cutting International Plug 255416 Field 1-phase, 240 V, 16 A plug Engine Filter Kits 246988 Field. For Deutz D2011 Protective Cover 194683 Field 246985 Field. For Perkins 404 Blue water-resistant canvas cover resists stains Includes all filters required for proper engine and mildew, and protects the finish of your maintenance.
  • Page 6: Mounting Specifications

    Trailers and Hitches (Note: Trailers are shipped unassembled.) Cable Tree 043826 Provides an area to conveniently wrap weld cables and extension cords. 2-In-1 Document/ Fire Extinguisher Holder 301236 For use with HWY-225. Stores documents and holds HWY-225 Trailer 301338 4 West Four-Wheel Steerable a 5-pound fire extinguisher.
  • Page 7: Typical Installations

    Typical Installations Electrode Hot Stick electrode Stick (SMAW) Basic Equipment Work TIG torch with valve Scratch Start TIG (GTAW) Basic Equipment Scratch start TIG Work Remote On/Off Required Remote control Stick electrode Stick (SMAW) Basic Equipment 14-pin RHC-3GD34A RHC-3GD34A 041122 Work Plasma Basic Equipment Cutting torch...
  • Page 8: Ordering Information

    Trailer with lights, fenders and dual hitch. For highway use Cable Tree 043826 Trailer-mounted cable holder for HWY-225 2-In-1 Document/Fire Extinguisher Holder 301236 Stores documents and holds a 5-pound fire extinguisher for HWY-225 Date: Total Quoted Price: Distributed by: © 2018 Miller Electric Mfg. LLC...
