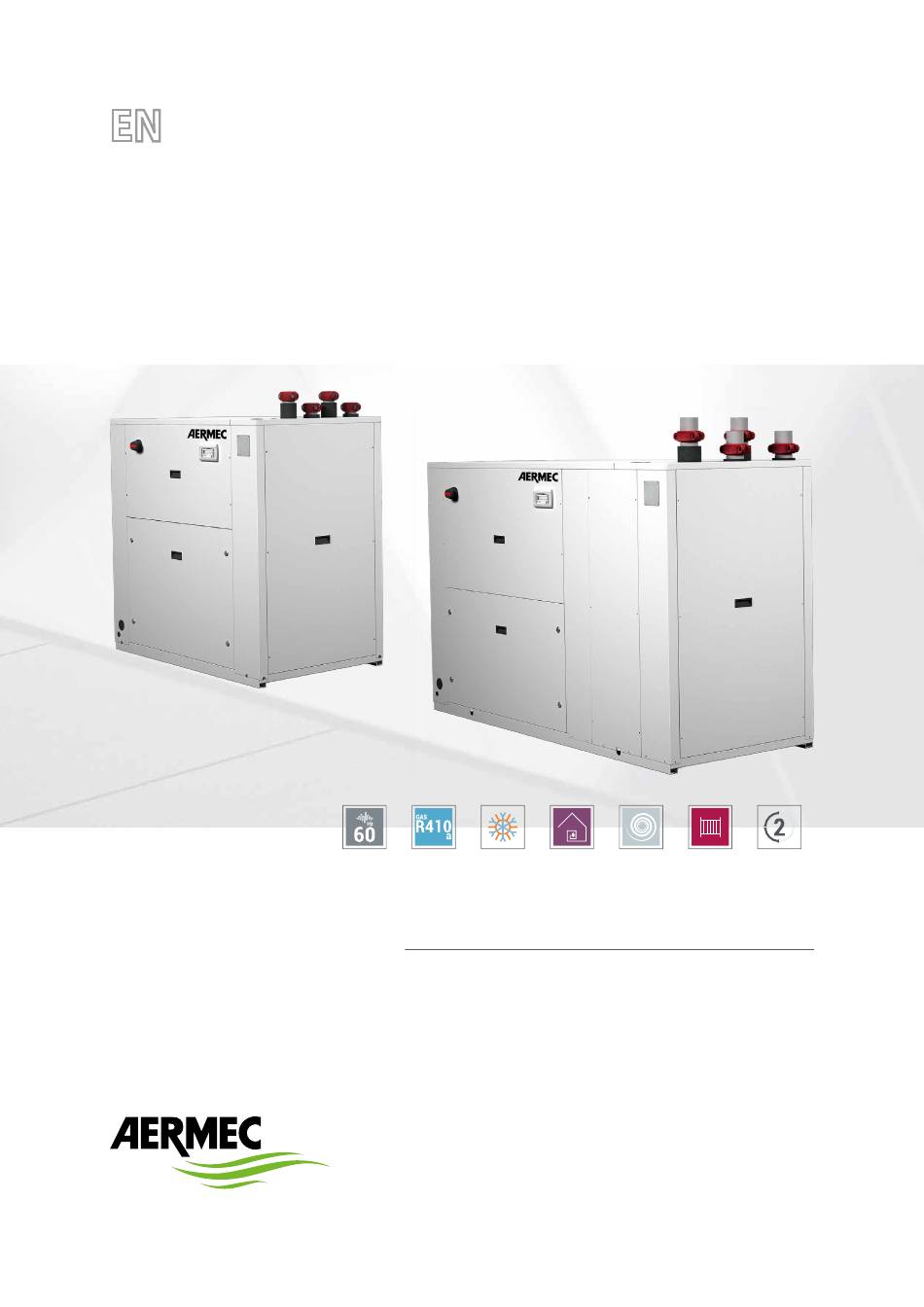

2 2 . 0 5 – 5 8 9 0 7 2 0 _ 0 4
T r a n s l a t i o n o f O r i g i n a l i n s t r u c t i o n s

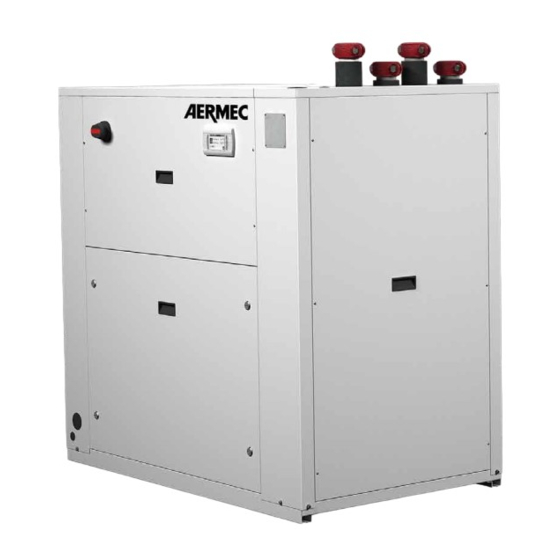

WRL 200H-500H
Technical manual
REVERSIBLE WATER-COOLED HEAT PUMP,
GAS SIDE
C o o l i n g c a p a c i t y 1 5 . 0 0 ÷ 2 6 . 9 0 t o n
H e a t i n g c a p a c i t y 1 8 5 , 8 0 0 ÷ 3 1 9 , 5 0 0 B T U / h
w w w . a e r m e c . c o m
Advertisement
Table of Contents
Related Manuals for AERMEC WRL 200H
Summary of Contents for AERMEC WRL 200H
- Page 1 2 2 . 0 5 – 5 8 9 0 7 2 0 _ 0 4 T r a n s l a t i o n o f O r i g i n a l i n s t r u c t i o n s WRL 200H-500H Technical manual...
- Page 3 Dear Customer, Thank you for wanting to learn about a product Aermec. This product is the result of many years of experience and in-depth engineering research, and it is built using top quality materials and advanced technologies. The manual you are about to read is meant to present the product and help you select the unit that best meets the needs of your system.
- Page 4 All specifications are subject to change without prior notice. Although every effort has been made to ensure accuracy, Aermec shall not be held liable for any errors or...
-
Page 5: Table Of Contents
TABLE OF CONTENTS 1. Fields of the range ................p. 6 Operating field ..................p. 6 Plug and play ...................p. 6 Version with Integrated hydronic kit..........p. 6 2. Configurator ..................p. 6 3. Unit components description .............p. 7 Refrigerant circuit ...................p. 7 Hydraulic circuit (versions without hydronic kit) ......p. 7 Hydraulic circuit (versions with hydronic kit) .......p. 7 Control and safety components ............p. 7 Electrical control and power panel ..........p. 7 4. -
Page 6: Fields Of The Range
FIELDS OF THE RANGE Water-water offering chilled/hot water, designed to mit air conditioning needs in PLUG AND PLAY residential/commercial complexes or industrial applications. Indoor units with hermetic scroll compressors and plate heat exchangers. All the units are equipped with scroll compressors and plate heat exchangers; the In the configuration with desuperheater, it is also possible to produce free-hot wa- base and panelling are made of steel treated with RAL 9003 polyester paints. -
Page 7: Unit Components Description
UNIT COMPONENTS DESCRIPTION High pressure transducer REFRIGERANT CIRCUIT Placed on the high pressure side of the cooling circuit, signals the work pressure to control board, generating a pre-warning in case abnormal pressure occurs. Compressors Low pressure transducer High-efficiency scroll hermetic compressors with 2-pole electric motors. All the compressors are equipped with inner electronic thermal protection device. - Page 8 probe is lower than +39.2°F. The triggering of this alarm stops the compressor, but the pump will remain active. THIS ANTIFREEZE TEMPERATURE SETTING CAN ONLY BE ALTERED BY AN AUTHOR- ISED SERVICE CENTRE, AND ONLY AFTER CHECKING THERE IS AN ANTIFREEZE LIQ- UID IN THE WATER CIRCUIT.
-
Page 9: Accessories
ACCESSORIES AER485P1: RS-485 interface for supervision systems with MODBUS protocol. also, with a simple click is possible to save a log file with all the connected unit datas AERNET: The device allows the control, the management and the remote monitor- in the personal terminal for post analysis. -
Page 10: Performance Specifications
PERFORMANCE SPECIFICATIONS WRL H Size Cooling performance 54.07 °F / 44.06 °F (1) Cooling capacity ° 15.00 20.40 26.90 Input power ° 11.60 15.20 19.20 Cooling total input current ° 21.0 26.0 32.0 ° BTU/(Wh) 15.52 16.11 16.81 IPLV ° BTU/(Wh) 22.83 23.68... -
Page 11: General Technical Data
GENERAL TECHNICAL DATA Size Compressor Type ° type Scroll Compressor regulation ° Type On-Off Number ° Circuits ° Refrigerant ° type R410A Refrigerant charge (1) ° 12.8 15.4 24.3 ° Type Total oil charge ° 15.4 15.4 System side heat exchanger Type °... -
Page 12: Dimensions
Power supply: 575V Integrated hydronic kit, Integrated hydronic kit, Version user side source side ° ° °/V 92.4 99.7 134.7 ° ° 95.6 102.9 137.9 Peak current (LRA) ° °/V 95.6 102.9 137.9 ° 98.8 106.1 141.1 ° ° °/V 25.0 35.0 50.0... -
Page 13: 10 Minimum Technical Spaces
10 MINIMUM TECHNICAL SPACES Size Minimum technical spaces ° 23.6 23.6 23.6 ° 23.6 23.6 23.6 ° 23.6 23.6 23.6 ° 23.6 23.6 23.6 ° 23.6 23.6 23.6 A1 = For further information please contact the head office. 22.05 – 5890720_04... -
Page 14: 11 Operating Limits
The units, in standard configuration, are not suitable for installation in aggressive environments. The values indicated here refer to the min. and max. temperature limits of the unit. For further information, refer to the Magellano selection program available on the website Aermec. -
Page 15: Pressure Drops
PRESSURE DROPS WITHOUT HYDRONIC KIT Source side heat exchanger Condenser Water input temperature 85.24 °F Outlet water temperature 94.55°F Pressure drops (ft H₂O) ftH O Water flow rate (gpm) 70.0 60.0 50.0 40.0 30.0 20.0 10.0 50.0 100.0 150.0 200.0 250.0 Size Source side heat exchanger... -
Page 16: With Pumps
WITH PUMPS Source side heat exchanger Condenser Water input temperature 85.24 °F Outlet water temperature 94.55°F Pressure drops (ft H₂O) ftH O Water flow rate (gpm) 80.0 70.0 60.0 50.0 40.0 30.0 20.0 10.0 50.0 100.0 150.0 200.0 250.0 Size Source side heat exchanger Minimum water flow rate °... -
Page 17: Pumps Static Pressure
PUMPS STATIC PRESSURE The table shows the characteristic curves of the pumps, and therefore they do not represent the useful static pressures of the system. The useful heads of the system must be calculated by subtracting the unit's pressure drops (Δp) from the useful head of the pump shown in this diagram (see chapter: Pressure drops p. 15). -
Page 18: System Water Content
If you are in any doubt, please refer to the relevant technical documentation or contact the AERMEC Technical-Commercial Service. ATTENTION It is recommended to design systems with high water content (minimum recommended values shown in tab), in order to limit: —... -
Page 19: Expansion Vessel Setting
EXPANSION VESSEL SETTING The expansion tank volume is 6.3 gal. The standard value of the expansion tank pre-charge pressure is 21.8 psi, but this can be calibrated up to a maximum of 87.0 psi. The expansion tank pressure setting has to be adjusted based on the difference in height (H) of the installation (see figure) according to the formula: p (rating) [bar] = H [ft] / 33.5 + 1.0. -
Page 20: 12 Correction Factors
12 CORRECTION FACTORS CORRECTIVE FACTORS FOR AVERAGE WATER TEMPERATURES DIFFERENT FROM NOMINAL VALUES The pressure drops are calculated with an average water temperature of 50.0 °F (Cooling mode), 109.4 °F (Heating or recovery mode) System side heat exchanger Cooling mode Heating mode or recovery Average water temperatures °F... -
Page 21: Sound Data
(1) Sound power calculated on the basis of measurements made in accordance with UNI EN ISO 9614-2. Sound pressure (cold functioning) measured in free field, 10 m / 33 ft away from the unit external surface (in compliance with UNI EN ISO 3744). Service water temperature 54.07/44.06°F (in/out) Source water temperature 85.24/94.55°F (in/out) Note For operating conditions different to those declared refer to the selection program Magellano, available on www.aermec.com 22.05 – 5890720_04... - Page 24 DOWNLOAD THE LATEST VERSION: http://www.aermec.com/qrcode.asp?q=6450 A E R M E C S . p . A . V i a R o m a , 9 9 6 - 3 7 0 4 0 B e v i l a c q u a ( V R ) - I t a l y P h o n e + 3 9 0 4 4 2 6 3 3 1 1 1 - F a x + 3 9 0 4 4 2 9 3 5 7 7 s a l e s @ a e r m e c .
