F005
A
De bremer stadsmuzikanten
Les musiciens de brême
Die bremer stadtmusikanten
Town musicians of bremen
Los músicos de bremen
I musicanti di brema

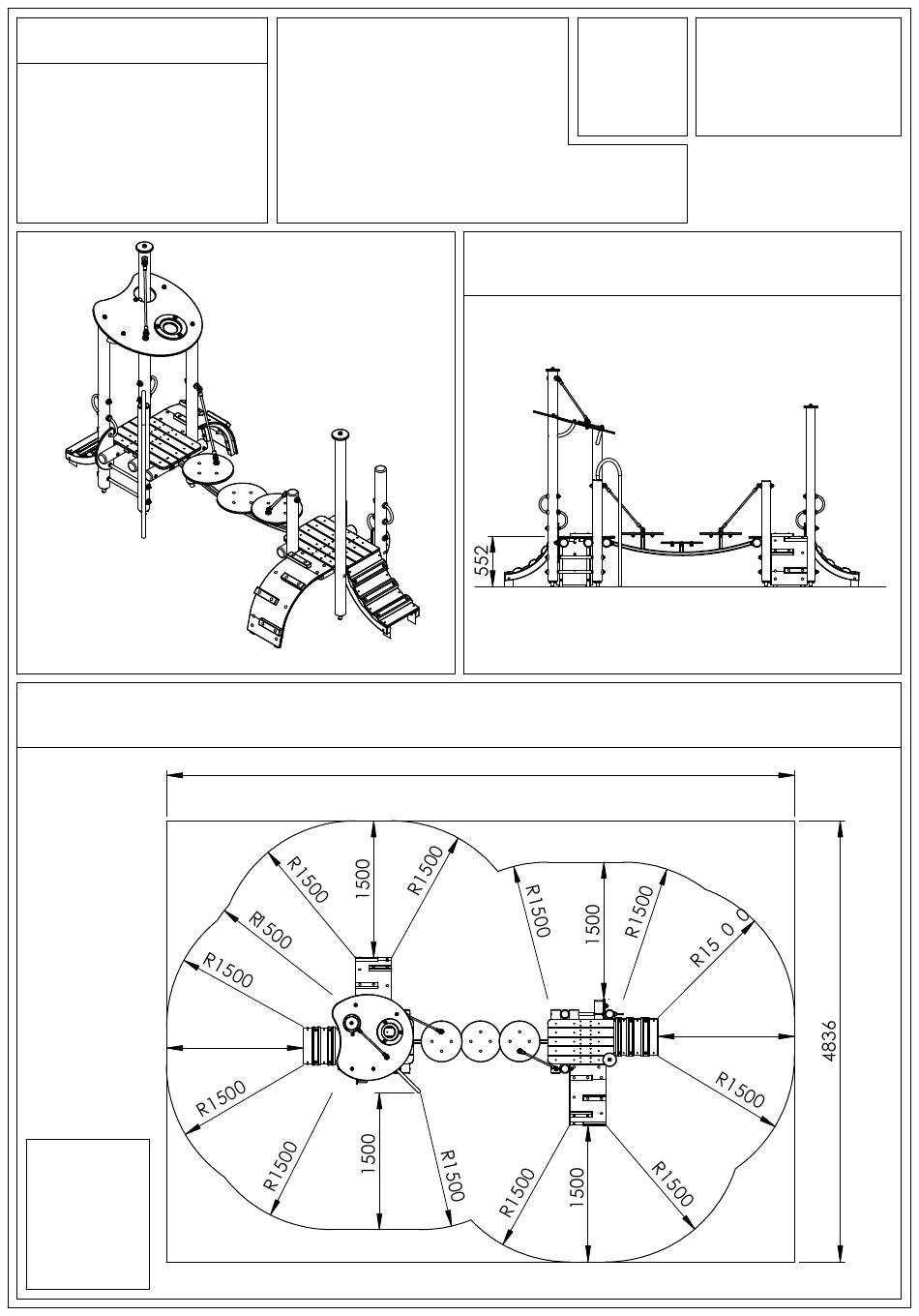

VEILIGHEIDSAFSTAND / ESPACE DE CHUTE / SAFETY AREA /
SICHERHEITSABSTAND / ZONA DE SEGURIDAD / DISTANZA DI SICUREZZA
AFMETINGEN
DIMENSIONS
MASSE
DIMENSIONES
DIMENSIONI
L: 3,9m
Br: 1,8m
H: 2,2m
Montagehandleiding
Notice de montage
Assembling manual
Montageanleitung
Instrucciones para el montaje
Istruzioni di installazione
189,87kg
1500
Leeftijd
Age group
Age / Alter
Edad / Età
2 - 6
VALHOOGTE / HAUTEUR DE CHUTE /
FALL HEIGHT / FALLHÖHE/
ALTURA DE CAÍDA / ALTEZZA DI CADUTA
6889
EUROPLAY nv
Eegene 9
B-9200 DENDERMONDE
tel. 32.52.22 66 22
fax.32.52.22 67 22
www.europlay.eu
Dat.: 23/01/2017
Rev.: -
Page: 1/11
1500
33,5m2
