Summary of Contents for Tobbi TH17W0442

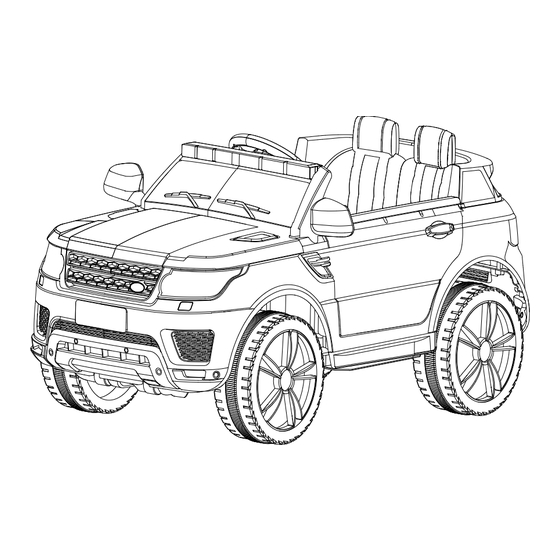

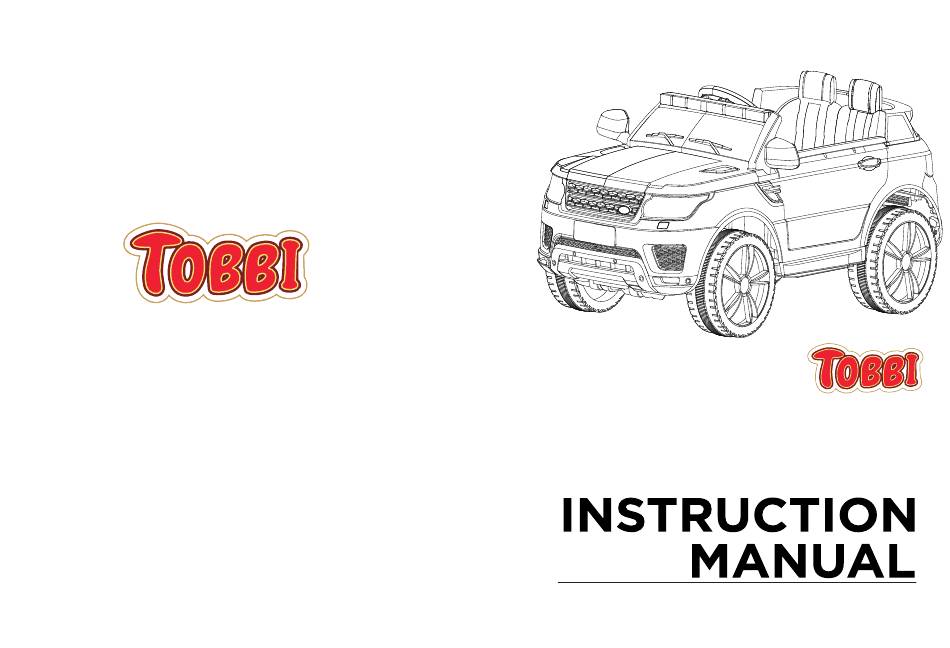

- Page 1 TH17W0442+TH17B0464+TH17E0465+TH17K0595...
- Page 2 For more information,please browse TOBBI Kids Car, for Kids and Fun!
- Page 3 Structure Chart To reduce the risk of injury,adult supervision is required. Never use on roadways, near motor vehicles, on or near steep inclines or steps, swimming pools or other bodies of water; always wear shoes, and never allow more than one rider. Main body Steering wheel Wheel cover...
- Page 4 Product Figure Spare Parts Washer Screw 6 PCS 15PCS Screw Cotter pin Remote control 4PCS Charger Intercom...
- Page 5 Assembly Steps Assembly Steps Right and Left Brackets Assembly Steering Wheel Assembly Place the right and left brackets(I) at the corresponding holes on Connect the two lines as shown in the picture, then insert the the body(A) and tighten them with screws(K) . steering wheel(B) to the direction lever, finally tighten with the screw(M) and nut(L).
- Page 6 Assembly Steps Assembly Steps Battery Line Connection Windshield Assembly Open the hood, connect the lines which are in the windshield(E) Connect the battery line correctly, red to red, black to black. and under the hood, insert the windshield(E)into the right place Black on the platform, finally tighten with the screw(K).
- Page 7 Assembly Steps Funciton Diagram and Operation Method Indicator light Rearview Mirror Assembly Forward Stop Speed Insert the right and left rearview mirrors(H) into the corresponding holes as shown. Left Right Backward Insert 2 AAA batteries into the remote control. After 10 seconds of non-operation, the indicator light will turn off Funciton Diagram and Operation Method and the remote will go into power-saving mode.
- Page 8 Charge Mode Charge Mode Check the battery, charger and other spare parts regularly. If any Step 1 : The charging hole is under the steering wheel. problem occurs, please fix it before playing. Step 2 : Insert the charger plug into the plug hole. Step 3 : Connect the charger to the power socket.
- Page 9 Simple Trouble Shooting...
