TH17A0355 TH17B0356 TH17E0357 TH17Y0354

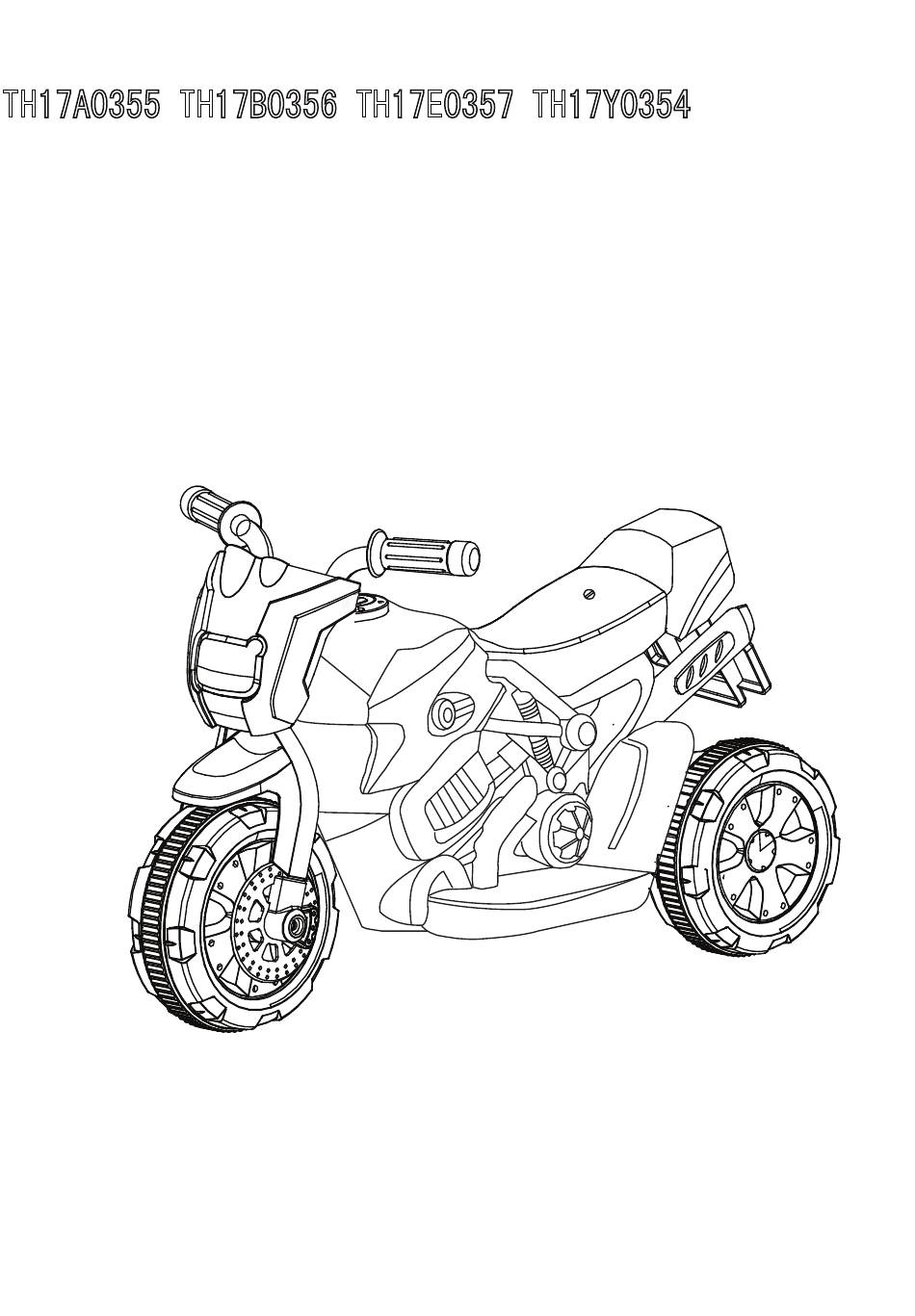

BABY RIDE ON CAR
INSTALL & ASSEMBLY MANUAL
●Motor Car Design
Executive standard: EN71 and EN62115 ;
●Pedal Operated, Move Forward
GB6675-2003 and GB19865-2005
●
Warning!
Contains the small components, does not suit
3 year old of and following child uses
Adult Install Only
Please follow the final product, the drawing or picture
on this manual is for reference only.
Advertisement
Related Manuals for Tobbi TH17A0355
Summary of Contents for Tobbi TH17A0355
- Page 1 TH17A0355 TH17B0356 TH17E0357 TH17Y0354 BABY RIDE ON CAR INSTALL & ASSEMBLY MANUAL ●Motor Car Design Executive standard: EN71 and EN62115 ; ●Pedal Operated, Move Forward GB6675-2003 and GB19865-2005 ● Warning! Contains the small components, does not suit 3 year old of and following child uses...
- Page 2 The picture in this manual is to show the product operation and structure, please follow the real product only if any difference between picture and product happens. There must be chance not to inform you on time to improve the product result from appearance or structure, please be understood.
- Page 3 Part name CH8819 BABY RIDE ON CAR INSTALL & ASSEMBLY MANUAL ●Motor Car Design ●Pedal Operated, Move Forward Adult Install Only Please follow the final product, the drawing or picture on this manual is for reference only. Quantity Component Quantity Serial Component Quantity Serial...
- Page 4 Install & Operation 1. Install Wheel(PIC 1) Install the front wheel as picture show washer Front Axle non-gear box Drive Wheel Wheel cover washer gear box Install Rear Wheel(PIC 2) put the washer on the right of rear axle, then put through the axle into the body, put on the gear box Put on the drive wheel (The tooth matches the gear box), then put the washer and left wheel on left side of axle...
- Page 5 Install & Operation 3. Install Front Wheel ASSM (PIC 3) Put on the front wheel ASSM as picture show 4. Install the handlebar components(PIC 4): Put the handlebars of connecting cables and body of good， Handlebar fitting the screw hole and screw hole of fork pipe component，...
- Page 6 Troubleshooting Guide_______________ Possible Cause Remedy Problem 1. Recharge battery. 1. Battery low on power 2. Wait a few minutes 2. Thermal fuse has before use. tripped Vehicle dose 3. Check that the 3.Battery connector or not run battery connectors are wires are loose firmly plugged into each 4 Battery is dead...
- Page 7 Warnings _______________________________________________ For the users safty, please pay attention to below warnings: 1. Product shoud be assambled by an adult 2. Keep small parts away from children to avoid injuries. 3. The product must be used under the guidance of an adult, who shouldn’t get away during the process of using.
- Page 8 Warnings _______________________________________________ 1. Before using the product for the first time, the battery needs to be charged for a full 18 hours ! Otherwise it will cause perminant damage of the battery that couldn’t be fixed. 2. Don’t use the product in dangerour places such as public road, street, ditch or slope.
- Page 9 Instruction for use 1. Battery recharger (PIC 1) Please recharger the battery when the battery is exhaust. The recharger socket is at the side of body, which is just near gas cap (Note: The car doesn’t work when it was in recharger. Recharger should be done by adult).
- Page 10 Instruction for use 4.Foot switch control, when the motor rotation, bright shine 【Switch on the power supply, car lights shine, this is optional】 foot pedal operate pedalswitch, the car move forward, release pedal switch, car stop; foot pedal...
