Summary of Contents for Tobbi TH17W0622

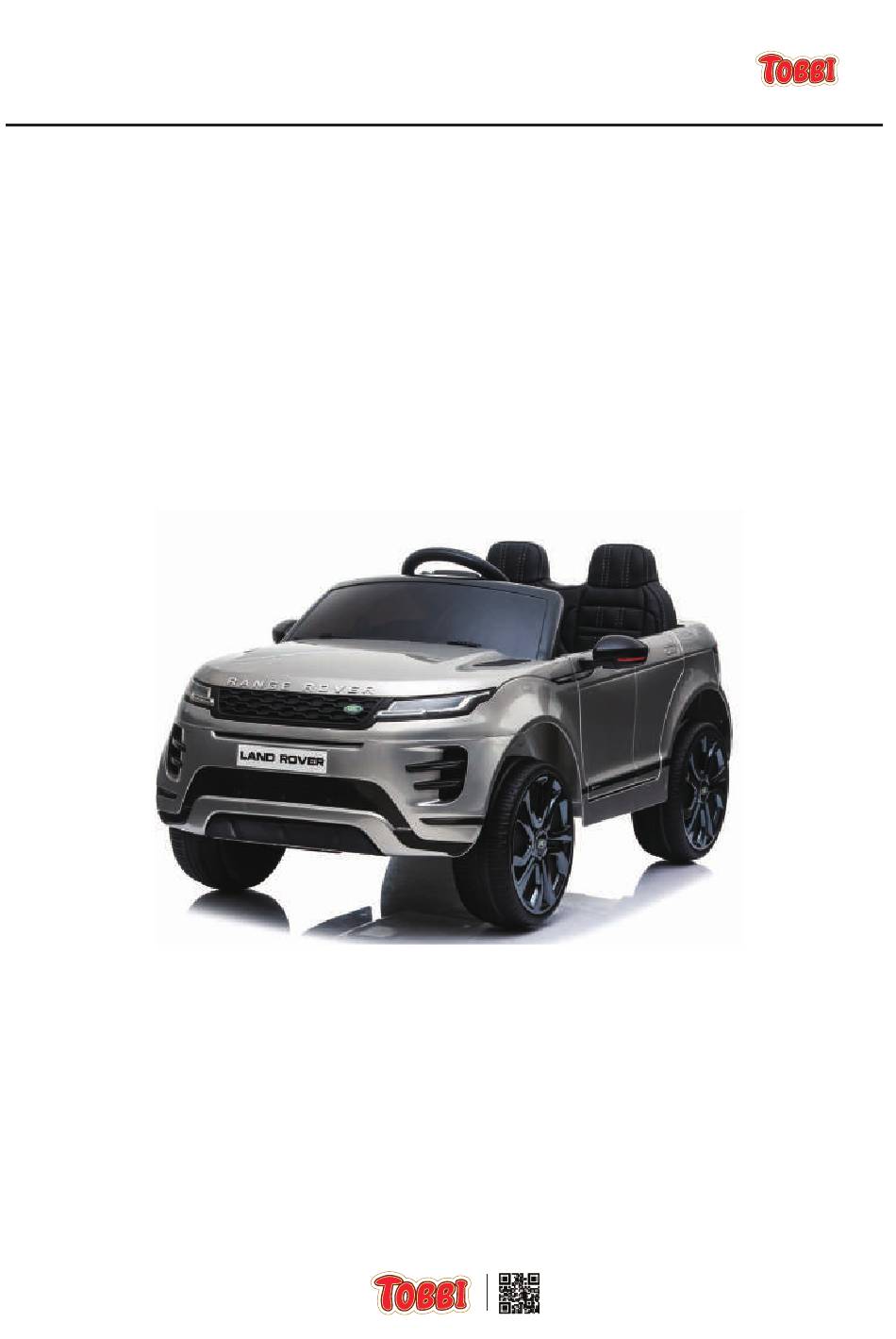

- Page 1 User Manual...
- Page 2 Body Seat MP3 line Remote control Windshield Steering wheel Package of screws Motor Wheel Wheel cap Back empennage Rear view mirrors Stickers...
- Page 3 1.Install motors Please find driving motors first and disconnect them. Insert motors into back axle, making the connection lines insert into the hole and connect with power lines correctly. (Please refer to the photo). 2.Install wheels Under the situation of 25W(390) motors, the installation sequence is: gasket, back wheel, gasket, screw, wheel cap.
- Page 4 5.Install back empennage With Screws ↓ ↓ 6.Install rear view mirrors Please pay attention of left and right and insert into the hole beside the window correctly. (Please refer to the photo). 7.Install power lines 8.Install the seat with screws ↓...
- Page 5 Item Specifications 12V4.5/12V7/12V10 Battery Motor 25W/35W Available Ages Children from 37-96 month Maximum Weight 30KGS Size 108*67*52cm Speed 3-5km/h Charging Time 8-12hours Remote Control Batteries 2PCS of AAA Batteries Input:220V/110V Charger Output:DC12v1000MA Battery polarity cannot be reversed, please ensure the red wire is connected to the red battery terminal and the black wire is connected to the black battery terminal ●Press the power switch to OFF position to turn the power off.
- Page 6 Answer 1: The battery is low, please charge for 8-12 hours but not exceeding 12 hours. Charge at least once a month to keep the battery cells active. Answer 2: The battery is low. Please charge the battery for 8-12 hours but not exceeding 12 hours.
- Page 7 1. Imitation of air conditioner 2. Imitation of instrument board 3. Music board 4. Key switch 5. two motors/four motors switch (No this switch whder two motors version) Horn＆Music Button 1： MP3 2： display 3:TF socket 4:USB socket 5:Education(Pressing for a longer time and it will lower the volume) 6:Music(Pressing for a longer time and it will Higher the volume) 7:Story(Play/Pause) 8:Model choose(Radio,Bluetooth,SD Card,USB Connector)
- Page 8 WARNING! Not for children under 3 years. Small parts. Choking hazard -Load two AAA ( 1.5V ) batteries according to the diagram. -Non-rechargeable batteries are not to be recharged. -Different types of batteries or new and used batteries are not to be mixed.
