(continued)
Motor
Customer supplied
SPST switch
Caution:
Motor and battery wire must
be a minimum of 12 ga. and
a maximum of 6 ga.
Customer supplied
3PDT Center-off
Center-blocked switch
Motor
Battery
Customer
supplied
SPST switch
Caution:
Motor and battery wire must
be a minimum of 12 ga. and
a maximum of 6 ga.
Using inhibit input - provide fast start-
stop by bypassing accel/decel circuit
Pot High (P2-1)
Pot Wiper (P2-2)
Pot Low (P2-3)
Common (P2-4)
Inhibit (P2-5)
P2
Note: Always use a shielded cable when connecting to the inhibit terminal. The shield of the cable should connect to the Common
terminal of the control.
Before the power is applied, the speed potentiometer and trimpots should be preset as follows:
TRIMPOT PRESET
1. Preset speedpot fully CCW, preset Max trimpot CW 1/2 way, preset Current Limit trimpot fully CW, preset Min trimpot fully
CCW, preset Accel trimpot CW 1/2 way, preset I.R. trimpot fully CW.
DC power can now be applied to the system and the control adjusted as directed below:
TRIMPOT ADJUSTMENT
2. Increase the MIN trimpot in a clockwise direction until the desired minimum speed is reached.
3. Turn the Speedpot fully clockwise and adjust the MAX trimpot until the desired maximum speed is reached.

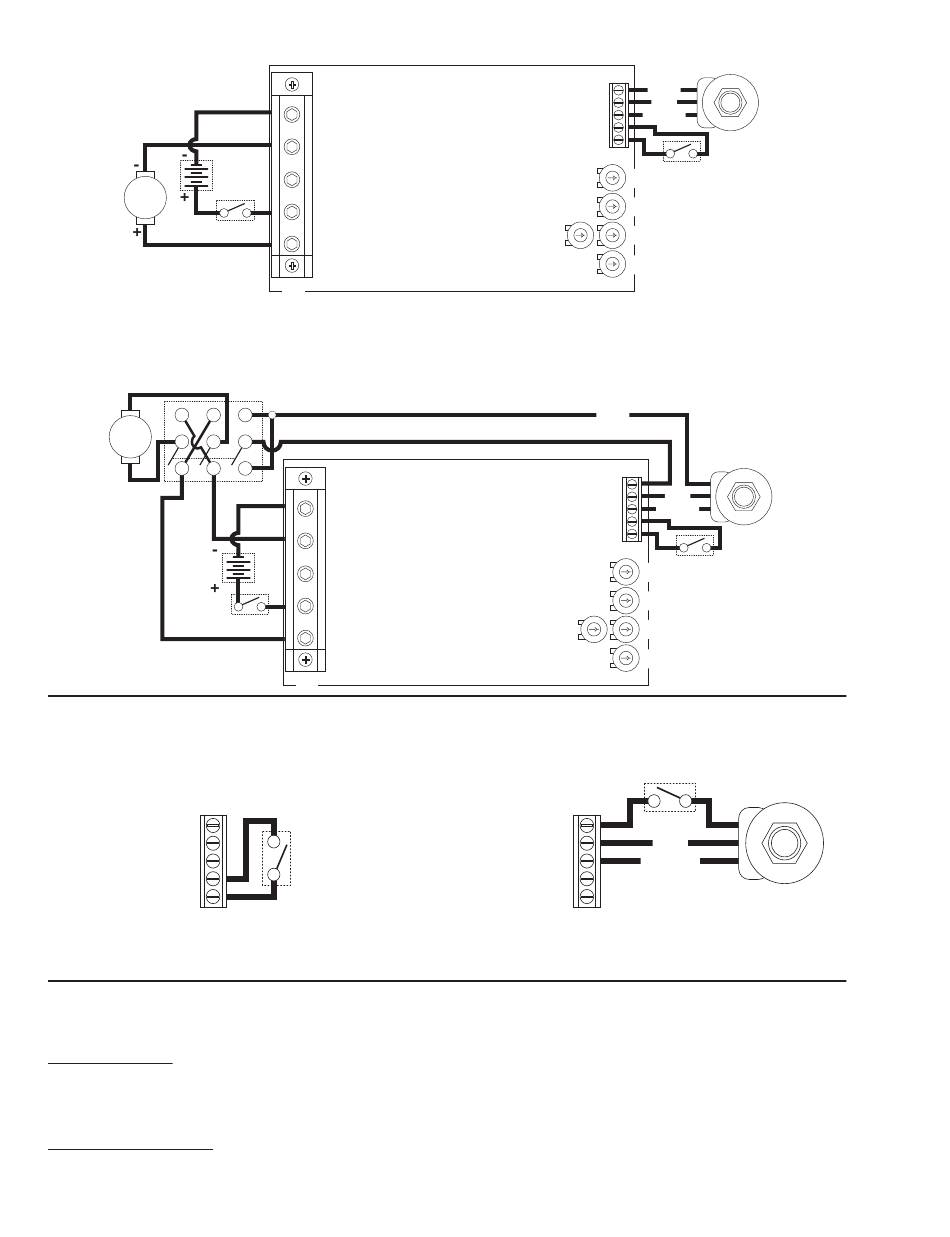

65E SERIES HOOK-UP DIAGRAM
-Battery (P1-1)
-Arm (P1-2)
Battery
No Connect (P1-3)
+Battery (P1-4)
+Arm (P1-5)
P1
65E REVERSING HOOK-UP DIAGRAM
Relays may be used in place of switch, but a neutral position must be provided
to prevent plug reversing. Do not engage opposite direction until motor has
come to a complete stop. Failure to do so may result in damage to the control.
-Battery (P1-1)
-Arm (P1-2)
No Connect (P1-3)
+Battery (P1-4)
+Arm (P1-5)
P1

INHIBITING THE CONTROL

SPST Switch
open = run
close = stop

TRIMPOT ADJUSTMENTS

P2
Pot High (P2-1)
Pot Wiper (P2-2)
Pot Low (P2-3)
Common (P2-4)
Inhibit (P2-5)
Current Limit
White
Pot High (P2-1)
Pot Wiper (P2-2)
Pot Low (P2-3)
Common (P2-4)
Inhibit (P2-5)
Current Limit
Inhibit via speedpot - provides starting and
stopping through accel/decel parameters
Pot High (P2-1)
Pot Wiper (P2-2)
Pot Low (P2-3)
Common (P2-4)
Inhibit (P2-5)
P2
3
5Ký
Speedpot
White
Red
Orange
Optional
Inhibit
(see hook-up
I.R. Comp.
below)
Accel
Max Speed
Min Speed
5Ký
Speedpot
P2
Red
Orange
Optional
Inhibit
(see hook-up
I.R. Comp.
below)
Accel
Max Speed
Min Speed
White
Red
Orange
SPST Switch
5KW
Speedpot
open = stop
close = run
(continued on following page)
