Figure 9 Direct Wiring Connection-Meridian 1 To Aem - Northern Telecom Meridian Meridian 1 Installation Manual

Procedure 2xxx
Power connections (dc)
1 Connect the safety ground wire.
Use insulated ground wire for system grounding.
For a direct connection, connect a #6 AWG wire from the ground
source in the service panel to a ground lug on the pedestal of the AEM
column.
For a daisy-chain connection, connect a #6 AWG wire from a ground
lug on the closest Meridian 1 column or cabinet to a ground lug on the
pedestal of the AEM column (see Figure 9).
Note: If the power plant consists of a QBL12 used with
customer-provided power equipment, use a direct connection to
the service panel. Do not extend ground wiring from the Meridian
1/SL-1 frame to the power plant.
2 Remove the PDU to access the field wiring terminal block (TB1) in the
bottom of the pedestal.

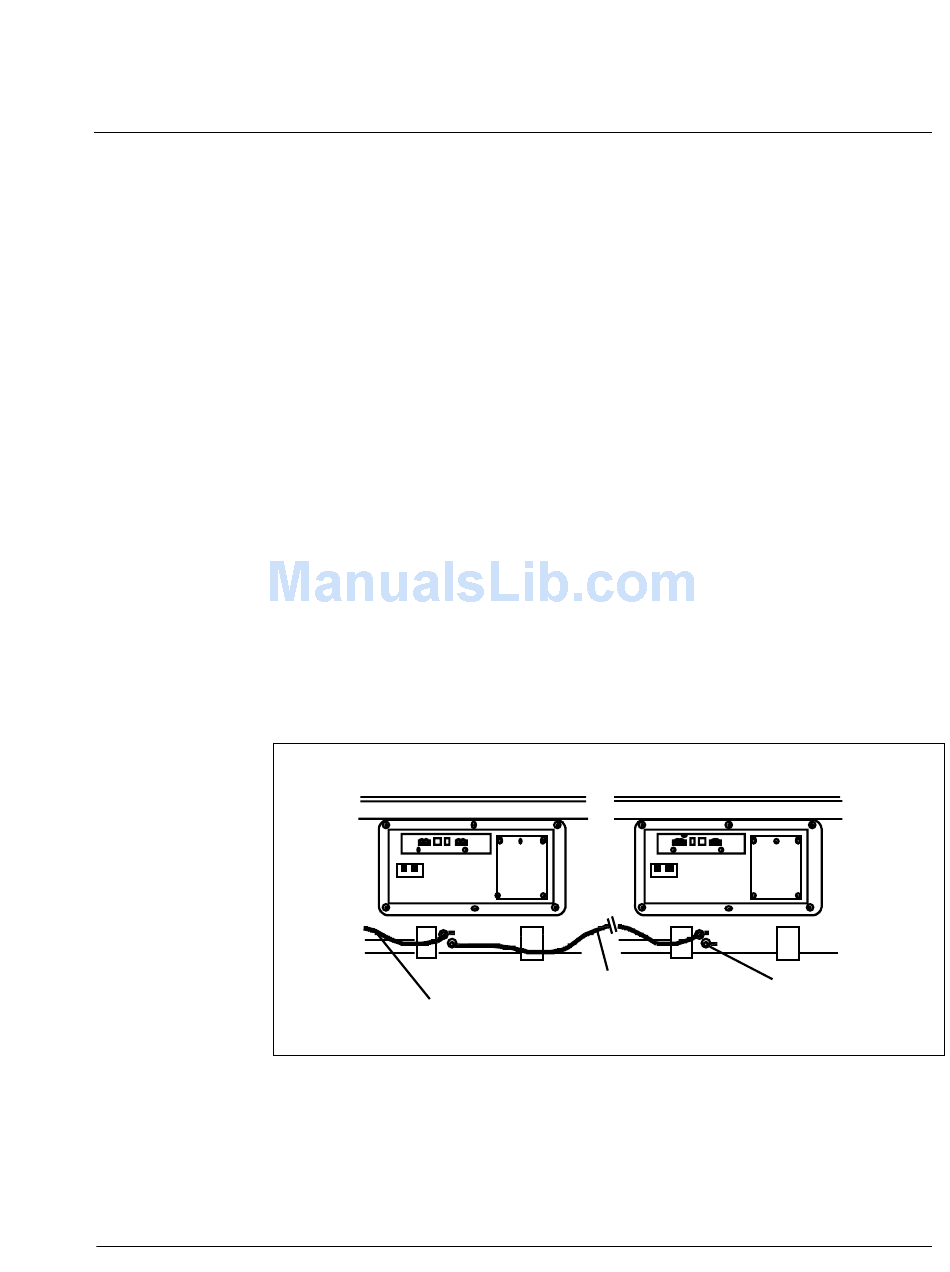

Figure 9xxx
Direct wiring connection-Meridian 1 to AEM
From ground source
Installing a stand-alone AEM 15
To ground lug of
next column
Application Equipment Module Installation guide
Terminate
on last column
