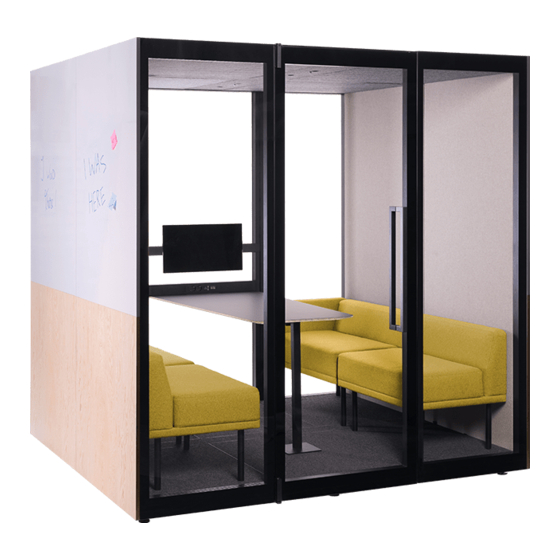

Askia Kameleon K4 Assembly Instructions Manual
  1. Manuals
  2. Brands
  3. Askia Manuals
  4. Indoor Furnishing
  5. Kameleon K4
  6. Assembly instructions manual

Askia Kameleon K4 Assembly Instructions Manual

Hide thumbs Also See for Kameleon K4:

Advertisement

Quick Links

Download this manual
Kameleon K4
ASSEMBLY INSTRUCTIONS
ACOUSTIC PODS

Advertisement

loading
Need help?

Need help?

Do you have a question about the Kameleon K4 and is the answer not in the manual?

Questions and answers

Related Manuals for Askia Kameleon K4

Summary of Contents for Askia Kameleon K4

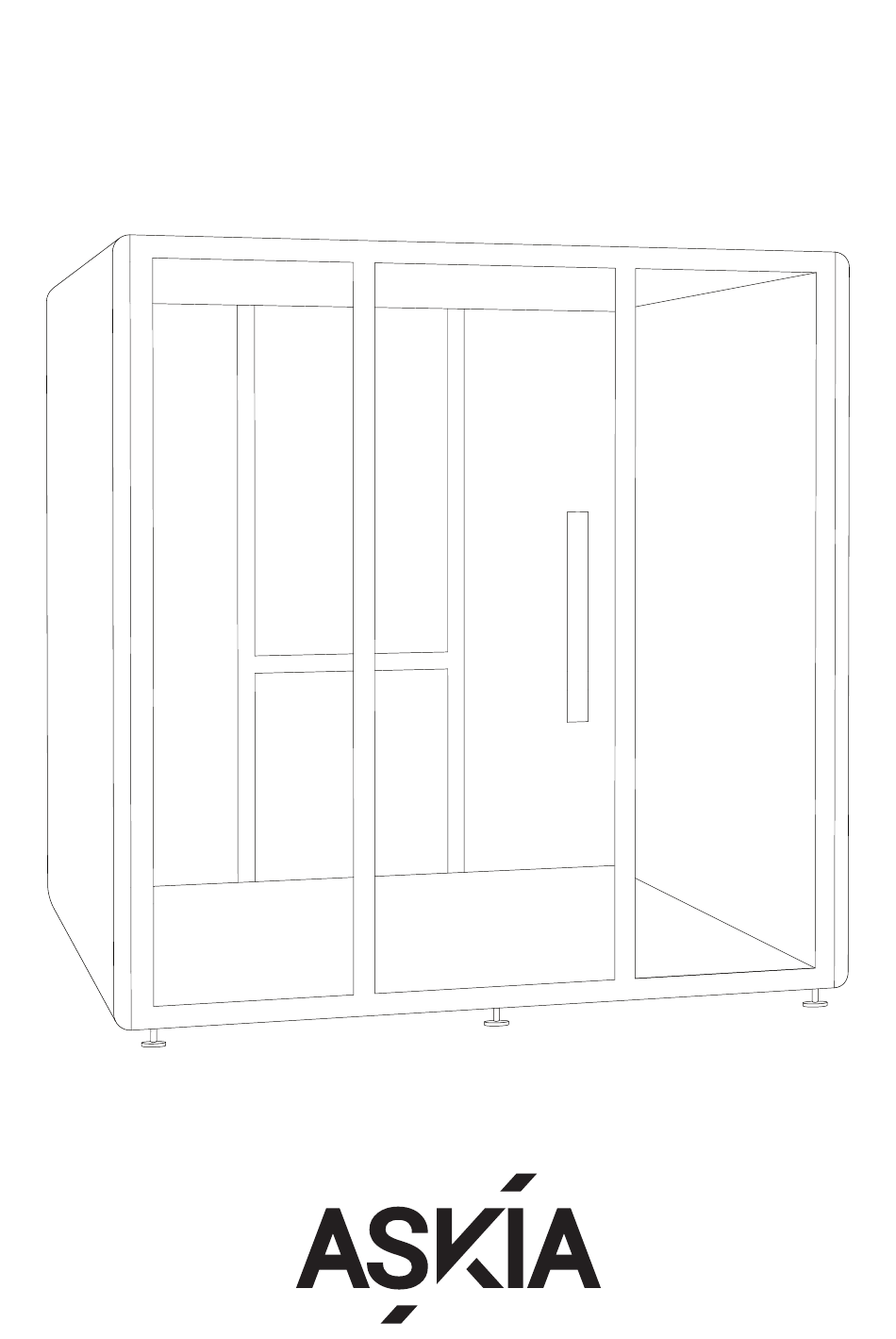

  • Page 1 Kameleon K4 ASSEMBLY INSTRUCTIONS ACOUSTIC PODS...
  • Page 2 Included x1 Allen Key 1.5 x1 Allen Key 3 x1 T-Handle Hex Key 4 x1 T-Handle Hex Key 5 x1 Ceiling Panels Adjuster x2 Sucction cups...
  • Page 3 Elements x4 Interior Panels x2 Left & x2 Right Structure Panels x1 Left & x1 Right Back Glass Walls x1 Center Back Glass Wall x1 Left & x1 Right Front Glass Walls x1 Ceiling Coupling connection x2 Ceiling x6 Acoustic Felt Ceiling Panels x2 Media adjuster x6 Carpet, x4 Dividers x1 Door Handle...
  • Page 4 T-Handle Hex Key 5...
  • Page 5 x16 with T-Handle Hex Key 4...
  • Page 6 Bottom x8 with T-Handle Hex Key 4 Bottom...
  • Page 7 Bottom T-Handle Hex Key 4 Bottom Inside Outside...
  • Page 8 T-Handle Hex Key 5 Intside...
  • Page 9 x16 with T-Handle Hex Key 4 Inside Outside...
  • Page 10 Recomandation It is recomended to start with the Center Back Glass Wall. T-Handle Hex Key 4 Sucction cup handles Inside...
  • Page 11 T-Handle Hex Key 4 Sucction cup handles Inside Outside...
  • Page 12 Recomandation It is recomended to start with the Door Frame. T-Handle Hex Key 4 Sucction cup handles The door opening can be oriented Left or Right just by rotating the frame.
  • Page 13 x6 with T-Handle Hex Key 4 x2 with Allen Key 3 Exterior Interior Exterior Interior...
  • Page 14 Pay attention not to break the glass door. Adjust the glass door Do not close until you accordingly if needed. check the glass door not to hit the door frame edge. Allen Key 3 Allen Key 1.5 Bottom To adjust the glass door the height must be calibrated.
  • Page 15 T-Handle Hex Key 4 Sucction cup handles Inside Outside...
  • Page 16 Orange Black Main Poewr & Ethernet supply at the back of the pod. Check if the lighting, ventilation and power sockets are conected propperly.
  • Page 17 How to remove the Interior Panel.
  • Page 18 How to place the Acoustic Felt Ceiling Panels. How to remove or adjust the Acoustic Felt Ceiling Panels.
  • Page 20 If you want to reposition the pod, you have to remove the If you are satisfied with the pod’s carpet, if needed, and unlock the legs. When you are satisfied position, you can place the carpets. with the pod’s position, lock the legs and place the carpets.
  • Page 21 Optional VESA Adapter Coat Hanger Exterior Hanging Exterior Hanging Writingboard or Pinboard Writingboard or Pinboard There are multiple features that you can personalize your pod with. You can view them for each Kameleon on our website www.askiafurniture.ro...
  • Page 22 Scan You can watch an instructional video of the K1 assembly process. Thanks to the modular design and limited number of components used for each pod, many steps are similar between different Kameleon pods.
  • Page 23 Info. ASSEMBLY INSTRUCTIONS Steps. Main Inthernet supply. Pay attention to. Bag with screws. Main Power supply. Unlocked. Pay attention to. Lock. Ventilation coupling. Level check. Power coupling. Allen key needed. Allen key and screws needed. Don’t. Ethernet coupling. T-Handle hex key needed. Pay attention not T-Handle hex key and screws needed.
  • Page 24 Eliade Tower, Mircea Eliade No.18 RO-Bucharest, 012015 T +40 212 121 381 contact@askiafurniture.ro www.askiafurniture.ro Last update: 01.07.2021...
