Kameleon K1
ASSEMBLY INSTRUCTIONS
ACOUSTIC PODS

Advertisement

loading
Need help?

Need help?

Do you have a question about the Kameleon K1 and is the answer not in the manual?

Questions and answers

Related Manuals for Askia Kameleon K1

Summary of Contents for Askia Kameleon K1

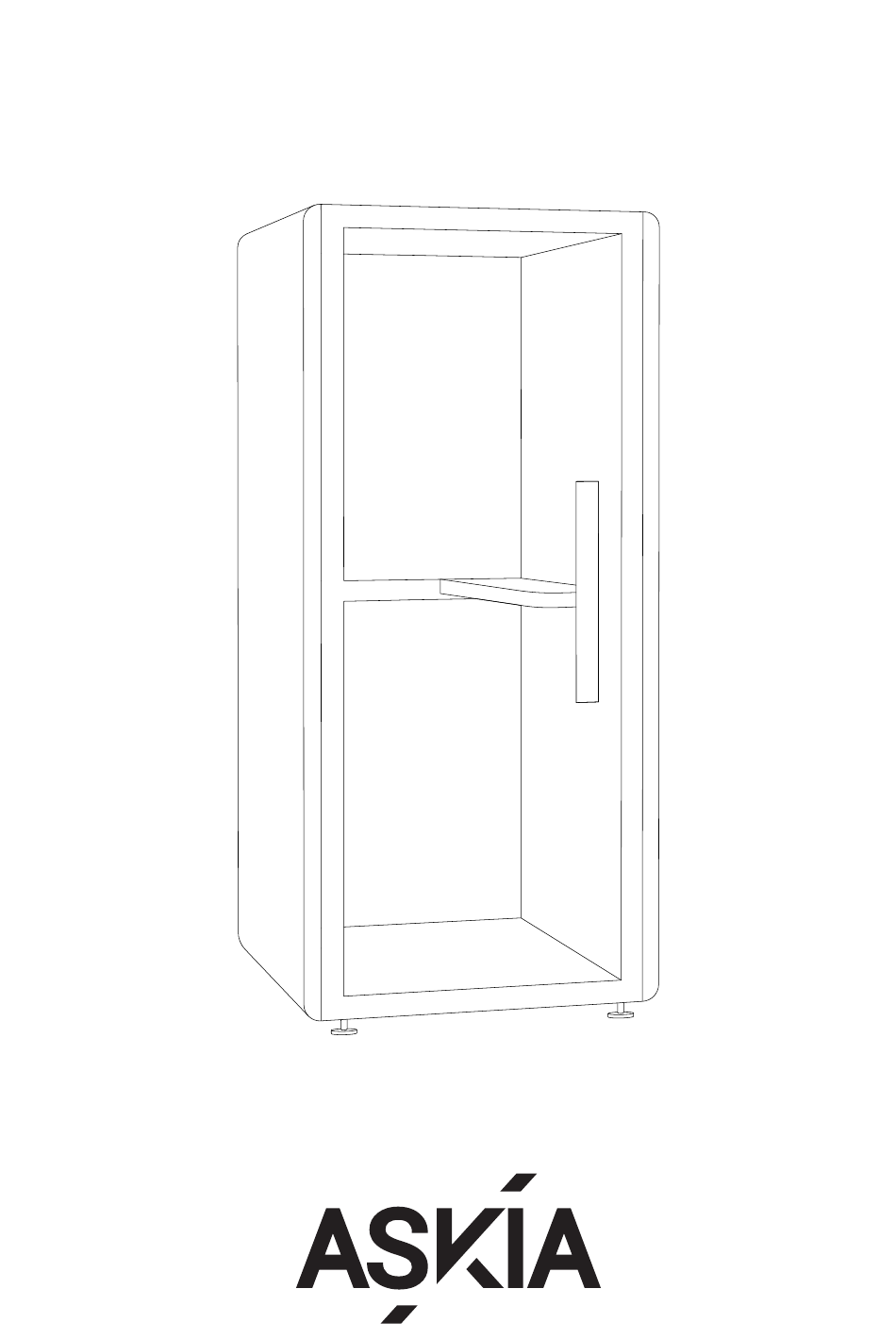

  • Page 1 Kameleon K1 ASSEMBLY INSTRUCTIONS ACOUSTIC PODS...
  • Page 2 Info. ASSEMBLY INSTRUCTIONS Steps. Main Internet supply. Pay attention to. Bag with screws. Main Power supply. Unlocked. Pay attention to. Lock. Ventilation coupling. Level check. Power coupling. Allen key needed. Allen key and screws needed. Don’t. Ethernet coupling. T-Handle hex key needed. Pay attention not T-Handle hex key and screws needed.
  • Page 3 Assembly in 40 min. with 2 people Included x1 Allen Key 2 x1 Allen Key 3 x1 T-Handle Hex Key 4 x1 T-Handle Hex Key 5 x1 T-Handle Hex Key 7 x1 Ceiling Panels Adjuster x2 Sucction cups Not Included Screwdriver...
  • Page 4 Elements x1 Left & x1 Right Interior Panel x1 Left & x1 Right Structure Panels x1 Back Glass Wall x1 Door Frame x2 Exterior Panel x1 Ceiling x3 Acoustic Felt Ceiling Panels x1 Carpet x1 Door Handle x1 Table x1 Floor...
  • Page 5 T-Handle Hex Key 4...
  • Page 6 x16 with T-Handle Hex Key 4...
  • Page 7 T-Handle Hex Key 7 Sucction cup handles Inside Outside...
  • Page 8 T-Handle Hex Key 7 Sucction cup handles Outside The door opening can be oriented Left or Right just by rotating the frame.
  • Page 9 x6 with T-Handle Hex Key 4 x2 with Allen Key 3 Exterior Interior Exterior Interior...
  • Page 10 Pay attention not to break the glass door. Pay attention not to break the glass door. Adjust the glass door if Check if the glass door necessary. hits the frame edge before closing it. Allen Key 3 Allen Key 2 Bottom To adjust the glass door, the height must be calibrated.
  • Page 11 Orange Black Main Power & Ethernet supply at the back of the pod. Check if the lighting, ventilation and power sockets are connected properly.
  • Page 12 How to remove the Interior Panel.
  • Page 13 Back How to place the Acoustic Felt Ceiling Panels. Front How to remove or adjust the Acoustic Felt Ceiling Panels.
  • Page 14 x2 with T-Handle Hex Key 5 T-Handle Hex Key 7 Screwdriver (Not Included)
  • Page 16 If you want to reposition the If you are satisfied with the pod’s pod, you have to remove the carpet, if needed, and unlock the legs. When you are satisfied position, you can place the carpets. with the pod’s position, lock the legs and place the carpets.
  • Page 17 Adjustable FAN and LED 100%...
  • Page 18 Optional VESA Adapter Coat Hanger Exterior Hanging Interior Hanging Writingboard or Pinboard Writingboard or Pinboard There are multiple features that you can personalize your pod with. You can view them for each Kameleon on our website www.askiafurniture.ro...
  • Page 19 Scan You can watch an instructional video of the K1 assembly process. Thanks to the modular design and limited number of components used for each pod, many steps are similar between different Kameleon pods.
  • Page 20 Eliade Tower, Mircea Eliade No.18 RO-Bucharest, 012015 T +40 212 121 381 contact@askiafurniture.ro www.askiafurniture.ro Last update: 06.02.2023...
