Askia Kameleon K6 Glass Assembly Instructions Manual
  1. Manuals
  2. Brands
  3. Askia Manuals
  4. Indoor Furnishing
  5. Kameleon K6 Glass
  6. Assembly instructions manual

Askia Kameleon K6 Glass Assembly Instructions Manual

Hide thumbs Also See for Kameleon K6 Glass:

Advertisement

Quick Links

Download this manual
K6
Glass
Kameleon
ASSEMBLY INSTRUCTIONS
ACOUSTIC PODS

Advertisement

loading
Need help?

Need help?

Do you have a question about the Kameleon K6 Glass and is the answer not in the manual?

Questions and answers

Related Manuals for Askia Kameleon K6 Glass

Summary of Contents for Askia Kameleon K6 Glass

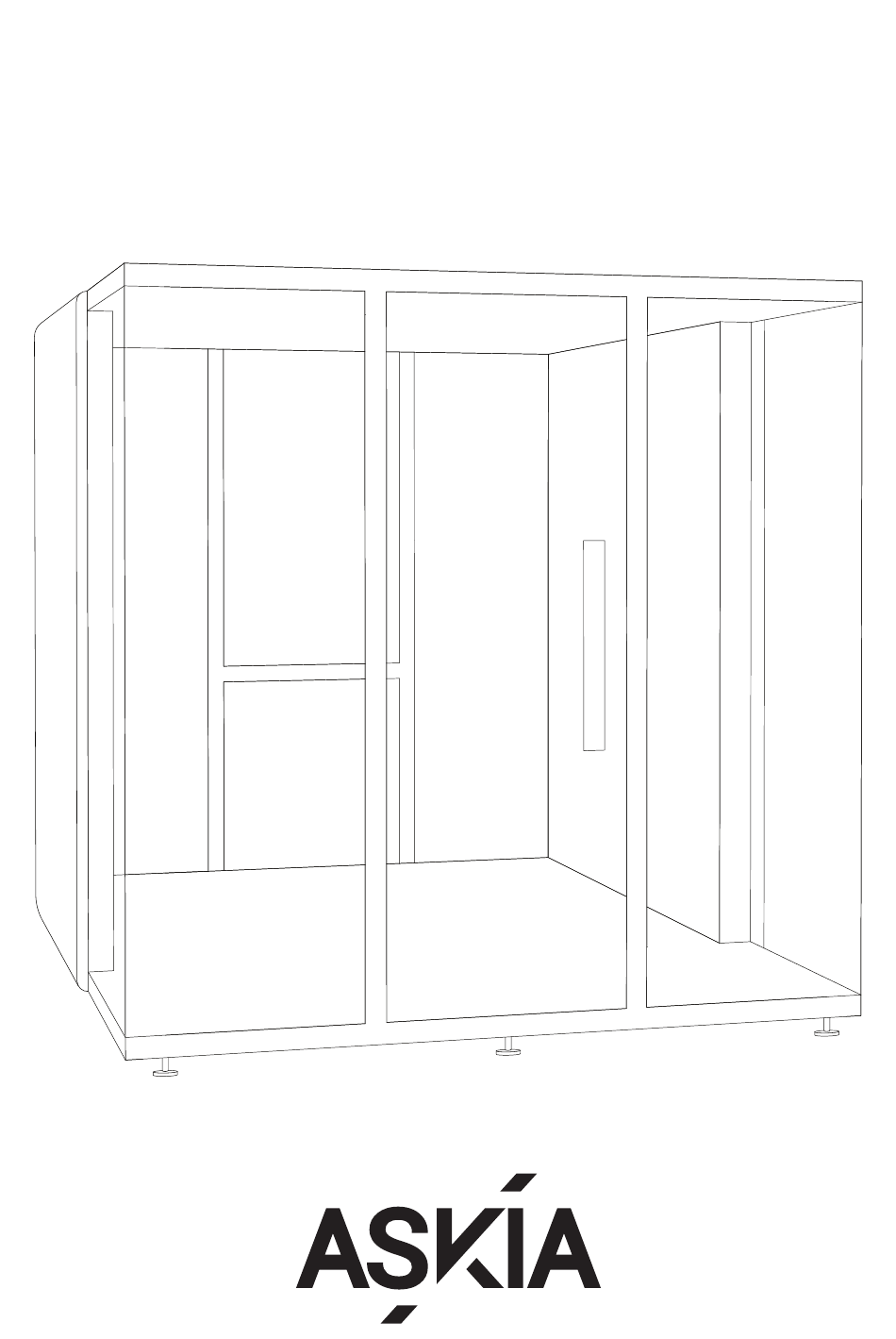

  • Page 1 Glass Kameleon ASSEMBLY INSTRUCTIONS ACOUSTIC PODS...
  • Page 2 Assembly in 225 min. with 3 people Included x1 Allen Key 1.5 x1 Allen Key 3 x1 T-Handle Hex Key 4 x1 T-Handle Hex Key 5 x1 Ceiling Panels Adjuster x2 Sucction cups...
  • Page 3 Elements x4 Interior Panels x2 Left & x2 Right Structure Panels x1 Left & x1 Right Glass Panels x1 Left & x1 Right Back Glass Walls x1 Center Back Glass Wall x2 Ceiling Coupling connection x3 Ceiling x9 Acoustic Felt Ceiling Panels x9 Carpet, x6 Dividers x2 Left (one with cables) x1 Left &...
  • Page 4 T-Handle Hex Key 5...
  • Page 5 x16 with T-Handle Hex Key 4...
  • Page 6 Bottom x8 with T-Handle Hex Key 4 Bottom...
  • Page 7 Bottom T-Handle Hex Key 4 Bottom Inside Outside...
  • Page 8 T-Handle Hex Key 5 Intside...
  • Page 9 x16 with T-Handle Hex Key 4 Inside Outside...
  • Page 10 Left Bottom x8 with T-Handle Hex Key 4 Connect Bottom...
  • Page 11 Bottom T-Handle Hex Key 4 Bottom Inside Outside...
  • Page 12 T-Handle Hex Key 5 Intside...
  • Page 13 x20 with T-Handle Hex Key 4 Sucction cup handles Inside...
  • Page 14 Recomandation It is recomended to start with the Center Back Glass Wall. T-Handle Hex Key 4 Sucction cup handles Inside...
  • Page 15 T-Handle Hex Key 4 Sucction cup handles Inside Outside...
  • Page 16 Recomandation It is recomended to start with the Door Frame. T-Handle Hex Key 4 Sucction cup handles The door opening can be oriented Left or Right just by rotating the frame.
  • Page 17 x6 with T-Handle Hex Key 4 x2 with Allen Key 3 Exterior Interior Exterior Interior...
  • Page 18 Pay attention not to break the glass door. Adjust the glass door Do not close until you accordingly if needed. check the glass door not to hit the door frame edge. Allen Key 3 Allen Key 1.5 Bottom To adjust the glass door the height must be calibrated.
  • Page 19 T-Handle Hex Key 4 Sucction cup handles Inside...
  • Page 20 Orange Black Main Poewr & Enthernet supply at the back of the pod. Check if the lighting, ventilation and power sockets are conected propperly.
  • Page 21 How to remove the Interior Panel.
  • Page 22 How to place the Acoustic Felt Ceiling Panels. How to remove or adjust the Acoustic Felt Ceiling Panels.
  • Page 24 If you want to reposition the pod, you have to remove the If you are satisfied with the pod’s carpet, if needed, and unlock the legs. When you are satisfied position, you can place the carpets. with the pod’s position, lock the legs and place the carpets.
  • Page 25 Optional VESA Adapter Coat Hanger Exterior Hanging Exterior Hanging Writingboard or Pinboard Writingboard or Pinboard There are multiple features that you can personalize your pod with. You can view them for each Kameleon on our website www.askiafurniture.ro...
  • Page 26 Scan https://l.askiafurniture.ro/askia-kameleon-k4-assembly-video https://l.askiafurniture.ro/askia-kameleon-k4-assembly-video https://l.askiafurniture.ro/askia-kameleon-k4-assembly-video You can watch an instructional video of the K4 assembly process. https://l.askiafurniture.ro/askia-kameleon-k4-assembly-video https://l.askiafurniture.ro/askia-kameleon-k4-assembly-video https://l.askiafurniture.ro/askia-kameleon-k4-assembly-video https://l.askiafurniture.ro/askia-kameleon-k4-assembly-video Thanks to the modular design and limited number of components used https://l.askiafurniture.ro/askia-kameleon-k4-assembly-video https://l.askiafurniture.ro/askia-kameleon-k4-assembly-video https://l.askiafurniture.ro/askia-kameleon-k4-assembly-video https://l.askiafurniture.ro/askia-kameleon-k4-assembly-video for each pod, many steps are similar between different Kameleon pods.
  • Page 27 Info. ASSEMBLY INSTRUCTIONS Steps. Main Inthernet supply. Pay attention to. Bag with screws. Main Power supply. Unlocked. Pay attention to. Lock. Ventilation coupling. Level check. Power coupling. Allen key needed. Allen key and screws needed. Don’t. Ethernet coupling. T-Handle hex key needed. Pay attention not T-Handle hex key and screws needed.
  • Page 28 Eliade Tower, Mircea Eliade No.18 RO-Bucharest, 012015 T +40 212 121 381 contact@askiafurniture.ro www.askiafurniture.ro Last update: 12.11.2021...
