RGBLE S00303 User Manual

6x2 4k30 presentation switcher with control and video processing
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
P/N: S00303
6x2 4K30
Presentation Switcher
with Control and Video Processing
User Manual
VER 1.0
0 / 29
Stock Code 873117
en.rgble.com
400-1661-021

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the S00303 and is the answer not in the manual?

Questions and answers

Related Manuals for RGBLE S00303

Summary of Contents for RGBLE S00303

  • Page 1 P/N: S00303 6x2 4K30 Presentation Switcher with Control and Video Processing User Manual VER 1.0 0 / 29 Stock Code 873117 en.rgble.com 400-1661-021...

  • Page 2: Table Of Contents

    P/N: S00303 Thank you for purchasing RGBLE product For optimum performance and safety, please read these instructions carefully before connecting, operating or adjusting this product. Please keep this manual for future reference. Surge protection device recommended This product contains sensitive electrical components that may be damaged by electrical spikes, surges, electric shock, lighting strikes, etc.

  • Page 3: Introduction

    P/N: S00303 1. Introduction HD Video/Audio Processor is a product that solves high-definition video / audio signal transmission, switch and control with integration operation. This product can switch any of these six HDMI sources to one HDMI display, and supports four sorts switch mode. It can extend HDMI / VGA HD signal,...

  • Page 4: Package Contents

    P/N: S00303 3. Package Contents ① 1× HD Video / Audio Processor (Transmitter) ② 1× HD Video / Audio Processor (Receiver) ③ 1× 24V/1.5A DC Power Adapter ④ 1× IR Blaster cable (1.5 meters) ⑤ 2× 20~60KHz IR Receiver cable (1.5 meters) ⑥...

  • Page 5: Operation Controls And Functions

    P/N: S00303 Input: 2 x HDMI [Type A, 19-pin female] 1 x HDBT [RJ45 shielded] 2 x USB [Type A, 4-pin female] Output: 1 x HDMI [Type A, 19-pin female] Receiver 1 x AUDIO [3-pin phoenix] Control: 1 x LAN [RJ45 shielded] 1 x RS-232 [3-pin phoenix] 1 x RELAY [3-pin phoenix] 1 x IR IN [3.5mm mini-Jack]...
  • Page 6 P/N: S00303 Number Name Function description When the product is connected power supply, the Key lamp illuminates in blue, and the Key lamp is off in standby mode. POWER Note: Through the power Key for controlling power on or standby, simultaneously you need to use Web GUI setting to send corresponding power on or standby command to transmitter.
  • Page 7 P/N: S00303 The example about Key lamp: full-screen mode TX HDMI: HD2 RX HDMI: HD2 full-screen mode TX HDMI: HD2 RX HDMI: RX-HD1 side-by-side mode: TX HDMI: side-by-side RX HDMI: side-by-side quad view mode: TX HDMI: quad view RX HDMI: quad view...

  • Page 8: Receiver Panel

    P/N: S00303 HDBT/POC: The HDBT port is connected HDBT port of receiver by CAT 5e/6 cable. It extends distance up to 100 meters 2 OUTPUT between transmitter and receiver, and the HDBT port supports POC function simultaneously. HDMI: HDMI output port, connect to HDMI display device such as TV or projector with an HDMI cable.
  • Page 9 P/N: S00303 Name Function description HDBT/POC port: The port is connected the HDBT/POC port of transmitter via a CAT 5e/6 cable, and extends distance up to 100 meters / 328ft between transmitter and receiver. INPUT Note: The HDMI output port of transmitter and receiver will output the same signal when the HDBT port is selected by Web GUI, API or on the front panel of transmitter.

  • Page 10: Display Mode

    P/N: S00303 OUT port of transmitter. IR OUT Connect to IR blaster cable. The IR signal is from the IR IN port of transmitter. RS-232 serial channel. When the RS-232 setting is selected “PASS-THROUGH” option on the Control page of Web GUI. This...

  • Page 11: Web Gui User Guide

    P/N: S00303 output. The HD1, HD2, HD3 and VGA LED indicator on the front panel always illuminate. Note: If a window is selected no signal input source, the window will display factory default no signal view. But you can replace the factory default no signal view via Web GUI setting. The analog audio output of transmitter follows Window 1 by default.
  • Page 12 P/N: S00303 Double click Internet Protocol Version 4 (TCP/IPv4). Choose “Use the following IP address”. For instance, input 192.168.1.200 as your PC’s IP address, 255.255.255.0 as Subnet mask, and then click on OK, click on OK again. 11 / 29 Stock Code 873117 en.rgble.com...
  • Page 13 P/N: S00303 Notice: The IP address of the PC and product should be in the same network segment. As the product’s IP address is 192.168.1.254, the computer's IP should be set 192.168.1.X (X contains 1~255 except 254). Step 3: Input the product’s IP address into your browser on the PC to enter Web GUI page.
  • Page 14 P/N: S00303 The Keys at the top right of the web interface are always available and provide the following functions: Clicking the Log out Key will disconnect the current user. ■ The Power On Key changes the power status between On and Stand-by mode.
  • Page 15 P/N: S00303 Quad view 1: • Quad view 2: ● ● Window 1 / Window 2 / Window 3 / Window 4: Display Full-screen / Side-by-Side / Quad view 1 / Quad view 2 mode and select HDMI1/HDMI2/ HDMI3/VGA input source to window 1 / window 2 / window 3 / window 4.
  • Page 16 P/N: S00303 Receiver ● Source: Select input source to the HDMI output port of receiver to output. The default is selected HDBT source. Setting page ● Brightness: Adjust output signal brightness. The range is from 0 to 100, and default is 50.
  • Page 17 P/N: S00303 System page ● Series baud rate: Select the serial port baud of transmitter. The default value is 19200. ● Sleep Timer: Select sleep time after no signal input for transmitter and receiver. The default will enter sleep mode if no signal input within 10 seconds.
  • Page 18 P/N: S00303 Control page This control page is used for controlling projector curtain lift up or down and switching display device on/off. ● Auto Power Settings ◆ Disable: No commands are sent. ◆ Sync Detected: After the product is powered on, when detecting have input source signal, you can send power on command to display device through CEC RS-232/IR control.
  • Page 19 P/N: S00303 ◆ Power off: Input the command you need to send. After the product standby, it can automatically send the command after set time of according to Power Off Timeout. If the command is HEX format, the byte must be a even format.
  • Page 20 P/N: S00303 Network page ● IP Settings: ◆ Static: When you select Static mode, you can manually set IP address, Subnet Mask and Gateway address. Then click “Save” Key to save information. ◆ DHCP: Obtain automatically IP address, Subnet Mask and Gateway address.

  • Page 21: Api Control Command

    P/N: S00303 API Control Command This product also supports ASCII control. Connection method as below. Open any of a Serial Command tool on PC such as “Docklight” to send command to control the product. RS-232 RS-232 to USB cable Figure 6: 3-pin phoenix connector to USB...
  • Page 22 P/N: S00303 The ASCII list of the product is shown as below: ASCII Command Serial protocol: Baud rate: 115200, Data bits: 8bit, Stop bits:1, Check bit: None RS-232 Function Feedback Command description System setting help! Get the lists of all...
  • Page 23 P/N: S00303 x=1 HDMI 1, x=2 HDMI 2, x=3 HDMI 3, x=4 VGA, x=5 STREAM y=1 Window 1, y=2 Window 2, y=3 Window 3, y=4 Window 4 Multi-View mode 4： input 1-> window r tx out! Get Transmitter HDMI/HDBT output av input 2->...
  • Page 24 P/N: S00303 overscan size s contrast x! contrast：50 Set Transmitter HDMI/HDBT output contrast x=0~100 s brightness x! brightness：50 Set Transmitter HDMI/HDBT output brightness x=0~100 r brightness! Get Transmitter HDMI/HDBT output brightness：50 brightness s color x! Set Transmitter color：50 HDMI/HDBT output color...
  • Page 25 P/N: S00303 ….. X=9 delay 180ms, x=10 delay 200ms s mute x! audio unmute Set Transmitter output audio mute x=0~1 x=0 unmute, x=1 mute r mute! audio mute Get Transmitter HDMI/analog output audio mute r audio delay! audio delay: 0ms...
  • Page 26 P/N: S00303 z=7 USER3 Get EDID status of HDMI 1 EDID: 4K2K30_2CH HDMI 2 EDID: 4K2K30_2CH HDMI EDID: r edid in x! the input x，x=0~5 x=0 4K2K30_2CH all hdmi input, x=1 HDMI RX-HDMI 1 EDID: 4K2K30_2CH RX- HDMI 2 EDID: 4K2K30_2CH...
  • Page 27 P/N: S00303 mask to apply new config! DHCP on, Device can't config subnet mask, set DHCP off first. r subnet! Get network subnet Subnet Mask:255.255.255.0 mask Set gateway:192.168.1.1 Please use "s net reboot!" command or repower device to s gateway xxx.

  • Page 28: Application Example

    P/N: S00303 9. Application Example 27 / 29 Stock Code 873117 en.rgble.com 400-1661-021...

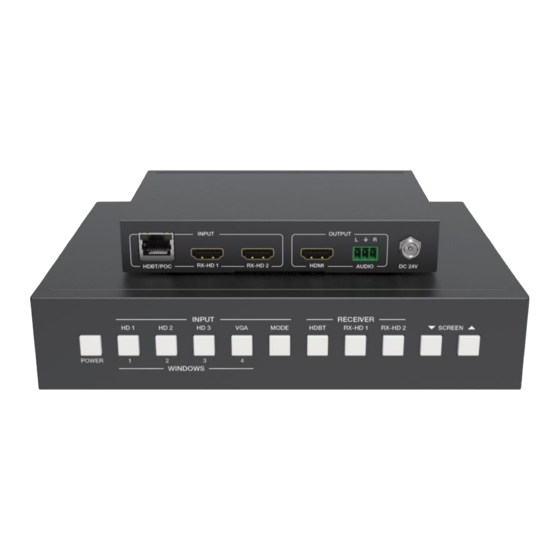

  • Page 29: Product Images

    P/N: S00303 10. Product Images 28 / 29 Stock Code 873117 en.rgble.com 400-1661-021...
