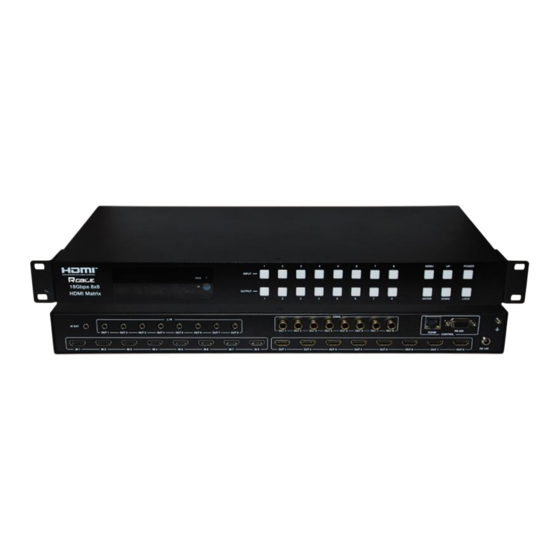

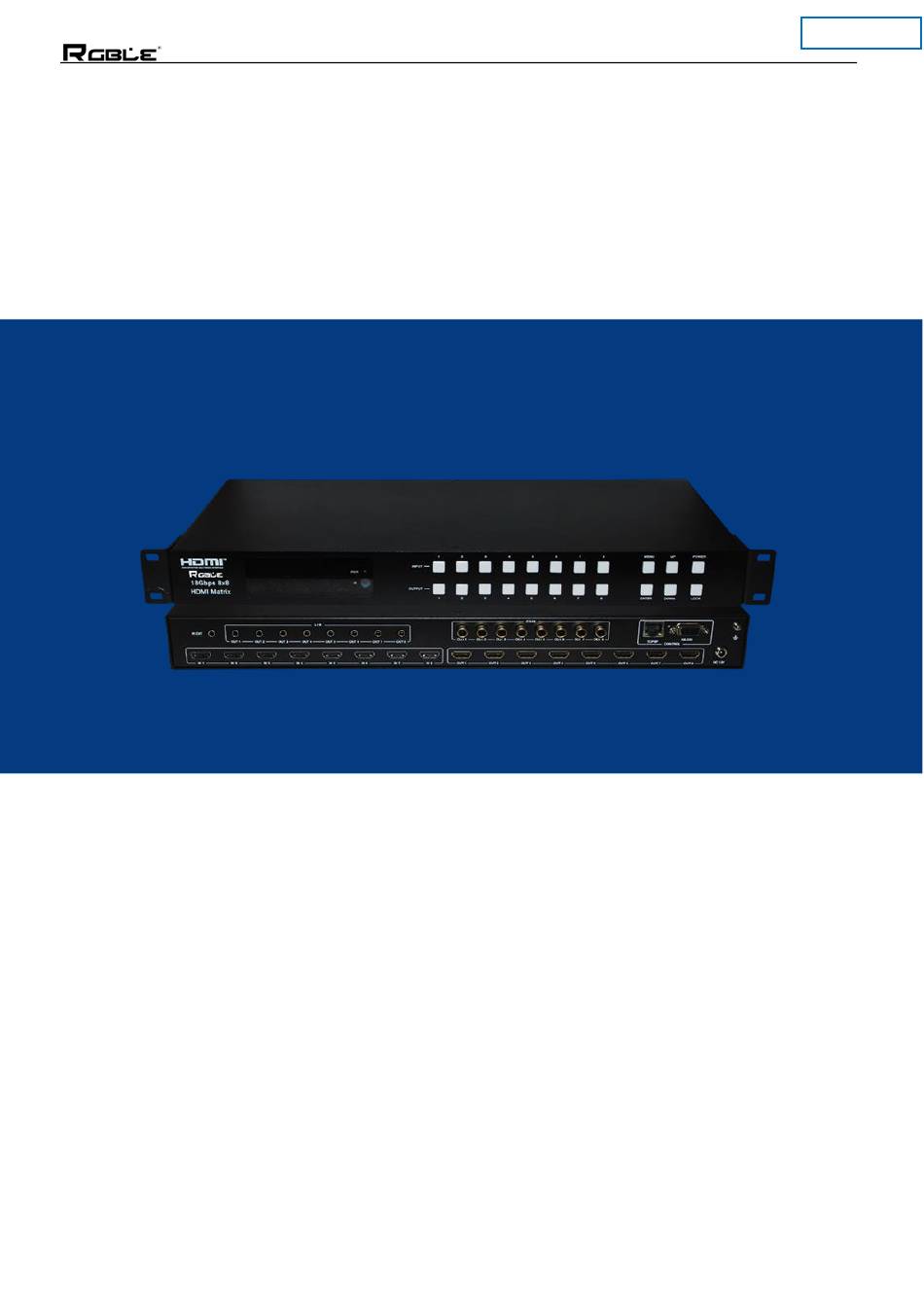

- Page 1 P/N:M01301 18Gbps 4K@60Hz With Audio De-embedding -HDMI- 8x8 Matrix Switcher MHD-88-AO User Manual VER 1.0 Thank you for purchasing RGBLE product Stock Code 873117 en.rgble.com 400-1661-021...
-
Page 2: Table Of Contents
5.1. Front Panel................... 4 5.2. Rear Panel..................5 6. IR Remote..................... 5 7. EDID Management................6 8. Web GUI User Guide................7 9. RS-232 Control Command..............13 10. IR Cable Pin Assignment..............19 11. Connection Diagram................19 -HDMI- 8x8 Matrix Switcher Stock Code 873117 en.rgble.com 400-1661-021... -
Page 3: Introduction
4K2K@60Hz 18Gbps With Audio De-embedding 1. Introduction The RGBLE MHD-88-AO 18Gbps -HDMI- 8x8 Matrix supports the transmission of video (up to 4K2K@60HzYUV 4:4:4) and multi-channel high resolution digital audio from 8 -HDMI- sources to 8 -HDMI- displays. Audio de-embedded to analog and coaxial audio is supported from 8 -HDMI- output ports. -
Page 4: Operation Controls And Functions
Feet / Meters Feet / Meters -HDMI- IN / OUT 16ft / 5M 33ft / 10M 50ft / 15M The use of “Premium High Speed -HDMI-” cable is highly recommended. 5. Operation Controls and Functions Stock Code 873117 en.rgble.com 400-1661-021... -
Page 5: Front Panel
IR receiver window, it only receives the IR remote signal from this ⑥ IR Window product. Short press the LOCK button to lock front panel buttons (Except the ⑦ LOCK button power button); Press it again to unlock. 5.2 Rear Panel Stock Code 873117 en.rgble.com 400-1661-021... -
Page 6: Ir Remote
For example, Press Output-X (X means output button from 1 to 8 , including “All” button) Then press Input-Y (Y means input button from 1 to 8 ) 7. EDID Management Stock Code 873117 en.rgble.com 400-1661-021... -
Page 7: Web Gui User Guide
30, Copy from hdmi output 7 15, 4K2K60_420, HD Audio 7.1 31, Copy from hdmi output 8 8. Web GUI User Guide The Matrix can be controlled by Web GUI. The operation method is shown as below: Stock Code 873117 en.rgble.com 400-1661-021... - Page 8 After entering the password, click the “LOGIN” button and the following Status page will appear. ■ Status page The Status page provides basic information about the installed firmware version and the network settings of the device. Stock Code 873117 en.rgble.com 400-1661-021...
- Page 9 4 Presets Set: You can restore the settings of the last saved audio-video matrix switching. relationship. 5 Presets Save: You can save audio-video matrix switching relationship. 6 Presets Clear: You can clear the saved audio-video matrix switching relationship. ■ Input page Stock Code 873117 en.rgble.com 400-1661-021...
- Page 10 Download the EDID File of the Corresponding Input Channel Click the drop-down box of “Select EDID File” to select the corresponding input channel. Then click “Download” to download the corresponding EDID file. ■ Output page Stock Code 873117 en.rgble.com 400-1661-021...
- Page 11 1 Input Control: You can control the operation of each input source by clicking the icons on the page. 2 Output Control: You can control the operation of each display, such as power on/off, volume +/-, active source switching. ■ Network page Stock Code 873117 en.rgble.com 400-1661-021...
- Page 12 Click “Set Network Defaults”, there will be a prompt, as shown in the following figure: Click “OK” to search the IP Address again, as shown in the following figure: After searching is completed, it will switch to the login page, the default network setting is completed. Modify Username Stock Code 873117 en.rgble.com 400-1661-021...
- Page 13 3 LCD: You can turn on/off the LCD, and set the turn-on time (15s/30s/60s). 4 Serial Baud Rate: Click the value to set the Serial Baud Rate. 5 Firmware Update: Click “Browse” to select the update file, then click “Update” to complete firmware update. Stock Code 873117 en.rgble.com 400-1661-021...
-
Page 14: Rs-232 Control Command
Finished! power off r power! Get current power state r power! power on/power off Reboot... System Initializing... Initialization s reboot! Reboot the device s reboot! Finished! FW version x.xx.xx Command Default Function Description Example Feedback Code Setting Stock Code 873117 en.rgble.com 400-1661-021... - Page 15 1! preset z, z=1~8 s recall preset Call saved preset z s recall recall from preset 1 scenarios, z=1~8 preset 1! Command Default Function Description Example Feedback Code Setting Stock Code 873117 en.rgble.com 400-1661-021...
- Page 16 1! preset z, z=1~8 s recall preset Call saved preset z s recall recall from preset 1 scenarios, z=1~8 preset 1! Comman Default Function Description Example Feedback d Code Setting EDID Setting Stock Code 873117 en.rgble.com 400-1661-021...
- Page 17 Command Function Description Example Feedback Code CEC Setting s cec in x on! set input x power on by CEC, x=0~8(0=all input) s cec in 1 on! input 1 power on Stock Code 873117 en.rgble.com 400-1661-021...
- Page 18 1 hdmi output 1 active set output y active source by CEC, y=0~8(0=all output) active! active! source Command Function Example Feedback Code Description Network Setting Stock Code 873117 en.rgble.com 400-1661-021...
-
Page 19: Ir Cable Pin Assignment
Telnet port:23 port Network reboot... IP Mode: Static Reboot network IP: 192.168.1.72 Subnet Mask: 255.255.255.0 s net reboot! s net reboot! modules Gateway: 192.168.1.1 TCP/IP port=8000 Telnet port=10 Mac address: 00:1C:91:03:80:01 IR Cable Pin Assignment Stock Code 873117 en.rgble.com 400-1661-021... -
Page 20: Connection Diagram
P/N:M01301 Connection Diagram Stock Code 873117 en.rgble.com 400-1661-021...
