- Page 1 18Gbps 4K2K@60Hz HDBaseT 4×4 HDMI MATRIX SWITCHER MHD-44HT User Manual VER 2.0 Stock Code 873117 en.rgble.com 400-1661-021...
-
Page 2: Table Of Contents
Thank you for purchasing RGBLE product For optimum performance and safety, please read these instructions carefully before connecting, operating or adjusting this product. Please keep this manual for future reference. Surge protection device recommended This product contains sensitive electrical components that may be damaged by electrical spikes, surges, electric shock, lightning strikes, etc. -
Page 3: Introduction

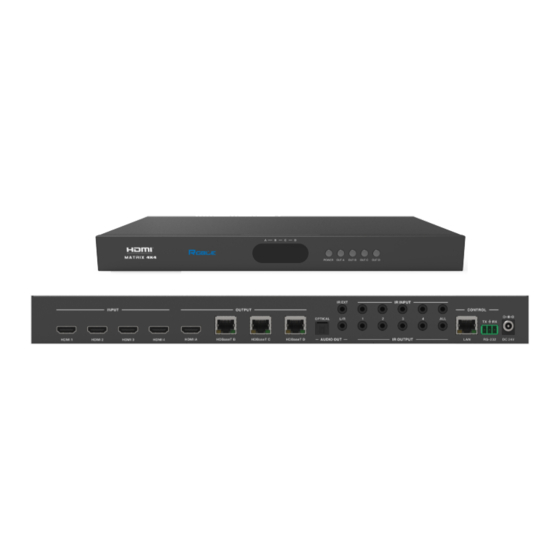

HDBaseT 4×4 Matrix Switcher over CAT6 1. Introduction The RGBLE MHD-44HT HDBaseT 4x4 Matrix Switcher supports the transmission of video (up to 4K*2K@ 60Hz, 18Gbps, HDCP 2.2) and multi-channel digital audio from 4 HDMI sources to 3 HDBaseT-Lite outputs and 1 independent HDMI 2.0 output. It supports audio de- embedding from any one of 4 outputs (configurable). -
Page 4: Specifications
Dimensions RX: 115mm(W)×65mm(D)×17mm(H) Power Supply DC 24V/2.7A Power Consumption 35W(max) / 1W(Standby) Operating 0°C ~ 40°C / 32°F ~ 104°F Temperature Storage Temperature -20°C ~ 60°C / -4°F ~ 140°F Relative Humidity 20~90% RH (non-condensing) Stock Code 873117 en.rgble.com 400-1661-021... -
Page 5: Operation Controls And Functions
Connect to an PC or control system for control via a RS-232 Phoenix terminal to transmit command. Plug the 12V DC power supply into the unit and connect Power port the adapter to AC wall outlet. Stock Code 873117 en.rgble.com 400-1661-021... -
Page 6: Remote Control
① Press this button to open the power of the matrix or set it as a standby status. ② Press these keys to select the output A, output B, output C or output D for output corresponding 1, 2, 3 or 4 input sources. Stock Code 873117 en.rgble.com 400-1661-021... -
Page 7: Hdbaset Receiver
※Flashing: The Transmitter and Receiver are in poor connection Indicator status. Lamp ※Dark: The Transmitter and Receiver are not connected. Data Signal ※Illuminate: The HDMI signal with HDCP. Indicator ※Flashing: The HDMI signal without HDCP. Lamp ※Dark: No HDMI signals. Stock Code 873117 en.rgble.com 400-1661-021... -
Page 8: Ir Control System
Attention: The matrix has one location HDMI output. If the HDMI input source is switched to the one location HDMI output, the HDMI output end does not control the matrix through IR. The function of the IR “ALL” port is control about one to all port. Stock Code 873117 en.rgble.com 400-1661-021... -
Page 9: Web Gui User Guide
Then select the “TCP Control Mode” port, click the “Search” button. At this moment, you can get current IP address. You can set the IP address to your PC/laptop/mobile Internet Explorer and click “Search” to enter Web GUI page. The Web GUI likes below: Stock Code 873117 en.rgble.com 400-1661-021... - Page 10 ④ Click this button will reboot device. ⑤ Click this button will set to factory reset. Control page ① Select the input source to the output port. ② Select the output port audio. Stock Code 873117 en.rgble.com 400-1661-021...
- Page 11 Status page ① Network Configuration l In DHCP open status: HDCP switch: Obtains the network configuration information, including IP address, Subnet, Gate. Then click “Save Changes” button to save DHCP status. l In DHCP close status: Stock Code 873117 en.rgble.com 400-1661-021...
- Page 12 Net Status button: Click this button will refresh current network configuration information to display in Status Log. In this unit, Mac address can check only, you cannot set it. ② Display the network configuration information Upgrade page ① Open upgrade file to upgrade. Stock Code 873117 en.rgble.com 400-1661-021...
-
Page 13: Connection Diagram
Connection Diagram Stock Code 873117 en.rgble.com 400-1661-021... -
Page 14: Appendix: The Edid Schema Table
3D, HD Audio 7.1 4K2K30_444, Stereo Audio 2.0 4K2K30_444, Dolby/DTS 5.1 4K2K30_444, HD Audio 7.1 4K2K60_420, Stereo Audio 2.0 4K2K60_420, Dolby/DTS 5.1 4K2K60_420, HD Audio 7.1 4K2K60_444, Stereo Audio 2.0 4K2K60_444, Dolby/DTS 5.1 4K2K60_444, HD Audio 7.1 Stock Code 873117 en.rgble.com 400-1661-021...
