RGBLE MHD-51M User Manual

Presentation switcher with control and video processing
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

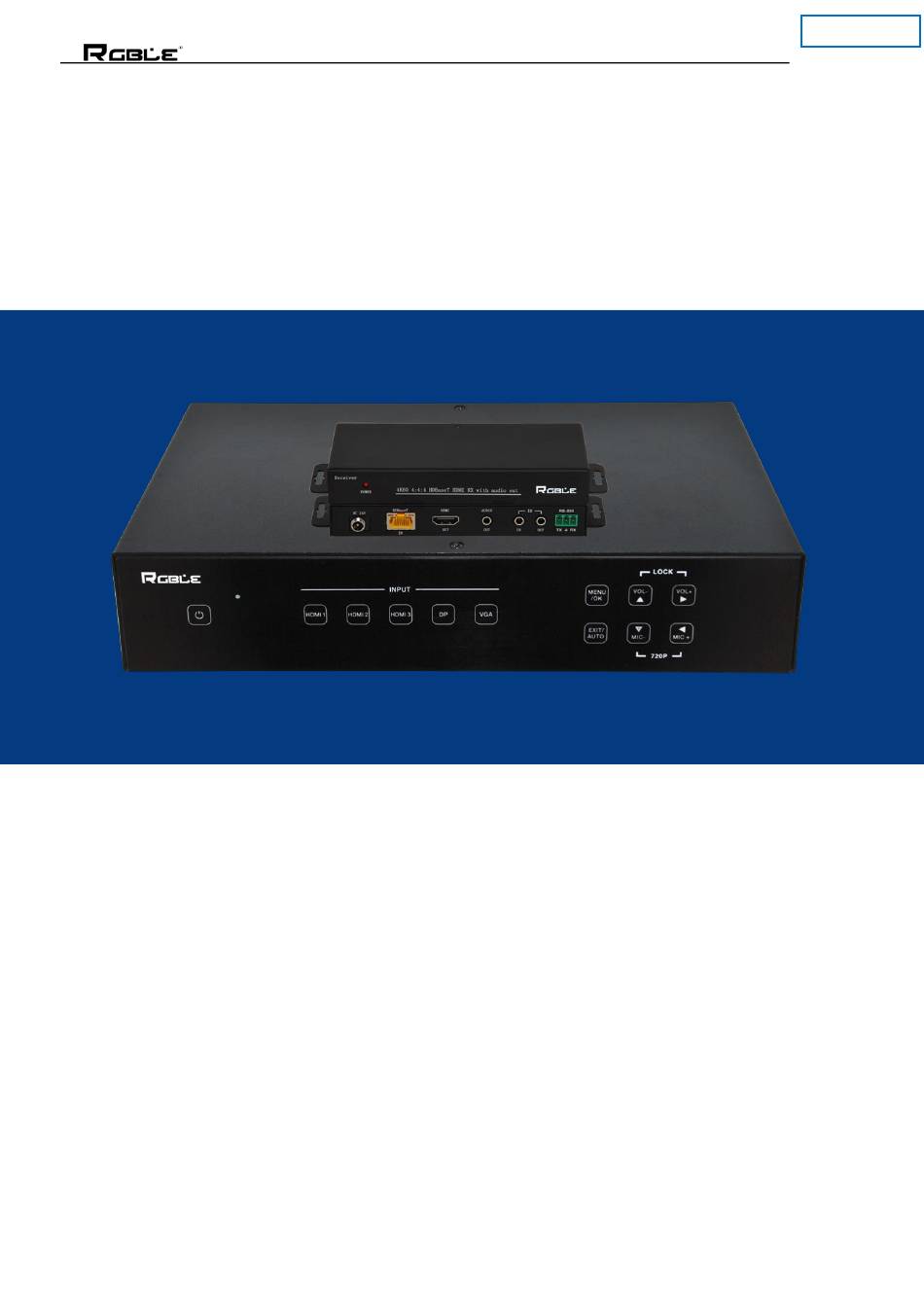

P/N: S00302
5x1 4K60
Presentation Switcher
with Control and Video Processing
User Manual
VER 1.1
Stock Code 873117
en.rgble.com
400-1661-021

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MHD-51M and is the answer not in the manual?

Questions and answers

Related Manuals for RGBLE MHD-51M

Summary of Contents for RGBLE MHD-51M

  • Page 1 P/N: S00302 5x1 4K60 Presentation Switcher with Control and Video Processing User Manual VER 1.1 Stock Code 873117 en.rgble.com 400-1661-021...

  • Page 2: Table Of Contents

    P/N: S00302 Thank you for purchasing RGBLE product For optimum performance and safety, please read these instructions carefully before connecting, operating or adjusting this product. Please keep this manual for future reference. Surge protection device recommended This product contains sensitive electrical components that may be damaged by electrical spikes, surges, electric shock, lightning strikes, etc.

  • Page 3: Introduction

     1 x Remote Control Unit  2 x IR Receiver Cable (with carrier wave)  2 x IR Emitter Cable  1x 24V/1A Power Adapter  1 x 3RCA(Female) to D-SUB(Male) Cable  1 x User Manual Stock Code 873117 en.rgble.com 400-1661-021...

  • Page 4: Specifications

    18W [Main unit + HDBT Receiver] Operation 32 - 104° F / 0 - 40° C Temperature Storage -4 - 140° F / -20 - 60° C temperature Relative Humidity 20 - 90% RH (no condensation) Stock Code 873117 en.rgble.com 400-1661-021...

  • Page 5: Operation Controls And Functions

    IR OUT: Connects with IR emitter cable used for controlling the local source device or the switcher.  CONTACT IN: This input control reserving for direct source input selection. Connect ground pin (mark as on panel) with following pin number for individual source selection. Stock Code 873117 en.rgble.com 400-1661-021...

  • Page 6: Osd Menu

    The switcher provides a powerful OSD operation menu. Press MENU button on IR remote to enter in OSD menu, the users can change some settings through the OSD menu. 5.3.1 Main MENU The Main MENU includes Picture mode, Aspect ratio, Screen, EDID switch, Audio setting, network and Software update options. Stock Code 873117 en.rgble.com 400-1661-021...
  • Page 7 5.3.3. Aspect Ratio The user can adjust picture output aspect ratio to 4:3, 16:9 or 16:10. 5.3.4 Screen The screen MENU adjusts for VGA input only. The user can adjust horizontal, vertical position, clock and phase. Stock Code 873117 en.rgble.com 400-1661-021...
  • Page 8 MIC mixer on: The switcher will mix the source audio and MIC audio to the audio output (HDMI, HDBT, Audio output port). MIC mixer auto: The switcher will reduce the source audio volume automatic when it detects the MIC audio input. MIC mixer off: The switcher will mute the MIC input audio. Stock Code 873117 en.rgble.com 400-1661-021...
  • Page 9 5.3.7 Network setup The network MENU will display the IP address. 5.3.8 System Setup The system setup menu includes output resolution, output hdcp, sleep timer, OSD time out, RS-232 Baud Rate. Test Pattern and Factory reset items. Stock Code 873117 en.rgble.com 400-1661-021...
  • Page 10 5.3.8.2 HDCP on out Set the HDMI and HDBT port output HDCP status. Pass through means the output HDCP is follow the selected input source HDCP status. HDCP1.4 means the output HDCP will fix to HDCP1.4 status. Stock Code 873117 en.rgble.com 400-1661-021...
  • Page 11 5.3.8.4 OSD time out Set the OSD display time, default time is set to 10 seconds. 5.3.8.5 Baud Rate Set the switcher RS-232 control port baud rate, the default value is set to 115200 bit/s. Stock Code 873117 en.rgble.com 400-1661-021...
  • Page 12 The “MERGE.bin” file is provided/authorized by our engineering department or from our website) 2) Plug the USB flash disk to the switcher USB port on its rear panel. 3) Press the MENU -->software update-->YES enters to start the update. The OSD will display the update process. Stock Code 873117 en.rgble.com 400-1661-021...

  • Page 13: Remote Control &Ir Operations

    To control the switcher or remote display device by using corresponding remote controller. 2) Control local device from remote To control the switcher or local source device by using the corresponding remote controller. 3) IR (20KHz---60KHz) cable introduction Stock Code 873117 en.rgble.com 400-1661-021...

  • Page 14: Auto-Switching Function

    The user can use the convert cable for YPbPr or CVBS signal input. 5.7 Connection of Microphone The switcher provides one 2-level microphone input to accommodate different microphone input modes, including 48V phantom power mode, MIC mode and Line Mode. Stock Code 873117 en.rgble.com 400-1661-021...
  • Page 15 “+” and “ ” connect to ground, and “-” connects to signal. “-” and “ ” connect to ground, and “+” connects to signal. 2) Balanced connection: “+” connects to positive, “-” connects to negative and Stock Code 873117 en.rgble.com 400-1661-021...

  • Page 16: Operations Of Rs-232 Control

    As RS-232 can be transmitted bi-directionally between the switcher and the HDBT receiver, it is able to control a third-party RS-232 device locally or control the compact switcher bi-directionally. 1) Control the Switcher or 3rd Party Device from Local Stock Code 873117 en.rgble.com 400-1661-021...
  • Page 17 Double-click the software (Hercules) icon to run this software on your computer. The interface of the control software is showed as below: Stock Code 873117 en.rgble.com 400-1661-021...
  • Page 18 Read picture brightness status s brightness 0! Setup picture brightness 0(range:0-100) r color! Read picture color status s color 0! Setup picture color 0(range:0-60) r sharpness! Read picture sharpness status s sharpness 0! Setup picture sharpness 0(range:0-20) Stock Code 873117 en.rgble.com 400-1661-021...
  • Page 19 Read source audio fade in time when set to mixer auto mode Setup source audio fade in time when set to mixer auto mode. (The s fade in time 1000! fade in time range is 0~5000ms.) Stock Code 873117 en.rgble.com 400-1661-021...
  • Page 20 (1: Ext1,2: Ext2,3: Ext3,4: Ext4,5: Ext5) r ip mode! Read IP mode s ip mode 1! Setup IP mode at Static (1: Static,2: DHCP) r ip addr! Read IP address s ip addr 192.168.1.255! Setup IP address at 192.168.1.255 Stock Code 873117 en.rgble.com 400-1661-021...

  • Page 21: Web Gui Control

    2. Obtain the IP address and port number via RS-232 Controller. For example, the obtained IP address is 192.168.1.100 and port number is 8000. Input http://192.168. 1.100 in the address bar of the web browser. 1) General page 2) Video page Stock Code 873117 en.rgble.com 400-1661-021...
  • Page 22 P/N: S00302 3) Audio page 4) Network page 5) Advanced page Stock Code 873117 en.rgble.com 400-1661-021...

  • Page 23: Hdbt Receiver

    ※Flashing: The Transmitter and Receiver are in poor connections status. ※Dark: The Transmitter and Receiver are not connected. Data Signal Indicator Lamp ※Illuminate: The HDMI signal is with HDCP. ※Flashing: The HDMI signal is without HDCP. ※Off: No HDMI signals. Stock Code 873117 en.rgble.com 400-1661-021...

  • Page 24: Connection Diagram

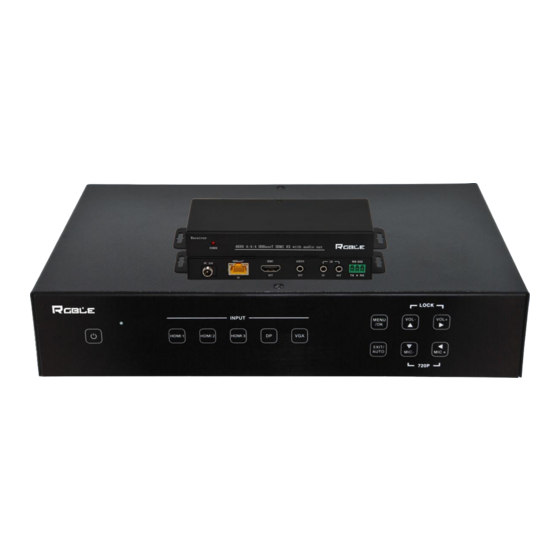

    5. Connect control device (e.g., PC) to RS-232 port of the switcher. 6. Connect DC24V power adaptor to the power port and power on. 8. Product Images 5x1 4K60 Presentation Switcher Front View 5x1 4K60 Presentation Switcher Rear View Stock Code 873117 en.rgble.com 400-1661-021...
