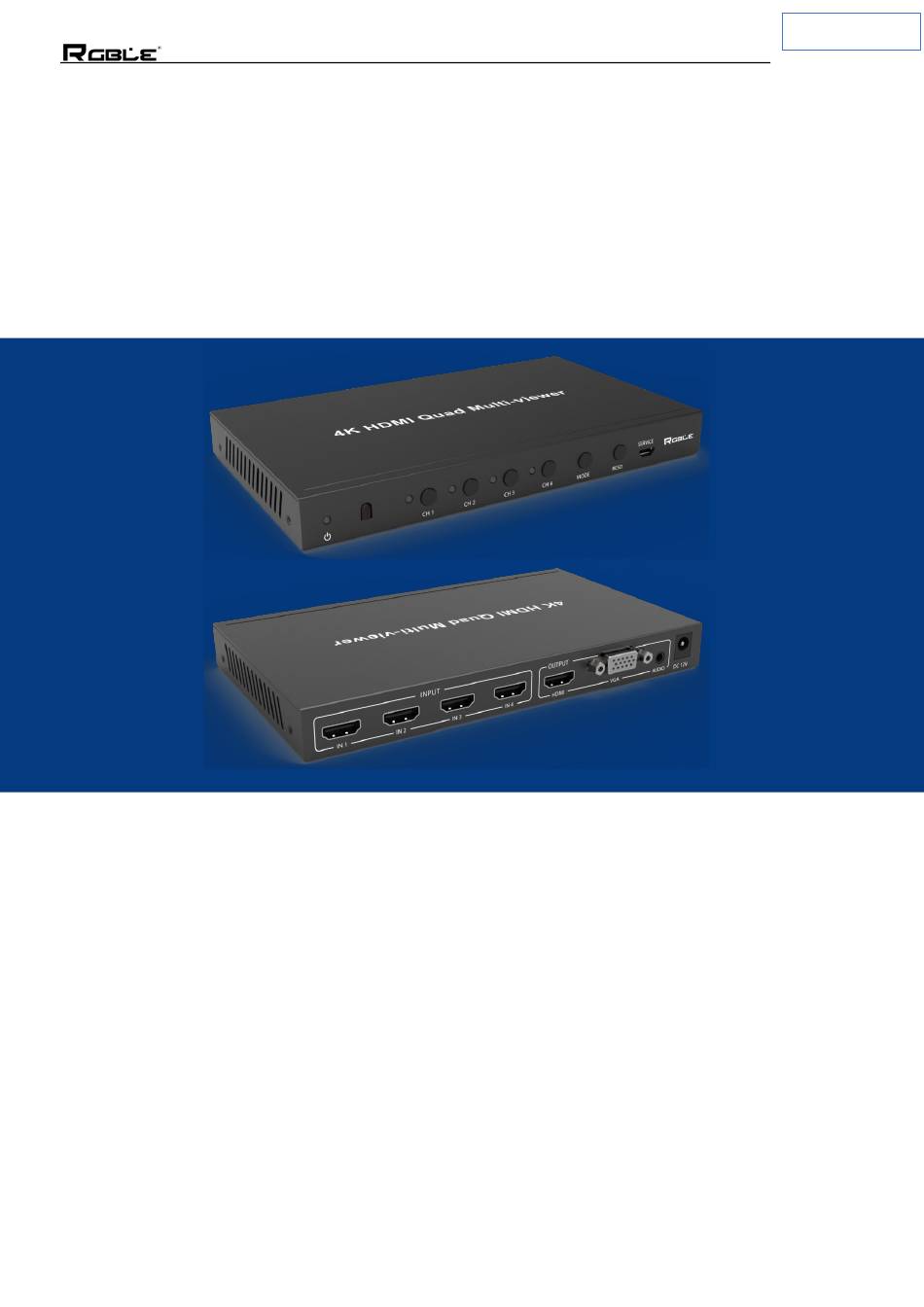

- Page 1 P/N: S00203 4K HDMI 4×1 Quad Multi-Viewer User Manual VER 1.0 Stock Code 873117 en.rgble.com 400-1661-021...
- Page 2 P/N: S00203 Thank you for purchasing RGBLE product For optimum performance and safety, please read these instructions carefully before connecting, operating or adjusting this product. Please keep this manual for future reference. Surge protection device recommended This product contains sensitive electrical components that may be damaged by electrical spikes, surges, electric shock, lighting strikes, etc.
- Page 3 P/N: S00203 4. Specifications Technical HDMI Compliance HDMI 1.4b HDCP Compliance HDCP 1.4 Video Bandwidth 10.2Gbps 3840x2160@30Hz,1920x1080@50/60Hz,1280x720@ Video Resolutions 50/60Hz,1920x1200@60Hz,1024x768@60Hz Color Depth 8-bit Color Space RGB, YCbCr 4:4:4, YCbCr 4:2:2 Analog Audio Formats LPCM2.0, 44.1KHz, 48KHz Human-body Model: ESD Protection ±...

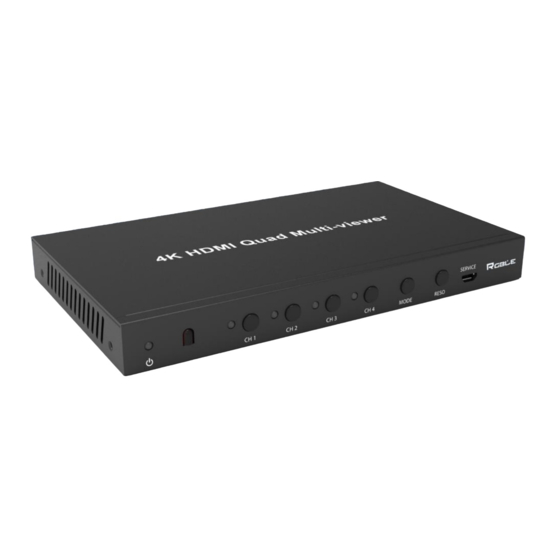

- Page 4 P/N: S00203 5. Operation Controls and Functions Front Panel: Number Name Function Description The LED will illuminate green when the unit is working, red when the unit is POWER LED in standby mode. IR receiver window. It accepts the remote-control signal of this device only.
- Page 5 P/N: S00203 6. Display Modes The quad multi-viewer has 5 display modes. Detailed description is as follows. MODE 1 MODE 2 MODE 3 MODE 4 MODE 5 MODE 1: The quad multi-viewer will display separately four HDMI inputs. Press the CH1/CH2/CH3/CH4 buttons on-panel or using IR remote control the Source 1/2/3/4 buttons to selecting input source, corresponding on-panel light is on.
- Page 6 P/N: S00203 7. IR Remote : Press this button to setting standby mode, press this button again to power on the unit. : Press this button to opening or closing display window frame. : Press this button to cyclically select output resolution.
