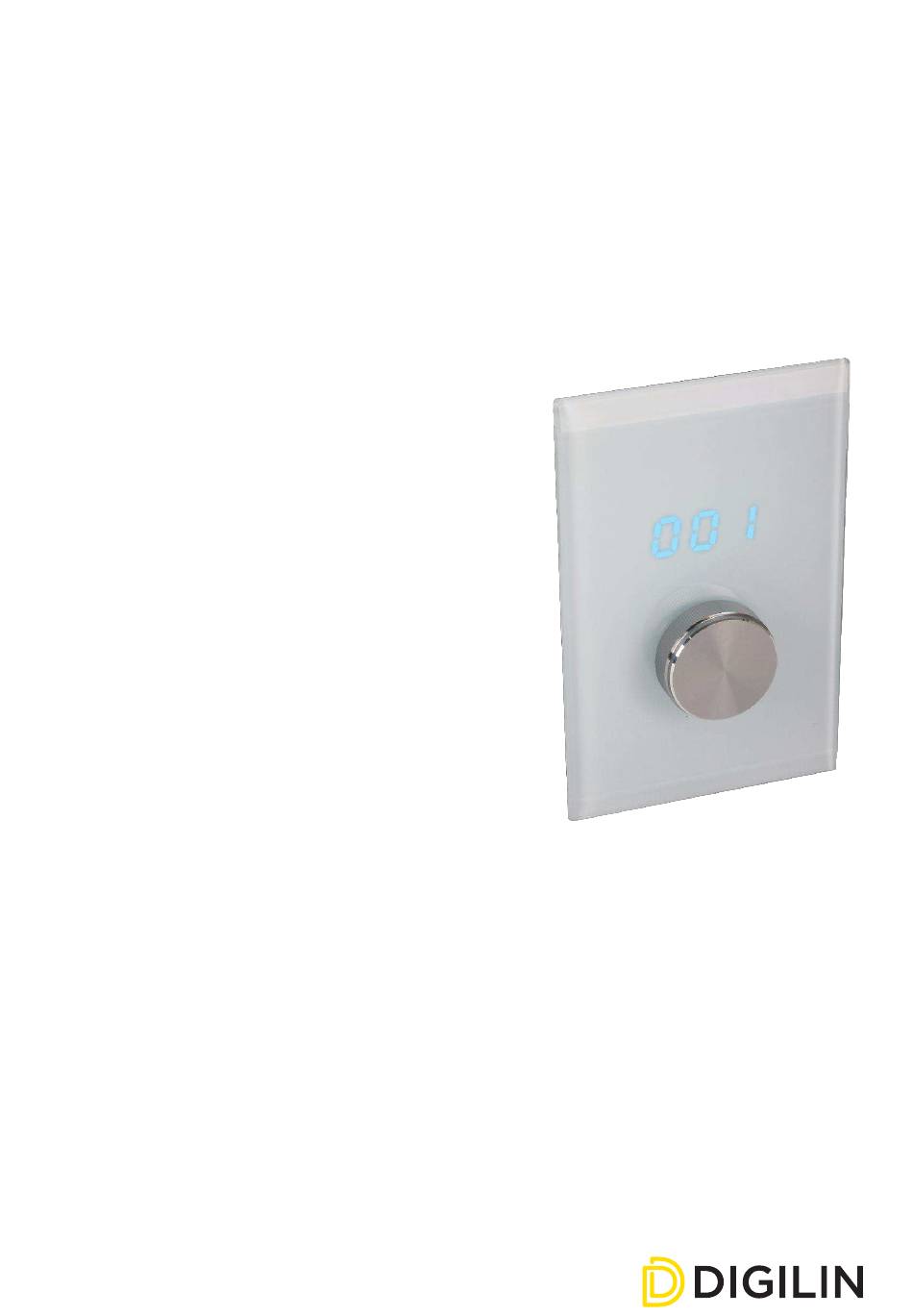

- Page 1 Colour Theme 1 Single Channel DMX Dimmer User Manual ©2020 Digilin Technologies Document Rev: 7.1 - 17 September 2020 Product specifications are subject to change without notice...
- Page 2 Colour Theme 1 - Single Channel DMX Dimmer User Manual 7.1 - 17 September 2020 Table Of Contents Notes ............................................................. 2 Introduction ........................................................3 Specifications ......................................................3 Physical ........................................................3 Inputs ..........................................................3 Communications ..................................................... 3 Installation ........................................................4 Wiring ........................................................... 4 Mounting .........................................................
- Page 3 7.1 - 17 September 2020 Introduction The Colour Theme 1 is a DMX dimmer with a simple and familiar user interface. Additionally, the Colour Theme Controller has a serial interface which provides an interface to PC or any number of lighting control networks.
- Page 4 Dimming The Colour Theme 1 allows the light level to be dimmed from 100% to off in 5% steps. This is done by turning the knob (clockwise to increase dim level, anti-clockwise to decrease it). The display will show the current dim level until dimmed to off, at which point the display will turn off.
- Page 5 Colour Theme 1 - Single Channel DMX Dimmer User Manual 7.1 - 17 September 2020 Storing Default Setting Storing a default setting will set which colour temperature and dim level the Colour Theme Controller will load when first power on (the factory default colour temperature is 3000K). To change this, with the unit turned on, select the desired show and dim level.
- Page 6 Colour Theme 1 - Single Channel DMX Dimmer User Manual 7.1 - 17 September 2020 Serial Commands This mode provides a simple method to control the Colour Theme Controller via a PC (or any device in which the serial data output can be formatted correctly, which includes a number of home automation/lighting control systems.).
- Page 7 Colour Theme 1 - Single Channel DMX Dimmer User Manual 7.1 - 17 September 2020 Appendix A RS232 Null Modem Cables using RJ45 Connectors RJ45 to RJ45 RJ45 to DB9 Female RJ45 Front View DB9 Female Front View Appendix B. Serial Command Examples Example 1 This command will turn the Colour Theme Controller off.
- Page 8 Colour Theme 1 - Single Channel DMX Dimmer User Manual 7.1 - 17 September 2020 Appendix C. Wiring diagram digilin.com.au Page 8 of 8 +617 3899 1267...
