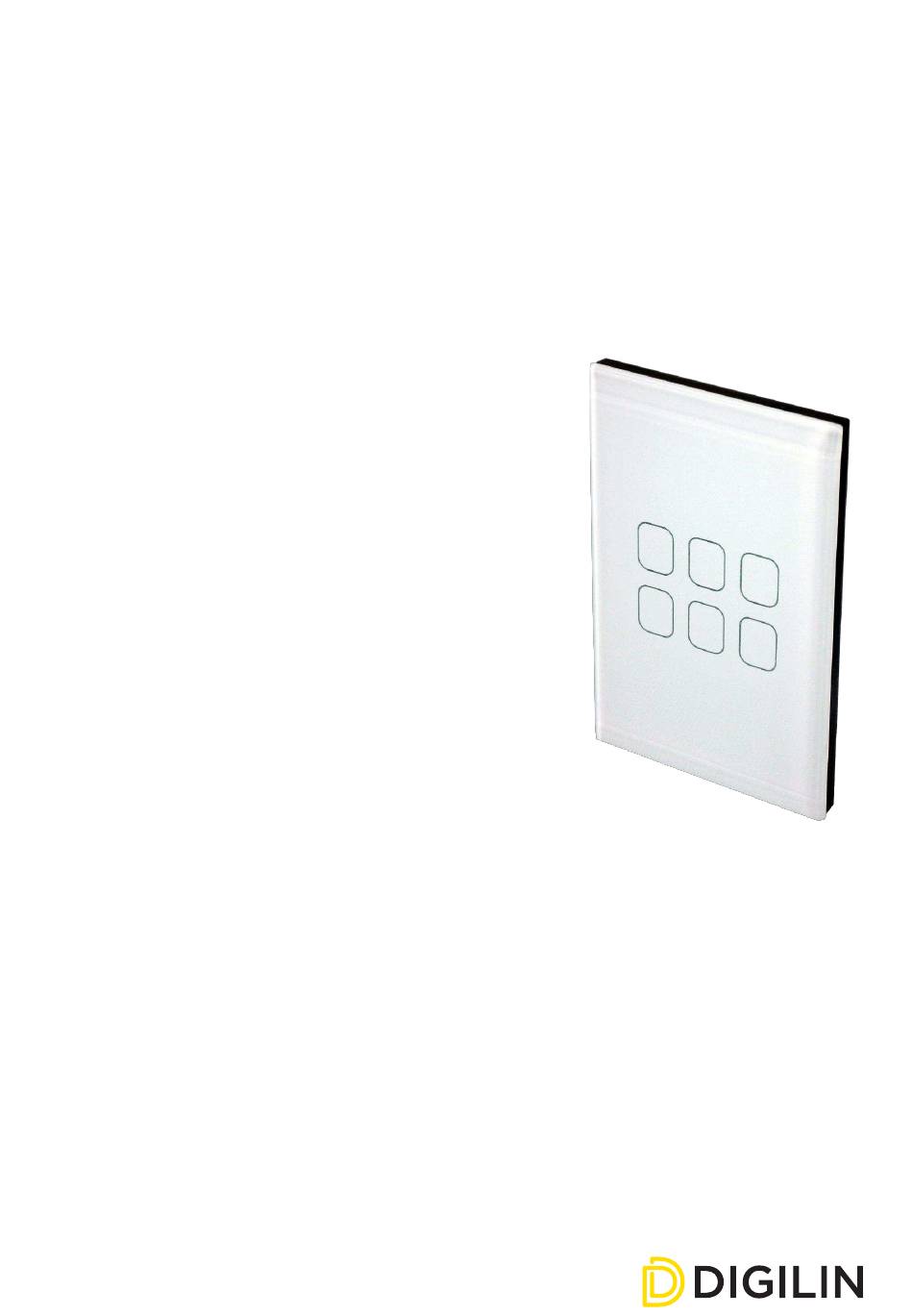

- Page 1 PosiTouch DALI Lighting Controller User Manual ©2020 Digilin Technologies Document Rev: 7.0 - 23 November 2020 Product specifications are subject to change without notice...

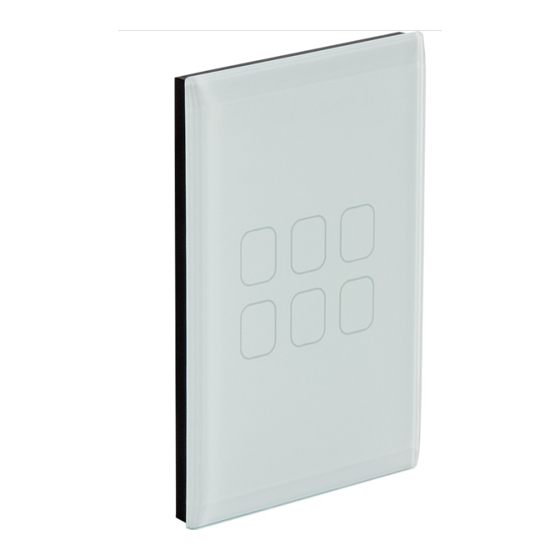

- Page 2 DALI is not SELV and installation must therefore follow appropriate standards Introduction The PosiTouch is capacitive touch sensitive DALI controller on a standard Clipsal Saturn wall plate. It provides simple touch to dim control of DALI light fittings and can be configured to use address units by broadcast, group or short address.
- Page 3 Table 1 Button Actions Default Configuration The PosiTouch comes configured by default for basic on/off and dimming control, with the configuration of fade rate and fade time disabled. D e f a u l t A c t i o n...
- Page 4 7.0 - 23 November 2020 Multi-Master The PosiTouch can operate in what is referred to as Multi-Master, meaning there can be more than one controller on the DALI network (so long as they also operate in Multi-Master). Appendix A. Using the PosiTouch Configuration Tool...
- Page 5 These commands will cause the output to change by a single step. When these commands are assigned to a long Press, the PosiTouch will repeat them every 40ms. This dimming rate is not adjustable. B u t t o n A c t i o n...
- Page 6 PosiTouch DALI - Lighting Controller User Manual 7.0 - 23 November 2020 Appendix B. DALI Networking Basics DALI is very flexible in its network configuration, to the point that DALI control lines and mains voltage supply lines can be wired together.
