Summary of Contents for Ravelli Vittoria V

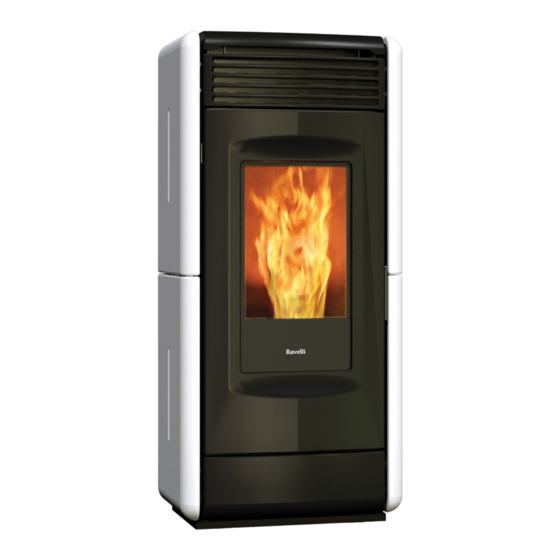

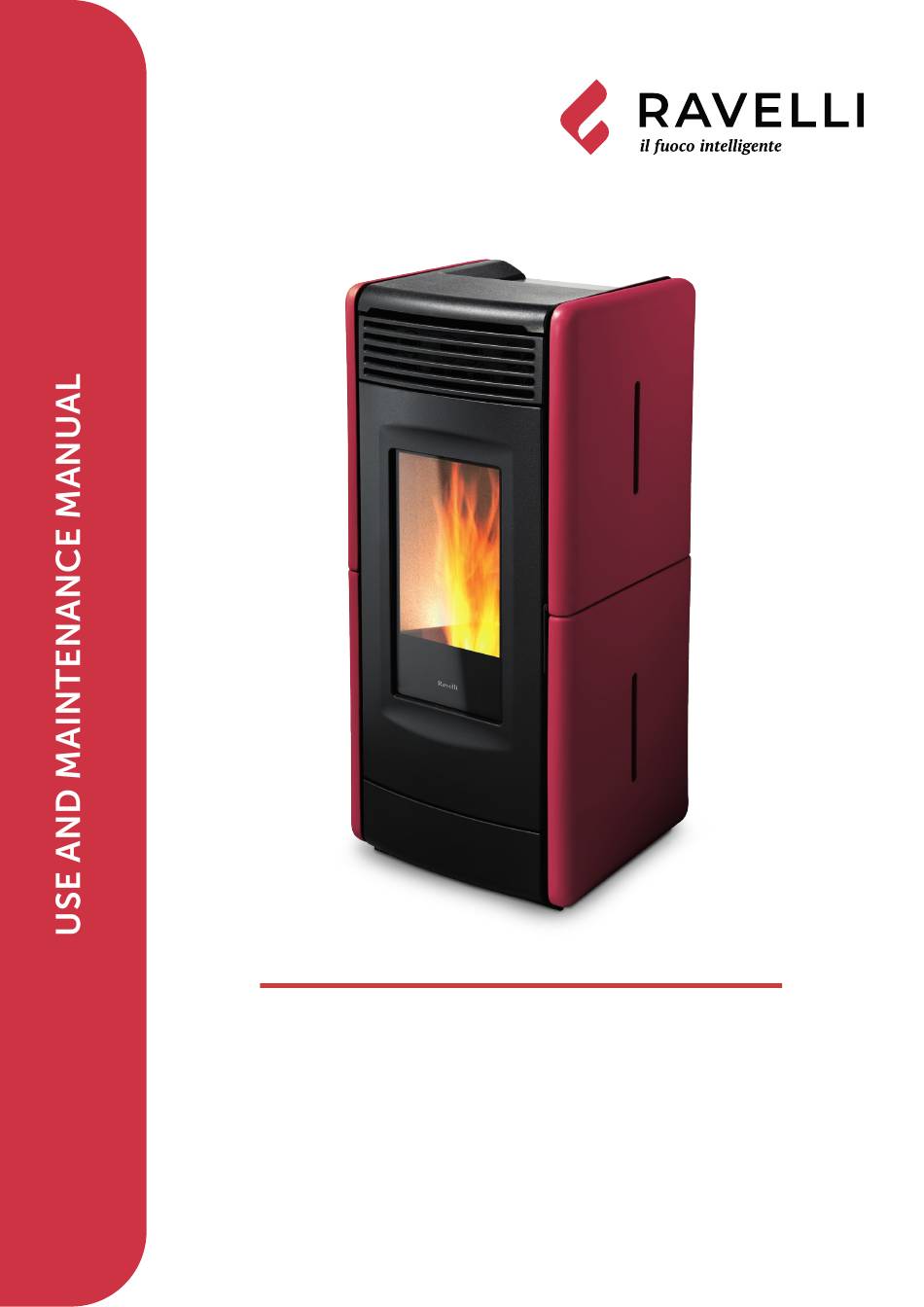

- Page 1 Stoves with Touch Remote Vittoria V - Atena V RV 120 Touch...
- Page 2 SAVE THESE INSTRUCTIONS Please read this entire manual before installation and use of this pellet fuel-burning room heater. Failure to follow these instructions could result in property damage, bodily injury or even death. Contact local building or fire officials about restrictions and installation inspection requirements in your area. Contact local authorities to see if a permit must be obtained before installation.
-
Page 3: Table Of Contents
Rev.0 05/12/2022 Use and maintenance manual for stoves with touch remote Pag.3 SUMMARY INTRODUCTION ...........................4 Information ................................. 4 Description of use and maintenance manual ......................4 WARNINGS ...........................4 THANK YOU..........................4 SAFETY INFORMATION .......................5 GENERAL ............................6 Responsibility ................................6 Majolica finishes ............................... 6 What are the wood pellets ............................ -
Page 4: Introduction
Description of use and maintenance manual With this use and maintenance manual, Ravelli wishes to provide the user with all the information on safety in using the stove, in order to avoid damage to persons or things or parts of the stove. Please read this manual carefully before use and any work on the product. -
Page 5: Safety Information
Pag.5 SAFETY INFORMATION The stove must be installed and tested by specialized personnel instructed by the Ravelli. Please read this use and maintenance manual before installing and putting the stove into operation! If you require further information, please contact your Ravelli dealer. -
Page 6: General
As already mentioned earlier, pellets with a diameter of 6 mm must be used with the stove. Responsibility Ravelli declines all responsibility, both civil and criminal, with the delivery of this manual, for any accidents deriving from partial or total failure to observe the instructions it contains, Ravelli declines all responsibility deriving from the improper use of the stove, from its incorrect use by the user, by unauthorized modifications and/or repairs or from the use of spare parts which are not original. -
Page 7: What Are The Wood Pellets
Rev.0 05/12/2022 Use and maintenance manual for stoves with touch remote Pag.7 What are the wood pellets The wood pellets are made from sawdust and wood shavings produced in joiners’ shops. The material used cannot contain any foreign substance such as glue, varnish or synthetic substances. Subjecting it to high pressure, the wood is pressed through a plate with holes and due to the high pressure the sawdust is heated activating the natural binders of the wood. -
Page 8: The Combustion
Rev.0 05/12/2022 Use and maintenance manual for stoves with touch remote Pag.8 The combustion The combustion is a chemical reaction between fuel and oxidizer. The result of this reaction is the heat. The three elements that are required for the combustion are: - Fuel (pellet) - Oxidizer (oxygen available in the air) - Ignition (heat of embers or electrical ignitor) -
Page 9: Compliance Status
Compliance status This manual describes the installation and operation of the Ravelli, Vittoria V, Atena V and RV 120 Touch wood pellet heater. This heaters meet the 2020 U.S. Environmental Protection Agency’s wood pellet emission limits for wood heaters sold after May 15 2015. -
Page 10: Safety Devices
*overll heating efficiency is determined using higher heating value of the fuel. The data shown above are indicative and not binding. Ravelli reserves the right to make any modifications for the purpose of improv- ing the performances of the product. -
Page 11: Positioning, Assembly And Installation
Rev.0 05/12/2022 Use and maintenance manual for stoves with touch remote Pag.11 POSITIONING, ASSEMBLY AND INSTALLATION Environment of use The positioning of the stove is decisive for a successful and equal heating of the room. Before deciding where to place the stove, the following must be taken into account: - The stove must be installed on a floor with a sufficient carrying capacity. -
Page 12: 6.3 Mobile Home Requirements
The stove must be installed and assembled by qualified personnel. The room must be: Rev.0 05/12/2022 - Prepared for the environmental functioning conditions Use and maintenance manual for stoves with touch remote Pag.12 - Prepared with an adequate system of evacuation of smoke - Have a 120V 60 Hz (EN73-23) electricity mains supply Mobile Home Requirements - Do not connect this unit to a chimney flue serving another appliance... -
Page 13: Examples Of Installation
Rev.0 05/12/2022 Use and maintenance manual for stoves with touch remote Pag.13 Examples of installation Protection from rain Insulated flue Ash deposited in the 90° bend Union tee for condensation Pic. 4 Pic. 5 - - - d ì This type of installation (see Pic. 4) requires an insulated flue, as all the smoke pipe has been installed outside the house. d ì... -
Page 14: Determining Size Of Pipe To Install
Rev.0 05/12/2022 Use and maintenance manual for stoves with touch remote Pag.14 Determining Size of Pipe to install To determine the diameter of pipe to use (3”or 4”), you can use the following guidelines. Fillout the installation chart (table 1), and calculate your total equivalent pipe length. Then use the total equivalent pipe length and the altitude in the pipe selection chart. -
Page 15: Minimum Distance From Combustible Material
Use and maintenance manual for stoves with touch remote Pag.15 Minimum distance from combustible material NOTE: Install vent at clearances specified by the vent manufactures. Vittoria V, Atena V, RV 120 Touch Unit of Corner installation Through the wall Without outside air inlet... -
Page 16: Standard Horizontal Installation Configurations
Rev.0 05/12/2022 Use and maintenance manual for stoves with touch remote Pag.16 Standard horizontal installation configurations 1. Locate the proper position for the listed type “PL” wall thimble. Avoid cutting wall studs when installing your pipe. Use a saber saw or keyhole saw to cut the proper diameter hole through the wall to accommodate the wall thimble. Use extreme caution to avoid cutting into power lines within the wall of the home. - Page 17 Rev.0 05/12/2022 Use and maintenance manual for stoves with touch remote Pag.17 3” (75 mm) Minimum clearance between wall and pipe. If you Top View Illustration vent to the furthest wall, the vent pipe must maintain a 3” clea- rance parallel to the other wall. Notes: It is not recommended to ter- minate exhaust vent on the prevailing wind side of the house...
-
Page 18: Controls And Use
Radio touch remote control initialization The remote control, after a first short screen showing the Ravelli logo, will list the languages available in the menu. Select the desired language with the scroll buttons and confirm your selection with the confirmation button. -
Page 19: Description Of The Radio Touch Remote Control
Rev.0 05/12/2022 Use and maintenance manual for stoves with touch remote Pag.19 Description of the radio touch remote control The remote control looks like the following picture: The information below will familiarize you with the product and give you the best performance. Increase button “UP”... -
Page 20: Time And Date Setting
Rev.0 05/12/2022 Use and maintenance manual for stoves with touch remote Pag.20 Vers. 01 of:07.04.14 User’s manual HANDHELD TOUCH RADIO Pag.21 �� The display is subdivided into three parts: After 5 minutes of inactivity, the remote control display dims to “SLEEP” mode while maintaining the radio connection to the stove. -
Page 21: Procedures For Use
Rev.0 05/12/2022 Use and maintenance manual for stoves with touch remote Pag.21 ⚠ PROCEDURES FOR USE If the chimney catches fire you must call the fire brigade immediately. ⚠ Checks prior to start-up You have read and perfectly understood the contents of this instructions manual. Vers. -
Page 22: Failed Ignition
If the problem persists, it could be due to a technical problem (ignition plug, adjustments, etc ⚠ ...), so please contact a Ravelli CAT. The accumulation of unburned pellets in the brazier after a failed ignition must be removed before proceeding with a new ⚠... - Page 23 Pag.30 If the type of system designed requires controlling the 3-way valve (diagram 1 and 3), it is necessary to purchase the optional kit from the retailer or the authorized Ravelli dealer. Stove State Stove State Combustion regulation is an operation that requires a lot of experience.
- Page 24 Rev.0 05/12/2022 Use and maintenance manual for stoves with touch remote Pag.24 Vers. 01 del 07/04/15 Manuale utente PALMARE IDRO TOUCH RADIO Pag.30 Stove status Stove State Below are given the steps for accessing the relative menu starting from “Home” mode. Below are given the steps for accessing the relative menu starting from Stand-By mode.
-
Page 25: Setting
ENABLE COMFORT COMFORT CLIMA ENABLE COMFORT Rev.0 05/12/2022 Use and maintenance manual for stoves with touch remote ENABLE COMFORT Pag.25 RESTART DELTA SHUTDOWN DELAY COMFORT CLIMA COMFORT CLIMA COMFORT CLIMA DELTA COMFORT CLIMA DELTA In the inactive phases (combined with the 3rd part of the display) indicates the state of the stove. DELAY SWITCH OFF DELAY SWITCH OFF In the active phases, it indicates the operating power of the stove. - Page 26 ADJUST ADJUST “confirm” to “confirm” “selection” to switch access the to access the function to the function Press the key Press the key Press the key SETUP CONTRAST. “confirm” to “confirm” Rev.0 05/12/2022 “selection” to switch SETTINGS access the Use and maintenance manual for stoves with touch remote to access the function to the function SETUP...
-
Page 27: Stove Phase General Layout
Rev.0 05/12/2022 Use and maintenance manual for stoves with touch remote Pag.27 Stove phase general layout PHASE DESCRIPTION The stove is in the switch off phase and the cooling phase has FINAL CLEANING not been completed yet. The heater pre-heating phase has started and the pellets start to IGNITION fall into the grate. -
Page 28: Warning Pop -Up
Rev.0 05/12/2022 Use and maintenance manual for stoves with touch remote Pag.28 The stove has detected an anomaly; refer to the troubleshooting ANOMALY (general) chapter. By pressing the confirmation key, the problem is described. AUTOMATIC CLEANING For models with automatic cleaning system it indicates the SYSTEM ACTIVE operating state of the same. - Page 29 Rev.0 05/12/2022 Use and maintenance manual for stoves with touch remote Pag.29 The flue is blocked. Check the flue is free and clean AL 08 DEPRESSION The vacuum meter is faulty. Check the mains voltage. FUME The fume exhaust system has a loss of AL 12 EXHAUST performance due to fan obstruction or voltage...
-
Page 30: Thermal Alarm With Reset
Rev.0 05/12/2022 Use and maintenance manual for stoves with touch remote Pag.30 ⚠ Thermal alarm with reset In the case of alarm 07 THERMAL BREAKER below shows the location where to operate to reset the thermal switch with manual reset. 1) By pressing the button OK on the display the alarm can be reset. -
Page 31: Electrical Wiring Diagram
Rev.0 05/12/2022 Use and maintenance manual for stoves with touch remote Pag.31 ELECTRICAL WIRING DIAGRAM LEGEND: MB- Motherboard R1- Igniter T1- Fire door contact T2- Pellet hopper contact S1- Flame probe T3- Pellet thermal safety S2- External thermostat T4- Pressure switch S3- Room probe (opt) M1- Gearmotor G2- Encoder reading revolutions suction... -
Page 32: Maintenance
Cleaning the FIREX 600 All Ravelli products have a combustion chamber made with FIREX 600, a material based on vermiculite, the result of research and development by Ravelli. The main features of FIREX 600 are resistant to heat, its lightness and excellent insulating capacities, im- proving the combustion and performance of the stove. -
Page 33: Warranty
Info and problems Dealers authorised by Ravelli use a trained Technical Service Centre network to meet the Customer’s requirements. For any informa- tion or request for assistance, please contact your Dealer or the Technical Service Centre. - Page 36 Aico S.p.A. Headquarter Via Consorzio Agrario, 3 - 25032 Chiari (BS) - Italy Research and Development Centre Viale del commercio 12/a - 37135 Verona (VR) - Italy T. + 39 030 7402939 info@ravelligroup.it FB Ravellifuocointelligente IG ravellistufe www.ravelligroup.it Aico S.p.A. does not assume any responsibility for any errors in this booklet and considers itself free to make any variations to the features of its products and to the present manual without notice.
