Summary of Contents for Ravelli RC 120 Touch Steel

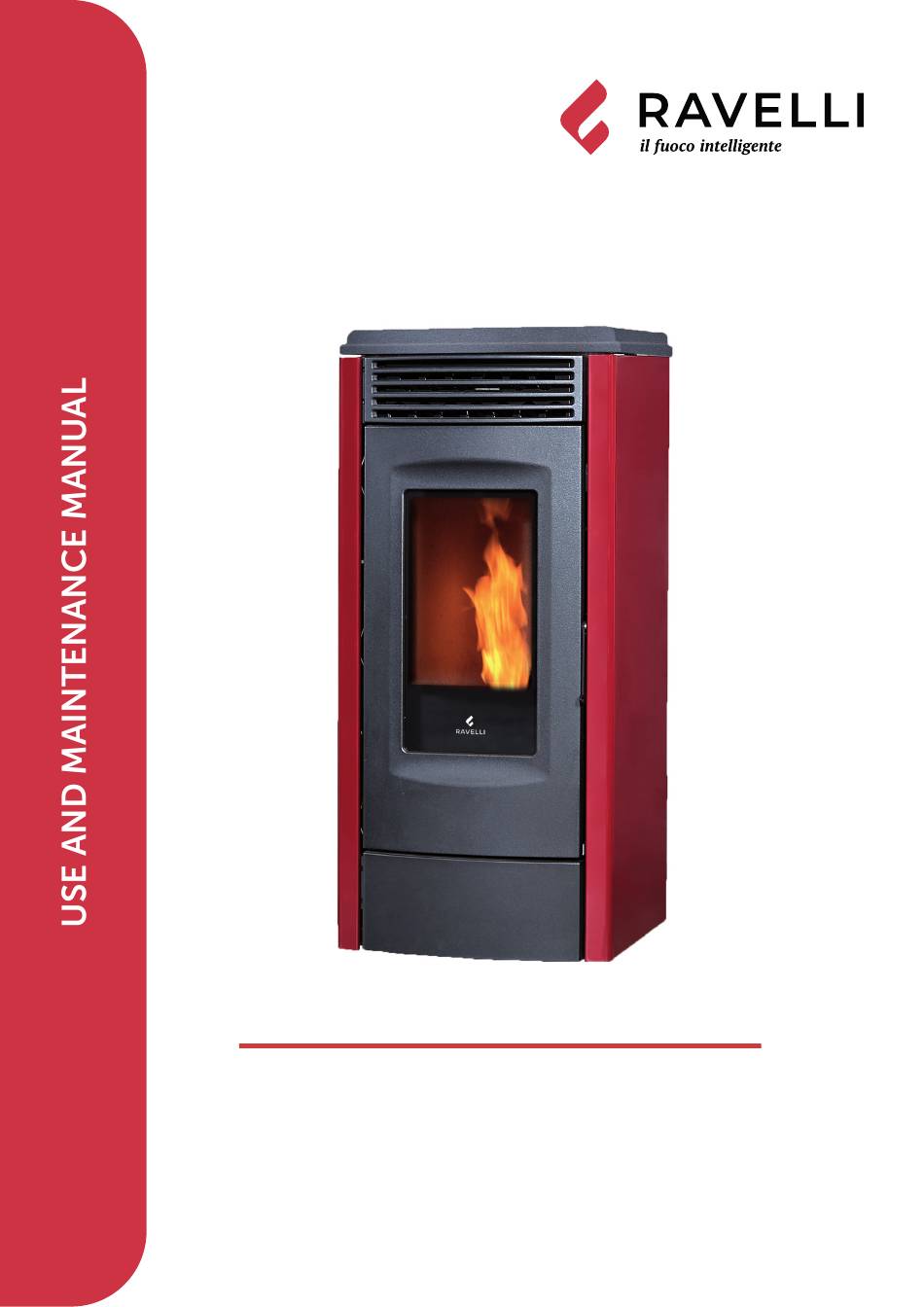

  • Page 1 RC 120 Touch Steel RV 120 Touch Steel...
  • Page 3 Type de produit Poêle à granulés de bois Marchio Trademark Ravelli Marque Modello RC 120 Touch Steel Model RV 120 Touch Steel RV 120 Touch Steel Modèle L'oggetto della dichiarazione di cui sopra è conforme alla pertinente normativa di armonizzazione dell'Unione:...
  • Page 4 Marca / Trademark / Marque / Merk / Marke / Marca Ravelli Modello / Model / Modèle / Model / Modell / Modelo RC 120 Touch Steel Classe di efficienza energetica / Energy Efficiency class /Classe d’Efficacité Énergétique / RC 120 Touch Steel Energie-efficiëntieklasse / Energieeffizienzklasse / Clase de eficiencia energética...
  • Page 5 FICHA DEL PRODUTO EU 2015/1186 Marca / Trademark / Marque / Merk / Marke / Marca Ravelli Modello / Model / Modèle / Model / Modell / Modelo RV 120 Touch Steel Classe di efficienza energetica / Energy Efficiency class /Classe d’Efficacité Énergétique / RV 120 Touch Steel Energie-efficiëntieklasse / Energieeffizienzklasse / Clase de eficiencia energética...
  • Page 6 2. Type, batch or serial number or any other element allowing identification of the construction product as required under Art. 11(4): RC 120 Touch Steel 3. Intended use or uses of the construction product, in accordance with the applicable harmonised technical specification, as foreseen by the manufacturer: Residential space heating appliance fired by wood pellets 4.
  • Page 7 3. Intended use or uses of the construction product, in accordance with the applicable harmonised technical specification, as foreseen by the manufacturer: Residential space heating appliance fired by wood pellets 4. Name, registered trade name or registered trademark and contact address of the manufacturer as required by Art. 11 (5): Ravelli Aico S.p.A. Via A. Kupfer, 31 25036 Palazzolo s/O (Bs) Italia 5.

  • Page 9: Preface

    Incorrect installation, maintenance and improper use of the product relieve the Manufacturer of all liability deriving from use of the stove. For further information and requirements contact your Ravelli-authorised Technical Assistance Centre. All rights reserved. No part of this instructions manual can be reproduced or transmitted through any electronic or mechanical means, including photocopies, recordings or any other storage system, for other purposes that are not exclusively use by the buyer’s staff,...

  • Page 10: Table Of Contents

    Characteristics of the fuel ............................. 18 Non-permitted fuels ..............................18 TECHNICAL CHARACTERISTICS ....................19 Measurements ................................. 20 Technical diagram RC 120 Touch Steel ......................... 20 Technical diagram RV 120 Touch Steel ......................... 21 Main parts................................. 22 Automatic cleaning system ............................ 23 Recharge the fuel ..............................
  • Page 11 Rev.1 16/06/2021 Use and maintenance manual RC-RV 120 Touch Steel Pag.11 OPERATING PHASES OF THE APPLIANCE ................38 Sequence of ignition phases ..........................38 Modulation ................................38 Description of menu functions ..........................38 Setting ..................................41 Double ducting ............................... 43 Stove phase general layout ............................ 47 MAINTENANCE ..............................

  • Page 12: Identification

    Remote control: Synthetic Declaration of Conformity (DoC) The manufacturer Aico S.p.A. declares that the Remote Control, with the Ravelli brand and model PNET00003 (Palm Touch) is in conformity with the relevant Union harmonisation legislation: 2014/53/EU (RED), and that the following harmonised standards and/ or technical specifications have been applied: ETSI EN 301 489-3, ETSI EN 301 489-1, EN 60950-1 A11+A1+A12+AC+A2, EN 62479.

  • Page 13: Warranty

    Use and maintenance manual RC-RV 120 Touch Steel Pag.13 WARRANTY Certificate of warranty Ravelli thanks you for the trust granted with the purchase of one of its products and invites the purchaser to: • read the installation, use and maintenance instructions for the product; •...

  • Page 14: General Information

    Rev.1 16/06/2021 Use and maintenance manual RC-RV 120 Touch Steel Pag.14 GENERAL INFORMATION Supply and safe-keeping The manual is supplied in printed format. Keep this manual safe, with the stove, so that the user can consult it easily. The manual is an integral part, for safety reasons, therefore: •...

  • Page 15: Residual Risks

    If the chimney catches fire you must call the fire brigade. ⚠ Only use original spare parts. Any tampering and/or replacements that have not been authorised by Ravelli can pose a danger to the user’s safety. ⚠ In the event of particularly adverse weather conditions, the safety systems could intervene and switch off the stove.

  • Page 16: Description Of The Stove

    Rev.1 16/06/2021 Use and maintenance manual RC-RV 120 Touch Steel Pag.16 residual description procedure-related information risk Risk of When the stove is running, it may reach high burns temperatures to the touch, especially on its external surfaces. Take care to avoid burns and use the specific tools if necessary.

  • Page 17: Obligations And Forbidden Actions

    Rev.1 16/06/2021 Use and maintenance manual RC-RV 120 Touch Steel Pag.17 Obligations and forbidden actions Obligations The user must: • read this instructions manual before performing any operation on the stove; • the appliance must not be used by children under the age of 8 or by people with reduced physical, sensorial or mental capacities or without experience or without the necessary knowledge, and always with supervision;...

  • Page 18: Characteristics Of The Fuel

    A2 and B. Maintain fuels and other flammables at a suitable distance. Ravelli recommends using wood pellet classified A1 and A2 according to the EN ISO 17225-2:2014 standard, or certified DIN PLUS (more restrictive than the A1 class) or ONORM M 7135. Pellet may be light or dark coloured, it is normally bagged into bags that show the name of the producer, the main characteristics and classification according to standards.

  • Page 19: Technical Characteristics

    The data shown here is provided as a guideline and is not binding, and may change based on what type and quality of wood is used. Ravelli reserves the right to make any changes in order to improve product performance.

  • Page 20: Measurements

    Measurements Unit of measurement RC 120 Touch Steel RV 120 Touch Steel Height 1145 1145 Width Depth Weight Technical diagram RC 120 Touch Steel Ø80 (CANALIZZAZIONE) (DUCTING) Ø80 (USCITA FUMI) (SMOKE OUTLET) Ø50 (ENTRATA ARIA) (AIR INLET) Ø80 (CANALIZZAZIONE) (DUCTING)

  • Page 21: Technical Diagram Rv 120 Touch Steel

    Rev.1 16/06/2021 Use and maintenance manual RC-RV 120 Touch Steel Pag.21 Technical diagram RV 120 Touch Steel 80 (USCITA FUMI) (SMOKE OUTLET) 50 (ENTRATA ARIA) (AIR INLET)

  • Page 22: Main Parts

    Description of operation Ravelli RC-RV 120 Touch Steel pellet stoves are appliances for domestic heating powered by wood pellets with automatic loading. They are suitable for use as a secondary heating system or as a support for the main heating system.

  • Page 23: Automatic Cleaning System

    User training Once installation is complete, the user must always be fully trained in the functions and characteristics of the stove by the technician authorized by Ravelli to ensure optimal and safe use. The training should cover the following topics: •...
  • Page 24 Rev.1 16/06/2021 Use and maintenance manual RC-RV 120 Touch Steel Pag.24 Safety devices The stove has been designed and equipped with safety systems to minimize user risks. It is equipped with the safety devices listed in the following table, which also intervene in case of failure of the electronic board. Element Description Pellet tank thermostat...

  • Page 25: Shipping And Installation

    Rev.1 16/06/2021 Use and maintenance manual RC-RV 120 Touch Steel Pag.25 SHIPPING AND INSTALLATION Safety warnings for transportation and installation �� The stove must be installed by a qualified technician, who must issue a declaration of conformity of the system to the purchaser, taking full responsibility for stove installation and correct operation.

  • Page 26: Set-Ups For The Smoke Evacuation System

    Rev.1 16/06/2021 Use and maintenance manual RC-RV 120 Touch Steel Pag.26 Set-ups for the smoke evacuation system �� Be careful when building the smoke evacuation system and observe the regulations in force in the country where the stove ⚠ is installed. The Manufacturer will not be held liable for incorrectly sized and non-regulation smoke evacuation systems.

  • Page 27: Installation

    �� Ravelli shall not be held liable if these precautions are not followed. Requirements for the installation premises The stove installation room must be sufficiently ventilated. To fulfil this requisite it is necessary to equip the room with an air intake connected to the outdoors.
  • Page 28 Rev.1 16/06/2021 Use and maintenance manual RC-RV 120 Touch Steel Pag.28 Installation example for a stove/pellet stove This type of installation (See Fig.1) requires an insulated chimney pot, even if the entire conduit is installed inside the building. Besides, the structure must be inserted into a properly ventilated skylight shaft.
  • Page 29 Rev.1 16/06/2021 Use and maintenance manual RC-RV 120 Touch Steel Pag.29 This type of installation (See Fig.4) requires an insulated chimney pot, even if the entire smoke conduit is installed outside the Protection from rain building. In the lower part of the chimney there is a "T" type fitting installed with inspection cap.

  • Page 30: Connections

    Rev.1 16/06/2021 Use and maintenance manual RC-RV 120 Touch Steel Pag.30 Connections �� The connections must be set up by a technician that is qualified and/or authorised by the Manufacturer. �� By the installer the type of cable, with relative section, to be installed in case of replacement is: H05RR-F sez.3G0,75 Connection with external air intake The stove has been designed for hermetic installations.

  • Page 31: Ducting

    Rev.1 16/06/2021 Use and maintenance manual RC-RV 120 Touch Steel Pag.31 ⚠ Ducting Comply with the standards and laws in force in the region where the product is installed. Connect a 80 mm diameter pipe to the stove outlet of the ducting to heat another room of the home. The size of the duct (length and shape) must take into consideration the residual head of the fan of the ducting shown here.

  • Page 32: Testing And Commissioning

    The testing is positive only when all operational phases have been completed without any anomaly being detected. Electric scheme RC 120 Touch Steel Connessione OPZIONALE per...

  • Page 33: Electric Scheme Rv 120 Touch Steel

    Rev.1 16/06/2021 Use and maintenance manual RC-RV 120 Touch Steel Pag.33 Electric scheme RV 120 Touch Steel Connessione OPZIONALE per gestione domotica Scheda OPZIONALE G5 G5 per gestione 10 9 domotica RETE ALIMENTAZIONE 220 V Fase Neutro LEGEND Safeties Probes LEGENDA: T1 - Fire door contact S1 - Flue gas probe (J)

  • Page 34: Controls And Use

    Stove on/off button Handheld touch radio initialization The handheld, after a first short screen showing the Ravelli logo, will list the languages available in the menu. Select the desired language with the scroll buttons and confirm your selection with the confirmation button.

  • Page 35: Description Of The Handheld Set

    Rev.1 16/06/2021 Use and maintenance manual RC-RV 120 Touch Steel Pag.35 Description of the handheld set The PDA looks like the following picture: The information below will familiarize you with the product and give you the best performance. Increase button “UP” (selection key) Decrease key “DOWN”...

  • Page 36: Time And Date Setting

    Rev.1 16/06/2021 Use and maintenance manual RC-RV 120 Touch Steel Pag.36 Vers. 01 of:07.04.14 User’s manual HANDHELD TOUCH RADIO Pag.21 �� The display is subdivided into three parts: After 5 minutes of inactivity, the handheld display dims to “SLEEP” mode while maintaining the radio connection to the stove. A subsequent press of the ON/OFF key reactivates the display.

  • Page 37: Procedures For Use

    Rev.1 16/06/2021 Use and maintenance manual RC-RV 120 Touch Steel Pag.37 ⚠ PROCEDURES FOR USE If the chimney catches fire you must call the fire brigade immediately. ⚠ Checks prior to start-up You have read and perfectly understood the contents of this instructions manual. Vers.

  • Page 38: Failed Ignition

    If the problem persists, it could be due to a technical problem (ignition plug, adjustments, etc ⚠ ...), so please contact a Ravelli CAT. The accumulation of unburned pellets in the brazier after a failed ignition must be removed before proceeding with a new ⚠...
  • Page 39 Pag.30 If the type of system designed requires controlling the 3-way valve (diagram 1 and 3), it is necessary to purchase the optional kit from the retailer or the authorized Ravelli dealer. Stove State Stove State Combustion regulation is an operation that requires a lot of experience.
  • Page 40 Rev.1 16/06/2021 Use and maintenance manual RC-RV 120 Touch Steel Pag.40 Vers. 01 del 07/04/15 Manuale utente PALMARE IDRO TOUCH RADIO Pag.30 Stove status Stove State Below are given the steps for accessing the relative menu starting from “Home” mode. Below are given the steps for accessing the relative menu starting from Stand-By mode.

  • Page 41: Setting

    ENABLE COMFORT COMFORT CLIMA ENABLE COMFORT Rev.1 16/06/2021 Use and maintenance manual RC-RV 120 Touch Steel ENABLE COMFORT Pag.41 RESTART DELTA SHUTDOWN DELAY COMFORT CLIMA COMFORT CLIMA COMFORT CLIMA DELTA COMFORT CLIMA DELTA In the inactive phases (combined with the 3rd part of the display) indicates the state of the stove. DELAY SWITCH OFF DELAY SWITCH OFF In the active phases, it indicates the operating power of the stove.
  • Page 42 ADJUST ADJUST “confirm” to “confirm” “selection” to switch access the to the function to access the function Press the key Press the key Press the key SETUP CONTRAST. Rev.1 16/06/2021 “confirm” to “selection” to switch “confirm” SETTINGS access the Use and maintenance manual RC-RV 120 Touch Steel to the function to access the function SETUP...

  • Page 43: Double Ducting

    Rev.1 16/06/2021 Use and maintenance manual RC-RV 120 Touch Steel Pag.43 Double ducting This function allows you to manage distribution of warm air between the room where the stove is installed and the rooms where the duct arrives. The function has two operating modes: manual and automatic. Manual mode: the user manually sets distribution of warm air between front ventilation and ductings.
  • Page 44 Rev.1 16/06/2021 Use and maintenance manual RC-RV 120 Touch Steel Pag.44 Use the “UP” and “DOWN” keys to change the distribution of hot air between right and left ducting (the data is saved without further confirmation). You can choose from five different positions.
  • Page 45 Rev.1 16/06/2021 Use and maintenance manual RC-RV 120 Touch Steel Pag.45 To go back to the T.REAR RIGHT menu, press the “back” key. To go back to the T.REAR LEFT menu, press the “increase” key. Use the “confirm” button to enable / disable the external thermostat. Use the “UP”...
  • Page 46 Rev.1 16/06/2021 Use and maintenance manual RC-RV 120 Touch Steel Pag.46 Display of double ducting status The following are the steps to be followed to access the status display, starting from the “Home” screen. CANALIZED MENU USER MANAGEMENT USER CANALIZED TEMPERATURE TECHNICIAN LOADING AUGER...

  • Page 47: Stove Phase General Layout

    Rev.1 16/06/2021 Use and maintenance manual RC-RV 120 Touch Steel Pag.47 Stove phase general layout PHASE DESCRIPTION The stove is in the switch off phase and the cooling phase has FINAL CLEANING not been completed yet. The heater pre-heating phase has started and the pellets start to SWITCH ON fall into the grate.
  • Page 48 Rev.1 16/06/2021 Use and maintenance manual RC-RV 120 Touch Steel Pag.48 The stove has detected an anomaly; refer to the troubleshooting ANOMALY (general) chapter. By pressing the confirmation key, the problem is described. Warning Pop -Up ANOMALY DESCRIPTION The threshold value of set work hours has been reached. The symbol displayed SERVICE REQUEST remains active throughout the work phase.
  • Page 49 Rev.1 16/06/2021 Use and maintenance manual RC-RV 120 Touch Steel Pag.49 FUME The fume exhaust system has a loss of perfor- AL 12 EXHAUST Check the mains voltage. mance due to fan obstruction or voltage drop. SYSTEM AL 14 AUGER PHASE No cable connection to power the gear motor Check the mains voltage.

  • Page 50: Maintenance

    Rev.1 16/06/2021 Use and maintenance manual RC-RV 120 Touch Steel Pag.50 MAINTENANCE ⚠ Safety warnings for maintenance Maintenance of the stove must be performed at least once a year and should be planned in advance with the Technical ⚠ Assistance Service. In some conditions, such as turning the stove on and off or inappropriate use, the combustion products can contain small soot particles that build up in the smoke evacuation system.

  • Page 51: To Clean The Pellet Tank, Proceed As Follows

    Rev.1 16/06/2021 Use and maintenance manual RC-RV 120 Touch Steel Pag.51 Glass cleaning With a cold stove, clean the glass with a cloth and glass cleaner. Note: there are stove glass cleaning products available on the market. Cleaning the tube heat exchanger: During operation, dust and soot are deposited on the surface of the heat exchanger tubes.

  • Page 52: Extraordinary Maintenance

    Schedule the above extraordinary maintenance activities with the Authorised Assistance Centre. Deep combustion chamber cleaning �� This operation must be carried out by a Ravelli Assistance Centre. �� Schedule this type of cleaning with the Ravelli Assistance Centre. To clean the combustion chamber, proceed as described below: After cleaning the combustion chamber, it is advisable to proceed with the cleaning of the inspection hatches as indicated in the para- graph “Smoke duct cleaning”.
  • Page 53 Checking the seals �� This operation must be carried out by a Ravelli Service Centre. Plan this type of cleaning with the Ravelli Service Centre. When thoroughly cleaning the stove, the authorised technician must check that the gaskets of - port...
  • Page 54 Rev.1 16/06/2021 Use and maintenance manual RC-RV 120 Touch Steel Pag.54 Inspection hatch Gasket Gasket Inspection hatch Gasket Inspection hatch...

  • Page 55: Storage And Disposal

    Rev.1 16/06/2021 Use and maintenance manual RC-RV 120 Touch Steel Pag.55 STORAGE AND DISPOSAL Disposal Demolition and disposal of the stove is under the exclusive liability and responsibility of the owner who must do so in accordance with the laws in force in the country of installation pertaining to safety, respect and protection of the environment. At the end of its service life, the product must not be disposed of as household waste.
  • Page 56 ITA-Informazioni per la gestione di rifiuti di apparecchiature elettriche ed elettroniche contenenti pile e accumulatori Questo simbolo che appare sul prodotto, sulle pile, sugli accumulatori oppure sulla loro confezione o sulla loro documentazione, indica che il prodotto e le pile o gli accumulatori inclusi al termine del ciclo di vita utile non devono essere raccolti, recuperati o smaltiti assieme ai rifiuti domestici.
  • Page 57 ESP-Información para la gestión de residuos de aparatos eléctricos y electrónicos con pilas y acumuladores Este símbolo que aparece en el producto, en las pilas, los acumuladores o en su embalaje o su documentación indica que el producto y las pilas o acumuladores que contiene, al final de su vida útil, no deben recogerse, recuperarse o desecharse junto con los residuos domésticos.
  • Page 60 Aico S.p.A. Headquarter Via Consorzio Agrario, 3/D - 25032 Chiari (BS) - Italy Research and Development Centre Viale del commercio 12/a - 37135 Verona (VR) - Italy T. + 39 030 7402939 info@ravelligroup.it FB Ravellifuocointelligente IG ravellistufe www.ravelligroup.it Aico S.p.A. does not assume any responsibility for any errors in this booklet and considers itself free to make any variations to the features of its products without notice.
