USER'S MANUAL
5.7

OUTPUT SIGNALS

AD LINK-OUT / AC LINK
5.7.1.

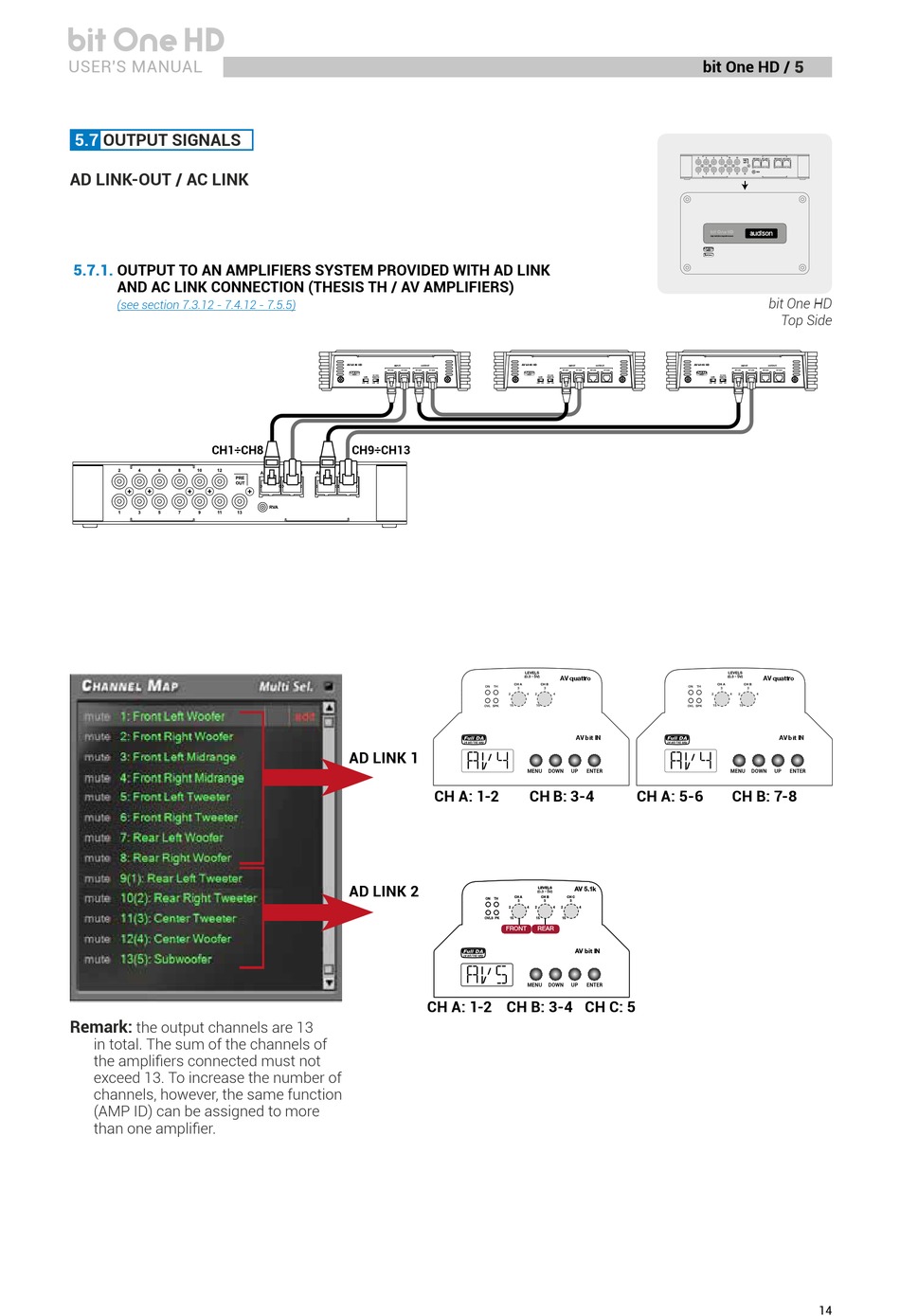

OUTPUT TO AN AMPLIFIERS SYSTEM PROVIDED WITH AD LINK
AND AC LINK CONNECTION (THESIS TH / AV AMPLIFIERS)
(see section 7.3.12 - 7.4.12 - 7.5.5)
CH1÷CH8
Remark:
the output channels are 13
in total. The sum of the channels of
the amplifiers connected must not
exceed 13. To increase the number of
channels, however, the same function
(AMP ID) can be assigned to more
than one amplifier.
CH9÷CH13
CH A
ON TH
3
2
15
OVL SPK
4
AD LINK 1
CH A: 1-2
AD LINK 2
CH A
ON TH
3
2
OVLS PK
15
FRONT
CH A: 1-2 CH B: 3-4
LEVELS
AV quattro
(0.3 - 5V)
CH B
ON
3
4 2 4
15
OVL SPK
AV bit IN
MENU DOWN UP ENTER
CH B: 3-4 CH A: 5-6
LEVELS AV 5.1k
(0.3 - 5V)
CH B CH C
3 3
4 2 4 2 4
15 15
REAR
AV bit IN
MENU DOWN UP ENTER
CH C: 5
bit One HD / 5
bit One HD
Top Side
LEVELS
AV quattro
(0.3 - 5V)
CH A CH B
TH
3 3
2 4 2 4
15 15
AV bit IN
4
MENU DOWN UP ENTER
CH B: 7-8
14
