LOW-LEVEL AND DIGITAL INPUT SIGNALS

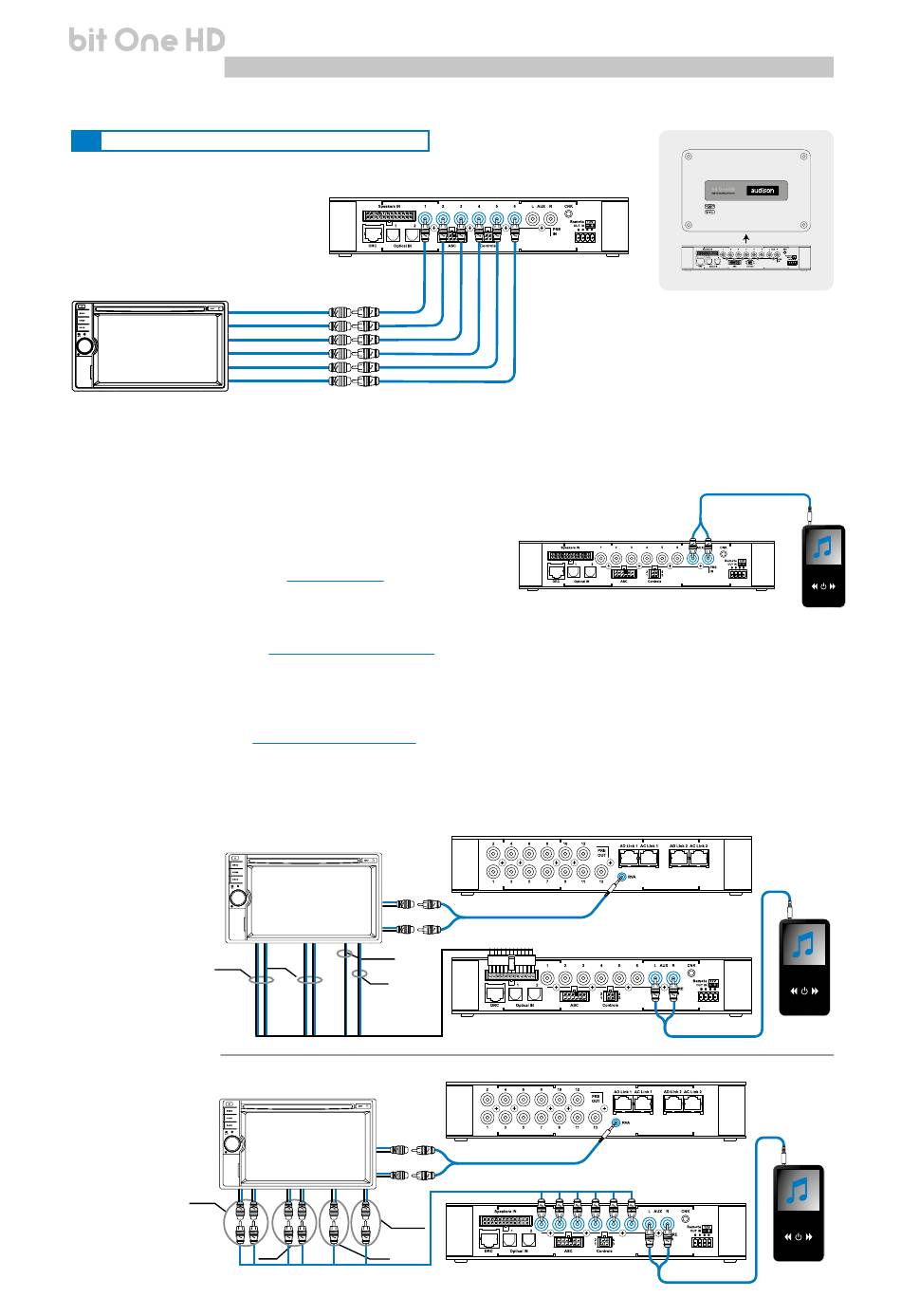

5.4.1. PRE IN - Ch1/Ch6 analog STEREO signal
AFTER MARKET HEAD UNIT
FRONT LEFT
FRONT RIGHT
REAR LEFT
REAR RIGHT
CENTER
SD
SUB
MAX 6 PRE OUT
Selection of the MASTER PRE IN input
1. Through the DRC MP, selecting the MASTER input.
2. Through the MASTER input, using the bit One HD PC software
3. Through the MASTER input, using the bit One HD PC software.
5.4.2. AUX - Left/Right - analog STEREO signal
Selection of the AUX IN input
1. Through the DRC MP, selecting the AUX input.
2. Through the AUX SEL terminal
enabled by connecting the terminal at + 12V.
3. Through the bit One HD PC software, selecting the AUX input.
4. Through the selection of the AUX input from the OEM source, using the "Auto Input Switch" function, via
the bit One HD PC software
5.4.3. "AUTO INPUT SWITCH" AUX SIGNAL
Activate the "AUTO INPUT SWITCH" function on the AUX input via PC software to enable the bit One HD AUX input,
each time the source AUX input is activated. When using this function the bit One HD volume can be controlled
through the source volume
Remark: when activating the "Auto Input Switch" function, the DRC/PC Software can no longer be used for the switch of
the audio system inputs. The switch can be enabled through the audio system source, selecting the AUX or Master
input. When the "AIS - Auto Input Switch" function is active and a bit Play HD is connected to the system along
with Full DA amplifiers (AD LINK - AC LINK) the DRC MP will be disabled and will display the following: "DRC DISABLED".
OEM HEAD UNIT
Connect the bit One HD
AUX input to the
audio source and the
processor's RVA input
SD
to the Master source
AUX input (Head Unit)
FRONT
AFTER MARKET HEAD UNIT
SD
FRONT
. This control is
(see section 4.3.4)
(see section 5.4.3 - 7.3.8 - 7.4.8)
(see section 7.3.8 - 7.4.8; 8.3.5).
Left
AUX IN
Right
REAR
CENTER
SUB
HI LEVELS
OUTPUT
Left
AUX IN
Right
CENTER
REAR
SUB
.
TO AUX IN HEAD UNIT
TO AUX IN HEAD UNIT
PRE IN
bit One HD / 5
bit One HD
Bottom Side
Auxiliary Stereo
Preamplifier Source
bit One HD Front panel
Auxiliary stereo
preamplifier
Source
bit One HD Rear panel
bit One HD Front panel
Auxiliary stereo
preamplifier
Source
bit One HD Rear panel
