MT4 MAX/MT4 MAX+/
MT4 MAX IND/
59E/59E+

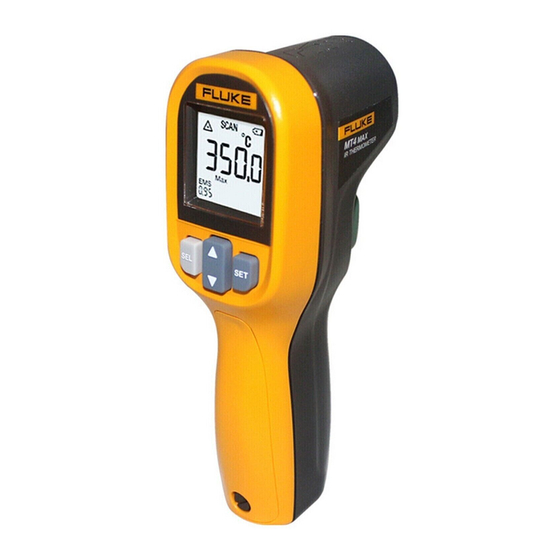

Infrared Thermometer
Users Manual
PN 4326561 (English)
August 2013 Rev. 2, 5/2022
©2013-2022 Fluke Corporation. All rights reserved. Specifications are subject to change without notice.
All Product names are trademarks of their respective companies.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MT4 MAX and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Fluke MT4 MAX

Summary of Contents for Fluke MT4 MAX

  • Page 1 MT4 MAX/MT4 MAX+/ MT4 MAX IND/ 59E/59E+ Infrared Thermometer Users Manual PN 4326561 (English) August 2013 Rev. 2, 5/2022 ©2013-2022 Fluke Corporation. All rights reserved. Specifications are subject to change without notice. All Product names are trademarks of their respective companies.
  • Page 2 The Fluke MT4 MAX, MT4 MAX+, 59E, and 59E+ Infrared Thermometers will be free from defects in material and workmanship for 1 year from the date of purchase. The MT4 MAX IND Infrared Thermometer will be free from defects in material and workmanship for 5 years from the date of purchase.

  • Page 3: Table Of Contents

    Table of Contents Title Page Introduction ............................. 1 Contact Fluke ............................1 Safety Information..........................2 Maintenance ............................5 How to Change the Battery...................... 5 How to Clean the Product ......................5 Product Disposal ........................... 6 Specifications ............................6 Nominal Surface Emissivity ....................... 10...
  • Page 4 MT4 MAX/MT4 MAX+/MT4 MAX IND/59E/59E+ Users Manual...

  • Page 5: Introduction

    Introduction The Fluke MT4 MAX, MT4 MAX+, MT4 MAX IND, 59E, and 59E+ Infrared Thermometers (the Product) can determine the surface temperature by measuring the amount of infrared energy radiated by the target’s surface. Contact Fluke Fluke Corporation operates worldwide. For local contact information, go to our website: www.fluke.com.

  • Page 6: Safety Information

    MT4 MAX/MT4 MAX+/MT4 MAX IND/59E/59E+ Users Manual Safety Information A Warning identifies hazardous conditions and procedures that are dangerous to the user. A Caution identifies conditions and procedures that can cause damage to the Product or the equipment under test.
  • Page 7 Infrared Thermometer Safety Information Do not look directly into the laser with optical tools (for example, binoculars,  telescopes, microscopes). Optical tools can focus the laser and be dangerous to the eye. Do not look into the laser. Do not point laser directly at persons or animals or ...
  • Page 8 The affixed label indicates that you must not discard this electrical/electronic  product in domestic household waste. Do not dispose of this product as unsorted municipal waste. For information about take-back and recycling programs available in your country, see the Fluke website.

  • Page 9: Maintenance

    Infrared Thermometer Maintenance Maintenance Warning To prevent possible electrical shock, fire, or personal injury, have an approved technician repair the Product. Caution To avoid damage to the Product, do not leave the thermometer on or near objects of high temperature. How to Change the Battery To install or change the AA IEC LR06 battery, open the battery compartment and replace the battery as shown in Figure 16.

  • Page 10: Product Disposal

    MT4 MAX/MT4 MAX+/MT4 MAX IND/59E/59E+ Users Manual Product Disposal Dispose of the Product in a professional and environmentally sound manner: Delete personal data on the Product before disposal.  Remove batteries that are not integrated into the electrical system before disposal and ...
  • Page 11 Infrared Thermometer Specifications MT4 MAX/59E MT4 MAX IND MT4 MAX+/59E+ Response Time <500 ms (95 % of reading) (95 %) Spectral Response 8 μm to 14 μm Emissivity 0.10 to 1.00 Optical Resolution 8:1 (calculated at 90 % energy) 10:1 (calculated at 90 % energy) Display Resolution 0.1 °C (0.2 °F)
  • Page 12 MT4 MAX/MT4 MAX+/MT4 MAX IND/59E/59E+ Users Manual MT4 MAX/59E MT4 MAX IND MT4 MAX+/59E+ Non condensing when ≤10 °C (50 °F) Operating Humidity ≤90 % RH @ 10 °C to 30 °C (50 °F to 86 °F) ≤75 % RH @ 30 °C to 50 °C (86 °F to 122 °F)
  • Page 13 Infrared Thermometer Specifications MT4 MAX/59E MT4 MAX IND MT4 MAX+/59E+ Electromagnetic Compatibility (EMC) International IEC 61326-1: Portable; CISPR 11: Group 1, Class A Group 1: Equipment has intentionally generated and/or uses conductively-coupled radio frequency energy that is necessary for the internal function of the equipment itself.

  • Page 14: Nominal Surface Emissivity

    MT4 MAX/MT4 MAX+/MT4 MAX IND/59E/59E+ Users Manual Nominal Surface Emissivity Material Value Material Value Default**** 0.95 Glass (plate) 0.85 Aluminum* 0.30 Iron* 0.70 Asbestos 0.95 Lead* 0.50 Ashphalt 0.95 0.94 Brass* 0.50 Paint 0.93 Ceramic 0.95 Plastic** 0.95 Concrete 0.95 Rubber 0.95...

  • Page 15: The Product

    Infrared Thermometer The Product The Product...
  • Page 16 MT4 MAX/MT4 MAX+/MT4 MAX IND/59E/59E+ Users Manual Max/Min/Diff...
  • Page 17 Infrared Thermometer The Product 10 min...
  • Page 18 MT4 MAX/MT4 MAX+/MT4 MAX IND/59E/59E+ Users Manual 30 Min 0 ºC 32 ºF 22 ºC 72 ºF ° F 1 2 5...
  • Page 19 600 mm 900 mm 600 mm 900 mm 300 mm 1.6" @ 3" @ 4.7" @ 1.5" @ 2.4" @ 4" @ 12" 24" 36" 12" 24" 36" MT4 MAX/MT4 MAX IND/59E MT4 MAX+/59E+ D:S = 8:1 D:S = 10:1...
  • Page 20 MT4 MAX/MT4 MAX+/MT4 MAX IND/59E/59E+ Users Manual...
  • Page 21 Infrared Thermometer The Product 7 5 ° 2 2 5 ° 7 5 °...
  • Page 22 MT4 MAX/MT4 MAX+/MT4 MAX IND/59E/59E+ Users Manual...
