62 MAX/62 MAX +
Infrared Thermometer
Users Manual
PN 4060712
April 2012 Rev. 1, 11/12
© 2012 Fluke Corporation. All rights reserved. Printed in China.
Specifications are subject to change without notice.
All product names are trademarks of their respective companies.
MyFlukeStore
1.877.766.5412
www.
.ca
Shop for Fluke products online at:
Advertisement
Table of Contents
Related Manuals for Fluke 62 MAX +
Summary of Contents for Fluke 62 MAX +
- Page 1 62 MAX/62 MAX + Infrared Thermometer Users Manual PN 4060712 April 2012 Rev. 1, 11/12 © 2012 Fluke Corporation. All rights reserved. Printed in China. Specifications are subject to change without notice. All product names are trademarks of their respective companies. MyFlukeStore 1.877.766.5412 www.
- Page 2 LIMITED WARRANTY AND LIMITATION OF LIABILITY This Fluke product will be free from defects in material and workmanship for three years from the date of purchase. This warranty does not cover fuses, disposable batteries, or damage from accident, neglect, misuse, alteration, contamination, or abnormal conditions of operation or handling.
-
Page 3: Table Of Contents
Table of Contents Title Page Introduction ......................... 1 How to Contact Fluke ....................1 Safety Information ...................... 2 Maintenance ....................... 6 How to Change the Battery ..................6 How to Clean the Product ..................6 Specifications ......................7 Standards and Agency Approval ................9 The Product ........................ -
Page 4: Users Manual
62 MAX/62 MAX + Users Manual MyFlukeStore 1.877.766.5412 www. Shop for Fluke products online at:... -
Page 5: Introduction

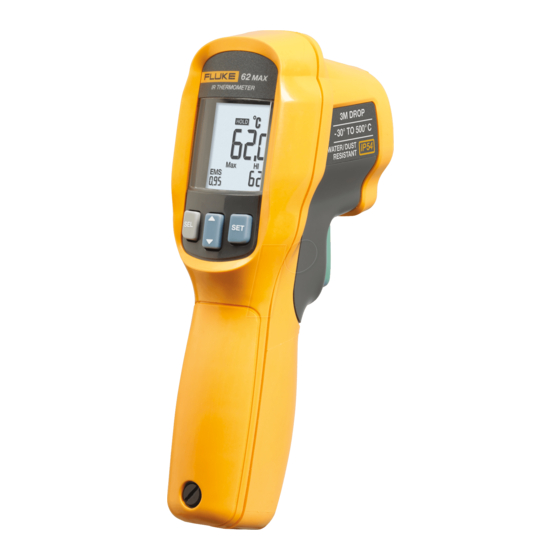

Introduction The Fluke 62 MAX and 62 MAX + Infrared Thermometers (the Product) can determine the surface temperature by measuring the amount of infrared energy radiated by the target’s surface. Note that the Japanese models indicate Celsius only. Warning Read all safety information before you use the Product. -
Page 6: Safety Information
62 MAX/62 MAX + Users Manual Or, visit Fluke's website at www.fluke.com. To register your product, visit http://register.fluke.com. To see, print, or download the latest manual supplement, visit http://us.fluke.com/usen/support/manuals. Safety Information A Warning identifies conditions and procedures that are dangerous to the user. A Caution identifies conditions and procedures that can cause damage to the Product or the equipment under test. - Page 7 Replace the batteries when the low battery indicator shows to prevent incorrect measurements. Do not use the Product around explosive gas, vapor, or in damp or wet environments. Use the Product only as specified or hazardous laser radiation exposure can occur. MyFlukeStore 1.877.766.5412 www. Shop for Fluke products online at:...
- Page 8 WEEE Directive Annex I, this product is classed as category 9 "Monitoring and Control Instrumentation” product. Do not dispose of this product as unsorted municipal waste. Go to Fluke’s website for recycling information. MyFlukeStore 1.877.766.5412 www. Shop for Fluke products online at:...
- Page 9 Safety Information Table 1. Symbols (cont.) Symbol Meaning Symbol Meaning Conforms to European Union Warning. Laser. directives. Conforms to relevant Australian Battery standards. Conforms to China Metrology Certification MyFlukeStore 1.877.766.5412 www. Shop for Fluke products online at:...
-
Page 10: Maintenance
Use soap and water on a damp sponge or soft cloth to clean the Product case. Carefully wipe the surface with a moist cotton swab. The swab may be moistened with water. See Figure 17. MyFlukeStore 1.877.766.5412 www. Shop for Fluke products online at:... -
Page 11: Specifications
<500 ms (95 % of reading) <300 ms (95 % of reading) Spectral Response 8 to 14 microns Emissivity 0.10 to 1.00 Temperature Coefficient 0.1 C/ C or 0.1 %/ C of reading (whichever is greater) MyFlukeStore 1.877.766.5412 www. Shop for Fluke products online at:... - Page 12 -20 C to 60 C (-4 F to 140 F), (without battery) Operating Humidity 10 % to 90 % RH non-condensing @ 30 C (86 F) Operating Altitude 2000 meters above mean sea level Storage Altitude 12,000 meters above mean sea level MyFlukeStore 1.877.766.5412 www. Shop for Fluke products online at:...
-
Page 13: Standards And Agency Approval
IEC 60068-2-6 2.5 g, 10 to 200 Hz, IEC 60068-2-27, 50 g, 11 Vibration and Shock EN 61326-1:2006 EN 61326-2:2006 Standards and Agency Approval Compliance ..........EN/IEC 61010-1 Laser Safety ..........EN 60825-1 Class 2 Implement Standard ....... Q/SXAV37 MyFlukeStore 1.877.766.5412 www. Shop for Fluke products online at:... -
Page 14: The Product
62 MAX/62 MAX + Users Manual The Product gtt01.eps MyFlukeStore 1.877.766.5412 www. Shop for Fluke products online at:... - Page 15 Infrared Thermometer The Product Max/Min/Avg/Diff gtt14.eps MyFlukeStore 1.877.766.5412 www. Shop for Fluke products online at:...
- Page 16 62 MAX/62 MAX + Users Manual 10 min gtt16.eps MyFlukeStore 1.877.766.5412 www. Shop for Fluke products online at:...
- Page 17 Infrared Thermometer The Product 30 Min 0ºC 32ºF 22ºC 72ºF ° F 1 2 5 gtt15.eps MyFlukeStore 1.877.766.5412 www. Shop for Fluke products online at:...
- Page 18 900 mm 1.5" @ 2.4" @ 4" @ 1.4" @ 2" @ 3.4" @ 12" 24" 36" 12" 24" 36" 62 MAX + 62 MAX D:S = 12:1 D:S = 10:1 gtt08-11.eps MyFlukeStore 1.877.766.5412 www. Shop for Fluke products online at:...
- Page 19 Infrared Thermometer The Product gtt03.eps MyFlukeStore 1.877.766.5412 www. Shop for Fluke products online at:...
- Page 20 62 MAX/62 MAX + Users Manual 7 5 ° 2 2 5 ° 7 5 ° gtt04.eps MyFlukeStore 1.877.766.5412 www. Shop for Fluke products online at:...
- Page 21 Infrared Thermometer The Product gtt13.eps MyFlukeStore 1.877.766.5412 www. Shop for Fluke products online at:...
- Page 22 62 MAX/62 MAX + Users Manual MyFlukeStore 1.877.766.5412 www. Shop for Fluke products online at:...
