- Page 1 ® Infrared Thermometer Users Manual PN 2562924 February 2006 Rev.2, 9/07 © 2006, 2007 Fluke Corporation, All rights reserved. Printed in China. All product names are trademarks of their respective companies.
- Page 2 LIMITED WARRANTY AND LIMITATION OF LIABILITY This Fluke product will be free from defects in material and workmanship for two years from the date of purchase. This warranty does not cover fuses, disposable batteries, or damage from accident, neglect, misuse, alteration, contamination, or abnormal conditions of operation or handling.
-
Page 3: Table Of Contents
Table of Contents Title Page Introduction ......................1 Contacting Fluke....................1 Safety Information....................2 Features ......................... 3 Display........................4 Buttons and Connector ..................5 How the Thermometer Works................. 6 Operating the Thermometer ................... 6 Locating a Hot or Cold Spot................6 Distance and Spot Size.................. - Page 4 Users Manual...
-
Page 5: List Of Tables
List of Tables Table Title Page Symbols......................... 2 Surface Emissivity ....................8 Recommended Temperature Probes ..............10... - Page 6 Users Manual...
- Page 7 List of Figures Figure Title Page Symbols and Safety Markings ................3 Infrared Thermometer .................... 4 Thermometer Display..................... 5 Locating a Hot or Cold Spot .................. 6 Distance and Spot Size ..................7 Field of View ......................7 Switching Between C and F................9 Connecting the Temperature Probe................
- Page 8 Users Manual...
-
Page 9: Introduction

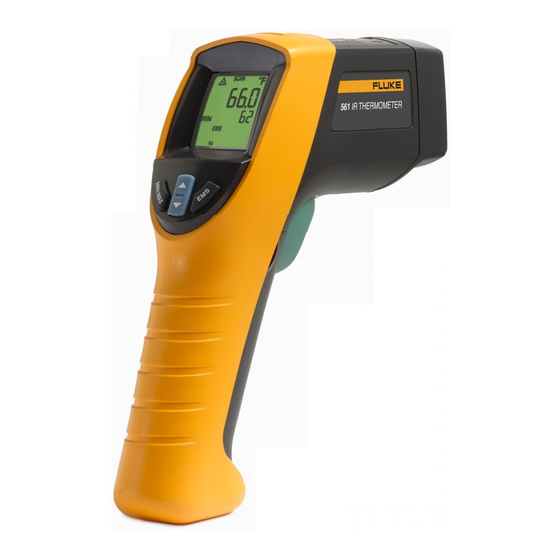

Infrared Thermometer Introduction The Fluke 561 Infrared Thermometer (hereafter, the Thermometer) can determine the surface temperature by measuring the amount of infrared energy radiated by the target’s surface or by contact using a thermocouple probe. The Thermometer was designed specifically for use in heating, ventilating, and air conditioning (HVAC) applications. -
Page 10: Safety Information
Warning. Laser. Conforms to requirements of European Union and European Free Trade Association (EFTA). Do not dispose of this product as unsorted municipal waste. Go to Fluke’s web site for recycling information. Battery Chinese manufacturing mark for products manufactured in the Peoples „... -
Page 11: Features
Infrared Thermometer Features AVOID EXPOSURE - LASER RADIATION IS EMITTED FROM THIS APERTURE CAUTION LASER RADIATION - DO NOT STARE INTO BEAM OUTPUT < 1mW WAVELENGTH 630 - 670nm CLASS 2 ( II ) LASER PRODUCT COMPLIES WITH FDA 21CFR 1040.10 AND 1040.11 COMPLIES WITH IEC 60825 efh010f.eps... -
Page 12: Display
Users Manual Laser Display Trigger Batteries Function Buttons Battery Cover efh007f.eps Figure 2. Infrared Thermometer Display The primary temperature display reports the current or last IR temperature read until the 7-second hold time elapses. The secondary temperature display reports current thermocouple temperature when a type-K thermocouple is attached. -
Page 13: Buttons And Connector
Infrared Thermometer Buttons and Connector efh01f.eps Laser “On” symbol SCAN or HOLD C/ F symbol (Celsius/Fahrenheit) Primary temperature display Secondary temperature display Emissivity LO, MED, HI Temperature values for the MIN, MAX, DIF, KTC. KTC indicates the thermocouple temperature. Low Battery symbol. Appears when the battery charge is <... -
Page 14: How The Thermometer Works
Users Manual How the Thermometer Works Infrared thermometers measure the surface temperature of an opaque object. The Thermometer’s optics sense infrared energy, which is collected and focused onto a detector. The Thermometer’s electronics then translate the information into a displayed temperature reading which appears on the display. The laser is used for aiming purposes only. -
Page 15: Field Of View
Infrared Thermometer Operating the Thermometer 132 mm @ 1500 mm 75 mm @ 900 mm 38 mm @ 300 mm 5.3 " @ 3 " @ 60 " 36 " 1.5 " @ 12 " D:S=12:1 efh005f.eps Figure 5. Distance and Spot Size Field of View Make sure that the target is larger than the spot size. -
Page 16: Switching Between C And F
Users Manual Table 2. Surface Emissivity Measured Measured Switch Setting Switch Setting Surface Surface Aluminum Iron, Cast Oxidized Oxidized High, Medium Alloy A3003 Unoxidized Oxidized Molten Roughened Iron, Wrought Brass Dull High Burnished Lead Oxidized Rough Copper Oxidized Low, Medium Oxidized Medium Molybdenum... -
Page 17: Using The Contact Temperature Probe
Infrared Thermometer Operating the Thermometer Switch efh012f.eps Figure 7. Switching Between C and F Using the Contact Temperature Probe XW W arning To avoid electrical shock or personal injury, do not connect the optional external probe to live electrical circuits. Connect the probe to the input on the top of the Thermometer. -
Page 18: Hold
Users Manual Table 3 lists recommended Fluke temperature probes for use with the Thermometer: Table 3. Recommended Temperature Probes Probe Usage The piercing probe is the most versatile option. Good for checking air temperature in ducts, surface temperature under carpets/pads, liquids, thermometer wells, vent 80PK-25 temperatures, and for penetrating pipe insulation. -
Page 19: Troubleshooting
Infrared Thermometer Troubleshooting Troubleshooting Symptom Problem Action --- (on display) Target temperature is over or under Select target within specifications range Low battery Replace battery Blank display Possible dead battery Check and/or replace battery Laser does not work 1. Low or dead battery 1. - Page 20 Users Manual Wrap Thermocouple Probe (model-specific) Type..................Type K with miniconnector and Velcro Standard strap, ASTM E230-03 Tolerance Measurement Range ..............0 °C to 100 °C (32 °F to 212 °F) Accuracy................... 2.2 °C (4.0 °F) Total Length ................505 mm (20 in) cable terminated with a Type K thermocouple inside a 495 mm (19.5 in) nylon Velcro cuff Bead Thermocouple Probe (model-specific)
