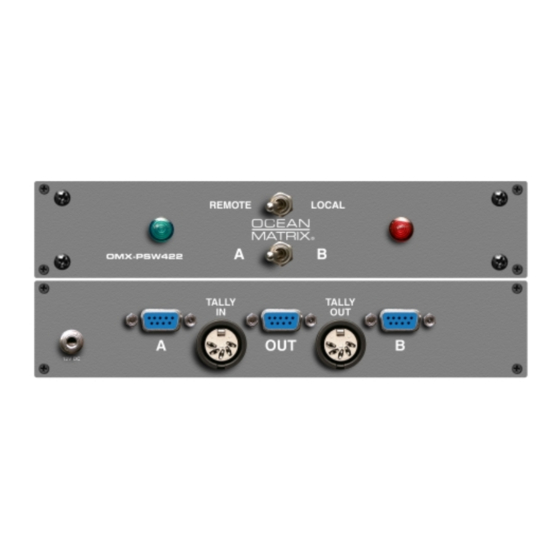

Ocean Matrix OMX-PSW422 Instruction Manual

Rs422 9-pin edit control smart a/b switcher

Instruction Manual

OMX-PSW422

hank you for purchasing this Ocean Matrix component. This unit is designed

to give you years of trouble free professional operation for your most

demanding applications. It is our goal to develop long term partnerships with

our customers through our commitment to exceed their expectations.

For Repair Information or to view the entire Ocean Matrix product line, please visit our web site.

www.oceanmatrix.com

RS422 9-Pin Edit Control

Smart A/B Switcher

Table of Contents

Need help?

Do you have a question about the OMX-PSW422 and is the answer not in the manual?

Page 1 It is our goal to develop long term partnerships with our customers through our commitment to exceed their expectations. For Repair Information or to view the entire Ocean Matrix product line, please visit our web site. www.oceanmatrix.com...
Page 2 LEDs to display the switch status and features a TALLY out signal which can control other A/B switchers in the series. With this unique feature, the OMX-PSW422 A/B switcher can control any or all of the other passive A/B switchers with a single switch on the front of the unit. This feature adds real punch to a product category which traditionally offered only a single operation in multi-media facilities.
Page 3 The OMX-PSW422 switcher can operate alone as a standard A/B selector unit, and as such is straight forward in its application and use. However, using the rear panel “Tally I/O” connectors and SPE- CIALLY MANUFACTURED Smart A/B control cables, the Switchers can “talk”...
Page 4 RS422 9-Pin Edit Control OMX-PSW422 Smart A/B Switcher Safety Precautions 1. To prevent fire or shock hazard, do not expose this equipment to the environment of Humidity and/or dust. Do not use this equipment in an unprotected outdoor installation or any area classi- fied as a wet area.
