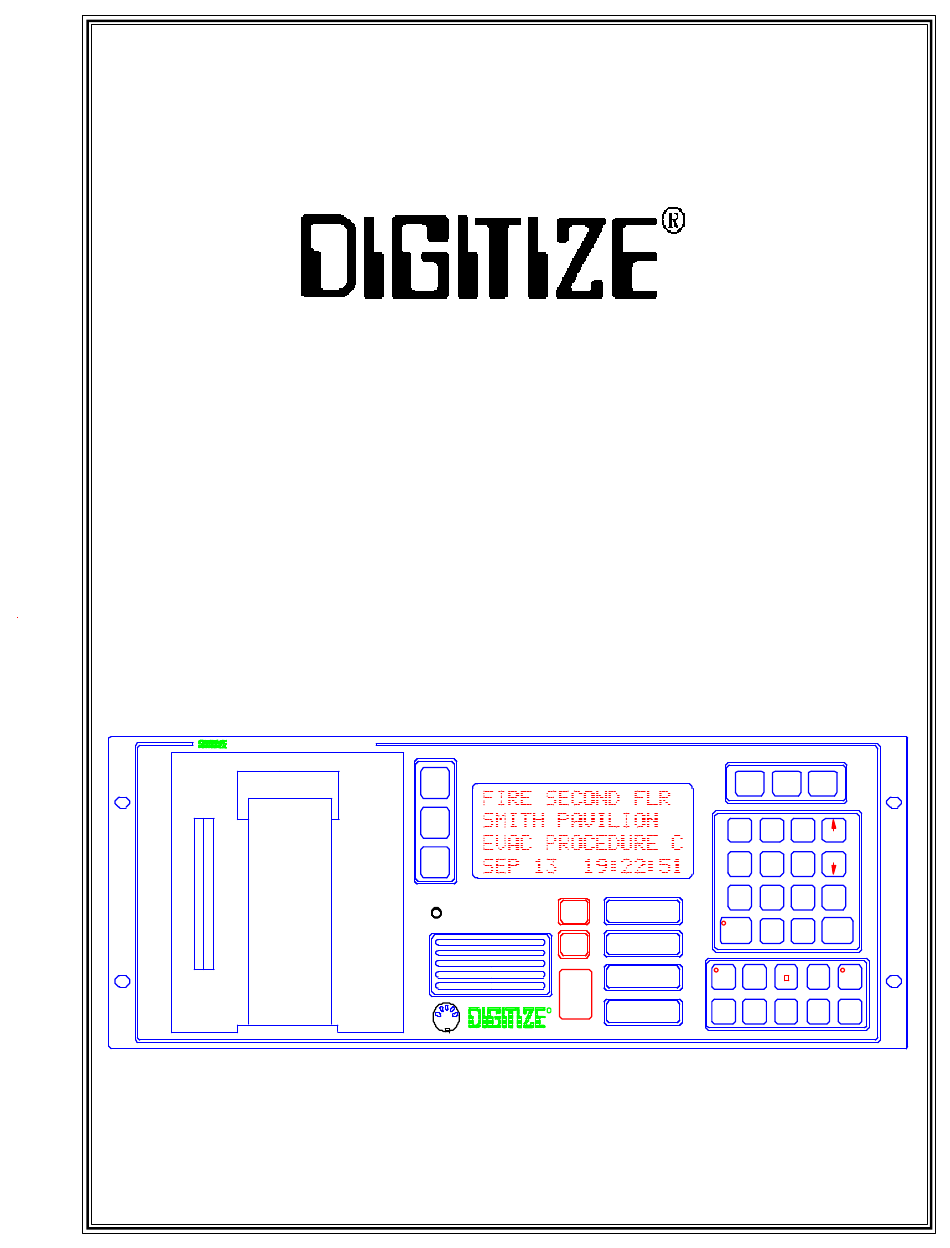

Page 1 SYSTEM 3000 INSTALLATION and OPERATION MANUAL SYSTEM 3000N PAPER DIALER Z O N E ADVANCE LOOK UP LOOK UP LOOK UP (STATUS) PRINT (REPORT) LAMP TEST BATT MODE ALARM FUNC CLEAR TROUBLE A D V SECURE A C K STOP...
Page 2 CGRMS All of the above are trademarks of Digitize, Inc. FC-ID is a trademark of Fire Control Instrument Co. Caution: For this manual to be valid you must have the SYSTEM 3000 Software Revision Level 6.0.0 or higher. Digitize, Inc.
Page 3 (973) 663-1011 FAX: (973) 663-4333 This manual has been prepared by DIGITIZE, INC. for use by its licensees, dis- tributors and customers. The information contained herein is the property of DIGI- TIZE, INC. and may not be copied, disclosed or reproduced, in whole or in part, without the prior written approval of DIGITIZE, INC.
Page 4 FCC NOTICE In compliance with Paragraph 15.105 of the FCC Rules and Regulations, the following notice is provided: NOTE: This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment.
Page 5: Table Of Contents
4.5.5. SERIAL PORT COMMUNICATIONS................4-17 4.5.6. MULTIPLEX SET-UP ....................4-18 4.5.6.1. ADD/CHG/DEL .....................4-18 4.5.6.2. LINE TYPE SEL ....................4-19 4.5.6.3. POLLING RATE ....................4-19 4.5.7. NETWORK SETUP ......................4-19 4.5.8.1. CHANGING LEVEL DESCRIPTORS .............4-20 4.5.8. IN/OUT SERVICE PASSWORD YES/NO ..............4-20 4.5.8.2. IN/OUT SERVICE PASSWORD ..............4-21 4.5.9.
Page 6 1.2. SYSTEM 3000 The overall unit is known as the SYSTEM 3000. The SYSTEM 3000 is a totally solid state system that uses state of the art devices and circuitry to continuously monitor and display the status of all system connected alarms.
Page 7 There are seven (7) empty memory sockets available on the system supplied memory motherboard. Nonvolatile, nonmagnetic storage may be added to the SYSTEM 3000 by installing memory modules and additional motherboards. Each of these is explained below.
Page 8 The MBD-4800 contains all 4800 screens, and is installed in any of the card slots of the SYSTEM 3000. Each MBD-4800 has a DIP switch to allow you to set the address of the board. A total of eight motherboards may be installed in one system. The number is limited only by the number of available card slots.
Page 9 OUTPUTS 1-3: Configured by options installed. 1.5.5. CONSTRUCTION The enclosure and cover of the SYSTEM 3000 is made of 0.062" aluminum. A membrane keypad is mounted on a 0.093" aluminum front panel. 1.5.6. DIMENSIONS Height ..........6.97" (17.7 cm) Width ..........
Page 10 SYSTEM 3000 INSTALLATION AND OPERATION MANUAL 1.5.9. STRIP PRINTER Method ..........Thermal transfer Speed ..........2.0 Lines per Second Print Head: Fixed head, 100 Dot array arranged in twenty (20) groups of five (5). Characters: Half height ......0.0625" (1.4mm) Standard height ....
Page 11 SYSTEM 3000 INSTALLATION AND OPERATION MANUAL 1.6. F.C.C. REQUIREMENTS The SYSTEM 3000 complies with the limits set for a Class A computing device as specified in Subpart J of Part 15 of the Federal Communications Commission “Rules and Regulations”. 1.7. APPLICABLE PUBLICATIONS F.C.C.
Page 12 Mounting screws, regardless of size or thread type, must have an oval head shape. Mounting the SYSTEM 3000 by way of the front panel will support itself and all attachable options. No other supports are required.
Page 13 (i.e., batteries and charger). This is to be connected after the unit is operating on the AC source. 3.4. POWER-UP To power up a SYSTEM 3000, primary AC can be applied first, then the standby DC power may be applied. 3.4.1. AC POWER To power-up the unit, move the AC power switch on the rear of the unit to the up position.
Page 14 All FUNCTION keys are activated immediately. 4.1.2. INITIAL SET-UP Insert the plug of the DIGITIZE external keyboard into the keyboard jack on the front panel of the SYSTEM 3000. The SYSTEM 3000 will respond with a revolving message. The revolving message will read: <<...
Page 15 ENTER ENTER _________ << Press ESC anyt NOTE: If the original password has been changed, then the new current password must be used to gain access to the data entry mode. DIGITIZE, INC. 700181-E 4 - 2...
Page 16 M A N U A L 4.2. EXTERNAL KEYBOARD MENU SELECTIONS Data for alarm points can be changed in the SYSTEM 3000 via the DIGITIZE, INC. external keyboard. In the data entry mode, the operator may ADD, CHANGE, or DELETE information based on options supplied with, or added to, the system.
Page 17 LEVEL 8 Other It is suggested that Level 8 not be used, since the SYSTEM 3000 automatically assigns this level to any alarm that has no message programmed for it. Priority level 8 also has significance should your system be expanded into a network configuration.
Page 18 The first line message will appear on line two of the printer when the zone is secured. 4 - 5 DIGITIZE, INC. 700181-E...
Page 19 Digital Dialer. Please note that a direct wire zone cannot have a generic message, only a zone specific message. The SYSTEM 3000 identifies a zone specific or generic message by its zone number. The following are examples of generic and zone specific numbers.
Page 20 When DGM 23-5 is received as an alarm, the display will bring up page 1 of the zone specific message. The user may press the ZONE LOOK UP key on the system 3000 to view the other pages. The SYSTEM 3000 will present the text screens in this order: page 1 of the zone specific, page 1 of the generic (if any), page 2 of the generic (if any);...
Page 21 “root” part of the DGM number. The “root” number must be followed by a “-”. Examples of generic numbers are: 23-, 2-, 1-234-. Generic messages are displayed on the SYSTEM 3000 by pressing the LOOK UP key on the front panel. When DIGITIZE, INC. 700181-E...
Page 22 A zone specific message is the message that is entered to describe what the zone is monitoring. This is the message that the SYSTEM 3000 will display when the zone has changed state, for example, from secure to alarm, etc. The system knows you are entering a zone specific message by the ZONE number that you use to enter the message.
Page 23 If the customer number is 345 and the message number you wish to ADD, CHANGE, or DELETE is 7, enter 345-7 when the display asks for DIALER number to be ADDED. 4.3.4. RADIO/TELEGRAPH MENU RADIO/TELEG MENU A=ADD C=CHANGE D=DEL X=NXT MENU MAKE SELECTION _ DIGITIZE, INC. 700181-E 4 - 10...
Page 24 5=cng SET LEVELS 6=IN/OUT ENTER_ For levels 1, 2, and 3, enter the number of the level, then press the RETURN (or ENTER) key. The factory preset passwords for each level are as follows: 4 - 11 DIGITIZE, INC. 700181-E...
Page 25 4.3.9. EXIT DATA ENTRY MODE When data entry mode is complete, press F1 to exit. You may also exit the field program mode at any time by unplugging the external keyboard jack from the SYSTEM 3000. DIGITIZE, INC. 700181-E 4 - 12...
Page 26 M A N U A L 4.3.10. TOTAL PAGES INSTALLED, USED, AND DELETED Each time the SYSTEM 3000 is powered up or the RESTART button is pressed, the printer will print out the total number of pages installed, used, and deleted in the Field Programmable mode.
Page 27 As described in the revolving message, pressing the FUNC button will select the screen shown and move the cursor to the first selection of that menu. Refer to Appendix B, System 3000 Set Menus Step-by-Step Procedures for detailed directions for each menu.
Page 28 ENTER PASSWORD FOR THIS LEVEL ENTER _________ << Enter proper p The revolving message will now read: << Enter proper password for this level of security. Press SET after entering PASSWORD. Press CLEAR to EXIT. 4 - 15 DIGITIZE, INC. 700181-E...
Page 29 Enter “3” to revert to the original factory settings for all tones. 4.5.4. THERMAL PRINTER INTENSITY Enter ‘‘4,’’ press the SET button and the display will read: THERMAL PRINTER INTENSITY << Press FUNC to DIGITIZE, INC. 700181-E 4 - 16...
Page 30: Serial Port Communications
After selecting the desired port(s), use the FUNC button to move to the next field, then use the ↑↓ keys to step through the available settings. Press the CLEAR button to exit this menu. 4 - 17 DIGITIZE, INC. 700181-E...
Page 31: Multiplex Set-Up
XX. Some SYSTEM 3000 units require that you restart the SYSTEM 3000 to activate new DGM’s ADDed or REMOVED. By pressing FUNC to place the cursor on line 3 of the display, you may enter information for the “User Text” area. With the cursor on line 3 insert the external keyboard and type your message.
Page 32: Line Type Sel
NETWORK SETUP Select ID number << Press FUNC to Press the FUNC button to select this menu. If your system does not have the NETWORK option installed, the words (NEEDS OPTION) will be displayed. 4 - 19 DIGITIZE, INC. 700181-E...
Page 33: Changing Level Descriptors
SLAVE unit on the network. Only one SYSTEM 3000 can be set up as the master. All other SYSTEM 3000 can be set up as SLAVES. There can be one master and up to 99 slaves in any network. The “XXXXXX” on the display will either say MASTER or SLAVE depending on what the SYSTEM 3000 is currently set for.
Page 34: In/Out Service Password
FUNC twice. The underline should now be at the first character of YES or NO. Use the ↑↓ keys on the System 3000 keypad to toggle the word from YES to NO or NO to YES. The IN/OUT SERVICE password as shipped from the factory is “1234”. The user has the ability to change this password.
Page 35: Speed Translator For Solid State Telegraphic Transmitter
FROM time frame. X rounds (enter “-”) indicate for every incoming round, translate an outgoing round. Zero indicates no speed translation for the time frame shown. One through 4 indicates how many rounds to translate. DIGITIZE, INC. 700181-E 4 - 22...
Page 36: Radio Box Set-Up
<< Use ↑↓ keys to change value. Use FUNC to move to next field. Press CLEAR to END. All changes are accepted when entered. Use the ↑↓ keys to select YES or NO. Press the CLEAR button to EXIT the menu. 4 - 23 DIGITIZE, INC. 700181-E...
Page 37: Negative Box/Dialer
The NEGATIVE BOX/DIALER option allows your SYSTEM 3000 to process dialers that report in daily with a test message. You instruct the SYSTEM 3000 as to what dialer will report in daily, as well as what zone number represents the test message. The NEGATIVE DIALER option allows you to process 1,635 boxes and/or dialers each day.
Page 38: Isodressable Set Up Mode
Use the System 3000 has two output lines. The 1- part of the ISO number must match the line number you have installed the ISO unit on. ISO address 001 can be installed on line 1 or line 2. On line one the correct selection would be 1-001.
Page 39: Addressable Line Printers
Use the FUNC button to move the cursor to the various user changeable fields. Use the keys or the numeric keypad on the System 3000 to make changes. All changes are made as they are entered and will be in effect if the DAY mode is currently active. Press the CLEAR button to EXIT the menu.
Page 40: Addressable Printer Set Up Mode
Printer(s). In the event that the Data line fails, or the printer is powered down, a trouble message will be displayed on the System 3000. The trouble sound will alert the operator (at the System 3000 console) to this condition. The operator must acknowledge the trouble condition.
Page 41: Operation
This button, when pressed and held, activates all front panel status indicators. Pressing this button twice in quick succession will test the buzzer and electronic beeper. After initial setup of the unit, this check should be made at least once a week. DIGITIZE, INC. 700181-E 5 - 1...
Page 42: Box Look Up
1. In the event that no “User Text” message exists for a zone, a “canned” message will be displayed. The “ZONE LOOK UP” button may also be used to view the subsequent pages of “User Text” for any zone currently displayed. 5 - 2 DIGITIZE, INC. 700181-E...
Page 43: Numeric Keys
It is used to turn on a PPD-64T output or a relay in a DGM panel. The ON/ ↑ button will auto repeat if held for more than one second. This button may also be used for custom program applications. DIGITIZE, INC. 700181-E 5 - 3...
Page 44: Off/ ↓ Button
As long as the ACK button is pressed and held, the display will not change. This will give the operator as much time as necessary to view the current screen. However, if the button is held in too long (approx. 60 sec.), the SYSTEM 3000 will override the button and display any new conditions if they exist.
Page 45: Xmit Button
1 through 9 will give 1 through 9 rounds respectively. Once satisfied with the box number and the number of rounds, press the XMIT SLOW button to start box transmission via the SST fast relay. To abort the Transmission, press the STOP button. DIGITIZE, INC. 700181-E 5 - 5...
Page 46 M A N U A L 5.1.18. SHIFT KEY ( Several keys on the SYSTEM 3000 front panel have two functions. The SHIFT key is used to activate the second function. The 1 - 6 keys are also used to enter hexadecimal characters.
Page 47 Located just inside the printer door, on the right hand side, this button will restart the unit if the program should stop for any reason. If the SYSTEM 3000 should stop running, a built- in watchdog timer will turn on a Trouble Buzzer in 4 seconds. Try to restart the system by...
Page 48 The SYSTEM 3000 will prompt you for the desired priority level. By selecting the desired priority level, you tell the SYSTEM 3000 what alarm to process first in the event of multiple alarms. You also instruct the SYSTEM 3000 what sound you would like when that priority alarm is received.
Page 49 When an alarm is actuated, the user programmed priority level will determine the response of the SYSTEM 3000. Of course if only one alarm is active, it will be displayed and processed regardless of the priority level. If this alarm is not acknowledged, and a higher priority alarm comes in, the higher priority alarm will replace the lower priority alarm on the screen.
Page 50 DIALER LOOKUP, and then IN/OUT SERVICE momentarily. The printer will print the identification of the dialer, including the date and time when it was put back into service. 5 - 10 DIGITIZE, INC. 700181-E...
Page 51 Secure conditions will not be lost when paper tape is changed. However, only the next new condition to occur will be displayed on the screen until the switch is flipped to the ON position. At this time all new conditions will be reported. DIGITIZE, INC. 700181-E 5 - 11...
Page 52 5.3.11. SERIAL OUTPUT FROM THE SYSTEM 3000 SYSTEM Data on the alarms into the SYSTEM 3000 SYSTEM can be sent out over a 2-wire serial data link. One such use is Computer Aided Dispatch. The output is based on standard data output format with a selection of preset BAUD rates from 150 to 9600.
Page 53 EVENT LOG, SELECTABLE 6.1. OVERVIEW The event log option allows the SYSTEM 3000 to save 2047 events. An event is any change in zone or box status. Changes includes ALARMS, TROUBLES and SECURES. Events also include ACKNOWLEDGES as well as system errors.
Page 54 Note that the word SET appears to the right of the third line indicating that pressing a number will result in saving the filter setting at the location selected. Of course the previous filter setting saved will be overwritten. 6 - 2 DIGITIZE, INC. 700181-E...
Page 55 MON DEC 31 1994 22:09:32 ZONE ALARM ——— BURGLARY MON DEC 31 1994 16:27:11 ZONE ALARM ——— INDUST MON DEC 31 1994 11:21:19 ZONE ALARM ——— FA SUPR MON DEC 31 1994 08:45:59 ZONE ALARM ——— OTHER DIGITIZE, INC. 700181-E 6 - 3...
Page 56 To print an event log for a specific zone number, enter the zone number. Now press ZONE LOOKUP followed by LOG. Adjust date range and filter setting based on your requirements prior to entering zone number. 6 - 4 DIGITIZE, INC. 700181-E...
Page 57 M A N U A L 6.1.8. EVENT LOG REQUIREMENTS The event log is an add-on option to your SYSTEM 3000. In order to add the event log you must also install the optional REMOTE LINE PRINTER. The event log printout uses the same printer as the RLP-1 option.The event log option includes software on the CPU card as well...
Page 58 SYSTEM 3000. The DDI-8 is a plug-in PC card that is added to the SYSTEM 3000 card rack. The dialer option must be installed in the SYSTEM 3000 before any DDI-8 cards can be installed in the unit. The SYSTEM 3000 has up to eight card slots available for various options, including the DDI-8.
Page 59 DDI-8 signals. An Alarm or Trouble condition must be fol- lowed by a restoral signal. The SYSTEM 3000 will automatically remove the Alarm or Trouble condition from its rotational display when the restoral signal is Acknowledged by the user.
Page 60 123-8 TO 123-08 1=YES 2=NO ENTR This message appears only if the System 3000 finds data in the one digit (123-8) format. When the operator selects ‘1’, the System 3000 will automatically convert the information to the two digit (123-08) format.
Page 61 NOT duplicate card numbers in any SYSTEM 3000. Switch number 6 is used to select the DDI-7/8 mode. On SYSTEM 3000 units with Program S600 Standard 6 software version or higher, the factory default setting for SW6 is ON. (For units with other software versions or CPU V refer to Section 7.4 Retrofits.)
Page 62 SYSTEM 3000 INSTALLATION AND OPERATION MANUAL 7.3.1. PASSWORD Press the SET button and the display will read: ENTER PASSWORD FOR THIS LEVEL ENTER _ _ _ _ _ _ _ _ _ <<Enter proper password The revolving message will read: <<Enter proper password for this level of security.
Page 63 SYSTEM 3000 INSTALLATION AND OPERATION MANUAL 7.3.2.1. CONFIGURATION TABLES The System 3000 is shipped with Configurations 1 and 2 set at factory default settings. To change any default settings and/or to set up other Configuration tables, follow the instruc- tions outlined in this section. Tables 7.3.2 a - d list the factory default settings for Configu- rations 1 and 2.
Page 64 SYSTEM 3000 INSTALLATION AND OPERATION MANUAL Table 7.3.2.(a)- Configuration # 1 Table 7.3.2.(b) - Configuration #1 Zone Factory Default Settings English Equivalent Factory Default Settings ZONE PROCESS DAILY TEST SECURE ALL OPENING CLOSING AC FAILURE AC NOW OK LINE 1 FAULT...
Page 65 Configuration Table and thoroughly check for any code repetitions. Please note: During initialization the SYSTEM 3000 will print an error message if it discovers duplicate zones. Refer to Section 7.6.2. Power Up Error Messages. When all zone data is entered, press CLEAR to return to the Set Up Mode screen. At this time the English Equivalents should be set.
Page 66 SYSTEM 3000 INSTALLATION AND OPERATION MANUAL If a mistake is made while entering data, use the - key to back up and reenter the data. If you wish to make the field blank, press the shift button and then the F button (No. 6 on keypad) and then repeat the procedure to enter the next ‘F’.
Page 67 <<Use ↓↑ to change value. CONFIG sets the table that will be used to decode the CUSTOMER number you select to ADD. The CONFIG table tells The SYSTEM 3000 what to convert the incom- ing ZONE to. Use FUNC to move to the next field.
Page 68 The revolving message will read: << Use ↑↓ keys to select DDI-8 to set up. All changes are accepted when entered. YOU MUST RESTART THE SYSTEM 3000 TO ACTIVATE CHANGES. Use FUNC to move to next field. Press CLEAR to end.
Page 69 DDI-8 into the unit. The DDI-8 will still function exactly as a DDI-7. Any new protocols will be ignored. When retrofitting a SYSTEM 3000 with a CPUVI to accept a DDI-8 in place of the DDI-7, all customer numbers and data must be reentered. Upon installation of the DDI-8, any conversion tables existing in the SYSTEM 3000 prior to the retrofit will be lost.
Page 70 The P7 pins are connected to phone jacks on the outside of the System 3000 unit box. Units will have 3 or 4 outside jacks. Be sure to connect the DDI-8 card to the correct phone jack.
Page 71 CAUTION ! If you are using a network with several DDI-8 cards it is imperative that you do NOT duplicate card numbers in any SYSTEM 3000 in the network. Table 7.4.2 (a) Switch Settings for DDI-7 Format Switch Number When ‘ON’...
Page 72 SYSTEM 3000. For example, Joe's Jewelry Store is account 246. An alarm is generated at the store, the dialer sends a message to the SYSTEM 3000, but the SYSTEM 3000 utilizes a different checksum calculation method. As a result, the SYSTEM 3000 reads the message as 2462-6 instead of 246-26 and the correct account and zone are not identified.
Page 73 The DDI-8 converts any single digit alarm message to a two digit message. When alarm code 123-X is sent to the dialer, the SYSTEM 3000 processes a code 123-XX (where xx is zone 01 - zone 99).
Page 74 Test LED will go out and the dialer will stop answering the phone line. Meanwhile, the DDI-8 in the backup SYSTEM 3000 will be enabled, the GP Test LED will go out, and the dialer will be ready to accept phone calls.
Page 75 SYSTEM 3000 INSTALLATION AND OPERATION MANUAL Table 7.5 -Diagnostic Self Test for DDI-8 Test Description Error Code Number EPROM U6 Checksum 1 - Checksum failure RAM U7 test 1 - Read/Write error 2 - Address or data interference U4 Timer test 1 - No response error Ref.: CPU clock (11.059 MHz)
Page 76 The DDI-8 will not operate properly if there are dialer set-up or program errors. Incorrect SW6 Position If the SYSTEM 3000 has a CPUVI, SW6 must be in the ON position. If SW6 is set incorrectly, the following message will print: DDI-8...
Page 77 SYSTEM 3000 INSTALLATION AND OPERATION MANUAL Duplicate Configuration Data After the DDI-8 is installed and the SYSTEM 3000 is restarted, the SYSTEM 3000 will check the DDI-8 configuration tables for duplicate codes. During initialization the following message will appear on the screen: Testing DDI-7/8 Config.
Page 78 SYSTEM 3000 INSTALLATION AND OPERATION MANUAL Table 7.6.3 - DDI-8 System Error Messages (CPUVI) ERROR MESSAGE EXPLANATION Host Spoke Out Turn Host RXD Bad Command No Alarm in Que Req Indicates program bug in SYSTEM 3000 operating system Unknown Send Phone...
Page 79 FCC. CAUTION ! : Changes or modifications not expressly approved by Digitize, Inc. could void the user's authority to operate the equipment. NOTE: This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: 1.
Page 80 SYSTEM 3000 INSTALLATION AND OPERATION MANUAL Zone Settings Worksheet Configuration # ___________ ZONE ALM TRB ZONE ALM TRB ZONE ALM TRB DIGITIZE, INC. 700181-E 7 - 23...
Page 81 SYSTEM 3000 INSTALLATION AND OPERATION MANUAL English Equivalent Worksheet Configuration # _______________ PROCESS F O R DAILY TEST SECURE ALL OPENING CLOSING AC FAILURE AC NOW OK PHONE LINE 1? LINE 1 OK GROUND FAULT GND NOW OK BATTERY FAIL...
Page 82 The Auxiliary CRT (AUX CRT) acts as an overall system status indicator. Information displayed at the SYSTEM 3000 is also displayed on a CRT. The AUX CRT will display various conditions with the most recent activity always on the top line. Older events will be displayed on subsequent lines.
Page 83 SYSTEM 3000 INSTALLATION AND OPERATION MANUAL SECTION 9 PDD-1840 PROGRAMMABLE CRT 9.1. OVERVIEW The PDD-1840 (Programmable Dispatchers Display) provides all the features of the AUX CRT. In addition, the PDD-1840 allows the user to enter a full screen of text (23 lines by 80 characters) for every zone or box in the system.
Page 84 PDD 1840 CRT is now OK. No indication will be given at the PDD 1840 CRT that the terminal is in the NO SCROLL mode of operation. Once the SYSTEM 3000 advises that the PDD 1840 CRT is now OK, it will re-send the current status to the PDD 1840 CRT.
Page 85 SYSTEM 3000 INSTALLATION AND OPERATION MANUAL MAIN MENU 1 = ADD 2 = CHANGE 3 = DELETE 4 = CHANGE PASSWORD 5 = DISPLAY DIRECTORY 6 = PRINT DIRECTORY 7 = COPY ENTER SELECTION _ To ADD, enter selection 1. The screen will now display:...
Page 86 DATA line fails, or the PDD-1840 is powered down, a trouble message will be displayed on the SYSTEM 3000. The trouble sound will alert the operator (at the SYSTEM 3000) to this new condition. The operator must acknowledge the trouble condition. Only one PDD-1840 can be supervised.
Page 87 PDD-1840 CRT and powering it back up, plug the PDD-1840 CRT into the same AC power source as the SYSTEM 3000. If the power failure was long enough for the SYSTEM 3000 to detect it, than the SYSTEM 3000 will send the PDD-1840 CRT the current status when it senses that the AC power has been restored.
Page 88 Press 1 to reclaim the memory, press 0 if you do not wish to have the memory reclaimed. If you do not make a selection, the SYSTEM 3000 will select “NO” for you after 1 minute has elapsed. This will force the SYSTEM 3000 to resume normal operation. The SYSTEM 3000 will require several seconds to reclaim 8K of memory.
Page 89 The ABM computer interface option allows full supervision betweeen the computer and the SYSTEM 3000. With this option the host computer can send serial transmissions to the SYSTEM 3000, as well as receive transmissions. See Appendix C for ABM protocols.
Page 90 SYSTEM 3000 INSTALLATION AND OPERATION MANUAL 10.4.3. TYPE NUMBER The TYPE NUMBER is the appropriate Zone, Telegraph, Multiplex, Network or Addressable device that just went into ALARM, TROUBLE, or SECURE. The TYPE NUMBER will always be a nine digit number with leading zero’s sent as blanks. There may be any combination of “dashes”...
Page 91 (digital dialers, EOL, RPI, etc...) send alarm information (ALARM, TROUBLE, SECURE) to the MASTER. The information is then shared by all the SLAVE SYSTEM 3000 units. The user can elect to filter out unwanted alarm responses at specific slaves. In addition to sharing alarm information, all SLAVES can be synchronized to the master unit time clock.
Page 92 SYSTEM 3000 INSTALLATION AND OPERATION MANUAL The SYSTEM 3000 units can also be instructed to send or receive an ACK or CLR. Continue to scroll through the SET OPTIONS menus to program ACK or CLR conditions. Certain Slave units may be programmed to receive an alarm for the purpose of information only. No action is expected from the party in receipt of the alarm.
Page 93 When the option is ordered with the original purchase of your SYSTEM 3000 it will be installed and set up at the factory. In the field, the installer must connect a cable pair between the RS-232 configurator card of all systems that have the Cross ACK option.
Page 94 You must press F1 while fourth line of display reads “press F1 now !!!”. If you missed the window, simply press F1 to get out of the programmable mode, then press F9 followed by F1. As you enter data, all SYSTEM 3000 screens will follow the screen on which you are working.. 12 - 2...
Page 95 The Telegraph Coded Input, TCI, may be added with any other option into the SYSTEM 3000. The TCI allows the SYSTEM 3000 to receive an alarm via a coded telegraph alarm line. The TCI option allows for 20 circuits of telegraph code per alarm monitor card inside of the SYSTEM 3000.
Page 96 The Input Panel Assembly, 3 1/2" X 19" rack mountable assembly with sheet metal, allows for up to 20 circuits of telegraph to be connected into the SYSTEM 3000. There are two screw terminals for each input circuit. The Input Panel Assembly also holds the input cards themselves (see different inputs available).
Page 97 3000 for processing. The code will be processed and printed out on a round-by-round basis. The screen on the SYSTEM 3000 will display the incoming circuit number, as well as show the box decoding. It will also display that the alarm is an incoming telegraphic alarm. The audible alert will be activated;...
Page 98 SYSTEM 3000 INSTALLATION AND OPERATION MANUAL 13.1.4. CABLE SUPERVISION When one or more Alarm Monitor Cards are installed and the ribbon cable (P/N 450145) is removed between the Alarm Monitor Card and the TCI rear panel ,the following alarm message...
Page 99 Digitize retrofit program diskette. Refer to Section 21, Uploading New Software Versions for instructions. 13.1.9. INITIAL SET UP For initial set up of the SYSTEM 3000, follow the initial set-up procedures in Section 4, User Text. DIGITIZE, INC. 700181-E...
Page 100 1. Activate a telegraph box so that it sends an alarm to the SYSTEM 3000. 2. Monitor the SYSTEM 3000, being sure that it decodes the telegraphic box. As the box is coding in, the screen will display the following:...
Page 101 The Direct Wire Input is composed of one or more 512 zone controllers, depending on the total number of input lines to be monitored. The SYSTEM 3000 is supplied with one (1) 512 zone controller. The different types of interfaces are: End Of Line (EOL) resistor, supervised;...
Page 102 7000 Ohms of line resistance per line. Power for all lines is provided by the SYSTEM 3000. These inputs must be connected to dry, (no potential) telco or private, dedicated, metallic lines. A 15K ohm resistor is supplied for each of the 32 inputs for connection across the normally open alarm sensor at the time of installation.
Page 103 MULTIPLEX 15.1. OVERVIEW The SYSTEM 3000 can support a maximum of 16,384 multiplex and 2048 direct wire zones in one system. The maximum number of Data Gathering Modules (DGM’s) for one system is 500. The SYSTEM 3000 is capable of supporting a communication channel with up to 99 Data Gathering Modules (DGM’s).
Page 104 It may be used to monitor Dry Contact points of conventional fire panels and addressable Fire Alarm Control Panels (FACP), and to translate the serial print data to the SYSTEM 3000 to the Multiplex protocol. 15.1.6. LIQUID CRYSTAL DISPLAY AND KEYPAD Installation &...
Page 105 Up to 126 addressable devices may be monitored on each pair of wires. All power for monitoring is supplied by the SYSTEM 3000. Both data (send and receive) as well as power is supplied via a single cable pair. The power to the line is isolated from the SYSTEM 3000 by a DC to DC converter.
Page 106 SYSTEM 3000 INSTALLATION AND OPERATION MANUAL 16 - 2 DIGITIZE, INC. 700181-E...
Page 107 17.1. OVERVIEW The Code to Point output for the SYSTEM 3000 allows the unit to receive a telegraphic code from the Telegraph Coded Input ( TCI) and then turn on one or more points on the 64 T output card.
Page 108 The Code to Point option needs no operator intervention once the codes have been entered into the unit. When the code is received, the SYSTEM 3000 will turn on the output point after the first round of code. The point will go OFF when the code has been cleared from the screen. See Section 13.1.12.
Page 109 SYSTEM 3000 INSTALLATION AND OPERATION MANUAL POINT HAS BOX # ENTER BOX TO ADD ENTER_________ Enter the code that is to activate the point selected and press RETURN (or ENTER). On the thermal printer the system will print the point number, the fact that it was added, and the box code number that will activate the point.
Page 110 To output this, press “4”, “5” and FUNC. 17.1.6.2. 46 FUNCTION To have the SYSTEM 3000 print out the full point output as programmed press ‘‘4’’, “6” and FUNC. The unit will respond with the point number and the box code that will activate the point.
Page 111 You place the ZONE number for the door in one of the eight registers. Then, you place that register in the DAY mode. When the door is opened, the SYSTEM 3000 will not process the ALARM. However, the open door is still an event internal to the SYSTEM 3000. In addition to the open door in the DAY mode, you can process 499 more events.
Page 112 SYSTEM 3000 INSTALLATION AND OPERATION MANUAL 18.2.1. ENTERING DAY/NIGHT MODE INFORMATION ZONES, DIALERS, and BOXES, for DAY mode access, are entered into the SYSTEM 3000 via the SET button. To ADD or DELETE a zone, dialer or box do the following: Enter “1”...
Page 113 SYSTEM 3000 internal stack. The SYSTEM 3000 will process up to 500 NON- SECURE items at any one time. At the end of the SYSTEM 3000 display rotation, a screen indicates that you have reached the end and indicates how many items are active (displayed).
Page 114 Items in the DAY mode are not displayed. These items however will be printed on the SYSTEM 3000 printer when the STATUS button is pressed. In addition to the NON- SECURE ZONES, DIALERS, and BOXES the thermal printer will also print sensors in the DAY mode that are currently not secure.
Page 115 19.1. TROUBLE-ALARM-SECURE (TAS) This program alters the way direct wire zones are monitored by the SYSTEM 3000 as shown in the table below. During normal operation of the direct wire EOL input card: a short circuit indicates ALARM, an open circuit indicates TROUBLE, and monitoring the end of line resistor indicates a SECURE line.
Page 116 Requires that the Remote Line Printer be ordered. This program alters the way all alarm input signals are reported by the SYSTEM 3000 to the Remote Line Printer, (no “secures” or ”acknowledges” will be printed). All direct wire and box with priority level 1 messages will be printed on the line printer, along with any associated ‘‘User Text.’’...
Page 117 (1/3 second), for quick decoding of boxes. When each round of the box is decoded, the SYSTEM 3000 can retransmit to the Air Horn or Bell Circuit, or other devices at a different speed. This shortens the response time, and frees the 100 mA loops faster for response to another box.
Page 118 20.1.8. SST-4 SOLID STATE ZONE CODER The Solid State Zone Coder provides the SYSTEM 3000 with the ability to output a pulse coded telegraphic alarm upon receipt of a zone ALARM condition. The SST-4 is completely Field Programmable for 1 through 9 digits, as well as the number of rounds for each.
Page 119 UPLOADING NEW SOFTWARE VERSIONS 21.1 OVERVIEW The CPU VI provides the SYSTEM 3000 with a RS-232 serial port to be used to upload new program versions to the unit. The serial port is connected to the CPU VI by a 9-conductor plug- in ribbon cable.
Page 120 Attempting to establish link on COM1 Choose another COM port Quit connection attempt Press reset switch on the SYSTEM 3000 now to establish the link-up. COM1 now connected Configure COM port and sync with SYSTEM 3000 If you need to select another COM port, Press ‘C’, the PC screen will display:...
Page 121 Quit this program and return to MSDOS prompt 21.2.1. SAVE COMMAND The Save command will save the program that currently exists on the SYSTEM 3000. It is recommended that you save the current program before uploading the new revision. If you do not save the current version it will be lost when it is overwritten by the new program.
Page 122 Saving to SaveXXX.SAV Get Program from SYSTEM 3000 and save to disk. 21.2.2. UPLOAD COMMAND When the Save is completed, Press U to upload the new program to the SYSTEM 3000. The PC screen will now display: SYSTEM 3000 UTILITIES PACKAGE...
Page 123 Programming FLASH with New Program NOTE: Once the ‘Erasing Flash 1’ message appears on the screen, the upload cannot be aborted. If upload process is aborted at this point the SYSTEM 3000 will be left without a program installed. When the upload is complete, the PC will sound a prompt and the following blinking message...
Page 124 APPENDIX A USER TEXT STEP-BY-STEP PROCEDURES APPENDIX A - 1 DIGITIZE, INC. 700181-E...
Page 125 DIGITIZE, INC. 700181-E APPENDIX A - 2...
Page 126 FIRE type = 1 ENTER _________ ENTER _________ ENTER 12 (RET) ENTER 12 (RET) (type desired changes to (type desired) user message) user message) ADD ZONE CHANGE ZONE PRESS F10 PRESS F10 (CONTINUE) APPENDIX A - 3 DIGITIZE, INC. 700181-E...
Page 127 = 3 ENTER _________ ENTER _________ ENTER 12 (RET) ENTER 12 (RET) (type desired (type desired) changes to user message) user message) CHANGE DIALER 12 ADD DIALER PRESS F10 PRESS F10 (CONTINUE) DIGITIZE, INC. 700181-E APPENDIX A - 4...
Page 128 = 3 ENTER _________ ENTER _________ ENTER 12 (RET) ENTER 12 (RET) (type desired (type desired) changes to user message) user message) CHANGE BOX 12 ADD BOX PRESS F10 PRESS F10 (CONTINUE) APPENDIX A - 5 DIGITIZE, INC. 700181-E...
Page 129 ENTER ZONE # (RET) 4 ROUNDS SLOW ZONE 123 BOX 345 ADD BOX Y or N _ ENTER Y 4 ROUNDS SLOW NEXT ZN 124 RET for ZN OK or REENTR _________ (CONTINUE) DIGITIZE, INC. 700181-E APPENDIX A - 6...
Page 130 ENTER DIGI (RET) PRESS 1 (RET) LEVEL 1 from 1 (1 - 255) ENTER _____ << Enter desired FIELD PROG ESC = PREVIOUS F1 = GET OUT llllll PRESS 2 (RET) MAKE SELECTION _ APPENDIX A - 7 DIGITIZE, INC. 700181-E...
Page 131 DIGITIZE, INC. 700181-E APPENDIX A - 8...
Page 132 APPENDIX B SYSTEM 3000 SET MENUS STEP-BY-STEP PROCEDURES DIGITIZE, INC. 700181-E APPENDIX B - 1...
Page 133 APPENDIX B - 2 DIGITIZE, INC. 700181-E...
Page 134 To abort 90-second re-entry, leave SET MODE, press the "-" key, and then press CLEAR. The display will indicate "END PASSWORD." 5. 0P indicates PRESS PRINT to obtain a listing on thermal printer of options already set. 6. << indicates the scrolling message, which provides directions to users. DIGITIZE, INC. 700181-E APPENDIX B - 3...
Page 135 << Use ↑↓ keys to << Use ↑↓ keys to PRESS ↑ PRESS SET TO SAVE TIME AND EXIT SET MODE MODE = PM TIME 4:28:38P << Use ↑↓ keys to PRESS ↑ APPENDIX B - 4 DIGITIZE, INC. 700181-E...
Page 136 PRESS FUNC TODAY IS FRI TODAY IS FRI FEB 27, 1991 JAN 24, 1990 << Use ↑↓ keys to << Use↑↓ keys to PRESS SET TO SAVE NEW DATE AND EXIT SET MODE DIGITIZE, INC. 700181-E APPENDIX B - 5...
Page 137 PRESS ↑ PRESS ↑ PRESS ↑ BUZZ TONE=B22 SECUR TONE=180 VF=2 ENV=1 VF=4 VR=4 TIME ON=28 AMT OFF=88 ON=20 << Use ↑↓ keys to ↑↓ << Use keys to PRESS ↑ PRESS ↑ APPENDIX B - 6 DIGITIZE, INC. 700181-E...
Page 138 7. CLICK is keypad click, BEEP & BUZZ are system responses to keypad entries. These sounds are front panel only. 8. VF = volume front, VR = volume rear. In addition to master volume adjustment inside System 3000N, volume is user adjustable in 15 steps. DIGITIZE, INC. 700181-E APPENDIX B - 7...
Page 139 << Use ↑↓ keys to << Use ↑↓ keys to PRESS ↓ PRESS ↑ THERMAL PRINTER THERMAL PRINTER INTENSITY INTENSITY MAX INTENSITY MIN INTENSITY << Use ↑↓ keys to << Use ↑↓ keys to APPENDIX B - 8 DIGITIZE, INC. 700181-E...
Page 140 5. SYSTEM 3000N is shipped with four serial ports installed. User must add configurator cards to adapt output to RS-232, RS- 422, or Current Loop. Serial ports are not operational unless a serial option is ordered. DIGITIZE, INC. 700181-E APPENDIX B - 9...
Page 141 2. User text area = User can enter any 16 alpha-numerical character to describe the location of the DGM panel. Press FUNC to move curser to start of third line, insert External Keyboard and type desired 16 character message. 3. oP =Press PRINT for DGM list. APPENDIX B - 10 DIGITIZE, INC. 700181-E...
Page 142 PRESS SET ENTER 2 TX BOX RNDS = YES 0=NO 1=YES ENTR_ PRESS CLEAR PRESS CLEAR ↑=PREV SYNC TIME/DATE lllllllllllllll FROM MASTER 1=YES 2=NO PRESS CLEAR ANYTIME ENTER _ llllllll ENTER 1 or 2 DIGITIZE, INC. 700181-E APPENDIX B - 11...
Page 143 NO << Use ↑↓ keys to << Use ↑↓ keys to ↑ PRESS LEV 5 "INDUST " IN / OUT service use password? NO << Use ↑↓ keys to PRESS ↑ APPENDIX B - 12 DIGITIZE, INC. 700181-E...
Page 144 CHANGE TO __ PRESS FUNC PRESS FUNC SST SLOW SPEED SST FAST SPEED PREFIX = AS IS PREFIX = AS IS 0=AS IS 1=COMBIN 0=AS IS 1=COMBIN << Enter number o << Enter number o DIGITIZE, INC. 700181-E APPENDIX B - 13...
Page 145 LIMIT TO X RNDS FROM 23:00-23:59 << Enter number o Notes: Allows user to set how many rounds to retransmit based on time of day. Allows user to set ‘transmit after what round’. APPENDIX B - 14 DIGITIZE, INC. 700181-E...
Page 146 << Enter proper p << Enter proper p << Press FUNC to PRESS CLEAR AT ANY TIME TO ABORT RADIO BOX (1221) Decode boxes in NEG BX only= NO << Use ↑↓ keys to DIGITIZE, INC. 700181-E APPENDIX B - 15...
Page 147 ENTER 1 2 3 - (SHIFT) 5 9 NEGATIVE DIALER NEGATIVE DIALER ADD TEST DIALER DEL TEST DIALER ENTER 123-E9___ ENTER 123-E9___ << Enter number, << Enter number o PRESS SET PRESS FUNC APPENDIX B - 16 DIGITIZE, INC. 700181-E...
Page 148 << Enter proper p PRESS CLEAR AT ANY TIME TO ABORT ISODRESSABLE™ ISO # 1-001 0P TYPE= NONE PRESS FUNC ISODRESSABLE™ ISO # 1-001 0P TYPE= NONE ↑ PRESS ISODRESSABLE™ ISO # 1-001 0P TYPE= ISO-1L DIGITIZE, INC. 700181-E APPENDIX B - 17...
Page 149 UP ARROW UP ARROW GROUP #1 GROUP #1 GROUP #1 0P ZN _________ 0P ZN _________ 0P ZN _________ << Use ↑↓ keys to << Use ↑↓ keys to << Use ↑↓ keys to APPENDIX B - 18 DIGITIZE, INC. 700181-E...
Page 150 ↑↓ <<Use keys to AFTER ENTERING ALL VALUES FOR PRINTER #1, PRESS FUNC TO RETURN TO FIRST PRINTER SCREEN, AND ENTER VALUES FOR PRINTER #2, ETC. PRESS CLEAR AT ANY TIME TO ABORT. DIGITIZE, INC. 700181-E APPENDIX B - 19...
Page 151 CONFIG # 1 ZONE|ALM|TRB|SEC PROCESS | FOR 01 | 01 | -- | 21 DAILY TEST | -- ↑↓ <<Use keys to ↑↓ <<Use keys to PRESS CLEAR AT ANY TIME TO ABORT APPENDIX B - 20 DIGITIZE, INC. 700181-E...
Page 152 APPENDIX C ABM COMPUTER INTERFACE OPTION SYSTEM 3000 TO ABM DCC PROTOCOL DIGITIZE, INC. 700181- E APPENDIX C - 1...
Page 153 Other signals, required based on application usage: • Type 1 Status Change Transmission Used when connecting SYSTEM 3000 to FACP via Mux Pad, Digital Dialers, Telegraph boxes with precode only. DGM-ISO panels relay control (via DGM). • History Status Change Tranmission TYPE 1 Used if your application has DGM panels equipped with event storage capability.
Page 154 Data Transmission Rate and Format Data is sent to and from the SYSTEM 3000 at 1200 BAUD, 8 Bits, No Parity, 1 Stop. This is the default rate. The SYSTEM 3000 does allow the user field programmability, via keypad access, to change any of these settings.
Page 155 Time of Day Update Signal (works in either direction) The time signal is sent any time the user updates the SYSTEM 3000 date or time. The signal is also sent once per day at 08:30:00 hours. The host computer may use this to update its clock, or just ignore it.
Page 156 Box (Telegraph boxes with precode only) Relay output (DGM relay control only) Network errors (Not used in TYPE 1) SYSTEM 3000 System error (Not used in TYPE 1) Reserved for future use Telegraph open circuit (Not used in TYPE 1)
Page 157 Opening Closing Acknowledge Digitize DGM panel error messages may appear in place of the “ZZZZ” string shown above. The DGM panel initiating this trouble condition will appear in place of the “XXXX” string shown above. For example: First character to be sent is a Line Feed...
Page 158 History Status Change Transmission TYPE 1 Digitize DGM panels can be equipped with an optional event storage mode. This allows the DGM to collect zone status changes while the data link is declared to be down. If you are monitoring a SYSTEM 3000 with such an option, you need to include these signals.
Page 159 = Error Sub Type. Error sub type can be 0 thru F. xx = Network Node Number. This can be 00 to 99 and represents the SYSTEM 3000 network slave number 01 to 99 or the master unit number 00.
Page 160 Error Sub Type ‘0’ SYSTEM 3000 error messages: The following is a list of SYSTEM 3000 error messages. Be sure to add these error codes to your computer data base to allow the user to “see” SYSTEM 3000 errors. If you are monitoring signals from a configuration using multiple SYSTEM 3000 units connected via a network, the information sent to your computer will also contain a SYSTEM 3000 origination number (slave number).
Page 161 A ‘C’ as the first character after the Line Feed is indicates a Telegraph signal is requested of the SYSTEM 3000. The SYSTEM 3000 must be equipped with an SST-3000 option for this function to operate properly. The signal is as follows:...
Page 162 The following 26-Byte signal is sent to the host computer any time a change of state is detected by the SYSTEM 3000 for a zone access, (i.e. incoming opening or closing for a zone with a keypad.) First character to be sent is a Line Feed...
Page 163 DGM was reset (signal sent to the DGM by the SYSTEM 3000 any time the data link was down then back up.) The “K”...
Page 164 TYPE 5 (Zone Bypass) Status Change Transmission The ABM computer system shall be able to place any zone in bypass/armed mode via the Digitize SYSTEM 3000 equipment. Two conditions can be sent: Zone in bypass and zone armed. The format...
Page 165 The following is a request for the DGM to upload PIN number information via the SYSTEM 3000 to the computer: First character to be sent is a Line Feed UbXXXX-YYY-Z Ub indicates request for upload PIN numbers XXXX indicates DGM number (001 through 500) YYY indicates starting PIN number (001, 033, 065, ...
Page 166 (Acknowledgment of an alarm condition by host computer) Last character to be sent is a Carriage Return The return code is the same as the code the SYSTEM 3000 sent to the Computer, but with the ASCII letter X, followed by the 0AH start code.
Page 167 The SYSTEM 3000 will respond with the same signal style but with Alarm, Trouble or Secure in place of the ASCII “U”. The response may come immediately after the request or another signal may be sent by the SYSTEM 3000 (such as a real Alarm Trouble or Secure) prior to the response for the requested update.
Page 168 APPENDIX D INSTALLATION DRAWING # 800232 SYSTEM 3000 APPENDIX D - 1 DIGITIZE, INC. 700181-E...
Page 169 DIGITIZE, INC. 700181-E APPENDIX D - 2...
Page 170 Authorization number ("RMA") has been obtained from Digitize by telephone or in writing. Buyer will prepay all freight charges to return any products to the repair facility designated by Digitize and include the RMA number on the shipping container. Digitize will, at its option, either repair the defective products or parts or deliver replacements for defective products or parts on an exchange basis to Buyer, freight prepaid to the Buyer.
