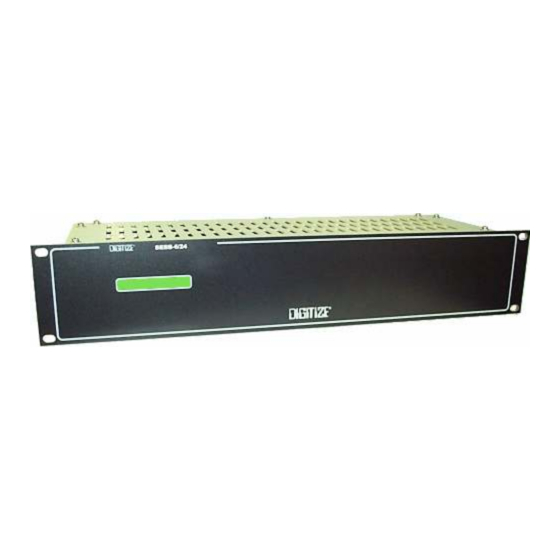

- Page 1 SEBB-6/24 USER MANUAL P/N: 425203-0001 Digitize, Inc. 158 Edison Road Lake Hopatcong, New Jersey 07849-2217 Tel: (973) 663-1011 Fax: (973) 663-4333 Part Number: 700256-0001 E-mail: info@digitize-inc.com Revision: Website: http://www.digitize-inc.com Issue Date: 01/06...
- Page 2 SEBB-6/24 USER MANUAL Digitize, Inc. 158 Edison Road Lake Hopatcong, NJ 07849-2217 The DIGITIZE logo (stylized) is a registered trademark of Digitize, Inc. DIGITIZE, INC. 700256-0001 REV. C 01/06 Specifications Subject to Change Without Notice...
-
Page 3: Proprietary Notice
This manual has been prepared by DIGITIZE, INC. for use by its licensees, distributors and customers. The information contained herein is the property of DIGITIZE, INC. and may not be copied, disclosed or reproduced, in whole or in part, without the prior written approval of DIGITIZE, INC. Any unauthorized... - Page 4 SEBB-6/24 to SYSTEM 3505 SETUP................3 2.6.1 DWG 4 ........................3 2.6.2 DWG 5 ........................4 SYSTEM 3505 OPTION SETUP.................. 4 SEBB-6/24 POWER UP and TROUBLE STATUS..............5 SEBB-6/24 System Power....................5 DIGITIZE, INC. 700256-0001 REV. C 01/06 Specifications Subject to Change Without Notice...
-
Page 5: Installation
An AC voltage switch to select between a 115 VAC, or a 230 VAC, 50/60 Hz. AC Supervised. Max Input Current is 582 mA. A supervised link with the SYSTEM 3505. The SEBB-6/24 Mounts into any standard 19” rack, with a panel height of 3.5 inches. 2 Installation... -
Page 6: Back Panel
DWG 1 2.5 SEBB-6/24 to BATTERY SETUP To connect the SEBB-6/24 to the batteries, use the 6 foot red and black cable with the quick connects end. The Molex 2 position end is attached to the SEBB-6/24 port marked “TO 24 VOLT SEALED LEAD ACID BATTERIES”. - Page 7 2.5.1 DWG 3 2.6 SEBB-6/24 to SYSTEM 3505 SETUP The SEBB-6/24 is connected to the SYSTEM 3505 using the 6 foot red and black cable, with one end stripped. This cable will provide power to the SYSTEM 3505 during a power failure. To connect the SEBB-6/24 to the...
- Page 8 Using 24V Battery backup Needs to be supervised=N Using EBB/LCD-RS-485? =Y Press SET, ↑ or ↓ to select next MENU. Press CLEAR to ABORT or EXIT SETUP DIGITIZE, INC. 700256-0001 REV. C 01/06 Specifications Subject to Change Without Notice...
- Page 9 115V or 230V, with the voltage switch located on the back of the unit. The SEBB-6/24 is shipped with the volts switch in the 115V position. Attach the AC power cord to the SEBB-6/24 and plug the AC cord into a power outlet. The SEBB-6/24 screen will light up and the following information will display: DIGITIZE INC.
- Page 10 SEBB-6/24 USER MANUAL If the batteries are not hooked up to the SEBB-6/24 during power up, or not connected to each other, then the screen will display the following. Chk Open Battery If the unit is displaying this message, check the connection between the two batteries and between the batteries and the SEBB-6/24.
-
Page 11: Warranty
Digitize’s obligations under this warranty are limited to repairing or replacing, at Digitize’s option, the part or parts of the products which prove defective in material or workmanship for 12 months within 15 months after shipment by Digitize.
