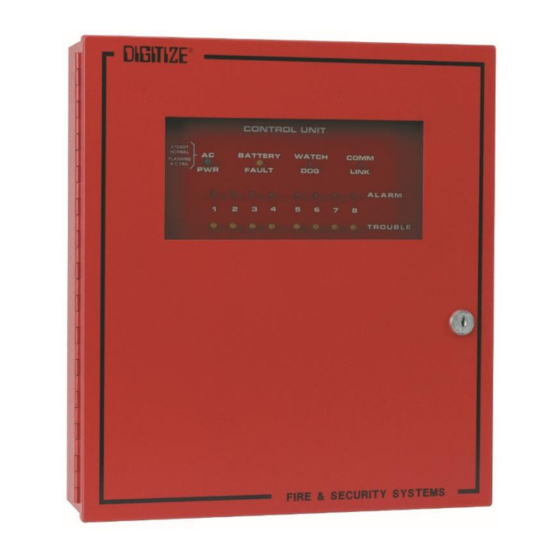

DIGITIZE RAD-8LS Installation & Operation Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Installation & Operation Manual
Digitize, Inc.
158 Edison Road
Lake Hopatcong, New Jersey 07849-2217
Tel:
(973) 663-1011
E-mail:
info@digitize-inc.com
Website:
http://www.digitize-inc.com
RAD-8LS
Part Number:
700168-0000
Revision:
K
Issue Date:
10/21

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RAD-8LS and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for DIGITIZE RAD-8LS

Summary of Contents for DIGITIZE RAD-8LS

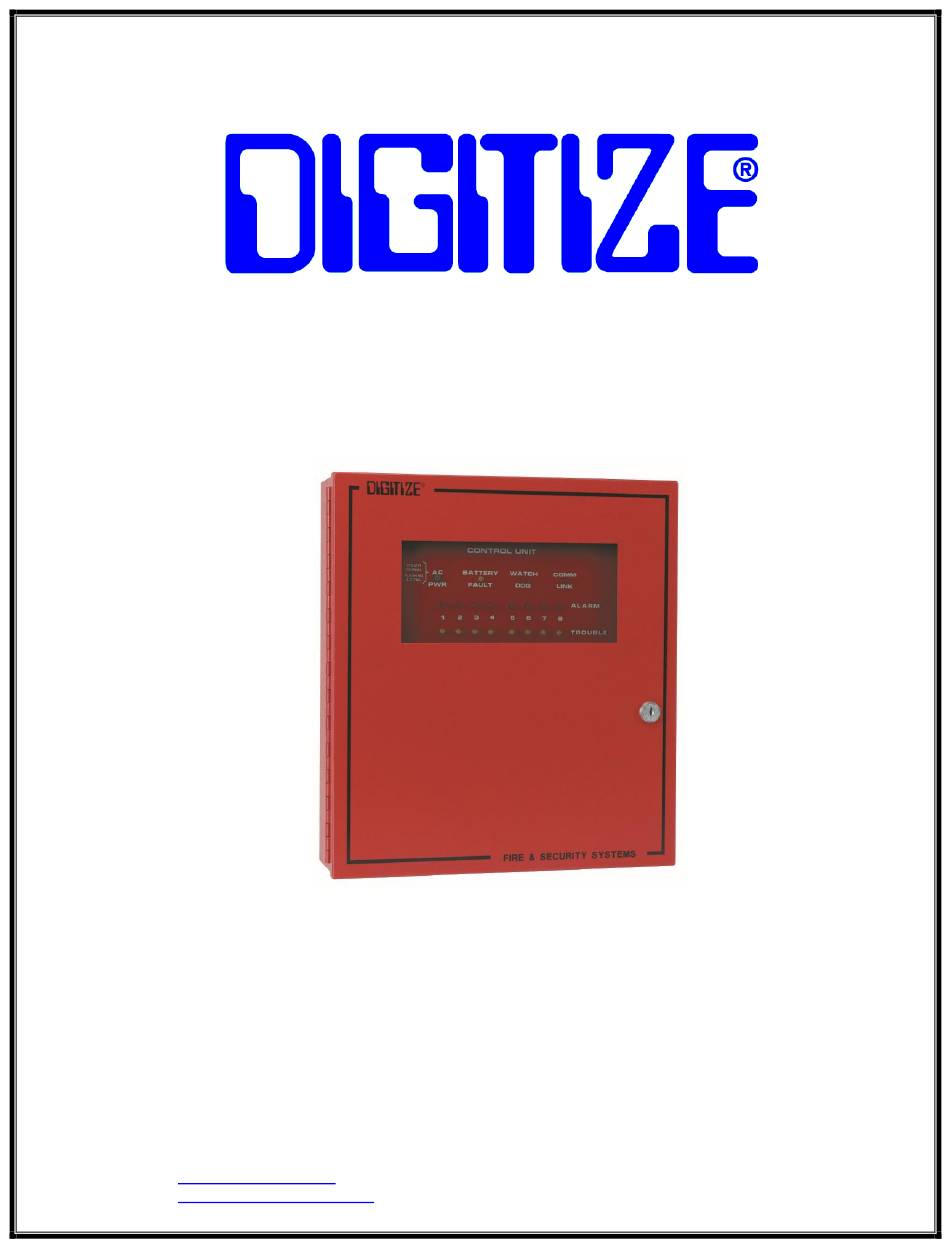

  • Page 1 RAD-8LS Installation & Operation Manual Digitize, Inc. 158 Edison Road Lake Hopatcong, New Jersey 07849-2217 Tel: (973) 663-1011 Part Number: 700168-0000 E-mail: info@digitize-inc.com Revision: Website: http://www.digitize-inc.com Issue Date: 10/21...
  • Page 2 Digitize, Inc. 158 Edison Road Lake Hopatcong, NJ 07849-2217 The DIGITIZE logo is a registered trademark of Digitize, Inc.
  • Page 3 Website: http://www.digitize-inc.com This manual has been prepared by DIGITIZE, INC. for use by its licensees, distributors and customers. The information contained herein is the property of DIGITIZE, INC. and may not be copied, disclosed or reproduced, in whole or in part, without the prior written approval of DIGITIZE, INC.
  • Page 4 FCC NOTICE In compliance with Paragraph 15.105 of the FCC Rules and Regulations, the following notice is provided. NOTE: This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment.

  • Page 5: Table Of Contents

    3 SYSTEM INITIALIZATION ................3-1 GENERAL ..........................3-1 ASSEMBLY .......................... 3-1 CONNECTIONS AND SETTINGS ..................3-1 3.3.1 ZONE INPUTS ......................3-1 3.3.2 ANTENNA ........................3-1 BATTERY INSTALLATION ....................3-1 DIGITIZE, INC. 700168-0000 REV. K 10/21 Specifications Subject to Change Without Notice...
  • Page 6 POWER-UP.......................... 3-1 3.5.1 AC ..........................3-1 3.5.2 DC ..........................3-2 4 PROGRAMMING ....................4-1 PROGRAMMING AM BOX (RAD-8LS-AM)................4-1 4.1.1 PROGRAM FUNCTION SELECTION MODE .............. 4-1 4.1.2 SETTING BOX NUMBER (FUNCTION 1) ..............4-2 4.1.3 SETTING ZONE TONE ASSIGNMENT (FUNCTION 2) ..........4-2 4.1.4...
  • Page 7 RADIO TRANSMITTER TEST ..................... 6-1 7 MAINTENANCE ....................7-1 CIRCUIT BOARD REMOVAL AND REPLACEMENT ............7-1 8 APPENDIX A TONE FREQUENCIES ..............1 9 APPENDIX B TONE ASSIGNMENTS ..............1 DIGITIZE, INC. 700168-0000 REV. K 10/21 Specifications Subject to Change Without Notice...
  • Page 8 DIGITIZE, INC. 700168-0000 REV. K 10/21 Specifications Subject to Change Without Notice...

  • Page 9: General Information

    12.6 Vdc for battery backup. The battery is a 12 Amp Hour battery and will operate the RAD-8LS for a minimum of 75 hours during an AC failure. Slide switches and LEDs on the front panel allow the operator to view Alarm and trouble information and provide access to field programmable functions for the RAD-8LS.

  • Page 10: Options

    RAD-8LS- FM-X-XXXX Frequency modulation. 1.4.1 ANTENNA The RAD-8LS may be configured for use with integral whip or external antennas. When the RAD-8LS is ordered with the integral whip antenna, the antenna is shipped inside the unit. DIGITIZE, INC. 700168-0000 REV. K 10/21...

  • Page 11: Frequency

    High band P/N 450289-XXXX (132-174 MHz) 1.4.2 FREQUENCY Frequency selection will be accomplished prior to shipment of the unit. The operating frequency is designated by the last digits of the RAD-8LS part number (no decimals are used). Examples: RAD-8LS-XX-X-7278 Transmits at: 72.78 MHz RAD-8LS-XX-X-13895 Transmits at: 138.95 M...

  • Page 12: Fuses

    1.0 Watts (maximum) FCC REQUIREMENTS The RAD-8LS complies with the limits set for a Class B computing device as specified in Subpart J of Part 15 of The FCC Rules and Regulations. This unit also complies with Part 90 of The FCC Rules and Regulations.

  • Page 13: Applicable Publications

    RAD-8LS INSTALLATION AND USER MANUAL APPLICABLE PUBLICATIONS Federal Communications Commission “Rules and Regulations”, Parts 15 and 90. National Electric Code 1990 National Fire Protection Association Standards: 1221 DIGITIZE, INC. 700168-0000 REV. K 10/21 Specifications Subject to Change Without Notice...
  • Page 14 RAD-8LS INSTALLATION AND USER MANUAL DIGITIZE, INC. 700168-0000 REV. K 10/21 Specifications Subject to Change Without Notice...

  • Page 15: Installation

    Remove the four mounting screws from the front panel. Place the front panel and mounting screws in the shipping container. For initial installation, removal of the RF transmitter is not required. DIGITIZE, INC. 700168-0000 REV. K 10/21 Specifications Subject to Change Without Notice...

  • Page 16: Selecting Proper Box Mounting Location

    It is recommended that the desired location first be tested with a known working RAD-8LS box by holding the box in the desired location and sending a test transmission to the receiving location. If the signal strength is adequate at the receiving location, then the selected mounting location is good.

  • Page 17: Wiring

    RAD-8LS. Do not connect field wiring until the panel has been fully tested beforehand. Tag all wiring for later connection to the unit. Follow the procedures outlined in Section 3, System Initialization.

  • Page 18: Bs2

    RAD-8LS INSTALLATION AND USER MANUAL Table 2-1, Zone Input Terminal Label Terminal Label 2.6.2 BS2 Terminals 1 and 2 Label: AC POWER These terminals are connected to the secondary output of the AC transformer. Maximum input to these terminals is 18 Volts AC.
  • Page 19 RAD-8LS INSTALLATION AND USER MANUAL Figure 2-1, Inter-equipment Wiring Diagram DIGITIZE, INC. 700168-0000 REV. K 10/21 Specifications Subject to Change Without Notice...
  • Page 20 RAD-8LS INSTALLATION AND USER MANUAL DIGITIZE, INC. 700168-0000 REV. K 10/21 Specifications Subject to Change Without Notice...

  • Page 21: System Initialization

    3 SYSTEM INITIALIZATION GENERAL For initial set-up of the RAD-8LS, the following instructions should be carried out in the order in which they appear. However, if during the operation of the unit it should become necessary to set the time on the internal clock this can be done without going through the power-up sequence.
  • Page 22 RAD-8LS INSTALLATION AND USER MANUAL 3.5.2 DC Connect the factory-supplied battery cable to the battery. It is important to carefully observe polarity when connecting the battery cable, (RED = positive, BLACK = negative). DIGITIZE, INC. 700168-0000 REV. K 10/21 Specifications Subject to Change Without Notice...

  • Page 23: Programming

    4 PROGRAMMING The RAD-8LS is fully field programmable. No special programming tools are required. The programming information for the RAD-8LS is stored in an Electrically Erasable Prom. The information stored on this chip is retained even in the event of loss of power.

  • Page 24: Setting Box Number (Function 1)

    RAD-8LS INSTALLATION AND USER MANUAL is indicated by the yellow trouble LED for Zone 1, Function 10 by the yellow trouble LED for Zone 2, etc. After the last function has been selected press “SILENCE” to return to Function To program a function once it has been selected, press the “TEST” button (SW1 through SW8 must be in the down position).

  • Page 25: Panel Options 1 (Function 3)

    After programming all 11 zones, press “TEST” to save all tones and return to function selection mode. Function 2 is not used if the Digitize 99 Zone or King Fisher IRAC radio format are selected. Function 2 pertains to the Eagle Signal or King Fisher Radio Format only.

  • Page 26: Panel Options 2 (Function 4)

    RAD-8LS INSTALLATION AND USER MANUAL SW3 is applicable only if the panel is programmed to use the Digitize 99 Zone Format. See Function 5. Selecting this setting will cause the panel to report an “AC Power Fail” condition at the time the failure occurs. If this setting remains OFF the AC Power Fail condition will be reported after a variable delay to prevent a collision with other panels trying to report the failure at the same time.

  • Page 27: Radio Box Format (Function 5)

    King Fisher radio formats. Place SW5 in the up position to select two function tones. Place in the down position for one function tone. SW6 is a Test Mode for the Rad-8LS. In order for the Rad-8LS to function correctly, this option should always be turned off. When this Test mode is enabled, the Rad-8LS will display the tones transmitted from the panel on the Trouble Leds.

  • Page 28: Setting Tilt/Tamper Sensitivity (Function 6)

    RAD-8LS INSTALLATION AND USER MANUAL King Fisher (Street Down Down Down Down Down Down Box 2) King Fisher (IRAC Down Down Down Down Down Down w/ Programmable Zones) King Fisher Street Box 1 – Zone 1 tone assignment is = 00.
  • Page 29 RAD-8LS INSTALLATION AND USER MANUAL entry was acceptable, the panel will beep once to acknowledge. The LED for Zone 1 will illuminate and the Zone 2 LED will blink to indicate minutes may be entered next. Use Tables 4.6 and 4.7 to determine how to set SW1 - SW8 to enter minutes. Press “SILENCE” to save and “TEST”...
  • Page 30 RAD-8LS INSTALLATION AND USER MANUAL Down Down Down Down Down Down Down Down Down Down Down Down Down Down Down Down Down Down Down Down Down Down Down Down Table 4-6, Switch Settings Minutes (High Digit) TIME Down Down Down...

  • Page 31: Setting Time Interval Between Test Transmissions

    RAD-8LS INSTALLATION AND USER MANUAL 4.1.10 SETTING TIME INTERVAL BETWEEN TEST TRANSMISSIONS (FUNCTION 9 Refer to Section 4.1.18 Quick Program Daily Test to bypass this step. Function 9 programs the time interval between Daily Test transmissions. If function 8 is set to 01:00 (1 AM) and Function 9 is set to 02:00, then the next Daily Test will occur at 1:00 AM and repeat every two hours (3:00 AM, 5:00 AM, etc...).

  • Page 32: Assigning Zone Delays (Function 12)

    RAD-8LS INSTALLATION AND USER MANUAL 4.1.13 ASSIGNING ZONE DELAYS (FUNCTION 12) Each of the eight zone inputs can be programmed with a delay of up to 90 seconds. An alarm present on any zone must remain constant for the duration of the delay. During the delay the alarm LED for the zone will flash while the delay is counting down.
  • Page 33 RAD-8LS INSTALLATION AND USER MANUAL (Tone Assignment, Zone 5) (Tones 4, 8) (Tone Assignment, Zone 6) (Tones 5, 8) (Tone Assignment, Zone 7) (Tones 6, 8) (Tone Assignment, Zone 8) (Tones 7, 8) (Tone Assignment, Tamper) (Tones 5, 9) (Tone Assignment, Box Test)

  • Page 34: Assigning Tone For Kf Low Battery (Function 14)

    The tones for a Low Battery on this format are programmable. This feature is very seldom utilized on the Rad-8LS. The two tones are represented in binary form as two 4 bit nibbles. The default for Low battery is a 46 (tone 4 and tone 6).

  • Page 35: Viewing Current Am Box Settings

    VIEWING CURRENT AM BOX SETTINGS Place RAD-8LS into the Program Function Selection Mode. To do this, place SW1 through SW8 in the down position. Press and hold the “SILENCE” button. While holding the “SILENCE”...

  • Page 36: View Current Time Of Day (Function 7)

    RAD-8LS INSTALLATION AND USER MANUAL 4.2.7 VIEW CURRENT TIME OF DAY (FUNCTION 7) Place RAD into the Program Function Selection Mode and select Function 7. The red alarm LED for Zone 1 illuminates to indicate that yellow LEDs are showing current hour. Press “SILENCE”...

  • Page 37: Viewing Tone For Kf Ac Fail (Function 15)

    RAD-8LS INSTALLATION AND USER MANUAL 4.2.15 VIEWING TONE FOR KF AC FAIL (FUNCTION 15) Place RAD into the Program Function Selection Mode and select Function 15. The red alarm LEDs show the AC Fail settings. (An illuminated yellow LED simply indicates that particular switch is in the UP position.) Press “TEST”...
  • Page 38 RAD-8LS INSTALLATION AND USER MANUAL 4-16 DIGITIZE, INC. 700168-0000 REV. K 10/21 Specifications Subject to Change Without Notice...

  • Page 39: Theory Of Operation

    5 THEORY OF OPERATION ALARM INPUT The RAD-8LS contains eight separate alarm input channels. A red alarm LED and a yellow trouble LED are included for each zone. MICROPROCESSOR The RAD-8LS is a microprocessor based unit and contains a reusable EPROM to store the program and operating data.

  • Page 40: Controls

    The AM transmitter is crystal controlled and employs amplitude modulation with feedback circuitry. The interface used is the Tone Control Board. The Tone Control Board interface is plugged into the main board of the RAD-8LS. The antenna is plugged into the transmitter using the connector marked “ANT”.

  • Page 41: Zone Trouble

    BYPASS - If a zone is bypassed, the associated yellow trouble LED for that zone will flash. GROUND FAULT - If the RAD-8LS detects a Ground Fault on zone inputs, all of the yellow zone trouble LEDs will flash.

  • Page 42: Standby Power Operation

    Standby Power Operation is also indicated by a flashing POWER LED. When a low battery condition is detected, the RAD-8LS will transmit this to the receiving console during a daily test transmission or whenever a radio transmission is made (determined by the radio format selected).

  • Page 43: Testing

    Using the table below, test all alarm and trouble initiating devices for each zone. Test each zone bypass switch by pushing switch to the “BYPASS” position and actuate an alarm. If working properly, the LED should light red indicating an alarm but the RAD-8LS should not transmit the alarm.
  • Page 44 RAD-8LS INSTALLATION AND USER MANUAL Hold down the “CLEAR/SILENCE” and “TEST” buttons simultaneously then press and release the “RESET” button. If the jumper is inserted correctly, the “COMM LINK” LED and all of the alarm LEDs will illuminate. The radio transmitter is now transmitting carrier.

  • Page 45: Maintenance

    7. Replace screw fastener on right side of box. 8. Connect antenna cable from transmitter. 9. Connect the interface plug to connector P1. 10. Test all functions of unit. DIGITIZE, INC. 700168-0000 REV. K 10/21 Specifications Subject to Change Without Notice...
  • Page 46 RAD-8LS INSTALLATION AND USER MANUAL DIGITIZE, INC. 700168-0000 REV. K 10/21 Specifications Subject to Change Without Notice...

  • Page 47: Appendix Atone Frequencies

    8 APPENDIX A TONE FREQUENCIES TONE FREQUENCIES TONE FREQUENCY (Hz) DIGITIZE, INC. 700168-0000 REV. K 10/21 Specifications Subject to Change Without Notice...
  • Page 48 RAD-8LS INSTALLATION AND USER MANUAL DIGITIZE, INC. 700168-0000 REV. K 10/21 Specifications Subject to Change Without Notice...
  • Page 49 EAGLE SIGNAL/KING FISHER RADIO FORMATS ZONE ASSIGNMENTS FOR TWO FUNCTION TONES ZONE FUNCTION FUNCTION TONE 1 TONE 2 ZONE ASSIGNMENT FOR ONE FUNCTION TONE ZONE FUNCTION TONE 1 DIGITIZE, INC. 700168-0000 REV. K 10/21 Specifications Subject to Change Without Notice...
  • Page 50 RAD-8LS INSTALLATION AND USER MANUAL DIGITIZE, INC. 700168-0000 REV. K 10/21 Specifications Subject to Change Without Notice...
  • Page 51 Digitizes products by salesmen, dealers, distributors or agents, unless confirmed in writing by a Digitize officer. If the firmware or hardware is altered or modified by the Buyer, this firmware and hardware is not covered within this limited warranty and the Buyer bears sole responsibility and liability for that firmware and hardware.
