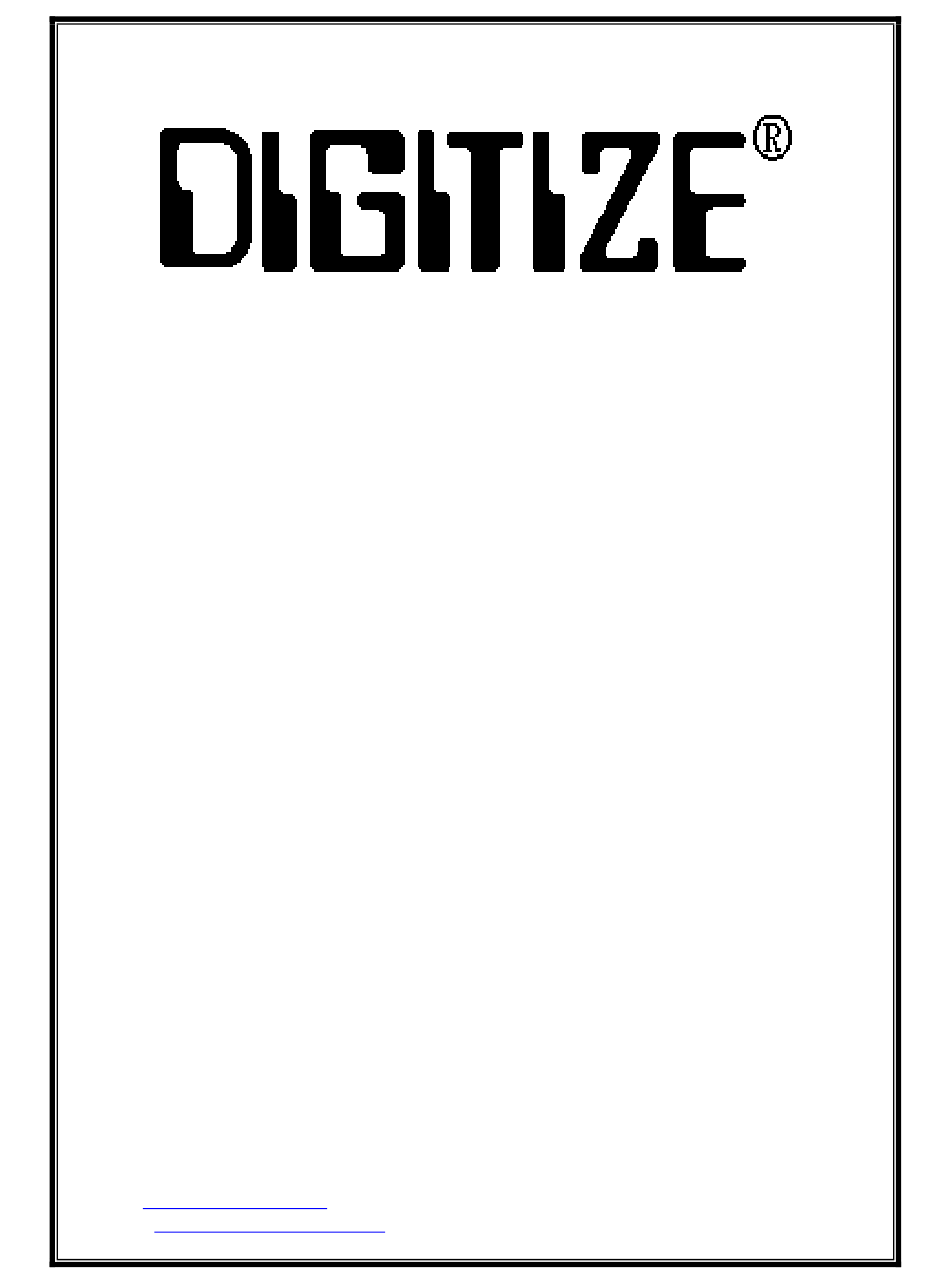

- Page 1 System 3000/3500/3505 Debug Monitor Digitize, Inc. 158 Edison Road Lake Hopatcong, New Jersey 07849 Tel: (973) 663-1011 Part Number: 700268-0001 Fax: (973) 663-4333 Revision: A E-mail: info@digitize-inc.com Issue Date: 1.05 Website: http://www.digitize-inc.com Program Ver.: 1.8.0...
- Page 2 Digitize, Inc. 158 Edison Road Lake Hopatcong, NJ 07849-2217 The Digitize logo (stylized) is a registered trademark of Digitize, Inc.
- Page 3 This manual has been prepared by DIGITIZE, INC. for use by its licensees, distributors and customers. The information contained herein is the property of DIGITIZE, INC. and may not be copied, disclosed or reproduced, in whole or in part, without the prior written approval of DIGITIZE, INC. Any unauthorized disclosure to, or use of the enclosed information by, unauthorized third persons shall void any and all representations, warranties and obligations on the part of DIGITIZE, INC.
- Page 4 FCC NOTICE In compliance with Paragraph 15.105 of the FCC Rules and Regulations, the following notice is provided. NOTE: This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment.
-
Page 5: Table Of Contents
Table of Contents 1. Introduction....................1 1.1 System Description ..........................1 2. System Installation..................2 2.1 In the package ............................2 2.2 Software Requirements ........................2 2.3 Installation............................2 3. Steps for using the Debug Monitor............. 6 3.1 Starting the software ..........................6 3.2 Setting up the software......................... - Page 6 This page left intentionally blank.
-
Page 7: Introduction
Programming Port on a Digitize System 3000/3500/3505. The Debug Monitor will then collect debug data from the serial port, which can be saved and sent to Digitize to be examined. The Debug Monitor program is: •... -
Page 8: System Installation
2. System Installation This chapter will explain how to successfully install the Debug Monitor on a computer for use. 2.1 In the package The following items are included with the Debug Monitor software: CD Rom Program Disk Manual DB9 Serial Cable 2.2 Software Requirements The Debug Monitor software has the following requirements: Computer with CDROM drive... - Page 9 System Installation Digitize Inc. To continue the installation, hit Next. This screen will set the name of the folder where the debug Monitor program will be located. It is recommended that you use the default setting and hit Next.
- Page 10 System Installation Digitize Inc. Hit Next. Hit Next to complete the installation process.
- Page 11 System Installation Digitize Inc. As the files are placed on your computer, this will display on the screen. The Installation is complete!
-
Page 12: Steps For Using The Debug Monitor
3. Steps for using the Debug Monitor This chapter will explain the basic steps to successfully capture debug information for a Digitize 3000/3500/3505 system. 3.1 Starting the software From your desktop, look for the “cool” Smiley Face Icon. Double click on it to start the Sys 3000/3500/3505 Debug monitor. -
Page 13: Setting Up The Software
Connection Menu, select Setup. The following screen should appear. The Debug Monitor was designed to work specifically with the Digitize 3500 Systems. Therefore most of the settings (Baud Rate, Stop Bits, etc.) in the Setup Menu are pre-configured to work properly with a System 3500. -
Page 14: Testing Your Connection
Steps For Using The Debug Monitor Digitize Inc. Select the COM port that will be used with the Debug Monitor using the Down arrow. 3.3 Testing Your Connection Connect the serial cable supplied with the Debug Monitor program from the Com port of the computer to Programming Port on the back of the System 3000/3500/3505. -
Page 15: Setting Up Triggers
Digitize Inc Steps For Using The Debug Monitor If the display is blank, verify that the correct Com port is selected. Also verify that the serial cable is connected to the correct ports and connected securely to the computer and System 3500. - Page 16 Steps For Using The Debug Monitor Digitize Inc. To demonstrate the Triggers, the following example: Select the Edit Triggers menu as shown. Click on the “Add” button. Next, enter “TEST” for Trigger Name and “VER:” for Middle String. Select the “Enabled”...
- Page 17 Digitize Inc Steps For Using The Debug Monitor Next, restart the System 3500. When the 3500 has finished restarting, click on the Error Log tag on the Debug Monitor. The top line indicates which Trigger was found, including the date and time. The Debug Monitor program then captures 3 lines of text before the Trigger and 3 lines after the Trigger.
-
Page 18: Saving And Sending The Files
To end a debug session, click on the Disconnect button in the Connection Menu. The display will acknowledge that the session has ended by displaying “Port is now closed”. When the port is closed, the debug Monitor also saves the Capture Log File and the Error Log File in the C:\PROGRAM FILES\DIGITIZE\SYS3500MON\ folder. -
Page 19: Debug Monitor Menus
4. Debug Monitor Menus This chapter will explain in detail each of the Menus for the Debug Monitor. 4.1 Screens 4.1.1 Debug Monitor... -
Page 20: Error Log
Steps For Using The Debug Monitor Digitize Inc. 4.1.2 Error Log 4.2 Quit Click on Quit to exit the program. 4.3 Connection Menu 4.3.1 Connect To start a debug session, you must select the Connect button in the Connection Menu. - Page 21 Digitize Inc Debug Monitor Menus After selecting the Connect button, the display will indicate that the port is now open and the current port settings. To end a debug session, click on the Disconnect button in the Connection Menu. The display will acknowledge that the session has ended by displaying “Port is now...
-
Page 22: Comport Setup
Steps For Using The Debug Monitor Digitize Inc. 4.3.2 Comport Setup This menu is used to properly configure the computer comport for capturing serial data. Connect To: Use the down arrow to select the comport that will be sued during the capture session. -
Page 23: Logging
Digitize Inc Debug Monitor Menus Databits: Use the down arrow to select the proper Databits selection for the capture session (The Databit setting for the System 3xxx is generally set to 8 bits.) Buffer Size: Sets the size in bytes of the Transmit and Receive Buffers. The buffers can be set to:2048, 4096, 8192, or 16384 bytes. -
Page 24: Debug Monitor
Steps For Using The Debug Monitor Digitize Inc. File Name: The name of the Trace file. The Trace file will be created in the same directory that the Debug Monitor software resides. Size: The size of the Trace file. Once the Trace file reaches the pre-selected size, the file will automatically close. -
Page 25: Capture Log
Digitize Inc Debug Monitor Menus 4.5 Capture Log The Capture File option collects all incoming data, strips away all the unprintable control characters so it will display in a user friendly way. It also archives the files at a predetermined size, with a user defined prefix, a date-time stamp and a user defined... -
Page 26: Capture File Options
Steps For Using The Debug Monitor Digitize Inc. 4.5.1 Capture File Options File Directory: The directory (folder) where the Capture Files will be located. The example will place the files on the computers desktop. File Prefix: The letters that will be at the beginning of each Capture File created. The debug Monitor will also include the date and time in the file name. -
Page 27: View Capture Log
Digitize Inc Debug Monitor Menus 4.5.2 View Capture Log This utility allows you to view previously capture Capture Logs. 4.6 Error Log The Error File option is very similar to the "Capture File" option but instead of capturing all incoming data, it captures just a snapshot of data the user has previously... -
Page 28: Error File Details
Steps For Using The Debug Monitor Digitize Inc. 4.6.1 Error File Details Directory: The directory ( folder) is where the Error Files will be located. The example will place the files on the computers desktop. Prefix: The letters that will be at the beginning of each Error File created. The date and time will be included in the name of the Error File. -
Page 29: View Error Log
Digitize Inc Debug Monitor Menus 4.6.2 View Error Log This utility allows you to view previously capture Capture Logs. 4.7 Triggers The Debug Monitor compares the raw incoming data with the enabled triggers. When it matches a trigger, the program takes a snapshot of the data before and after the... -
Page 30: Enable
Steps For Using The Debug Monitor Digitize Inc. 4.7.1 Enable The enable Menu allows the user to turn Triggers on and off. A check mark next to the name of the trigger indicates that it is enabled. 4.7.2 Edit Triggers Trigger Name: This is the name of the Trigger. -
Page 31: About Menu
Digitize Inc Debug Monitor Menus 4.8 About Menu The About Menu displays information concerning the Software Version and the release. This information could be useful if you experience any problems using the Debug Monitor. - Page 32 Digitize by telephone or in writing. Buyer will prepay all freight charges to return any products to the repair facility designated by Digitize and include the RMA number on the shipping container. Digitize will, at its option, either repair the defective products or parts or deliver replacements for defective products or parts on an exchange basis to Buyer, freight prepaid to the Buyer.
