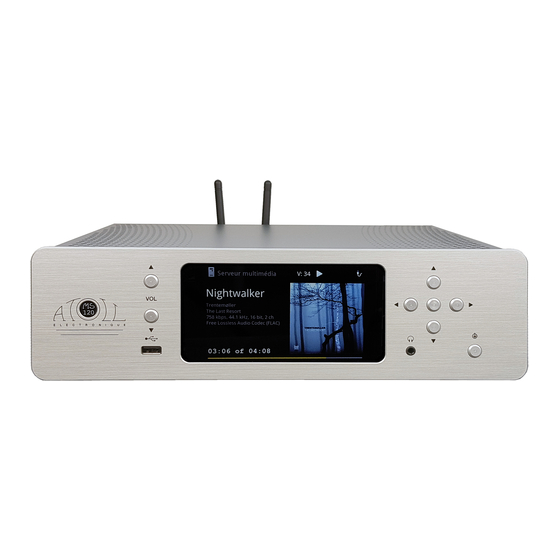

- Page 1 OWNER’S MANUAL STREAMER MS120 E L E C T R O N I Q U E...
-
Page 2: Safety Instructions
• It is recommended to choose good quality cords to connect this appliance to the other devices. Feel free to take advice from your specialist dealer. YOU WILL FIND ENCLOSED – An MS120 streamer. – Two antennas. – A power lead. -
Page 3: General Information
– MQA (Master Quality Authenticated) (*) The MS120 includes MQA Core Decoder, which unfolds the MQA file once to deliver better than CD-quality. The first unfold recovers all the direct music-related information. Output is 88,2 kHz or 96 kHz. ‘MQA’ or ‘MQA Studio’ indicates that the product is decoding and playing an MQA stream or file, and denotes provenance to ensure that the sound is identical to that of the source material. - Page 4 You will find the antennas in the bag of the remote control. Make sure that the WIFI and Bluetooth® antennas are correctly installed before any connection and use. Please use the 2 supplied antennas (identical) or an antenna with male connector. Page 4 ATOLL ELECTRONIQUE...
-
Page 5: Remote Control Functions
MS120 3.- ATOLL REMOTE CONTROL REMOTE CONTROL FUNCTIONS The remote control uses 2 lithium CR2032 (3V) batteries. Make sure to place upside. Warning: some keys may have different uses depending on the menus or context. Keys already available from the front panel: Menus control keys. -
Page 6: Connecting Setup
Trigger inputs (ATOLL amplifier). Appliances must be linked as shown below: Jack Ø 3,5 mm. An MS120 streamer type Power amplifier When the system is operating, the ON/OFF switch of your power amplifier must remain in position OFF (position (0)). -
Page 7: Getting Started
MS120 5.- PREAMP. / BY-PASS FUNCTIONS VOLUME: The volume is managed using the buttons (21) on the front panel or the remote control. The volume level is displayed for a few seconds on the display, and it always remains indicated at the top of the display. -
Page 8: Network Configuration
This menu is used to set the standby time values for the main screen. RENAME ENTRIES: This menu allows you to rename the auxiliary, coaxial and optical inputs, to allow the user to identify their different inputs. VERSION: This menu displays the software version installed in the device. Page 8 ATOLL ELECTRONIQUE... -
Page 9: Power Management
MS120 FIRMWARE UPDATE: This menu allows you to make an update on your appliance. Select “Check for update” from time to time. If there is no update, the display will show “No new updates”. If an update is available, the devices will automatically launch it. This may take a while so let the device run until it starts again. -
Page 10: Internet Radio
Suggest Content: Allows you to suggest a new radio to the Airable platform (free service). FRONT & REAR USB Select one of those inputs to read all music files from a USB key or Hard Disk. Readable files system can be FAT32, NTFS, EXT 2/3/4. Page 10 ATOLL ELECTRONIQUE... -
Page 11: Media Server
Your network player is 100% compatible with these gateways. Before connecting to Roon for the first time, you will need to fill in the “Settings: Device ID” field with the reference of your device between: ST200, ST300, MS120, SDA200, and SDA300. -
Page 12: Troubleshooting Table
This device was made to give you complete satisfaction. ATOLL Electronique warranty is two years from the date of purchase of the equipment, date, and stamp of the seller being authentic. We recommend you keep your proof of purchase (invoice) with this coupon properly filled.
