Summary of Contents for Atoll Electronique SIGNATURE ST300

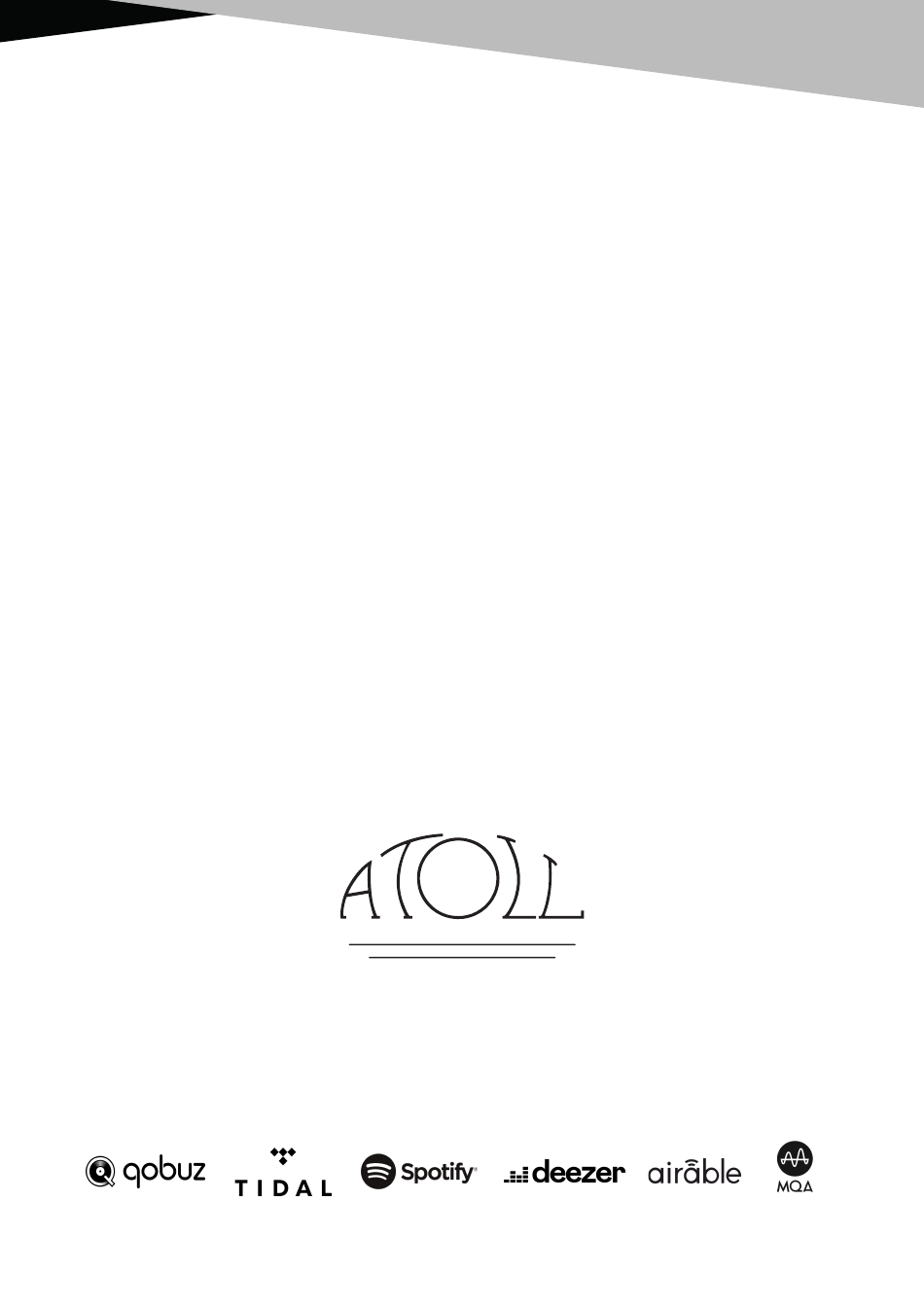

- Page 1 OWNER’S MANUAL STREAMER ST300 SIGNATURE E L E C T R O N I Q U E...
-
Page 2: Table Of Contents
Feel free to take advice from your specialist dealer. YOU WILL FIND ENCLOSED – An ST300 Signature streamer. – Two antennas. – One power cord. – This manual with the warranty – One RCA cord. certificate. – One remote control. Page 2 ATOLL ELECTRONIQUE... -
Page 3: General Information
Output level: 2,0 Vrms Signal/Noise Ratio: 132 dB Distorsion at 1 kHz: 0,0004 % Bandwidth: 5 Hz - 20 kHz Rising time: 1,5 µs Digital/analog Converter: 2×Burr-Brown 24 bits/192 kHz Dimensions: 440×284×95 mm Weight: 7 Kg Page 3 ATOLL ELECTRONIQUE... -
Page 4: Connections
You will find the antennas in the bag of the remote control. Make sure that the WIFI and Bluetooth® antennas are correctly installed before any connection and use. Please use the 2 supplied antennas (identical) or an antenna with male connector. Page 4 ATOLL ELECTRONIQUE... -
Page 5: Atoll Remote Control
39) Inputs selection keys: Coaxial 1; Coaxial 2; Optical 1; Optical 2; Line1; Line2; BY-PASS (hold 5 seconds). 40) FAV: add or remove a track or radio. 41) IN/PR Keys: they allow to control ATOLL Integrated or Preamp. Page 5 ATOLL ELECTRONIQUE... -
Page 6: Connecting Setup
Trigger cable must be a stereo Male to Male jack plug 3,5mm (1/8”). From then on, each time the Streamer comes out of standby, the amplifier will turn on. It will also turn off each time it goes to sleep. Page 6 ATOLL ELECTRONIQUE... -
Page 7: Preamp / Bypass Functions
1- Go to the “Settings” menu then to “Network connection”. 2- Select the “Network Wizard” menu. 3- You will have to choose the type of network. Press “Network type” and choose “Automatic”, “Wired”, “Wireless” or “Hybrid”. Page 7 ATOLL ELECTRONIQUE... - Page 8 This menu is used to set the standby time values for the main screen. RENAME ENTRIES: This menu allows you to rename the auxiliary, coaxial and optical inputs, to allow the user to identify their different inputs. VERSION: This menu displays the software version installed in the device. Page 8 ATOLL ELECTRONIQUE...
- Page 9 CONTROL FROM A COMPUTER: It is possible to control your network drive from a computer screen by typing in the search bar of your internet browser the IP address of your network drive followed by /webclient: 192.168.xxx.xxx/webclient Page 9 ATOLL ELECTRONIQUE...
-
Page 10: Internet Radio
Suggest Content: Allows you to submit a new radio to the Airable platform (free service). FRONT & REAR USB Select one of those inputs to read all music files from a USB key or Hard Disk. Readable files system can be FAT32, NTFS, EXT 2/3/4. Page 10 ATOLL ELECTRONIQUE... -
Page 11: Media Server
The quality of reception of the signal can be dependent on the power of the Bluetooth® emitter and the distance between the 2 devices. Avoid being up to more than 5 meters of your ST for a correct reception without any risks of signal cuts. Page 11 ATOLL ELECTRONIQUE... -
Page 12: Troubleshooting Table
– Turn off the power switch level before restarting. WARRANTY FORM ~ ST300 Sig to present to your dealer and to join with your purchase invoice when sending back the appliance to the service center or the address below: ATOLL ELECTRONIQUE® Bd des Merisiers 50370 BRECEY FRANCE WARRANTY CONDITIONS This device was made to give you complete satisfaction.
