Norcent LM560 Manual

Norcent lm560: user guide
Hide thumbs
Table of Contents

Advertisement

Quick Links

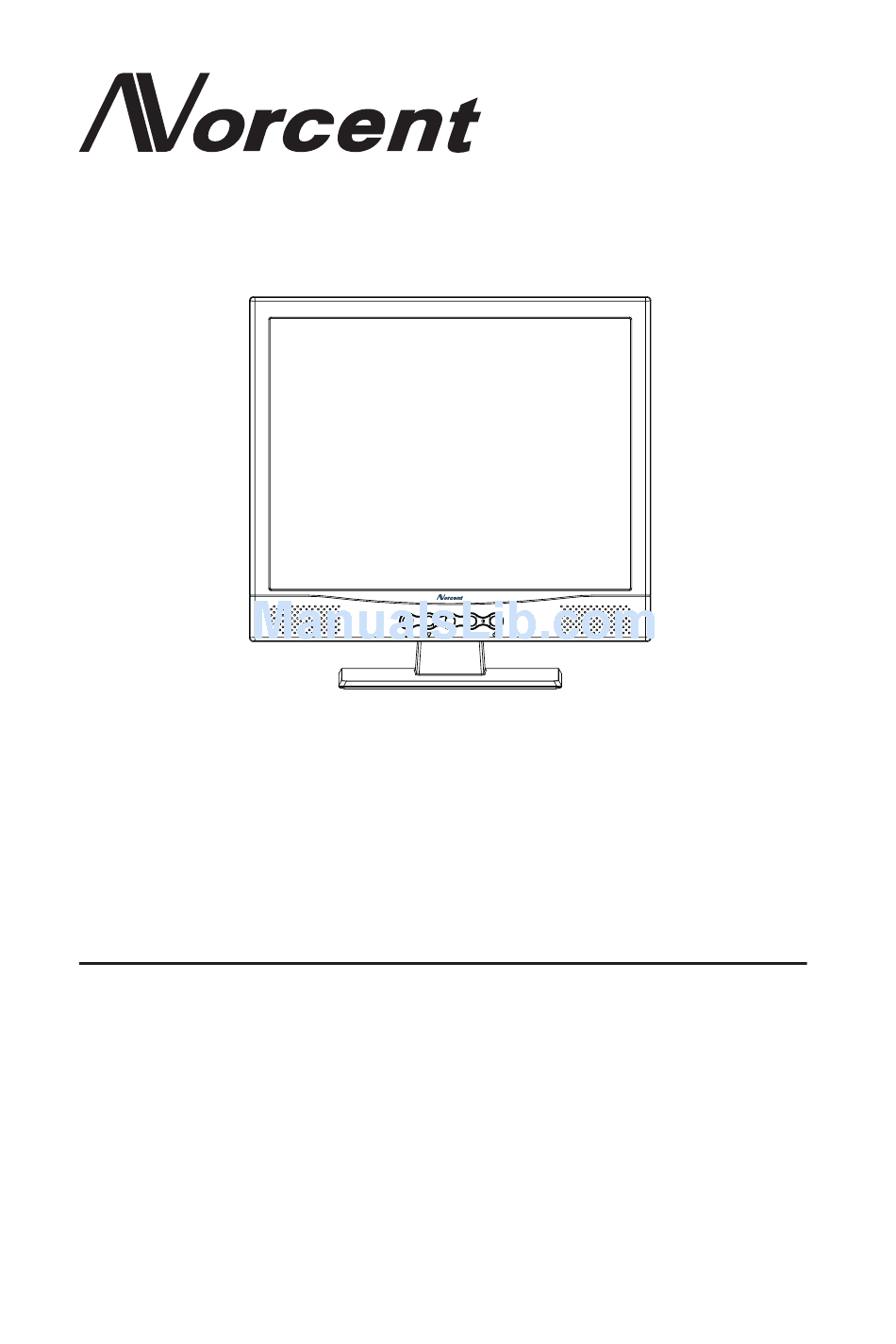

LM560

LCD MONITOR

MANUAL
Thank you very much for choosing the Norcent Product.
We recommend that you take a few minutes to read carefully through this manual
before installing and switching on the product. Please keep this manual in a safe
place for your future reference.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LM560 and is the answer not in the manual?

Questions and answers

Related Manuals for Norcent LM560

Summary of Contents for Norcent LM560

  • Page 1: Lcd Monitor

    LCD MONITOR MANUAL Thank you very much for choosing the Norcent Product. We recommend that you take a few minutes to read carefully through this manual before installing and switching on the product. Please keep this manual in a safe...

  • Page 2: Operation Instructions

    FCC RADIO FREQUENCY INTERFERENCE STATEMENT WARNING: (FOR FCC CERTIFIED MODELS) This monitor has been tested and found compliant with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide proper protection against harmful interference to a residential installation.

  • Page 3: Table Of Contents

    Content Safety Precautions ...1 First Setup...2 Front Panel Control ...3 Installation ...3 Using OSD Functions...4 Timing modes ...10 Technical Information ...11 Care and Maintenance ...12 Troubleshooting ...12...

  • Page 4: Safety Precautions

    This monitor is manufactured and tested on a ground principle that a user’s safety comes first. However, improper use or installation may result danger to the monitor as well as to the user. Carefully go over the following WARNINGS before installation and keep this guide handy.

  • Page 5: First Setup

    First Setup Congratulation for purchasing this monitor of high performance! This monitor comes with the following accessories: Attached video Cable (15 pin D-SUB) Power Cable Audio Cable User Guide Book Quick Installation 1. Connect video cable Make sure both the monitor and computer are powered OFF.

  • Page 6: Front Panel Control

    Front Panel Control OSD ON/OFF SCROLL DOWN SCROLL UP Installation POWER INPUT (AC INPUT) VIDEO CABLE ENTER POWER INDICATOR POWER ON/OFF AUDIO IN...

  • Page 7: Using Osd Functions

    Using OSD Functions 1. Press the button to display the main menu shown below. 2. Press the ▲ or ▼ button to scroll to the desired menu option. 3. Press the button to select the menu option. 4. Press the ▲ or ▼ button to select submenu option. 5.
  • Page 8 to adjust the background black level of screen image. Brightness: 1. Press ▲ to increase the brightness. 2. Press ▼ to decrease the brightness. Color Temperature: 9300K, 6500K and these changes will improve the brightness and color saturation. 9300K-- Adds blue to screen image for cooler white. 6500K-- Adds richer red to screen image for warmer white.
  • Page 9 Displays input signal information regarding the current Information: setting from the graphic card in your computer. Note: If you wish to change your settings please refer to your graphic card user guide for more information. Allows users to select and adjust the Horizontal /Vertical Image Adjust: position, H.
  • Page 10 Adjusts the width of screen image. H. Size: 1. Press ▲ to increase the width of the screen. 2. Press ▼ to decrease the width of the screen. To adjust the delay time. Fine Tune: 1. Press ▲ to increase the fine tune. 2.
  • Page 11 Allows the user to choose from available languages. Language Select: 1. Press ▲ or ▼ to move the bar up or down to select the language. 2. Press to confirm your selection. If the function is “enable”, a message will appear on Resolution Notice: the screen "For best picture quality change resolution to 1024 x 768"...
  • Page 12 Press ▲ or ▼ to move the OSD Right or Left. Vertical OSD Position will vertically reposition all OSD screen. Press ▲ or ▼ to move the OSD Up or Down. Sets the length of time the OSD screen is displayed OSD Time Out: before exiting.

  • Page 13: Timing Modes

    VESA/MAC Warning: Do not set the graphic card in your computer to exceed these maximum refresh rates. Doing so may result in permanent damage to your monitor. 720 x 400 @ 70Hz 640 x 480 @ 60Hz 640 x 480 @ 67Hz...

  • Page 14: Technical Information

    Technical Information Technical Specification LCD Panel Power Management Displayable Resolution Pixel Dimension LCD Display Color Viewing Angle Tilt Contrast Ratio Brightness Response Time Active Display Area Temperature Compliance Power Speaker 15.0” TFT Energy Star compliant VESA DPMS compatible < 2 W XGA 1024 x 768 max.

  • Page 15: Care And Maintenance

    Power on but no screen image Make sure all signal cables are installed. Make sure the video cable supplied with the monitor is tightly secured to the video output port on back of the computer. If not, tightly secure it.
  • Page 16 Loose or broken pins inside the cable connector could cause improper connection. You can also connect the monitor to another computer to verify if it is monitor problem or computer problem.
  • Page 17 Norcent Technology, Inc. 550 Cliffside Drive, San Dimas, CA91773 www.norcent.net info@norcent.net support@norcent.net Customer support 909-305-2121...
