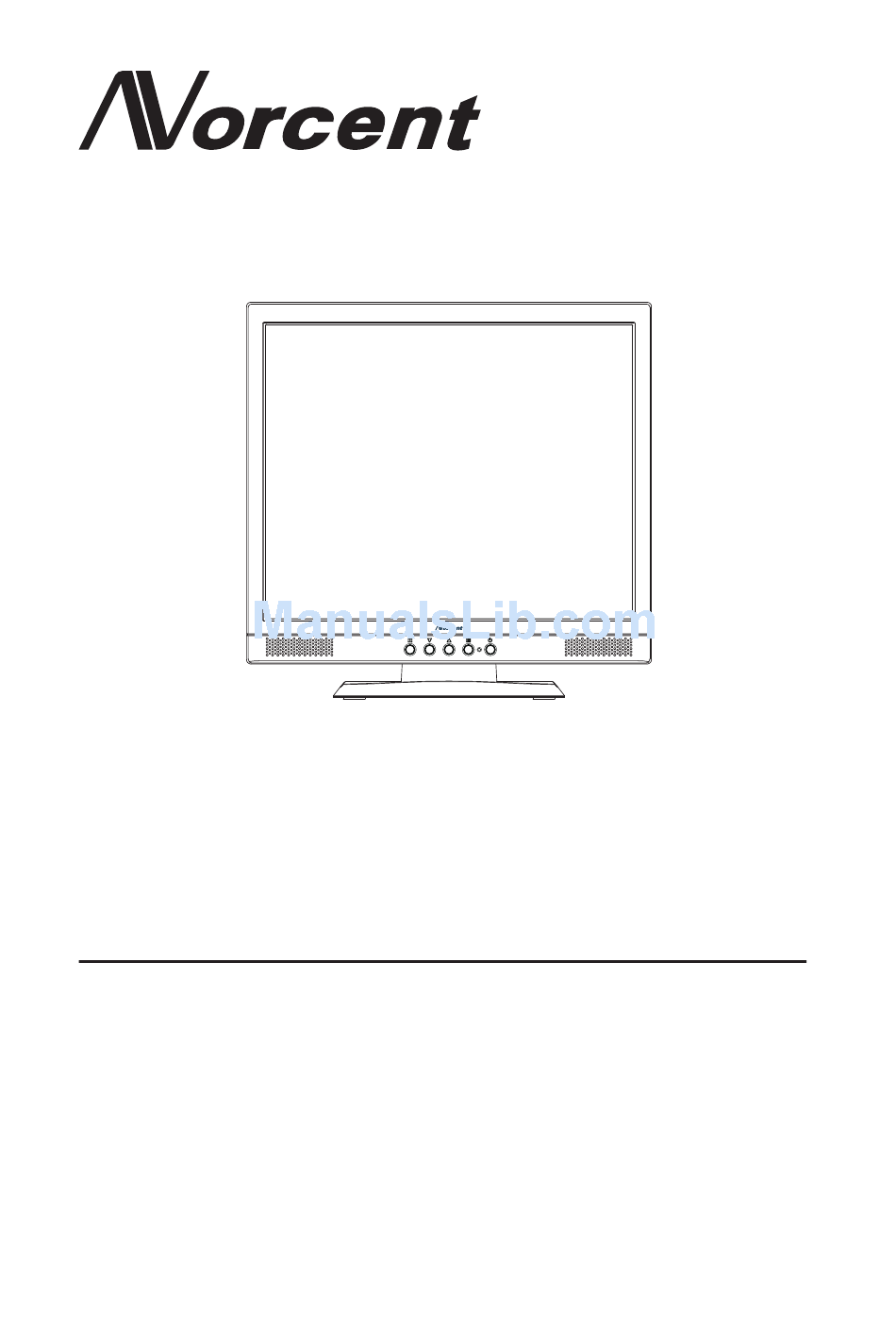

Page 1: Lcd Monitor
LCD MONITOR MANUAL Thank you very much for choosing the Norcent Product. We recommend that you take a few minutes to read carefully through this manual before installing and switching on the product. Please keep this manual in a safe... -
Page 2: Operation Instructions
FCC RADIO FREQUENCY INTERFERENCE STATEMENT WARNING: (FOR FCC CERTIFIED MODELS) This monitor has been tested and found compliant with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide proper protection against harmful interference to a residential installation. -
Page 3: Table Of Contents
Content Safety Precautions...1 First Setup ...2 Front Panel Control...3 Installation...3 How to install the Stand ...4 How to uninstall the Stand ...5 Using OSD Functions ...6 Technical Information ...14 Care and Maintenance...15 Troubleshooting ...15... -
Page 4: Safety Precautions
This monitor is manufactured and tested on a ground principle that a user’s safety comes first. However, improper use or installation may result danger to the monitor as well as to the user. Carefully go over the following WARNINGS before installation and keep this guide handy. -
Page 5: First Setup
First Setup Congratulation for purchasing this high performance monitor! This monitor includes the following accessories: Attached video Cable (15 pin D-SUB) Power Cable Audio Cable User Guide Book Quick Installation 1. Connect video cable Make sure both the monitor and computer are powered OFF. -
Page 6: Front Panel Control
Front Panel Control ACTIVATE/EXIT OSD SCROLL DOWN/DECREASE SCROLL UP/INCREASE Installation AC INLET VIDEO CABLE SELECT DESIRED FUNCTION POWER ON/OFF LED INDICATOR POWER AUDIO INPUT... -
Page 7: How To Install The Stand
(Fig 3) Put a piece of soft cloth on the table beforehand to prevent the monitor from being scratched. Then place the monitor flat on a table with front screen facing down (see Fig 1). Unpack the base and mount it onto the swivel neck, remember to align the holes to the hook located underneath the swivel neck (see Fig 2). -
Page 8: How To Uninstall The Stand
(Fig 1) (Fig 3) (Fig 5) 1. Put a piece of soft cloth on the table befor ehand to prevent the monitor from being scratched. Then place the monitor flat on a table with front screen facing down (see Fig 1). -
Page 9: Using Osd Functions
Using OSD Functions 1. Press the button to display the main menu shown below. 2. Press the ▲ or ▼ button to scroll to the desired menu option. 3. Press the button to select the menu option. 4. Press the ▲ or ▼ button to select submenu option. 5. - Page 10 To adjust the foreground white level of screen image. Contrast: 1. Press ▲ to increase the contrast. 2. Press ▼ to decrease the contrast. to adjust the background black level of screen image. Brightness: 1. Press ▲ to increase the brightness. 2.
- Page 11 brightness and color saturation. 9300K-- Adds blue to screen image for cooler white. 6500K-- Adds richer red to screen image for warmer white. 5400K-- Adds green to screen image for a darker color. Press button to select the preset color. Individual adjustments for red(R), green (G), blue (B).
- Page 12 card user guide for more information. Allows users to select and adjust the Horizontal /Vertical Image Adjust: position, H. Size, Fine Tune and Sharpness. 1. Press ▲ or ▼ to move the bar up or down to select the function. 2.
- Page 13 2. Press ▼ to decrease the width of the screen. To adjust the delay time. Fine Tune: 1. Press ▲ to increase the fine tune. 2. Press ▼ to decrease the fine tune. To adjusts the clarity on a non-SXGA (1280x1024) signal. Sharpness: 1.
- Page 14 1. Press ▲ or ▼ to move the bar up or down to select the function. 2. Press to confirm your selection. Allows the user to choose from available languages. Language Select: 1. Press ▲ or ▼ to move the bar up or down to select the language. 2.
- Page 15 Press the button to select the horizontal or vertical OSD Position: OSD position. Horizontal OSD Position will horizontally reposition all OSD screens. Press ▲ or ▼ to move the OSD Right or Left. Vertical OSD Position will vertically reposition all OSD screen. Press ▲...
-
Page 16: Supporting Timing Modes
VESA Warning: Do not set the graphic card in your computer to exceed these maximum refresh rates. Doing so may result in permanent damage to your monitor. 640 x 480 @ 60Hz 640 x 480 @ 67Hz 640 x 480 @75Hz... -
Page 17: Technical Information
Technical Information Technical Specification LCD Panel Power Management Displayable Resolution Pixel Dimension LCD Display Color Viewing Angle Tilt Contrast Ratio Brightness Response Time Active Display Area Temperature Compliance Power Speaker 17.0” TFT Energy Star compliant VESA DPMS compatible < 2 W SXGA 1280 x 1024 max. -
Page 18: Care And Maintenance
Power on but no screen image Make sure all signal cables are installed. Make sure the video cable supplied with the monitor is tightly secured to the video output port on back of the computer. If not, tightly secure it. - Page 19 If any colors (red, green, blue) are missing, check the video cable to make sure it is securely connected. Loose or broken pins in the cable connector could cause an improper connection. Connect the monitor to another computer to verify if it is monitor problem or computer problem.
- Page 20 Norcent Technology, Inc. 550 Cliffside Drive, San Dimas, CA91773 www.norcent.net info@norcent.net support@norcent.net Customer support 909-305-2121...
