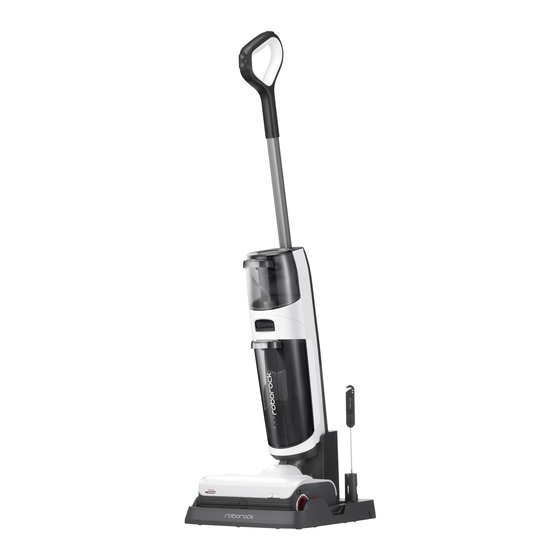

- Page 1 Roborock Dyad Pro Wet and Dry Vacuum Cleaner User Manual Read this manual carefully before using this product and store it properly for future reference.
- Page 2 English Contents 005 Safety Information 007 Product Introduction 008 Product Installation 009 Connecting to the App 010 Instructions for Use 015 Routine Maintenance 019 Basic Parameters 020 Common Issues 021 EU Declaration of Conformity 021 WEEE Information 021 Warranty Information...
-
Page 3: Safety Information
Safety Information Usage Restrictions • Do not use this vacuum outdoor or in any commercial or industrial environments. It is intended for home use only. • Do not store the vacuum anywhere in a car to avoid high or low temperatures affecting its battery life. •... -
Page 4: Battery And Charging
Safety Information Battery and Charging WARNING • Do not charge non-rechargeable batteries. • This product contains batteries that are only replaceable by skilled persons. • This product can only be charged using a YJS060P-3001900G, E060-1P300190VE or E060-1P300190VA power supply provided with the product. -
Page 5: Product Introduction
Product Introduction Vacuum Cleaner Accessories Self-Clean Press: Standard mode Body Press and hold for 2s: DEEP mode Change Mode Press: Switch to AUTO/MAX/ Tray Floor Drying/ECO mode Drying & Charging Dock Maintenance Brush Power Press: Start/Pause Press and hold for 2s: Switch off Press while charging: Start/Stop drying Handle LED Display... -
Page 6: Product Installation
Product Installation Setting Up the Vacuum Cleaner Charging Dock Installation 1. Insert the handle into the vacuum body until it clicks in place. 1. Align the charging dock tray with the charging dock body, press The power button should face forward. down, making sure they are firmly secured. -
Page 7: Connecting To The App
2. Reset WiFi. a. Keep the machine upright and press to light up the screen On the Roborock App, tap “+” on the home page, and add the and enter standby mode. device as instructed in the app. b. Press and hold until you hear the "Resetting WiFi"... -
Page 8: Adding Detergent
• The detergent cartridge requires refilling after about 20 tanks of clean water. • Remove the detergent cartridge if it is deemed unnecessary. Note: To avoid deforming the Clean Tank, only use cold water. • To prevent corrosion or damage, only use detergent recommended by Roborock. -
Page 9: Locking And Unlocking
Instructions for Use Locking and Unlocking Starting the Vacuum Cleaner Tap the side of the cleaning head without the detergent cartridge, Unlock the cleaning head, tilt the body and press the power and push the handle to lock the cleaning head or pull the handle button to start the vacuum cleaner. -
Page 10: Switching Modes
Instructions for Use Switching Modes Adjusting the Splash Guard Press the change mode button to switch to AUTO, MAX, Floor You can adjust the splash guard using the lift toggle. You can Drying or ECO mode. The screen will display the icon for the raise it to collect large pieces of waste on the floor and lower it current mode. - Page 11 Instructions for Use Adding and Emptying Water 3. Pour out the dirty water. If there is any solid dirt in the tank, filter it using the filter at the bottom of the cover. When the dirty tank is full or the clean tank is empty during use, the vacuum cleaner will provide audio and visual alerts.
- Page 12 Instructions for Use Charging and Self-Cleaning Drying 1. Lock the cleaning head, and place the vacuum cleaner onto Drying starts automatically after self-cleaning is completed. To the charging dock. The voice alert "Charging" indicates that the manually start or stop drying, press the power button on the vacuum cleaner is charging.
-
Page 13: Routine Maintenance
Routine Maintenance Product Maintenance To maintain optimal performance of the product, refer to the following table for routine maintenance. If this product is left unused for a prolonged period of time, fully charge it and unplug it before storing it in a cool and dry Maintenance Replacement Parts... -
Page 14: Cleaning The Rollers
Routine Maintenance Cleaning the Rollers 2. Take out the filter from dirty water tank cover and remove any trash attached to the filter. If the filter is dirty, rinse it with cold 1. Remove the vacuum cleaner from the charging dock, switch it water and then shake off the residual water. - Page 15 Routine Maintenance 5. Cut off any hair entangled on the rollers and remove any debris 7. To install the front rollers, marked red and blue, on the correct using the provided maintenance brush. sides of the head. Pinch them with both hands and align them with the front roller shaft.
- Page 16 Routine Maintenance Cleaning the Cleaning Head and Dirty Cleaning the Charging Dock Tray Water Pipe 1. Grasp the side handles of the tray and pull upward. 1. Remove the dirty tank and front and rear rollers. Switch off the vacuum cleaner and stabilize the body. 2.
-
Page 17: Basic Parameters
Basic Parameters Body Power Supply Model WD2H1A YJS060P-3001900G, Model E060-1P300190VE or Weight 4.8 kg E060-1P300190VA Rated power 260 W Rated input 100–240 V~ 50–60 Hz, 1.5 A Rated voltage Rated output 21.6 V 30 V 1.9 A Charging time < 4 hours 21.6 V/4000 mAh (TYP) Battery Lithium-ion battery... -
Page 18: Common Issues
There is a strange smell during use. • Clean the rollers, dirty tank, and filter. • Do not add detergent or disinfectants that are not recommended by Roborock to the clean tank, Cleaning creates a lot of bubbles. or spray such detergent or disinfectants on the floor. -
Page 19: Eu Declaration Of Conformity
EU Declaration of Conformity We Shenzhen Roborock Innovation Technology Co., Ltd., hereby, declares that this equipment is in compliance with the applicable Directives and European Norms, and amendments. The full text of the EU declaration of conformity is available at the following internet address: https://global.roborock.com/pages/compliance...
